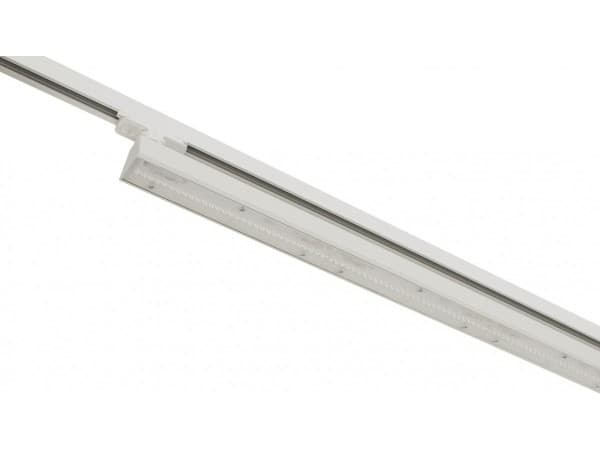

esviesa.lt | Spica LED IK02 IP20

Pavadinimas	Ilgis, mm	Plotis, mm	Aukštis, mm	Tarnavimo laikas, h	Šviesos srautas, lm	Galia, W	Efektyvumas, lm/W	CRI (Ra)	CCT, K	Svoris, kg
Spica LED1x1900 G546 T840 L30	574	59	70	100000/L80B10	1878	11.7	161	80+	4000	1.3
Spica LED1x2800 G547 T840 L30	574	59	70	100000/L80B10	2733	15.9	172	80+	4000	1.3
Spica LED1x3800 G548 T840 L30	574	59	70	100000/L80B10	3738	21.8	171	80+	4000	1.3
Spica LED1x2850 G549 T840 L30	856	59	70	100000/L80B10	2818	16.9	167	80+	4000	1.7
Spica LED1x4150 G550 T840 L30	856	59	70	100000/L80B10	4099	22.8	180	80+	4000	1.7
Spica LED1x5700 G551 T840 L30	856	59	70	100000/L80B10	5606	31.6	177	80+	4000	1.7
Spica LED1x3800 G552 T840 L30	1137	59	70	100000/L80B10	3757	21.8	172	80+	4000	2.1
Spica LED1x5550 G553 T840 L30	1137	59	70	100000/L80B10	5465	29.7	184	80+	4000	2.1
Spica LED1x7600 G554 T840 L30	1137	59	70	100000/L80B10	7475	41.2	181	80+	4000	2.1
Spica LED1x1900 G546 T840 L40x75	574	59	70	100000/L80B10	1878	11.7	161	80+	4000	1.3
Spica LED1x2800 G547 T840 L40x75	574	59	70	100000/L80B10	2733	15.9	172	80+	4000	1.3
Spica LED1x3800 G548 T840 L40x75	574	59	70	100000/L80B10	3738	21.8	171	80+	4000	1.3
Spica LED1x2850 G549 T840 L40x75	856	59	70	100000/L80B10	2818	16.9	167	80+	4000	1.7
Spica LED1x4150 G550 T840 L40x75	856	59	70	100000/L80B10	4099	22.8	180	80+	4000	1.7
Spica LED1x5700 G551 T840 L40x75	856	59	70	100000/L80B10	5606	31.6	177	80+	4000	1.7
Spica LED1x3800 G552 T840 L40x75	1137	59	70	100000/L80B10	3757	21.8	172	80+	4000	2.1
Spica LED1x5550 G553 T840 L40x75	1137	59	70	100000/L80B10	5465	29.7	184	80+	4000	2.1
Spica LED1x7600 G554 T840 L40x75	1137	59	70	100000/L80B10	7475	41.2	181	80+	4000	2.1
Spica LED1x1900 G546 T840 L75	574	59	70	100000/L80B10	1898	11.7	162	80+	4000	1.3
Spica LED1x2800 G547 T840 L75	574	59	70	100000/L80B10	2762	15.9	174	80+	4000	1.3
Spica LED1x3800 G548 T840 L75	574	59	70	100000/L80B10	3777	21.8	173	80+	4000	1.3
Spica LED1x2850 G549 T840 L75	856	59	70	100000/L80B10	2847	16.9	168	80+	4000	1.7
Spica LED1x4150 G550 T840 L75	856	59	70	100000/L80B10	4142	22.8	182	80+	4000	1.7
Spica LED1x5700 G551 T840 L75	856	59	70	100000/L80B10	5665	31.6	179	80+	4000	1.7
Spica LED1x3800 G552 T840 L75	1137	59	70	100000/L80B10	3796	21.8	174	80+	4000	2.1
Spica LED1x5550 G553 T840 L75	1137	59	70	100000/L80B10	5523	29.7	186	80+	4000	2.1
Spica LED1x7600 G554 T840 L75	1137	59	70	100000/L80B10	7554	41.2	183	80+	4000	2.1
Spica LED1x1900 G546 T840 L75W	574	59	70	100000/L80B10	1898	11.7	162	80+	4000	1.3
Spica LED1x2800 G547 T840 L75W	574	59	70	100000/L80B10	2762	15.9	174	80+	4000	1.3
Spica LED1x3800 G548 T840 L75W	574	59	70	100000/L80B10	3777	21.8	173	80+	4000	1.3
Spica LED1x2850 G549 T840 L75W	856	59	70	100000/L80B10	2847	16.9	168	80+	4000	1.7
Spica LED1x4150 G550 T840 L75W	856	59	70	100000/L80B10	4142	22.8	182	80+	4000	1.7
Spica LED1x5700 G551 T840 L75W	856	59	70	100000/L80B10	5665	31.6	179	80+	4000	1.7
Spica LED1x3800 G552 T840 L75W	1137	59	70	100000/L80B10	3796	21.8	174	80+	4000	2.1
Spica LED1x5550 G553 T840 L75W	1137	59	70	100000/L80B10	5523	29.7	186	80+	4000	2.1
Spica LED1x7600 G554 T840 L75W	1137	59	70	100000/L80B10	7554	41.2	183	80+	4000	2.1
Spica LED1x1900 G546 T840 L90W	574	59	70	100000/L80B10	1898	11.7	162	80+	4000	1.3
Spica LED1x2800 G547 T840 L90W	574	59	70	100000/L80B10	2762	15.9	174	80+	4000	1.3
Spica LED1x3800 G548 T840 L90W	574	59	70	100000/L80B10	3777	21.8	173	80+	4000	1.3
Spica LED1x2850 G549 T840 L90W	856	59	70	100000/L80B10	2847	16.9	168	80+	4000	1.7
Spica LED1x4150 G550 T840 L90W	856	59	70	100000/L80B10	4142	22.8	182	80+	4000	1.7
Spica LED1x5700 G551 T840 L90W	856	59	70	100000/L80B10	5665	31.6	179	80+	4000	1.7
Spica LED1x3800 G552 T840 L90W	1137	59	70	100000/L80B10	3796	21.8	174	80+	4000	2.1
Spica LED1x5550 G553 T840 L90W	1137	59	70	100000/L80B10	5523	29.7	186	80+	4000	2.1
Spica LED1x7600 G554 T840 L90W	1137	59	70	100000/L80B10	7554	41.2	183	80+	4000	2.1
Spica LED1x1900 G546 T840 L2A25	574	59	70	100000/L80B10	1898	11.7	162	80+	4000	1.3
Spica LED1x2800 G547 T840 L2A25	574	59	70	100000/L80B10	2762	15.9	174	80+	4000	1.3
Spica LED1x3800 G548 T840 L2A25	574	59	70	100000/L80B10	3777	21.8	173	80+	4000	1.3
Spica LED1x2850 G549 T840 L2A25	856	59	70	100000/L80B10	2847	16.9	168	80+	4000	1.7
Spica LED1x4150 G550 T840 L2A25	856	59	70	100000/L80B10	4142	22.8	182	80+	4000	1.7
Spica LED1x5700 G551 T840 L2A25	856	59	70	100000/L80B10	5665	31.6	179	80+	4000	1.7
Spica LED1x3800 G552 T840 L2A25	1137	59	70	100000/L80B10	3796	21.8	174	80+	4000	2.1
Spica LED1x5550 G553 T840 L2A25	1137	59	70	100000/L80B10	5523	29.7	186	80+	4000	2.1
Spica LED1x7600 G554 T840 L2A25	1137	59	70	100000/L80B10	7554	41.2	183	80+	4000	2.1
Spica LED1x1900 G546 T840 L1A18	574	59	70	100000/L80B10	1859	11.7	159	80+	4000	1.3
Spica LED1x2800 G547 T840 L1A18	574	59	70	100000/L80B10	2704	15.9	170	80+	4000	1.3
Spica LED1x3800 G548 T840 L1A18	574	59	70	100000/L80B10	3698	21.8	170	80+	4000	1.3
Spica LED1x2850 G549 T840 L1A18	856	59	70	100000/L80B10	2788	16.9	165	80+	4000	1.7
Spica LED1x4150 G550 T840 L1A18	856	59	70	100000/L80B10	4056	22.8	178	80+	4000	1.7
Spica LED1x5700 G551 T840 L1A18	856	59	70	100000/L80B10	5547	31.6	176	80+	4000	1.7
Spica LED1x3800 G552 T840 L1A18	1137	59	70	100000/L80B10	3717	21.8	171	80+	4000	2.1
Spica LED1x5550 G553 T840 L1A18	1137	59	70	100000/L80B10	5408	29.7	182	80+	4000	2.1
Spica LED1x7600 G554 T840 L1A18	1137	59	70	100000/L80B10	7396	41.2	180	80+	4000	2.1

Pastaba – modeliams G546, G549, G552 – šviečia tik kas antras šviesos diodas

Papildomos galimybės:
T830 – Spalvos temperatūra 3000 K, CRI 80+
T840 – Spalvos temperatūra 4000 K, CRI 80+
L30 – Optika su 30° spinduliu
L40x75 – Optika su 40×75° spinduliu
L75 – Optika su 75° spinduliu
L75W – Optika su 75° spinduliu, plataus spindulio
L90W – Optika su 90° spinduliu, plataus spindulio
L1A18 – Optika su asimetriniu spinduliu
L2A25 – Optika su dvigubu asimetriniu spinduliu
DALI – Valdiklis su DALI sąsaja
*pastaba – minimalus pritemdymo lygis: G546, G549 – 1 %. Kitiems modeliams – 10 %
*pastaba – šio modelio DALI parinktis nesuderinama su jungiklio valdymo pritemdymo funkcija
BLT – Integruotas belaidis valdymo blokas ir valdiklis apšvietimui valdyti mobiliuoju įrenginiu (per „Bluetooth“), su integruotu PS
KRBLT – Integruotas belaidis valdymo blokas ir valdiklis apšvietimui valdyti mobiliuoju įrenginiu (KR sistemos programėlė), įjungimas / išjungimas
KRBLT DALI – Integruotas belaidis valdymo blokas ir valdiklis apšvietimui valdyti mobiliuoju įrenginiu (KR sistemos programėlė), DALI su integruotu PS
RAL7035 – Šviesiai pilkos spalvos korpusas ir adapteris
RAL9005 – Juodos spalvos korpusas ir adapteris
RAL – Dažymas pasirenkama RAL spalva
*pastaba – standartinės bėgelių ir adapterių RAL spalvos: RAL9010, RAL9005, RAL7035
