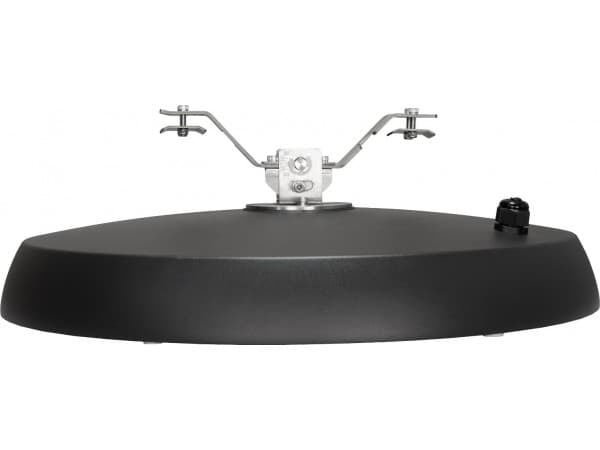

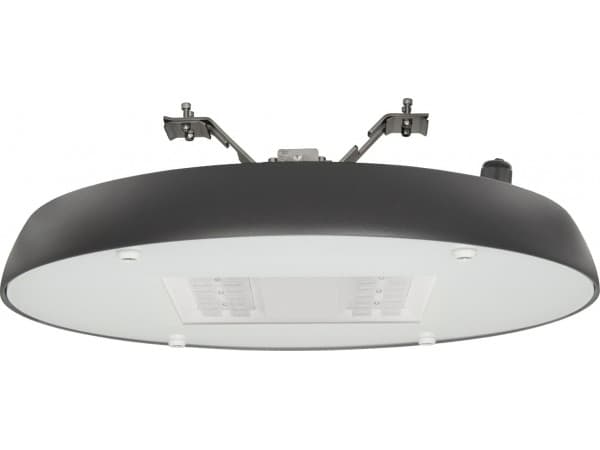

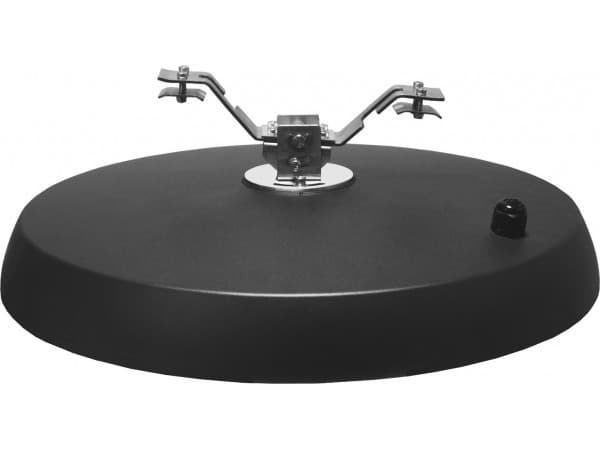

esviesa.lt | Alkes B LED IK08 IP66

LED street luminaire

More information:

Type:

Suspended LED street luminaire

Specification:

Suspended LED street luminaire
Light distribution type: direct
Optical system: lenses, tempered glass diffuser, impact resistant
Housing: aluminium
Colour: black grey, RAL7021
Mains voltage: 220-240V, 0/50-60Hz
LED lifetime, h: 100000/L90B10
SDCM: 5
Protection class IEC: I
Ingress protection code: IP66
Mechanical impact resistance: IK08
Operating temperature range, °C: -40...+40
Push-in terminal, 3x2x2.5 mm²

Installation:

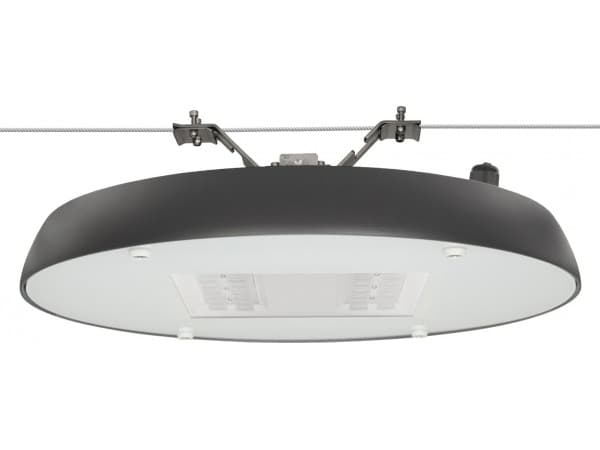

With special bracket on Ø12 mm horizontal line. Adjustable installation angles: on vertical plane: +/- 30 degrees, on horizontal plane: +/- 30 degrees

Application:

Outdoor. Parking area, public space, street

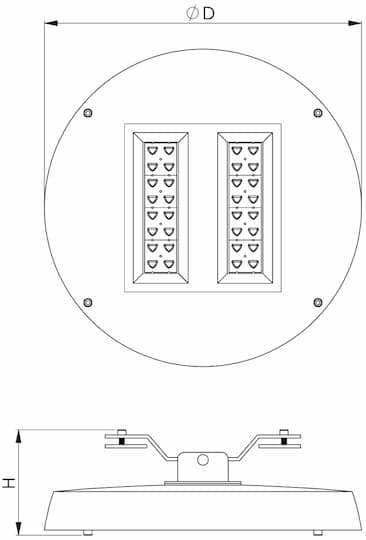

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Alkes B LED1x5850 J462 T740 LS140	490	490	130	100000/L90B10	5820	36.2	161	70+	4000	8.3
Alkes B LED1x7950 J463 T740 LS140	490	490	130	100000/L90B10	7923	51.0	155	70+	4000	8.3
Alkes B LED1x9900 J464 T740 LS140	490	490	130	100000/L90B10	9891	67.2	147	70+	4000	8.3
Alkes B LED1x11300 J465 T740 LS140	490	490	130	100000/L90B10	11255	78.4	144	70+	4000	8.3

Available options:
T730 – Colour temperature 3000K, CRI 70+
T740 – Colour temperature 4000K, CRI 70+
ADIM – Driver with autonomous two-level dimming
DALI – Driver with DALI interface
LS90 – Optics with 90×90° beam angle
II – Electric Shock protection class II
CBF3x1.5-N m – Outgoing flexible cable 3×1.5 mm², length according to customer specification
CBF5x1.5-N m – Outgoing flexible cable 5×1.5 mm², length according to customer specification
*note – please specify the length of outgoing cable before placing an order
RAL – RAL colour
