esviesa.lt | Gilbert IP20

Suspension, table and ceiling lamps in blown opal glass. Panzeri

More information:

Type:

Suspension, table and ceiling lamps in blown opal glass.

Specification:

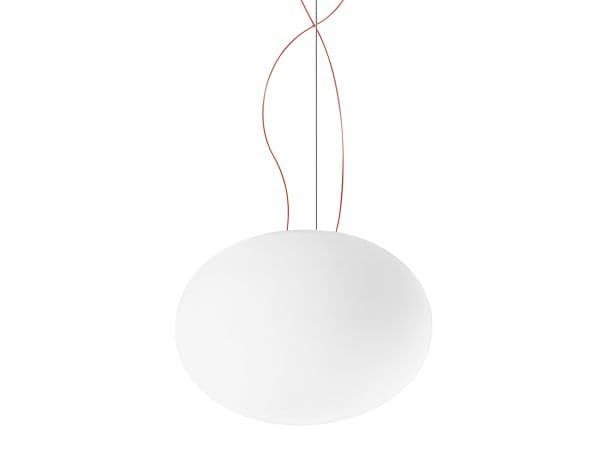

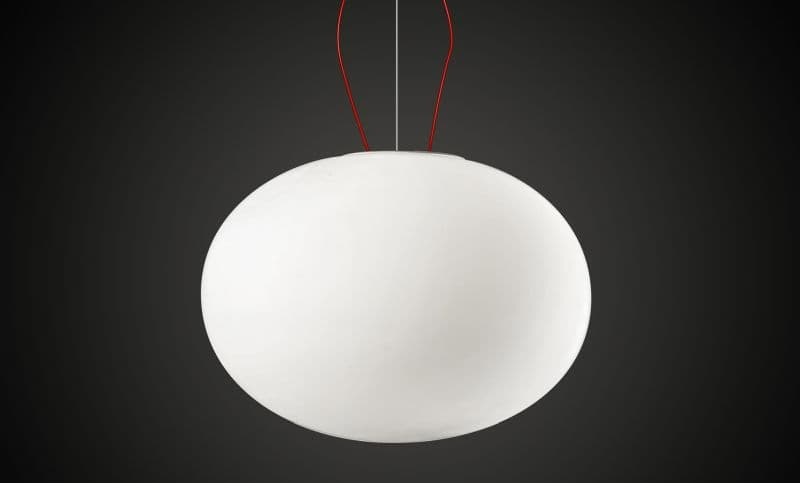

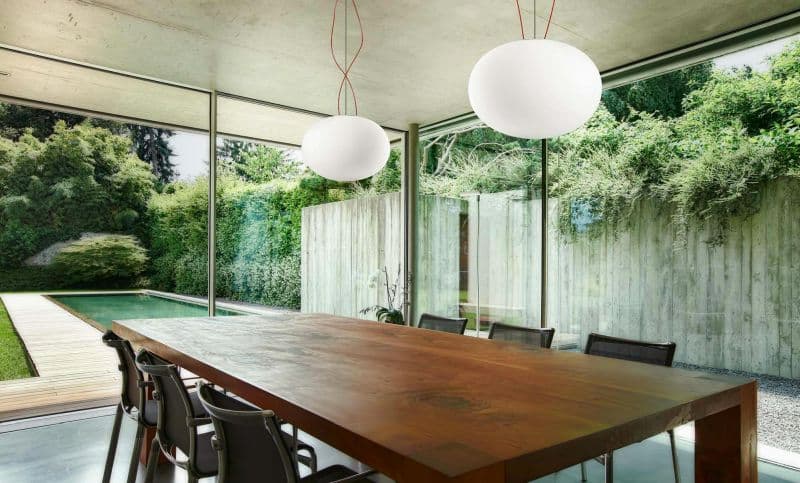

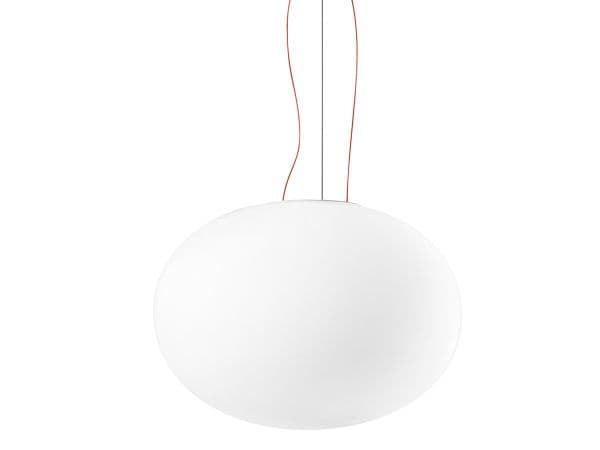

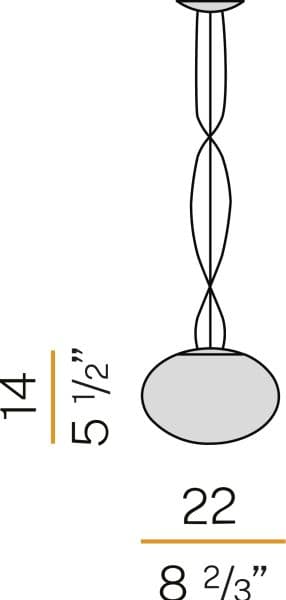

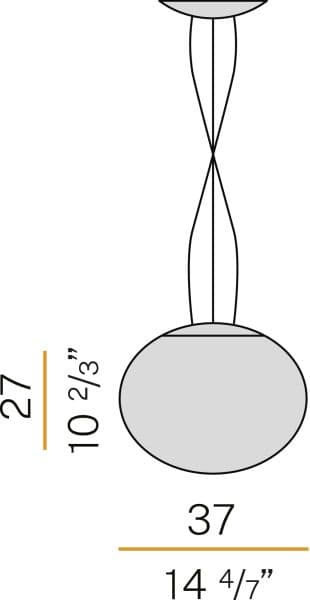

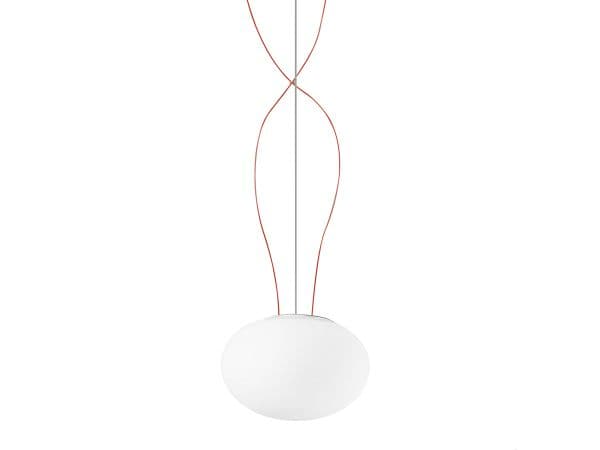

Suspension lighting fixture for interiors, with direct and indirect light emission.
Pressed pickled sheet metal structure in matt white polyacrylic paint.
Aluminium dissipation plate.
Diffuser in matt white blown glass.
2m (78,7") long steel suspension cable.
2m (78,7") long double power cable in red Teflon.
Power canopy with galvanized sheet metal ceiling bracket and pickled sheet metal covering in matt white polyacrylic paint.

Table lighting fixture for interiors, with direct and indirect light emission.
Turned pickled sheet metal bearing base in matt white polyacrylic paint.
Aluminium dissipation plate.
Diffuser in matt white blown glass.
Equipped with a 1,3m (51,2") long power cable in transparent PVC with plug and switch.

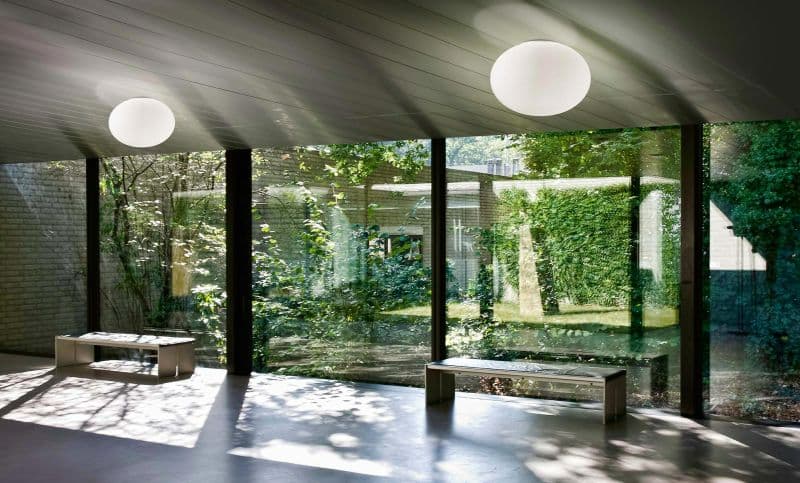

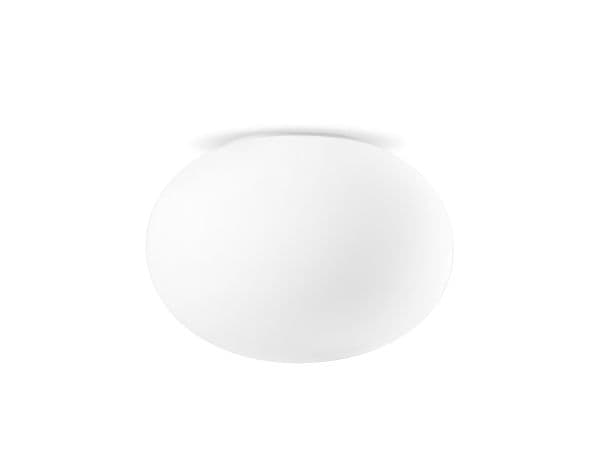

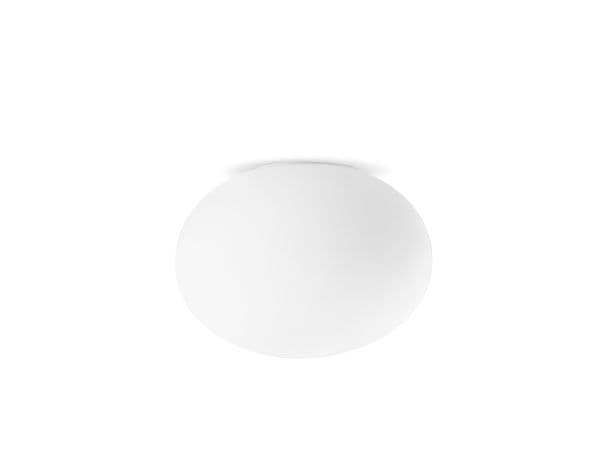

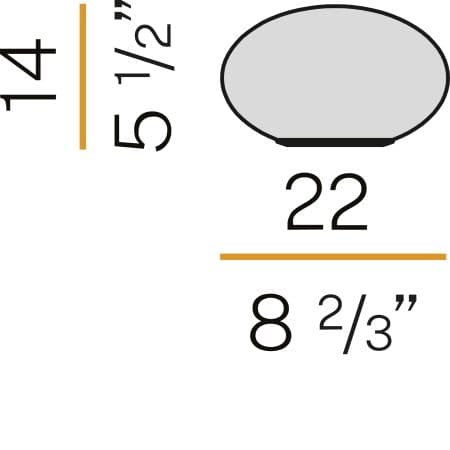

Ceiling lighting fixture for interiors, with direct and indirect light emission.
Galvanized sheet metal ceiling bracket.
Turned pickled sheet metal structure in matt white polyacrylic paint.
Wall plate with lever-closing mechanism in pressed pickled sheet metal in matt white powder paint.
Extruded aluminium heat sink.
Diffuser in matt white blown glass.

Installation:

Suspensions, ceiling, table, floor.

Application:

For halls, living, and public spaces.

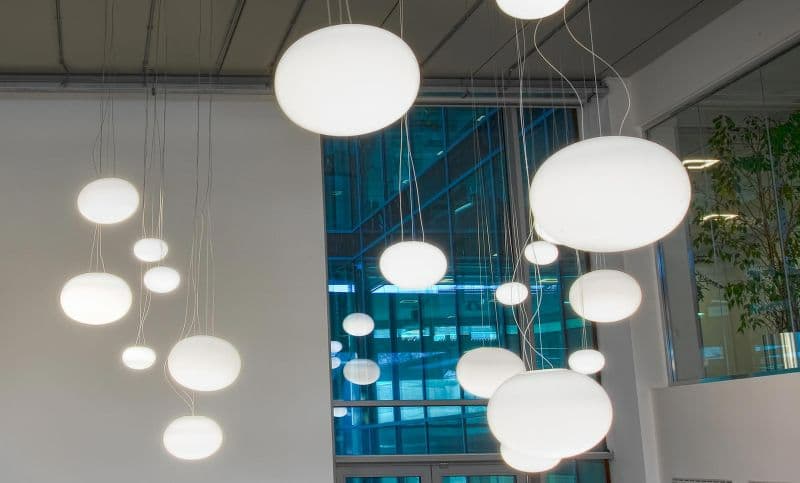

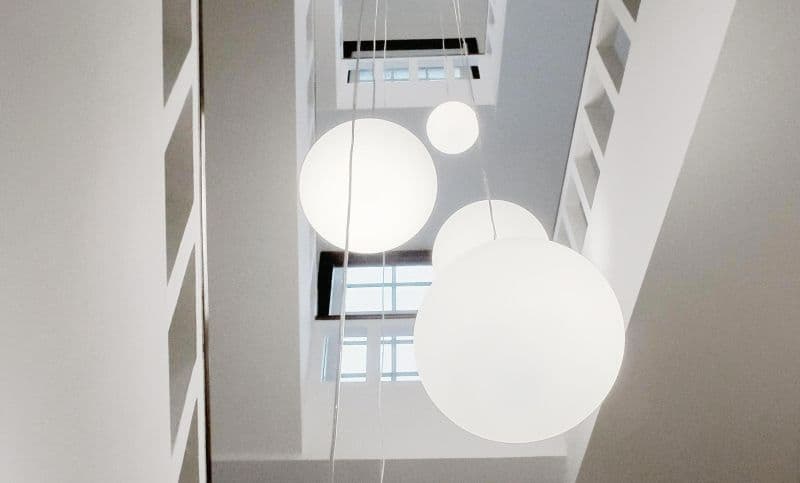

The craftsmanship of the blown globe in satin opal glass makes every Gilbert unique. Single suspensions and multiple installations spread soft light, recreating exciting dreamlike atmospheres. It is available in suspension, table and ceiling versions and comes in three different sizes with LED, E27 or G9 lighting source.

Code

System power consumption

Efficacy

Light source

Light source lifetime

Colour temperature

Light distribution

Power supply

Frequency

Electrical configuration

Driver

Nominal luminous flux

Lumen output

Efficiency

Weight

Protection degree

Colour tollerances

C06501.022.0401

11W

62.91lm/W

LED

L80 (B20) 60.000h

3000K Ra>90

diffused

220-240V AC

50/60Hz

ON-OFF

integrated included

861lm

692lm

80.40%

0,74 kg

IP40

SDCM 3

L06501.022.0401

11W

84.45lm/W

LED

L90 (B10) 50.000h

3000K Ra>90

diffused

220-240V AC

50/60Hz

ON-OFF

integrated included

1157lm

929lm

80.30%

1,13 kg

IP20

SDCM 3

L06501.037.0402

27W

93.52lm/W

LED

L90 (B10) 50.000h

3000K Ra>90

diffused

220-240V AC

50/60Hz

dimmable (DALI/Push DIM)

integrated included

3157lm

2525lm

80%

3,80 kg

IP20

SDCM 3

L06501.045.0402

27W

93.52lm/W

LED

L90 (B10) 50.000h

3000K Ra>90

diffused

220-240V AC

50/60Hz

dimmable (DALI/Push DIM)

integrated included

3157lm

2525lm

80%

4,70 kg

IP20

SDCM 3

P06501.037.0402

20W

92lm/W

LED

L90 (B10) 50.000h

3000K Ra>90

diffused

220-240V AC

50/60Hz

dimmable (DALI/Push DIM)

integrated included

2301lm

1840lm

80%

3,40 kg

IP20

SDCM 3

P06501.045.0402

20W

92lm/W

LED

L90 (B10) 50.000h

3000K Ra>90

diffused

220-240V AC

50/60Hz

dimmable (DALI/Push DIM)

integrated included

2301lm

1840lm

80%

5,12 kg

IP20

SDCM 3

Code	System power consumption	Light source	Light source kit	Compatible sources	Light distribution	Power supply	Frequency	Weight	Protection degree
L06501.022.0000	max 60W	LED retrofit / halogen	not included	LED retrofit bulb G9 (L max 60mm – Ø max 17,5mm) / max 60W G9	diffused	220-240V AC	50/60Hz	1,20 kg	IP20
L06501.037.0000	max 150W	LED retrofit / halogen	not included	LED retrofit bulb E27 (L max 140mm – Ø max 65mm) / max 150W E27	diffused	220-240V AC	50/60Hz	3,80 kg	IP20
L06501.045.0000	max 150W	LED retrofit / halogen	not included	LED retrofit bulb E27 (L max 140mm – Ø max 65mm) / max 150W E27	diffused	220-240V AC	50/60Hz	5,30 kg	IP20
P06501.037.0000	max 150W	LED retrofit / halogen	not included	LED retrofit bulb E27 (L max 100mm – Ø max 55mm) / max 150W E27	diffused	220-240V AC	50/60Hz	3,40 kg	IP20
P06501.045.0000	max 150W	LED retrofit / halogen	not included	LED retrofit bulb E27 (L max 100mm – Ø max 55mm) / max 150W E27	diffused	220-240V AC	50/60Hz	5,12 kg	IP20
