esviesa.lt | Nord LED IK10 IP66

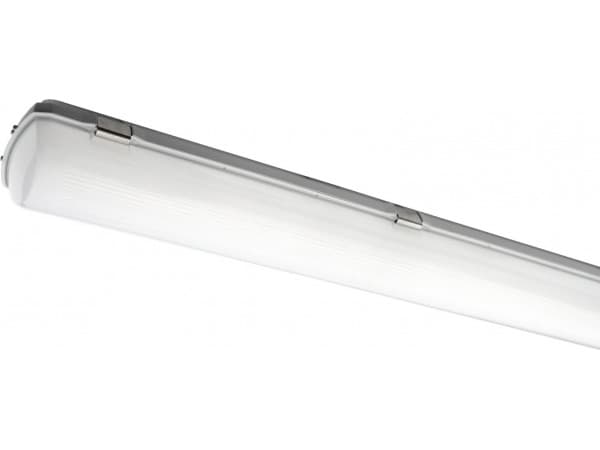

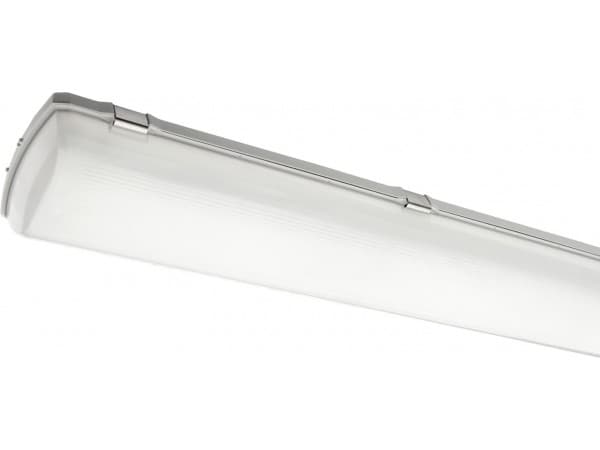

A waterproof LED luminaire

More information:

Type:

Surface mounted waterproof LED luminaire for use in extreme temperature -40 to +50 °C environments

Specification:

Surface mounted waterproof LED luminaire for use in extreme temperature -40 to +50 °C environments
Light distribution type: direct
Optical system: opal polycarbonate diffuser, UV stable, impact resistant
Housing: polycarbonate
Colour: light grey
Mains voltage: 220-240V, 0/50-60Hz
LED lifetime, h: 100000/L80B10
SDCM: 3
Protection class IEC: I
Ingress protection code: IP66
Mechanical impact resistance: IK10
Protection symbol: D
Glow wire test, °C: 850
Operating temperature range, °C: -40…+50
Push-in terminal, 5x2x2.5 mm²

Installation:

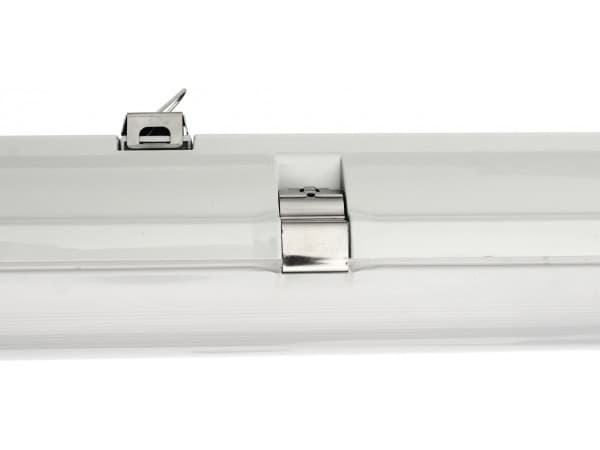

On the ceiling or wall (mounting brackets included), or suspended (hooks included)

Application:

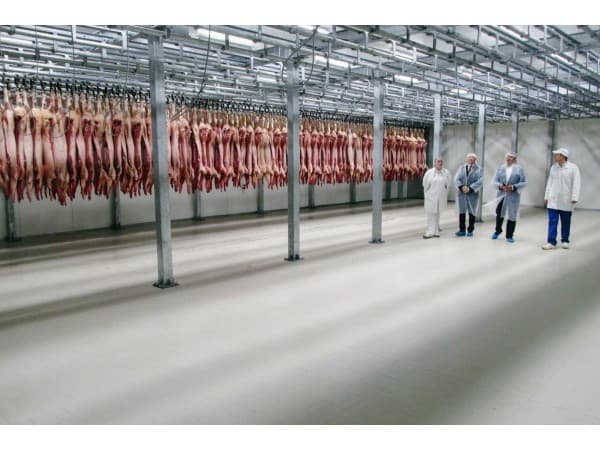

Indoor. Dust and moisture proof luminaire, ideal for use in industry, cold stores, heating plants, glass factories, warehouses and many other commercial applications

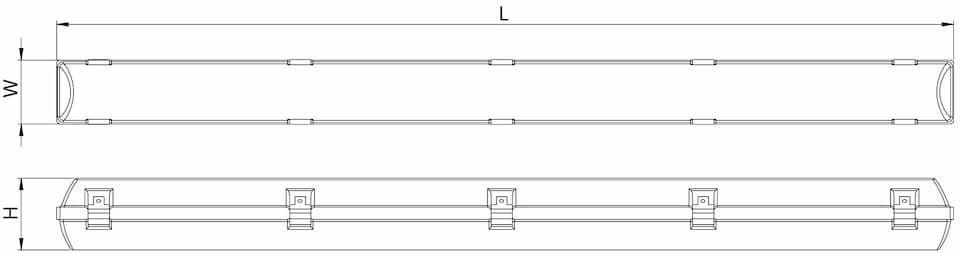

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Nord LED1x4600 G473 T840 OP LT80 IC ta-40+50C	1272	96	111	100000/L80B10	4559	26.8	170	80+	4000	2.1
Nord LED1x5700 G474 T840 OP LT80 IC ta-40+50C	1272	96	111	100000/L80B10	5665	34.4	165	80+	4000	2.1
Nord LED1x6800 G475 T840 OP LT80 IC ta-40+50C	1272	96	111	100000/L80B10	6769	39.6	171	80+	4000	2.1
Nord LED2x4600 G476 T840 OP LT80 IC ta-40+50C	1272	146	111	100000/L80B10	9118	52.5	174	80+	4000	2.8
Nord LED1x4250 G477 T840 OP LT80 IC ta-40+50C	1572	96	111	100000/L80B10	4205	24.1	174	80+	4000	2.6
Nord LED1x5200 G478 T840 OP LT80 IC ta-40+50C	1572	96	111	100000/L80B10	5178	30.4	170	80+	4000	2.6
Nord LED1x7150 G479 T840 OP LT80 IC ta-40+50C	1572	96	111	100000/L80B10	7082	42.6	166	80+	4000	2.6
Nord LED1x8500 G480 T840 OP LT80 IC ta-40+50C	1572	96	111	100000/L80B10	8461	49.0	173	80+	4000	2.6
Nord LED2x5200 G481 T840 OP LT80 IC ta-40+50C	1572	146	111	100000/L80B10	10356	58.7	176	80+	4000	3.3

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
OP LT80 – Opal diffuser with high light transmittance
DALI – Driver with DALI interface and switch-control dimming
*note – for DALI LIN option wires are 2×0.5 mm²
COR – Driver with Corridor function (never off)
COR1min – Driver with Corridor function 1 min (switch off after 1 min)
COR30min – Driver with Corridor function 30 min (switch off after 30 min)
1LIN – Through wiring 3×1.5 mm² with two push-in terminal blocks
3LIN – Through wiring 5×1.5 mm² with two push-in terminal blocks
1LIN2.5 – Through wiring 3×2.5 mm² with two push-in terminal blocks
3LIN2.5 – Through wiring 5×2.5 mm² with two push-in terminal blocks
2G – Strain relief for power supply cable, 2 pcs
