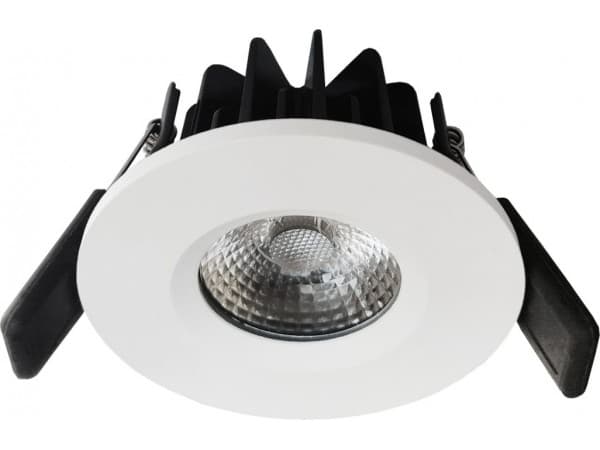

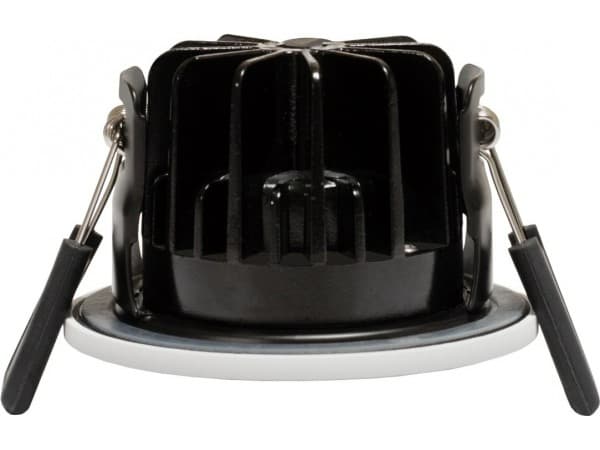

Ain C LED IK04 IP65 UGR

Recessed LED downlight

Choose:

Quantity:

€

^* Price excl. VAT

More information:

Type:

Recessed mounted LED downlight

Specification:

Recessed mounted LED downlight
Light distribution type: direct
Optical system: lens, 40°
Housing: die cast aluminium
Colour: white, RAL9003
Fire rated 30, 60 and 90 min
Mains voltage: 220-240V, 50-60Hz
LED lifetime, h: 40000/L70B50
SDCM: 5
Protection class IEC: II
Ingress protection code: IP65
Mechanical impact resistance: IK04
Operating temperature range, °C: -10…+40
Push-in terminal, 2x1x1 mm²

Installation:

In ceilings with cut-out openings (mounting brackets included)

Application:

Indoor. Retail, office, public place, corridor, showroom, hotel, bathroom, exhibition, education

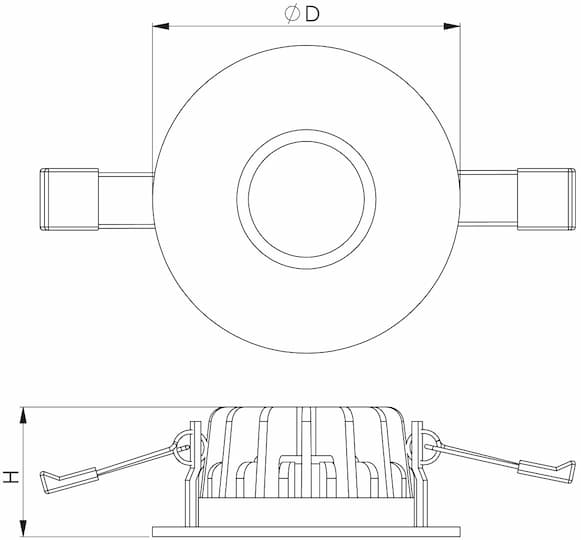

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg	UGR index
Ain C LED1x700 G681 T830	84	84	53	40000/L70B50	800	8.5	94	80+	3000	0.3	≤16
Ain C LED1x700 G681 T840	84	84	53	40000/L70B50	850	8.5	100	80+	4000	0.3	≤16

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
DALI – Driver with DALI interface and switch-control dimming
TDIM – Driver with trailing-edge and leading-edge dimming
RAL – RAL colour
