esviesa.lt | Zoom A LED IK02 IP20

Track mounted adjustable beam LED luminaire

More information:

Type:

Track mounted adjustable beam LED luminaire designed for the accent lighting

Specification:

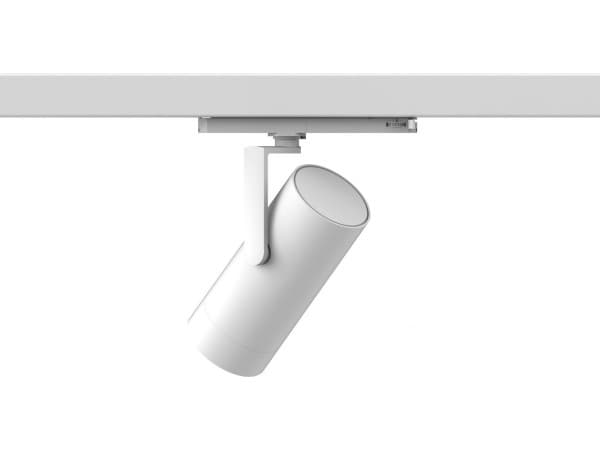

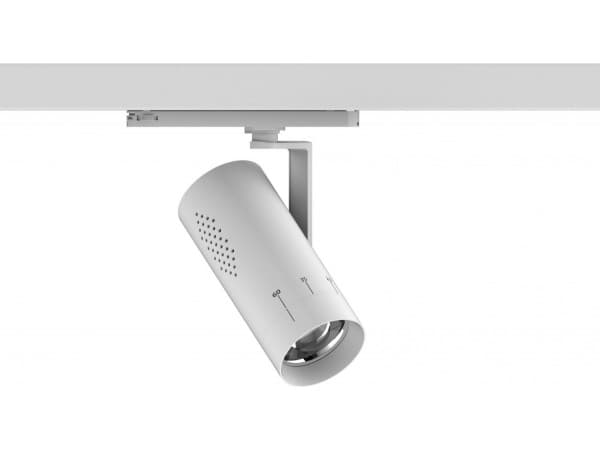

Track mounted adjustable beam LED luminaire
Light distribution type: direct
Optical system: adjustable faceted reflector, 20-60°
Housing: aluminium

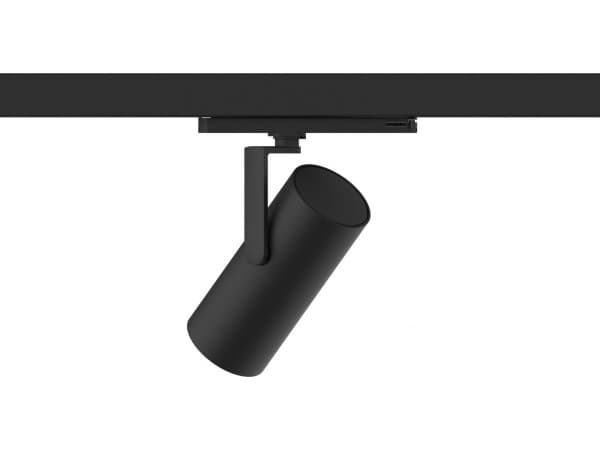

Colour: white, RAL9016; black, RAL9017
Mains voltage: 220-240V, 0/50-60Hz
LED lifetime, h: 50000-60000/L80B10
SDCM: 3
Protection class IEC: II
Ingress protection code: IP20
Mechanical impact resistance: IK02
Operating temperature range, °C: 0…+35
Track adaptor (3-phase + N) with phase selector

Installation:

In 3-phase track

Application:

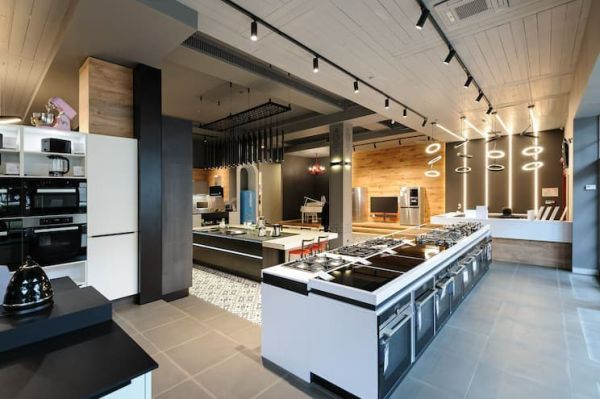

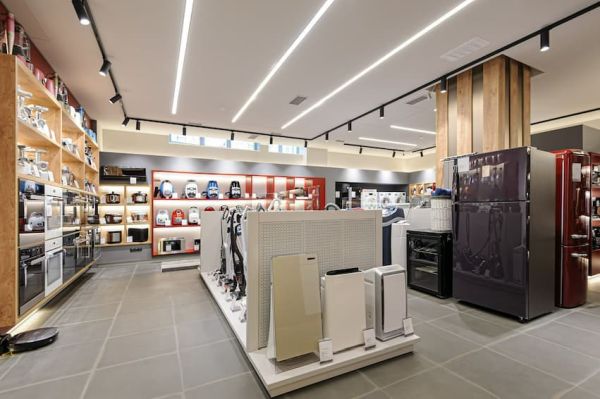

Indoor. Retail, showroom, museum, exhibition, public place

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Zoom A LED1x1950 J440 T840 R20-60	235	83	190	60000/L80B10	1946	13.5	144	80+	4000	1.1
Zoom A LED1x2600 J441 T840 R20-60	235	83	190	60000/L80B10	2644	18.7	141	80+	4000	1.1
Zoom A LED1x3400 J442 T840 R20-60	235	83	190	60000/L80B10	3559	26.5	134	80+	4000	1.1
Zoom A LED1x4300 J443 T840 R20-60	235	83	190	60000/L80B10	4464	34.0	131	80+	4000	1.1
Zoom A LED1x1950 J440 T940 R20-60	235	83	190	50000/L80B10	1644	13.3	124	90+	4000	1.1
Zoom A LED1x2600 J441 T940 R20-60	235	83	190	50000/L80B10	2254	18.2	124	90+	4000	1.1
Zoom A LED1x3400 J442 T940 R20-60	235	83	190	50000/L80B10	3062	25.8	119	90+	4000	1.1
Zoom A LED1x4300 J443 T940 R20-60	235	83	190	50000/L80B10	3799	34.0	112	90+	4000	1.1
Zoom A LED1x1950 J440 T840 R20-60 RAL9017	235	83	190	60000/L80B10	1946	13.5	144	80+	4000	1.1
Zoom A LED1x2600 J441 T840 R20-60 RAL9017	235	83	190	60000/L80B10	2644	18.7	141	80+	4000	1.1
Zoom A LED1x3400 J442 T840 R20-60 RAL9017	235	83	190	60000/L80B10	3559	26.5	134	80+	4000	1.1
Zoom A LED1x4300 J443 T840 R20-60 RAL9017	235	83	190	60000/L80B10	4464	34.0	131	80+	4000	1.1
Zoom A LED1x1950 J440 T940 R20-60 RAL9017	235	83	190	50000/L80B10	1644	13.3	124	90+	4000	1.1
Zoom A LED1x2600 J441 T940 R20-60 RAL9017	235	83	190	50000/L80B10	2254	18.2	124	90+	4000	1.1
Zoom A LED1x3400 J442 T940 R20-60 RAL9017	235	83	190	50000/L80B10	3062	25.8	119	90+	4000	1.1
Zoom A LED1x4300 J443 T940 R20-60 RAL9017	235	83	190	50000/L80B10	3799	34.0	112	90+	4000	1.1

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
T930 – Colour temperature 3000K, CRI 90+
T930 – Colour temperature 4000K, CRI 90+
T825 BREAD – Special spectrum for bread 2500K, CRI 80+
T820 MEAT – Special spectrum for meat 2000K “pink”, CRI 80+
T831 MEAT&WHITE – Special spectrum for meat products with increased white colour contrast 3100K “pink”, CRI 80+
T930 VEGETABLES – Special spectrum for colourful products. Fruits, fashion 3000K, CRI 90+
T932 FASHION – Special spectrum for fashion 3200K, CRI 90+
T931 FASHION&WHITE – Special spectrum for fashion with dominant white colour 3100K, CRI 90+
T927 NATURAL – Colour temperature 2700K, CRI 95+ NATURAL
T930 NATURAL – Colour temperature 3000K, CRI 95+ NATURAL
T940 NATURAL – Colour temperature 4000K, CRI 95+ NATURAL
DALI – Driver with DALI interface
*note – Stucchi tracks are not compatible with switch-control dimming
BLT – Integrated wireless control track driver for lighting control via mobile device (via Bluetooth)
KRBLT – Integrated wireless control track driver for lighting control via mobile device (KR system app)
ROTARY DIM – Integrated rotary switch device and driver with 0-10 V control dimming
*note – Rotary DIM option not applicable for model: J447
