esviesa.lt | Auriga P LED IK04 IP44

Recessed LED downlight

More information:

Type:

Recessed mounted LED downlight

Specification:

Recessed mounted LED downlight
Light distribution type: direct

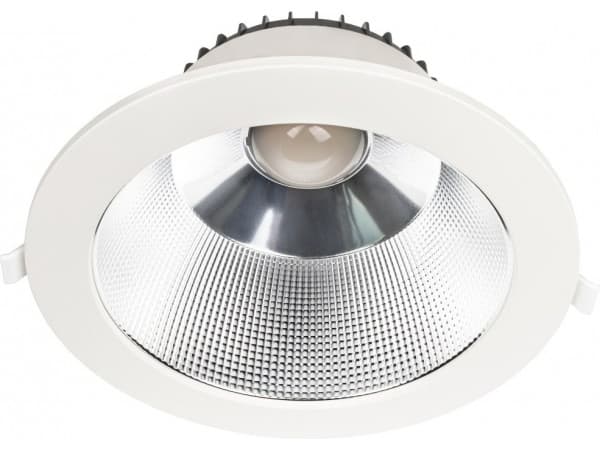

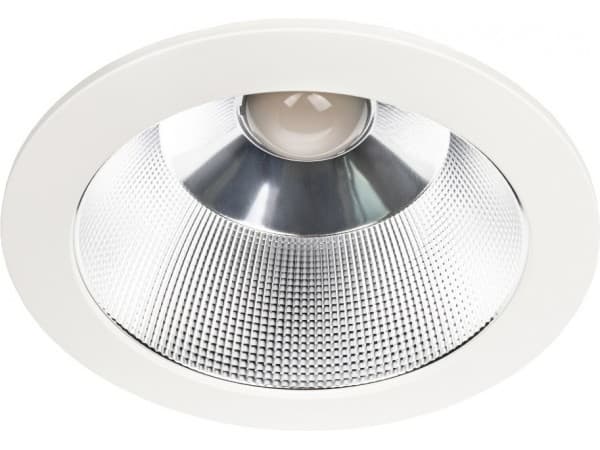

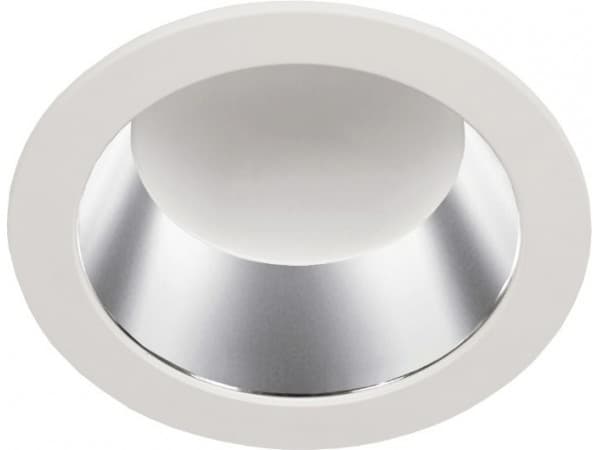

Optical system: faceted aluminium reflector, 60° / matt aluminium reflector, 80°, opal PMMA diffuser, low glare
Housing: aluminium
Colour: white, RAL9016
Mains voltage: 220-240V, 50-60Hz
LED lifetime, h: 50000/L80B10
SDCM: 5
Protection class IEC: II
Ingress protection code: IP44
Mechanical impact resistance: IK04
Operating temperature range, °C: 0…+35
Push-in terminal, 2x1x1.5 mm²

Installation:

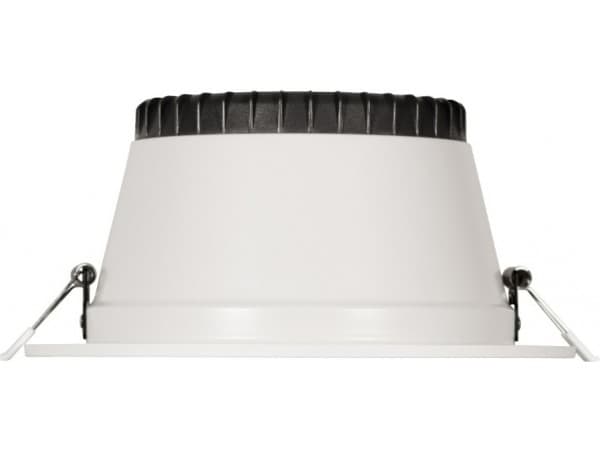

In ceilings with cut-out openings (mounting brackets included)

Application:

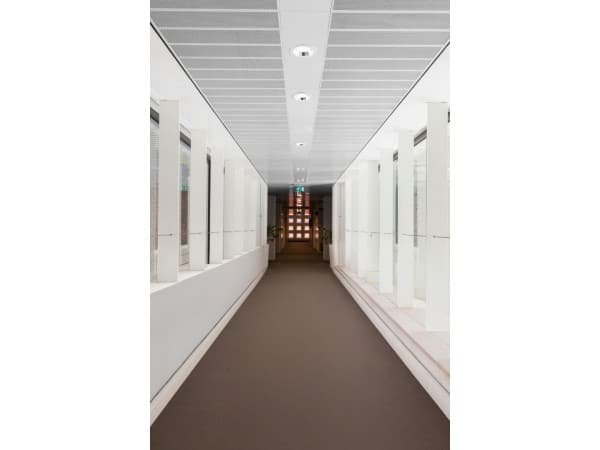

Indoor. Retail, office, public place, corridor, showroom, hotel, bathroom, exhibition, education

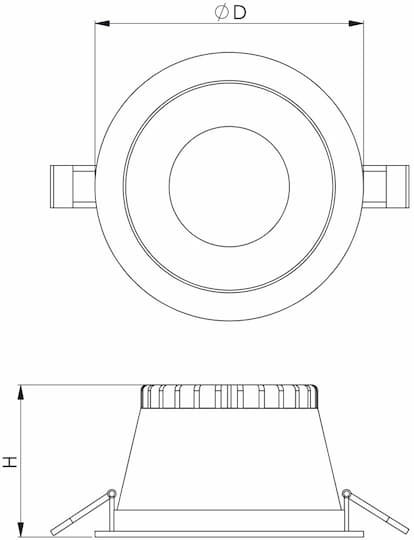

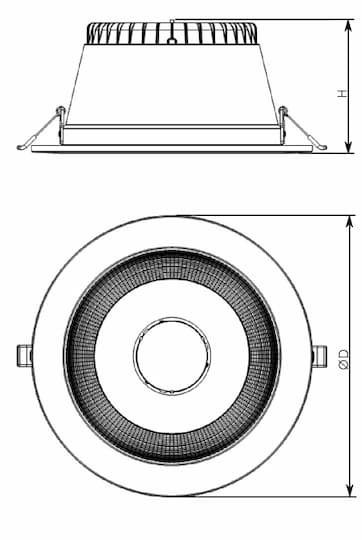

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Auriga P LED1x950 J721 T830/40/57 R60	114	114	66	74000/L80B50	850/950/900	10.0	85/95/90	80+	3000/4000/5700	0.3
Auriga P LED1x1900 G986 T830/40/57 R60	174	174	87	74000/L80B50	1700/1900/1800	20.0	85/95/90	80+	3000/4000/5700	0.4
Auriga P LED1x2550 G987 T830/40/57 R60	232	232	110	74000/L80B50	2380/2660/2520	28.0	85/95/90	80+	3000/4000/5700	0.7
Auriga P LED1x3350 J722 T830/40/57 R60	232	232	110	74000/L80B50	2975/3325/3150	35.0	85/95/90	80+	3000/4000/5700	0.7

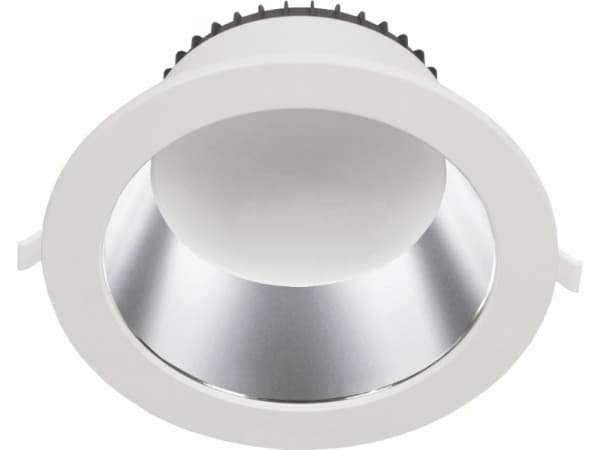

Auriga P LED1x1100 J723 T830/40/57 R80	114	114	66	74000/L80B50	1000/1100/1050	10.0	100/110/105	80+	3000/4000/5700	0.3
Auriga P LED1x2400 G986 T830/40/57 R80	174	174	87	74000/L80B50	2100/2400/2300	20.0	105/120/115	80+	3000/4000/5700	0.4
Auriga P LED1x3350 G987 T830/40/57 R80	232	232	110	74000/L80B50	2800/3320/3080	27.9	100/119/110	80+	3000/4000/5700	0.7
Auriga P LED1x4050 J724 T830/40/57 R80	232	232	110	74000/L80B50	3500/4025/3850	35.0	100/115/110	80+	3000/4000/5700	0.7

Available options:
DALI – Driver with DALI interface and switch-control dimming
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
WIE3-0.5m – 3-pole “Wieland – gesis classic” type or compatible connector with 0.5 m cable
WIE5D-0.5m – 5-pole DALI “Wieland – gesis classic” type or compatible connector with 0.5 m cable
QBX2-0.1m – 2-pole quick connection box on 0.1 m cable, Push-in terminal, 2x2x2.5 mm²
Europlug-1.5m – 2-pole “Europlug” type plug with 2×1.0 mm² 1.5 m cable
Europlug-3.0m – 2-pole “Europlug” type plug with 2×1.0 mm² 3.0 m cable
RND BLACK – Round luminaire frame in black, with dropped down glass cover
SQ WHITE – Square luminaire frame in white
SQ BLACK – Square luminaire frame in black
GLASS WHITE – Round luminaire frame in white, with dropped down glass cover
GLASS BLACK – Round luminaire frame in black, with dropped down glass cover

Accessories:

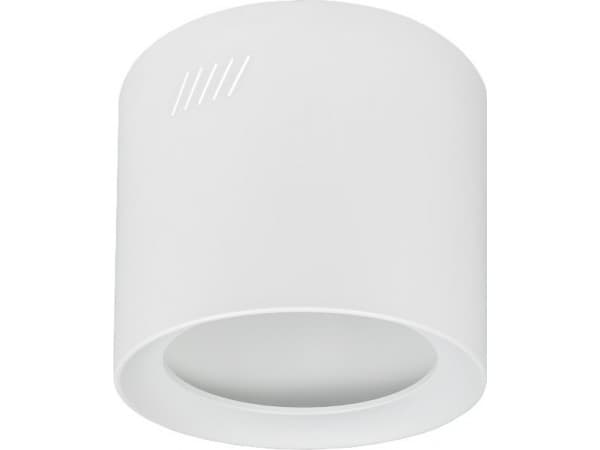

Surface MTG BOX Auriga P LED 20W G986 white – Surface mounting box for Auriga P LED, white steel, 182x182x155 mm*
Surface MTG BOX Auriga P LED 28W G987 white – Surface mounting box for Auriga P LED, white steel, 240x240x180 mm*

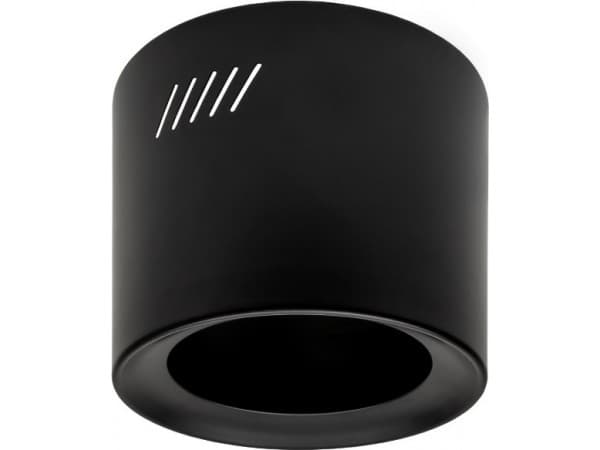

Surface MTG BOX Auriga P LED 20W G986 black – Surface mounting box for Auriga P LED, black steel, 182x182x155 mm*
Surface MTG BOX Auriga P LED 28W G987 black – Surface mounting box for Auriga P LED, black steel, 240x240x180 mm*
*note – luminaire with surface mounting box, protection degree is IP20
