esviesa.lt | Hermetic C LED IK05 IP65

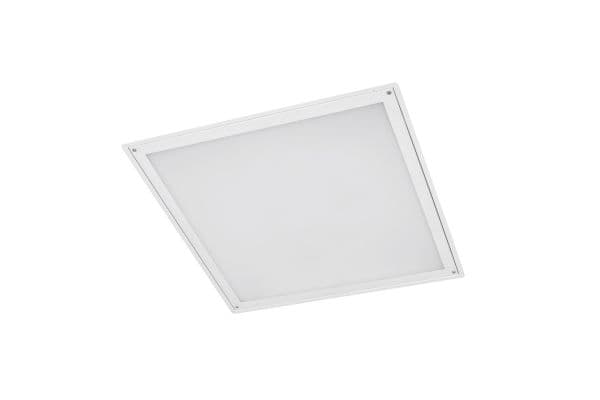

Recessed mounted cleanroom LED luminaire

More information:

Type:

Recessed mounted cleanroom LED luminaire, maintained from above the ceiling

Specification:

Recessed mounted cleanroom LED luminaire, maintained from above the ceiling
Light distribution type: direct
Optical system: opal acrylic diffuser, high chemical resistance
Housing: steel
Colour: white, RAL9003
Mains voltage: 220-240V, 0/50-60Hz
LED lifetime, h: 100000/L80B10
SDCM: 3
Protection class IEC: I
Ingress protection code: IP65
Mechanical impact resistance: IK05
Operating temperature range, °C: -10...+35
Push-in terminal, 3x2x2.5 mm²

Installation:

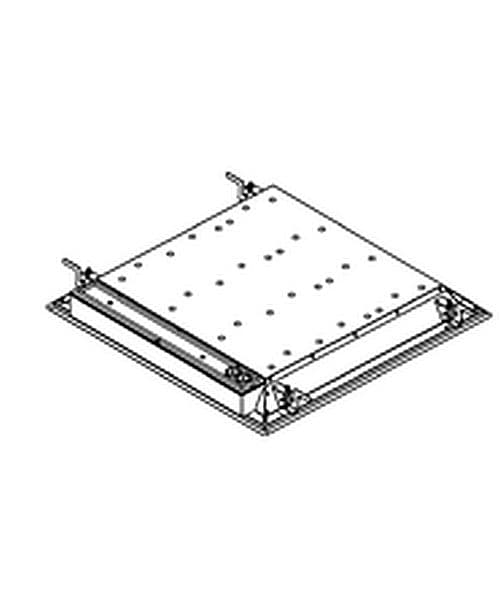

In ceilings with cut-out openings up to 60 mm thick, with top mounting (mounting brackets included)

Application:

Indoor. Clean-room, healthcare, laboratory, industry. Ideal solution for food processing, pharmaceutical or medical applications

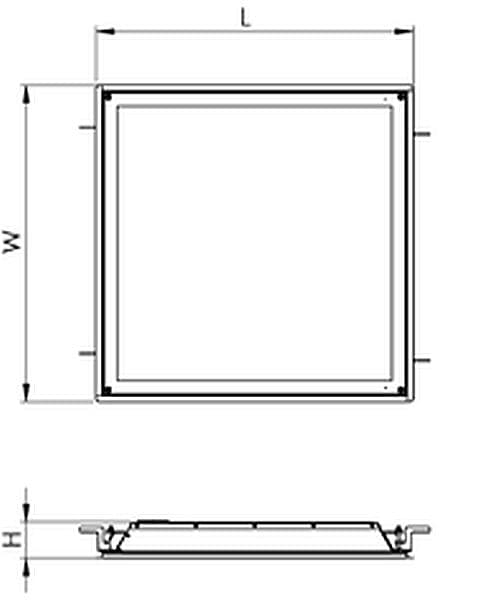

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Hermetic C LED3x950 J532 T840 OP LT80	595	595	100	100000/L80B10	2713	19.8	137	80+	4000	4.4
Hermetic C LED3x1150 J533 T840 OP LT80	595	595	100	100000/L80B10	3390	25.8	131	80+	4000	4.4
Hermetic C LED3x1350 J534 T840 OP LT80	595	595	100	100000/L80B10	4033	28.9	140	80+	4000	4.4
Hermetic C LED4x950 J535 T840 OP LT80	595	595	100	100000/L80B10	3617	26.1	139	80+	4000	4.4
Hermetic C LED4x1150 J536 T840 OP LT80	595	595	100	100000/L80B10	1521	33.7	134	80+	4000	4.4
Hermetic C LED4x1350 J537 T840 OP LT80	595	595	100	100000/L80B10	5377	38.1	141	80+	4000	4.4

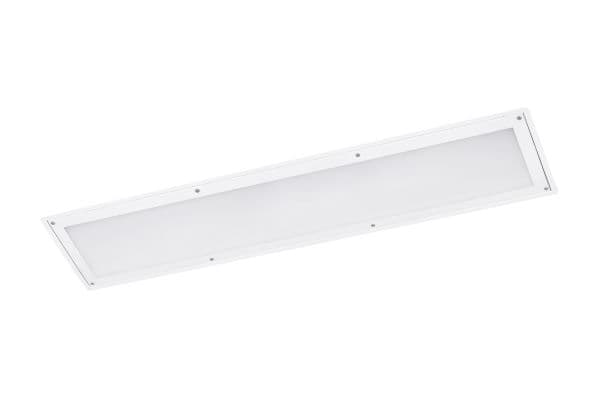

Hermetic C LED2x2150 J538 T840 OP LT80	1195	295	100	100000/L80B10	4220	30.0	141	80+	4000	4.5
Hermetic C LED2x2650 J539 T840 OP LT80	1195	295	100	100000/L80B10	5274	39.8	133	80+	4000	4.5
Hermetic C LED2x3150 J540 T840 OP LT80	1195	295	100	100000/L80B10	6274	43.5	144	80+	4000	4.5
Premium models with fully diffused light source
Hermetic C LED1x4900 J541 T840 OP LT80	595	595	100	100000/L80B10	4867	32.3	151	80+	4000	4.4
Hermetic C LED1x5750 J542 T840 OP LT80	595	595	100	100000/L80B10	5738	39.1	147	80+	4000	4.4
Hermetic C LED1x6650 J543 T840 OP LT80	595	595	100	100000/L80B10	6632	45.6	145	80+	4000	4.4
Hermetic C LED1x5000 J544 T840 OP LT80	1195	295	100	100000/L80B10	4977	33.0	151	80+	4000	4.5
Hermetic C LED1x5900 J545 T840 OP LT80	1195	295	100	100000/L80B10	5868	40.0	147	80+	4000	4.5
Hermetic C LED1x6800 J546 T840 OP LT80	1195	295	100	100000/L80B10	6783	46.7	145	80+	4000	4.5

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
T930 – Colour temperature 3000K, CRI 90+
T940 – Colour temperature 4000K, CRI 90+
OP TP(a) – TP(a) rated thermoplastic opal diffuser (Polycarbonate diffuser is used with option TP(a). Check chemical compatibility)
DALI – Driver with DALI interface and switch-control dimming
EAIRB-S – Slave luminaire with integrated EAIR type driver for lighting control
*note – max system size 1x EAIRB-M + 3x EAIRB-S
*note – max wire length from EAIRB-M to last EAIRB-S – 11 m
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth), with integrated DALI PS
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
*note – operating temperature range for luminaires with EM option, °C: 0…+35
CBF3-2.0m clear – Cable 3×0.75 mm² for suspended luminaire up to 2.0 meters, transparent
CBF3-3.0m clear – Cable 3×0.75 mm² for suspended luminaire up to 3.0 meters, transparent
