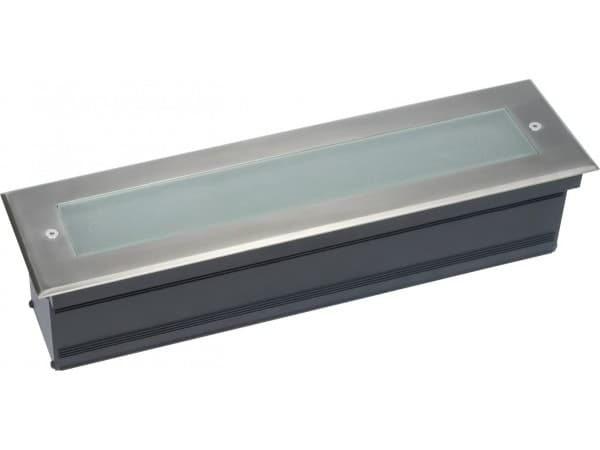

esviesa.lt | Floor LED IK10 IP67

Accent LED luminaire

More information:

Type:

Ground-mounted LED luminaire

Specification:

Ground-mounted LED luminaire
Light distribution type: direct
Optical system: frosted tempered glass diffuser, impact resistant
Housing: stainless steel
Colour: stainless-steel, brushed
Mains voltage: 220-240V, 0/50-60Hz
LED lifetime, h: 50000/L80B10
SDCM: 3
Protection class IEC: I
Ingress protection code: IP67
Mechanical impact resistance: IK10
Operating temperature range, °C: -25…+40
Cable, 1.0 m, 3x1.5 mm²

Installation:

In the ground

Application:

Outdoor. Facade illumination, public space

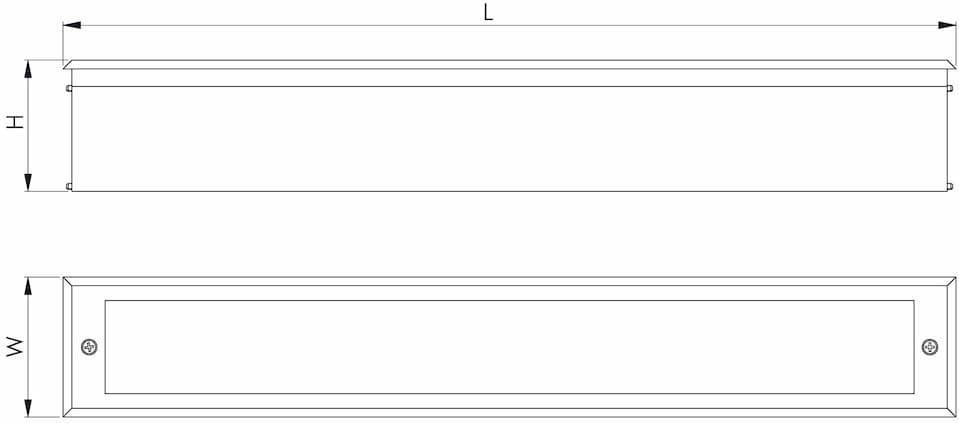

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Floor LED1x450 J692 T840	430	115	105	50000/L80B10	431	5.3	81	80+	4000	3.1
Floor LED1x550 J693 T840	430	115	105	50000/L80B10	529	6.7	79	80+	4000	3.1
Floor LED1x800 J694 T840	630	115	105	50000/L80B10	754	9.3	81	80+	4000	4.6
Floor LED1x950 J695 T840	630	115	105	50000/L80B10	926	11.1	83	80+	4000	4.6
Floor LED1x1450 J696 T840	1050	115	105	50000/L80B10	1401	16.5	85	80+	4000	7.2
Floor LED1x1750 J697 T840	1050	115	105	50000/L80B10	1721	19.9	86	80+	4000	7.2

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
DALI – Driver with DALI interface

Accessories:
Power supply connector I IP68 2x3x2.5mm2 – Connection box IP68 filled with gel, “I” type, 2x3x2.5 mm², 250V/6A, external cable diameter: 5,5-10 mm, 1 pcs
*For installation IP68 waterproof connectors are recommended
Power supply connector T IP68 3x3x2.5mm2 – Junction box IP68 filled with gel, “T” type, 3x3x2.5 mm², 250V/16A, external cable diameter: 6,5-12 mm, luminaire cable diameter: 5,5-10 mm, 1 pcs
*For installation IP68 waterproof connectors are recommended
