esviesa.lt | Zuben Q LED IK08 IP65

Surface LED luminaire

More information:

Type:

A surface LED luminaire, good dust and weather resistance

Specification:

Surface mounted LED luminaire
Light distribution: direct
Optical system: opal PC diffuser
Housing: PC
Colour: white, RAL9016
Mains voltage: 220-240V, 50-60Hz
LED lifetime, h: 100000/L70B50
SDCM: 3
Protection class IEC: II
Ingress protection code: IP65
Mechanical impact resistance: IK08
Operating temperature range, °C: -20...+50

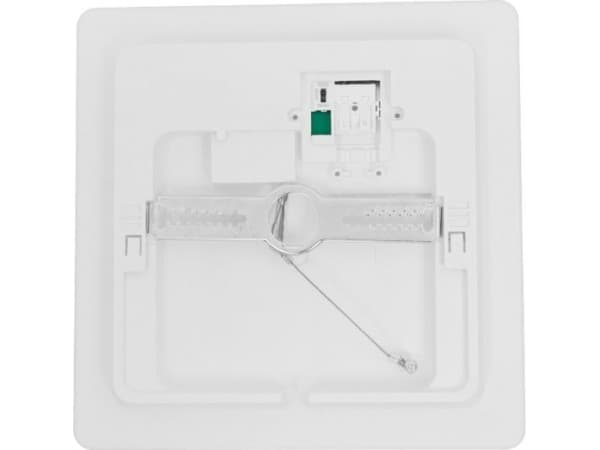

Push-in terminal, 2x2x1.5 mm²

Installation:

On the ceiling or wall

Application:

Indoor, outdoor with roof. For use in most industrial and many commercial applications. Office, education, corridor, staircase, healthcare, bathroom, public place

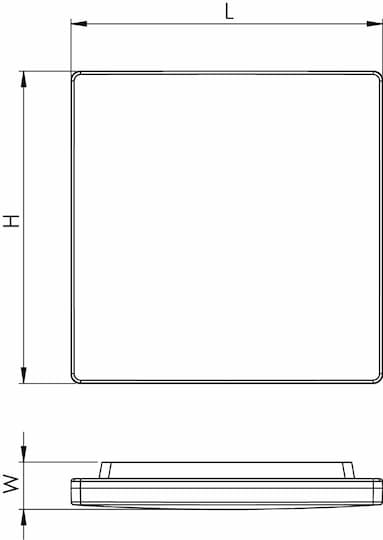

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Zuben Q LED1x1060/1570 K358 T830/40/57	220	220	50	100000/L70B50	1060/1570	10/15	106	80+	3000/4000/5700K	0.5
Zuben Q LED1x1480/2050 K359 T830/40/57	280	280	50	100000/L70B50	1480/2050	13/18	114	80+	3000/4000/5700K	0.7
Zuben Q LED1x2020/2850 K360 T830/40/57	330	330	50	100000/L70B50	2020/2850	17/24	119	80+	3000/4000/5700K	0.9
Zuben Q LED1x1060/1570 K358 T830/40/57 MW	220	220	50	100000/L70B50	1060/1570	10/15	106	80+	3000/4000/5700K	0.5
Zuben Q LED1x1480/2050 K359 T830/40/57 MW	280	280	50	100000/L70B50	1480/2050	13/18	114	80+	3000/4000/5700K	0.7
Zuben Q LED1x2020/2850 K360 T830/40/57 MW	330	330	50	100000/L70B50	2020/2850	17/24	119	80+	3000/4000/5700K	0.9

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
T857 – Colour temperature 5700K, CRI 80+
CBF2x1.5-N m – Outgoing flexible cable 2×0.75 mm²
*note – please specify the length of outgoing cable before placing an order
MW – Integrated microwave (MW) motion sensor with on-off control
