esviesa.lt | Hermetic R LED IK05 IP65

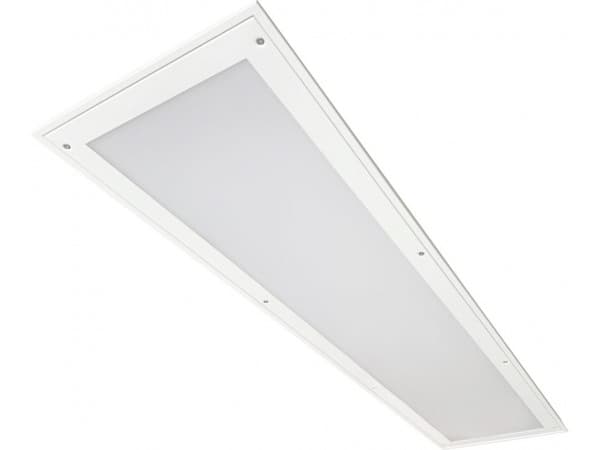

Recessed mounted cleanroom LED luminaire

More information:

Type:

Recessed mounted cleanroom LED luminaire. Ideal solution for food processing, pharmaceutical or medical applications

Specification:

Recessed mounted cleanroom LED luminaire
Light distribution type: direct
Optical system: opal acrylic diffuser, high chemical resistance
Housing: steel
Colour: white, RAL9003
Mains voltage: 220-240V, 0/50-60Hz
LED lifetime, h: 100000/L80B10
SDCM: 3
Protection class IEC: I
Ingress protection code: IP65
Mechanical impact resistance: IK05
Operating temperature range, °C: -10...+35
Push-in terminal, 3x2x2.5 mm²

Installation:

In modular suspended ceilings (600/625), in ceilings with cut-out openings (mounting brackets to be ordered separately)

Application:

Indoor. Industry, healthcare, laboratory

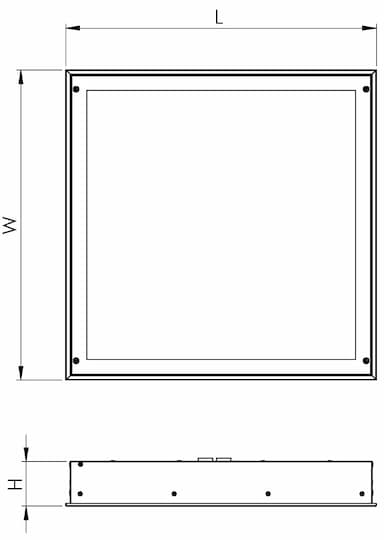

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Hermetic R LED3x1100 D149 T840 OP LT80	595	595	85	100000/L80B10	3322	25.9	128	80+	4000	4.5
Hermetic R LED3x1500 D150 T840 OP LT80	595	595	85	100000/L80B10	4332	32.4	134	80+	4000	4.5
Hermetic R LED4x1100 D151 T840 OP LT80	595	595	85	100000/L80B10	4429	33.8	131	80+	4000	4.5
Hermetic R LED4x1500 D152 T840 OP LT80	595	595	85	100000/L80B10	5776	42.8	135	80+	4000	4.5
Hermetic R LED1x3800 D163 T840 OP LT80	595	595	75	100000/L80B10	4060	32.5	125	80+	4000	4.4
Hermetic R LED1x4400 D164 T840 OP LT80	595	595	75	100000/L80B10	4691	38.4	122	80+	4000	4.4
Hermetic R LED1x6000 D165 T840 OP LT80	595	595	75	100000/L80B10	6485	56.6	115	80+	4000	4.4
Hermetic R LED2x2200 D153 T840 OP LT80	1195	295	85	100000/L80B10	4429	33.8	131	80+	4000	4.5
Hermetic R LED2x3000 D154 T840 OP LT80	1195	295	85	100000/L80B10	6137	48.5	127	80+	4000	4.5
Hermetic R LED2x4300 D155 T840 OP LT80	1195	295	85	100000/L80B10	9205	72.0	128	80+	4000	4.5
Hermetic R LED3x2200 D156 T840 OP LT80	1195	595	85	100000/L80B10	6644	49.6	134	80+	4000	9.0
Hermetic R LED3x3000 D157 T840 OP LT80	1195	595	85	100000/L80B10	9205	72.0	128	80+	4000	9.0
Hermetic R LED4x2200 D158 T840 OP LT80	1195	595	85	100000/L80B10	8858	65.4	135	80+	4000	9.0
Hermetic R LED4x3000 D159 T840 OP LT80	1195	595	85	100000/L80B10	12273	94.9	129	80+	4000	9.0
Hermetic R LED2x2700 D160 T840 OP LT80	1495	295	85	100000/L80B10	5537	41.8	132	80+	4000	6.0
Hermetic R LED2x3800 D161 T840 OP LT80	1495	295	85	100000/L80B10	7671	60.0	128	80+	4000	6.0
Hermetic R LED2x5500 D162 T840 OP LT80	1495	295	85	100000/L80B10	11506	89.0	129	80+	4000	6.0

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
DALI – Driver with DALI interface and switch-control dimming
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth), with integrated DALI PS
KRBLT – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), on/off
KRBLT DALI – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), DALI with integrated PS
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
*note – Operating temperature range for Luminaires with EM option, °C: 0…+35
5TB – 5-pole terminal block in middle of luminaire for easy through wiring
1G – Strain relief for power supply cable
SB – Support brackets for installation into a plasterboard ceiling

Accessories:
Recessed MTG FRAME S626x626 RAL9003S – Frame for LED luminaire 595×595 mm installation into plasterboard ceiling (1 pcs), white steel
Recessed MTG FRAME S326x1226 RAL9003S – Frame for LED luminaire 1195×295 mm installation into plasterboard ceiling (1 pcs), white steel
