esviesa.lt | Inox LED IK10 IP65

An industrial, high chemical resistant LED luminaire

More information:

Type:

Surface mounted waterproof IP65 LED luminaire for chemically aggressive atmospheres with cleaning agents, salts, acids and mineral oils

Specification:

Surface mounted waterproof IP65 LED luminaire for chemically aggressive atmospheres with cleaning agents, salts, acids and mineral oils
Light distribution type: direct
Optical system: frosted tempered glass diffuser, impact resistant
Housing: SS304 stainless steel, impact and chemically resistant
Brass cable gland and silicone sealing gasket to provide reliable IP protection
Colour: stainless steel
Mains voltage: 220-240V, 0/50-60Hz
LED lifetime, h: 100000/L80B10
SDCM: 3
Protection class IEC: I
Ingress protection code: IP65
Mechanical impact resistance: IK10
Protection symbol: D
Glow wire test, °C: 960
Operating temperature range, °C: -20...+35/+40
Push-in terminal, 3x2x2.5 mm²

Installation:

Surface luminaire designed to be fixed to ceiling of any type or suspended. Kit includes fasteners for surface, suspension and horizontal line installation

Application:

Indoor/outdoor with roof. Dust and moisture proof luminaire, ideal for use in industry, agricultural buildings, factories, food processing areas, warehouses, garages and also in corrosive environment

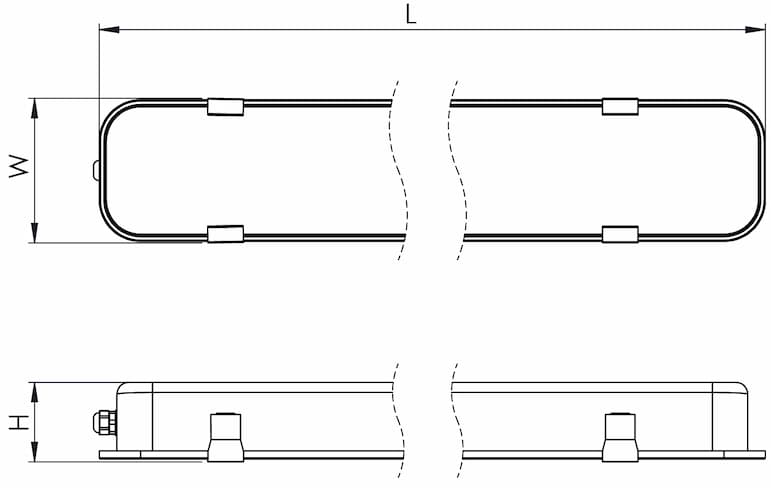

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Inox LED1x3450 J508 T840	1290	120	67	100000/L80B10	3424	21.9	156	80+	4000	4.3
Inox LED1x4250 J509 T840	1290	120	67	100000/L80B10	4202	27.5	153	80+	4000	4.3
Inox LED1x5000 J510 T840	1290	120	67	100000/L80B10	4978	33.0	151	80+	4000	4.3
Inox LED1x6600 J736 T840	1290	120	67	100000/L80B10	6568	43.3	152	80+	4000	4.3
Inox LED1x5300 J511 T840	1600	120	67	100000/L80B10	5252	34.0	154	80+	4000	5.3
Inox LED1x6250 J512 T840	1600	120	67	100000/L80B10	6222	40.8	153	80+	4000	5.3
Inox LED1x8250 J513 T840	1600	120	67	100000/L80B10	8211	54.1	152	80+	4000	5.3
Inox LED1x11100 J828 T840	1600	120	67	100000/L80B10	11099	71.1	156	80+	4000	5.3

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
DALI – Driver with DALI interface and switch-control dimming
*note – for DALI LIN option wires are 2×0.5 mm²
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth), with integrated DALI PS
KRBLT – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), on/off
KRBLT DALI – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), DALI with integrated PS
COR – Driver with Corridor function (never off)
COR1min – Driver with Corridor function 1 min (switch off after 1 min)
COR30min – Driver with Corridor function 30 min (switch off after 30 min)
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
*note – Operating temperature range for luminaires with EM option, °C: ta 0…+35
EM3Atmin-25 – Emergency version equipped with an autonomous testing system, 3 hours. Suitable for low ambient temperatures up to -25 °C
5TB – 5-pole terminal block in middle of luminaire for easy through wiring
1LIN – Through wiring 3×1.5 mm² with two push-in terminal blocks
3LIN – Through wiring 5×1.5 mm² with two push-in terminal blocks
1LIN2.5 – Through wiring 3×2.5 mm² with two push-in terminal blocks
3LIN2.5 – Through wiring 5×2.5 mm² with two push-in terminal blocks
