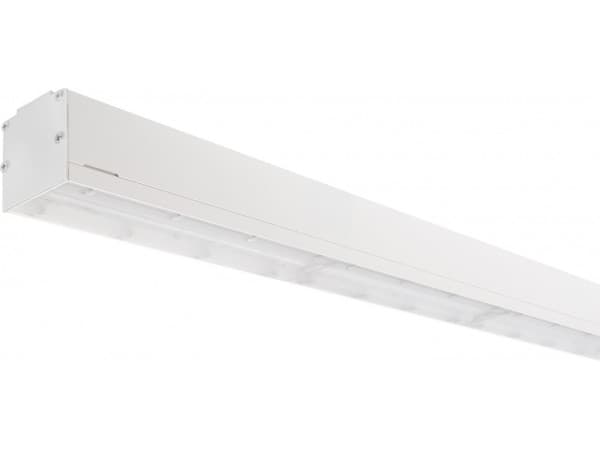

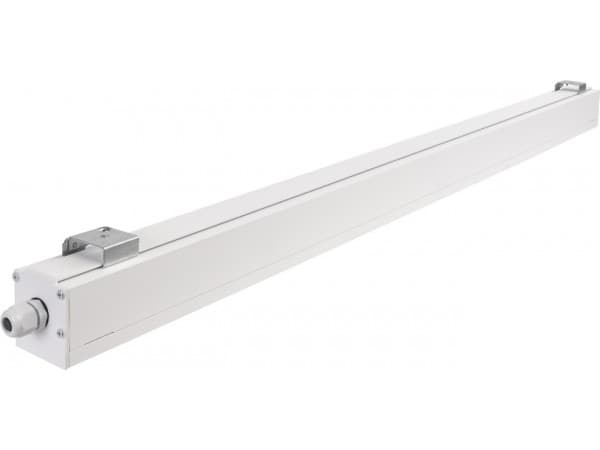

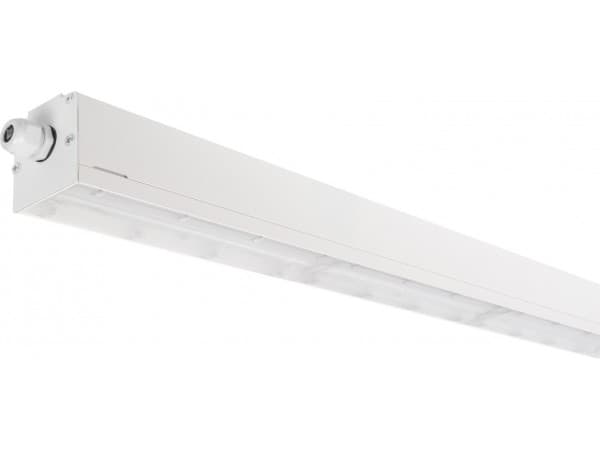

esviesa.lt | Mizar LED IK08 IP65

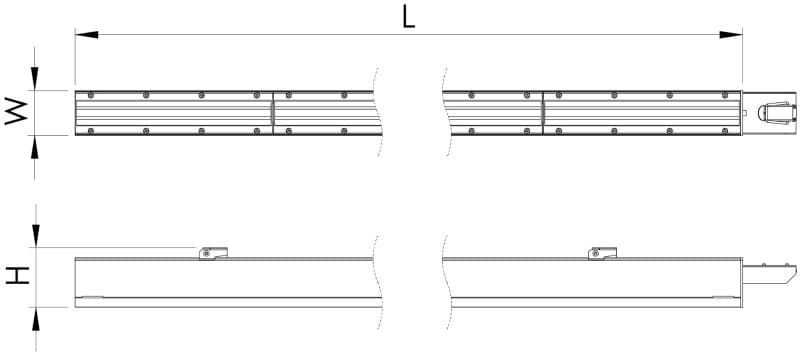

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Mizar LED1x5350 J877 T830 LS90x110 LO1 LL	1146	65	86	100000/L80B10	5100	29.8	171.1	80+	3000	3.5
Mizar LED1x6400 J878 T830 LS90x110 LO2 LL	1146	65	86	100000/L80B10	6089	35.7	170.6	80+	3000	3.5
Mizar LED1x7350 J879 T830 LS90x110 LO3 LL	1146	65	86	100000/L80B10	7019	41.5	169.1	80+	3000	3.5
Mizar LED1x6650 K069 T830 LS90x110 LO1 LL	1432	65	86	100000/L80B10	6375	36.8	173.2	80+	3000	4.4
Mizar LED1x7950 K070 T830 LS90x110 LO2 LL	1432	65	86	100000/L80B10	7611	44.6	170.7	80+	3000	4.4
Mizar LED1x9200 K071 T830 LS90x110 LO3 LL	1432	65	86	100000/L80B10	8774	52.4	167.4	80+	3000	4.4
Mizar LED1x9350 K400 T830 LS90x110 LO3 LL	2004	65	86	100000/L80B10	8925	50.5	176.7	80+	3000	6.1
Mizar LED1x11150 K401 T830 LS90x110 LO3 LL	2004	65	86	100000/L80B10	10655	61.1	174.4	80+	3000	6.1
Mizar LED1x12850 K402 T830 LS90x110 LO3 LL	2004	65	86	100000/L80B10	12284	71.9	170.8	80+	3000	6.1
Mizar LED1x13300 K072 T830 LS90x110 LO1 LL	2859	65	86	100000/L80B10	12750	72.9	174.9	80+	3000	8.7
Mizar LED1x15900 K073 T830 LS90x110 LO2 LL	2859	65	86	100000/L80B10	15221	86.4	176.2	80+	3000	8.7
Mizar LED1x18350 K074 T830 LS90x110 LO3 LL	2859	65	86	100000/L80B10	17549	101.6	172.7	80+	3000	8.7
Mizar LED1x5350 J877 T840 LS90x110 LO1 LL	1146	65	86	100000/L80B10	5318	29.8	178.5	80+	4000	3.5
Mizar LED1x6400 J878 T840 LS90x110 LO2 LL	1146	65	86	100000/L80B10	6351	35.7	177.9	80+	4000	3.5
Mizar LED1x7350 J879 T840 LS90x110 LO3 LL	1146	65	86	100000/L80B10	7322	41.5	176.4	80+	4000	3.5
Mizar LED1x6650 K069 T840 LS90x110 LO1 LL	1432	65	86	100000/L80B10	6650	36.8	180.7	80+	4000	4.4
Mizar LED1x7950 K070 T840 LS90x110 LO2 LL	1432	65	86	100000/L80B10	7939	44.6	178.0	80+	4000	4.4
Mizar LED1x9200 K071 T840 LS90x110 LO3 LL	1432	65	86	100000/L80B10	9153	52.4	174.7	80+	4000	4.4
Mizar LED1x9350 K400 T840 LS90x110 LO3 LL	2004	65	86	100000/L80B10	9310	50.5	184.4	80+	4000	6.1
Mizar LED1x11150 K401 T840 LS90x110 LO3 LL	2004	65	86	100000/L80B10	11115	61.1	181.9	80+	4000	6.1
Mizar LED1x12850 K402 T840 LS90x110 LO3 LL	2004	65	86	100000/L80B10	12814	71.9	178.2	80+	4000	6.1
Mizar LED1x13300 K072 T840 LS90x110 LO1 LL	2862	65	86	100000/L80B10	13300	72.9	182.4	80+	4000	8.7
Mizar LED1x15900 K073 T840 LS90x110 LO2 LL	2862	65	86	100000/L80B10	15878	86.4	183.8	80+	4000	8.7
Mizar LED1x18350 K074 T840 LS90x110 LO3 LL	2862	65	86	100000/L80B10	18306	101.6	180.2	80+	4000	8.7

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
LS30x90 – Optics with 30×90° beam angle
LS60x110 – Optics with 60×110° beam angle
LS90x110 – Optics with 90×110° beam angle
L1A18-L – Optics with asymmetric beam – left
L1A18-R – Optics with asymmetric beam – right
LO1…3 – Light output level 1 to 3
DALI – Driver with DALI interface and switch-control dimming
PIR(BASIC) – Integrated PIR sensor with on-off control, basic version
PIR – Integrated PIR sensor with on-off control
PIR DALI – Integrated PIR sensor with DALI control and power supply
*note – PIR options are available only with BLANK part
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
EM3DLER – Emergency version 3 hours, lens – escape route
EMEXIT – Blank Mizar LED part prepared for selected Helm S or Helm (with corresponding blade accessory)
*note – EM3DLER and EMEXIT options are available only with BLANK part
*note – EM3DLER and EMEXIT options are installed in the middle of BLANK Mizar LED
*note – for option EMEXIT, Helm S or Helm exit signs (with corresponding blade accessory), please order separately
L1 – Driver connected to L1 line
L2 – Driver connected to L2 line
L3 – Driver connected to L3 line

Accessories:
Suspension MTG KIT SUSI – Suspension wire set “I” type, 1.5 m adjustable, 1 pcs
*note – 2 pcs MTG SUSI KIT for length up to 2000 mm, 3 pcs MTG SUSI KIT for lengths 2000 – 3000 mm
*note – SUS option is required

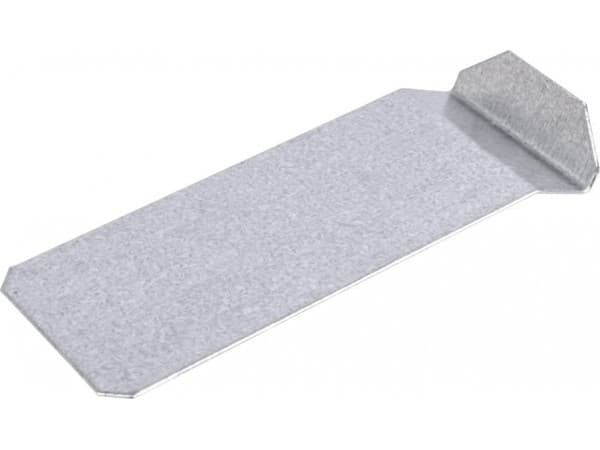

Gear tray removal tool – Mizar LED – A pair of gear tray removal tools for neat tray removal during installation

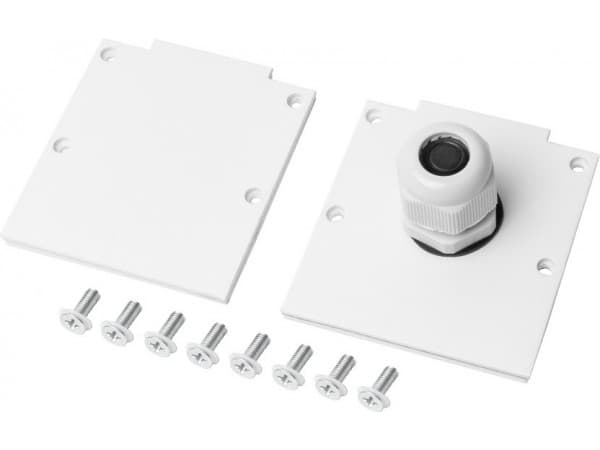

END CAPs kit – Mizar LED LL RAL9003 – End caps kit for Mizar LED LL luminaires. Including: power supply connector, two end caps with gaskets, cable gland
Power supply socket – L QPS – 7-pole power supply socket 1 pcs, IP65
Power supply socket – L QPS – N m – Outgoing flexible cable 5×2.5 mm², length according to customer specification
*note – applicable only with L QPS option
