esviesa.lt | Mall LED IK05 IP20 UGR

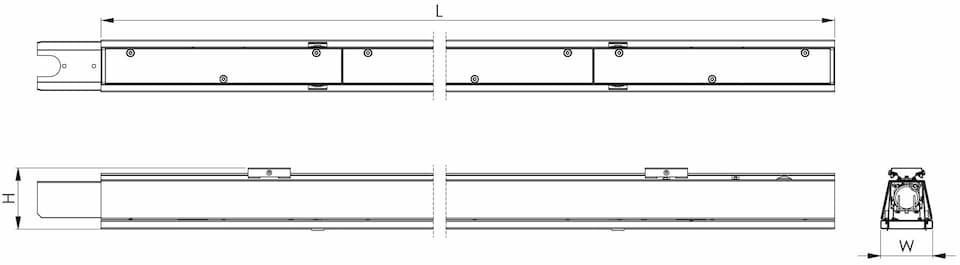

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg	UGR index

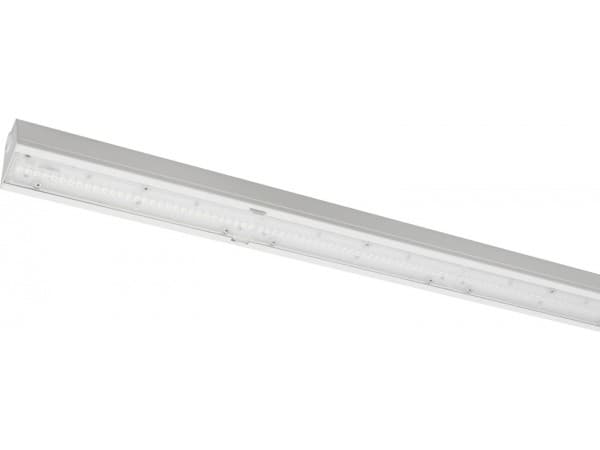

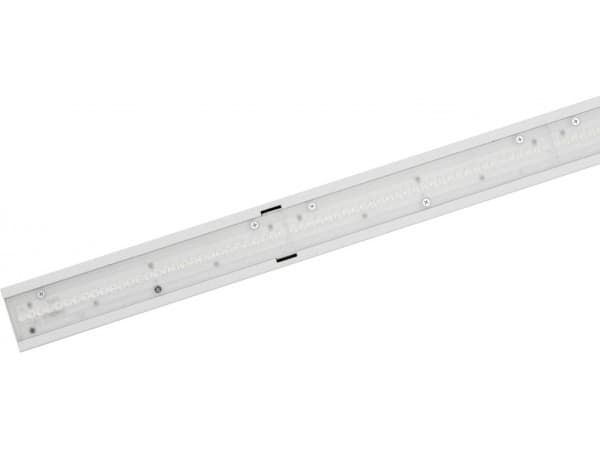

Mall LED1x3300 E963 T840 L90W LO1 LL	1133	65	60	100000/L80B10	3300	18.4	179	80+	4000	3.2	≤22
Mall LED1x4350 E964 T840 L90W LO2 LL	1133	65	60	100000/L80B10	4301	24.8	173	80+	4000	3.2	≤22
Mall LED1x5300 E965 T840 L90W LO3 LL	1133	65	60	100000/L80B10	5260	30.6	172	80+	4000	3.2	≤22
Mall LED1x5550 G648 T840 L90W LO4 LL	1133	65	60	100000/L80B10	5523	29.7	186	80+	4000	3.2	≤22
Mall LED1x6600 E966 T840 L90W LO5 LL	1133	65	60	100000/L80B10	6567	35.5	185	80+	4000	3.2	≤22
Mall LED1x7600 E967 T840 L90W LO6 LL	1133	65	60	100000/L80B10	7554	41.6	182	80+	4000	3.2	≤22
Mall LED1x4150 E986 T840 L90W LO1 LL	1414	65	60	100000/L80B10	4125	23.0	179	80+	4000	3.7	≤22
Mall LED1x5400 E987 T840 L90W LO2 LL	1414	65	60	100000/L80B10	5376	30.3	177	80+	4000	3.7	≤22
Mall LED1x6600 E988 T840 L90W LO3 LL	1414	65	60	100000/L80B10	6575	37.9	173	80+	4000	3.7	≤22
Mall LED1x6950 G649 T840 L90W LO4 LL	1414	65	60	100000/L80B10	6903	37.1	186	80+	4000	3.7	≤22
Mall LED1x8250 E989 T840 L90W LO5 LL	1414	65	60	100000/L80B10	8209	44.4	185	80+	4000	3.7	≤22
Mall LED1x9450 E990 T840 L90W LO6 LL	1414	65	60	100000/L80B10	9443	52.1	181	80+	4000	3.7	≤22
Mall LED1x8300 E991 T840 L90W LO1 LL	2829	65	60	100000/L80B10	8251	44.5	185	80+	4000	6.9	≤22
Mall LED1x10800 E992 T840 L90W LO2 LL	2829	65	60	100000/L80B10	10753	59.4	181	80+	4000	6.9	≤22
Mall LED1x13150 E993 T840 L90W LO3 LL	2829	65	60	100000/L80B10	13150	75.0	175	80+	4000	6.9	≤22
Mall LED1x13850 G650 T840 L90W LO4 LL	2829	65	60	100000/L80B10	13808	71.9	192	80+	4000	6.9	≤22
Mall LED1x16450 E994 T840 L90W LO5 LL	2829	65	60	100000/L80B10	16418	87.9	187	80+	4000	6.9	≤22
Mall LED1x18900 E995 T840 L90W LO6 LL	2829	65	60	100000/L80B10	18884	103.0	183	80+	4000	6.9	≤22

*Note – for versions: LO1, LO2, LO3- only every second LED lights up

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
T930 – Colour temperature 3000K, CRI 90+
T940 – Colour temperature 4000K, CRI 90+
L30 – Optics with 30° beam angle
L40x75 – Optics with 40×75° beam angle
L75W – Optics with 75° beam angle, wide
L75 – Optics with 75° beam angle
L90W – Optics with 90° beam angle, wide
L2A25Optics with double asymmetric beam
L1A18-L – Optics with asymmetric beam, light direction – left
L1A18-R – Optics with asymmetric beam, light direction – right
LO1…6 – Light output level 1 to 6
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth), with integrated DALI PS
DALI – Driver with DALI interface and switch-control dimming
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
*note – for EM option power supply L3 phase is used
*note – operating temperature range for luminaires with EM option, °C: 0…+35
RAL – RAL colour
*note – price for uncommon RAL colour or quantity less then MOQ could be different from indicated. Ask before placing an order

Accessories:
Suspension MTG KIT SUSI – Suspension wire set “I” type, 1.5 m adjustable, 1 pcs
*note – 2 pcs MTG KIT SUSI for length up to 2000 mm, 3 pcs MTG KIT SUSI for lengths 2000 – 3000 mm

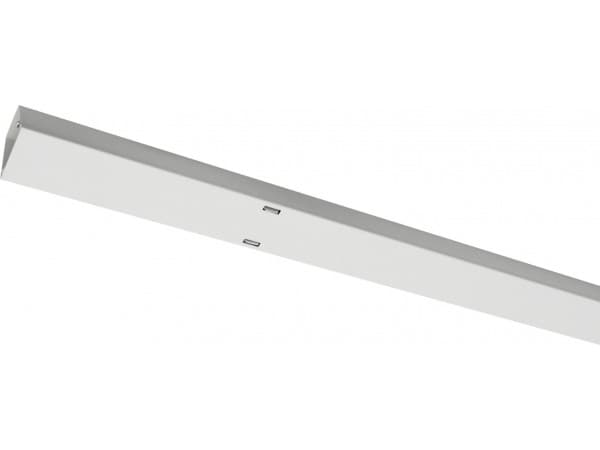

BLANK Mall LED assembly L1133 mm/L1414 mm/L2829 mm RAL9003 – Preassembled with trunking rail, blank part kit for connecting luminaires in-line, 1 pcs
BLANK Mall LED DALI assembly L1133 mm/L1414 mm/L2829 mm RAL9003 – Preassembled with trunking rail, blank part kit for connecting luminaires in-line, 1 pcs

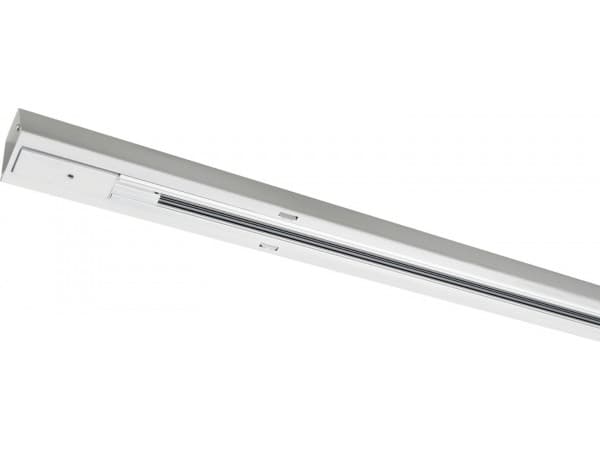

BLANK Mall LED track assembly L1133 mm/L1414 mm/L2829 mm RAL9003 – Preassembled with trunking rail, blank with integrated track part kit for connecting luminaires in-line, 1 pcs

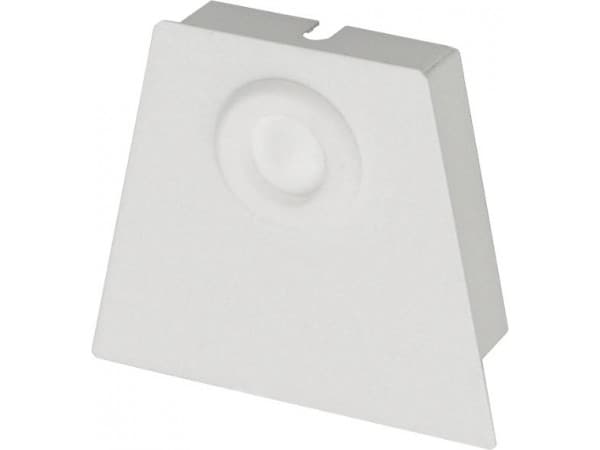

END CAP – Mall LED RAL9003 – End cap kit for Mall LED luminaires, 1 pcs
*note – use end caps for first and last in-line luminaires

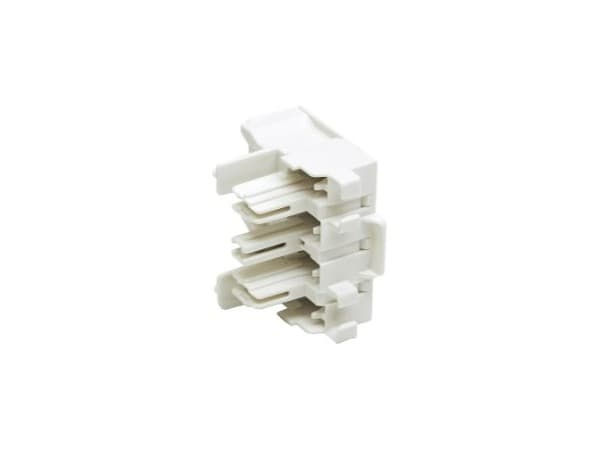

Power supply socket – Mall LED – 7-pole socket for power supply, 1 pcs
*note – use power supply socket for first in-line luminaire connection to power source
