esviesa.lt | Decor LED IK05 IP40 UGR

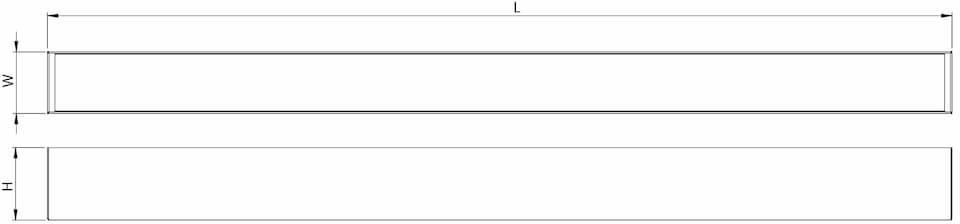

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg

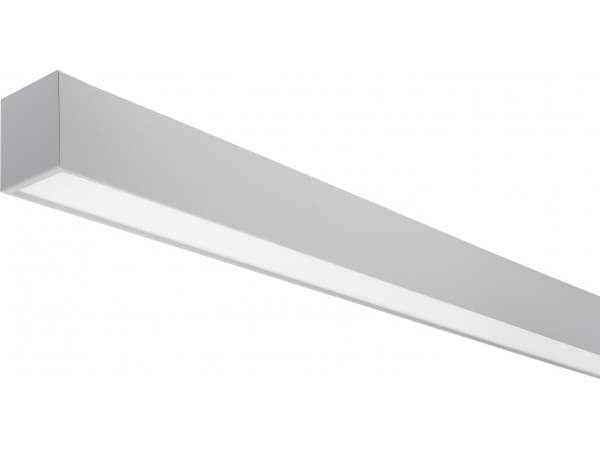

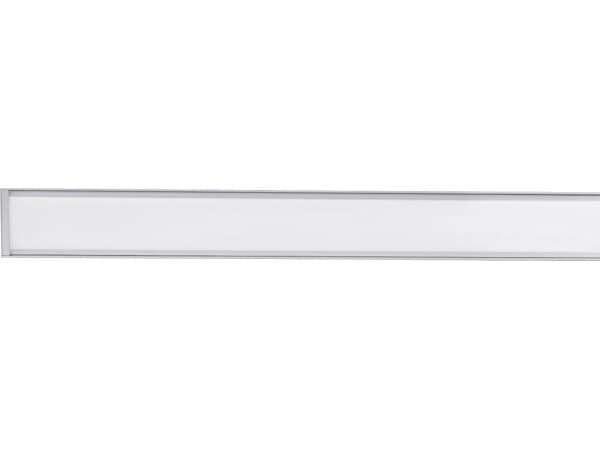

Decor LED1x800 H254 T840 OP LO1	573	59	69	50000/L80B10	763	6.8	112	80+	4000	1.3
Decor LED1x1050 H255 T840 OP LO2	573	59	69	50000/L80B10	1040	9.5	109	80+	4000	1.3
Decor LED1x1450 H256 T840 OP LO3	573	59	69	50000/L80B10	1429	13.8	104	80+	4000	1.3
Decor LED1x2150 H257 T840 OP LO4	573	59	69	50000/L80B10	2144	20.0	107	80+	4000	1.3
Decor LED1x1000 H258 T840 OP LO1	713	59	69	50000/L80B10	953	8.1	118	80+	4000	1.6
Decor LED1x1300 H259 T840 OP LO2	713	59	69	50000/L80B10	1299	11.6	112	80+	4000	1.6
Decor LED1x1800 H260 T840 OP LO3	713	59	69	50000/L80B10	1786	16.8	106	80+	4000	1.6
Decor LED1x2700 H261 T840 OP LO4	713	59	69	50000/L80B10	2679	24.7	108	80+	4000	1.6
Decor LED1x1150 H262 T840 OP LO1	853	59	69	50000/L80B10	1145	10.0	115	80+	4000	1.8
Decor LED1x1600 H263 T840 OP LO2	853	59	69	50000/L80B10	1559	14.0	111	80+	4000	1.8
Decor LED1x2150 H264 T840 OP LO3	853	59	69	50000/L80B10	2144	20.2	106	80+	4000	1.8
Decor LED1x3250 H265 T840 OP LO4	853	59	69	50000/L80B10	3215	29.7	108	80+	4000	1.8
Decor LED1x1350 H266 T840 OP LO1	993	59	69	50000/L80B10	1335	11.5	116	80+	4000	2.1
Decor LED1x1850 H267 T840 OP LO2	993	59	69	50000/L80B10	1819	15.9	114	80+	4000	2.1
Decor LED1x2500 H268 T840 OP LO3	993	59	69	50000/L80B10	2500	23.0	109	80+	4000	2.1
Decor LED1x1550 H270 T840 OP LO1	1133	59	69	50000/L80B10	1526	13.0	117	80+	4000	2.3
Decor LED1x2100 H271 T840 OP LO2	1133	59	69	50000/L80B10	2079	17.9	116	80+	4000	2.3
Decor LED1x2900 H272 T840 OP LO3	1133	59	69	50000/L80B10	2858	26.3	109	80+	4000	2.3
Decor LED1x4300 H273 T840 OP LO4	1133	59	69	50000/L80B10	4287	38.2	112	80+	4000	2.3
Decor LED1x1750 H274 T840 OP LO1	1273	59	69	50000/L80B10	1716	14.5	118	80+	4000	2.6
Decor LED1x2350 H275 T840 OP LO2	1273	59	69	50000/L80B10	2339	20.1	116	80+	4000	2.6
Decor LED1x3250 H276 T840 OP LO3	1273	59	69	50000/L80B10	3215	29.6	109	80+	4000	2.6
Decor LED1x1950 H278 T840 OP LO1	1413	59	69	50000/L80B10	1907	16.5	116	80+	4000	2.6
Decor LED1x2600 H279 T840 OP LO2	1413	59	69	50000/L80B10	2599	22.9	113	80+	4000	2.6
Decor LED1x3600 H280 T840 OP LO3	1413	59	69	50000/L80B10	3572	31.7	113	80+	4000	2.6
Decor LED1x5400 H281 T840 OP LO4	1413	59	69	50000/L80B10	5359	47.8	112	80+	4000	2.6
Decor LED1x2300 H282 T840 OP LO1	1693	59	69	50000/L80B10	2288	19.3	119	80+	4000	3.1
Decor LED1x3150 H283 T840 OP LO2	1693	59	69	50000/L80B10	3119	27.3	114	80+	4000	3.1
Decor LED1x4300 H284 T840 OP LO3	1693	59	69	50000/L80B10	4287	38.2	112	80+	4000	3.1
Decor LED1x6450 H285 T840 OP LO4	1693	59	69	50000/L80B10	6430	57.3	112	80+	4000	3.1
Decor LED1x2700 H286 T840 OP LO1	1973	59	69	50000/L80B10	2670	22.2	120	80+	4000	3.4
Decor LED1x3650 H287 T840 OP LO2	1973	59	69	50000/L80B10	3638	31.4	116	80+	4000	3.4
Decor LED1x5050 H288 T840 OP LO3	1973	59	69	50000/L80B10	5001	44.6	112	80+	4000	3.4
Decor LED1x6450 H289 T840 OP LO4	2113	59	69	50000/L80B10	6430	57.3	112	80+	4000	3.7
Decor LED1x3100 H290 T840 OP LO1	2253	59	69	50000/L80B10	3051	25.1	122	80+	4000	4.0
Decor LED1x4200 H291 T840 OP LO2	2253	59	69	50000/L80B10	4158	35.5	117	80+	4000	4.0
Decor LED1x5750 H292 T840 OP LO3	2253	59	69	50000/L80B10	5716	50.9	112	80+	4000	4.0
Decor LED1x8600 H293 T840 OP LO4	2253	59	69	50000/L80B10	8573	77.3	111	80+	4000	4.0
Decor LED1x3450 H294 T840 OP LO1	2533	59	69	50000/L80B10	3433	27.3	126	80+	4000	4.6
Decor LED1x4700 H295 T840 OP LO2	2533	59	69	50000/L80B10	4678	39.9	117	80+	4000	4.6
Decor LED1x6450 H296 T840 OP LO3	2533	59	69	50000/L80B10	6430	57.3	112	80+	4000	4.6
Decor LED1x9650 H297 T840 OP LO4	2533	59	69	50000/L80B10	9645	83.2	116	80+	4000	4.6
Decor LED1x4050 H298 T840 OP LO1	2953	59	69	50000/L80B10	4005	31.9	126	80+	4000	5.0
Decor LED1x5500 H299 T840 OP LO2	2953	59	69	50000/L80B10	5457	46.0	119	80+	4000	5.0
Decor LED1x7550 H300 T840 OP LO3	2953	59	69	50000/L80B10	7502	66.9	112	80+	4000	5.0

Decor LED full assortment (pdf)

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
OP – Opal diffuser with high light transmittance
DPRZ LT80 – De-glaring micro-prismatic diffuser with matt light scattering layer (UGR≤19)
DALI – Driver with DALI interface and switch-control dimming
*note – DALI option is not applicable for models: K112, K116, H293, H297
*note – for DALI LIN option wires are 2×0.5 mm²
EAIRB – Integrated smart sensor and driver with wireless communication and grouping possibilities for lighting control
*note – ingress protection IP20
*note – EAIRB sensor is positioned in the end of the luminaire for lengths up to 1800 mm luminaire housing is 72 mm longer
*note – EAIRB sensor is positioned in the middle of the luminaire for lengths over 1800 mm luminaire housing is 70 mm longer
*note – EAIRB option is not applicable for models: K075…K080, K083, K087, K090, K094, K116, H254…H259, H262, H266, H270, H274, H297
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth)
KRBLT – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), on/off
KRBLT DALI – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), DALI with integrated PS
PULL – Pull switch device, on/off
PULLDIM – Pull switch device and driver with switch-control dimming
*note – For PULL and PULLDIM option luminaire housing is 50 mm longer and switch is positioned at the end of luminaire
MW – Integrated microwave (MW) motion sensor with on-off control
*note – MW sensor is positioned in the end of the luminaire for lengths up to 1800 mm luminaire housing is 72 mm longer
*note – MW sensor is positioned in the middle of the luminaire for lengths over 1800 mm luminaire housing is 70 mm longer
*note – MW option is not applicable for models: K075…K078, H254…H257
PIR (Basic) – Integrated PIR sensor with on-off control
*note – PIR(Basic) option is applicable for models: K075…K086, H254…H265
*note – ingress protection IP40
PIR – Integrated PIR sensor with on-off control
*note – ask for PIR option compatibility with models: K087…K089, H266…H268
*note – PIR option is applicable for models: K090…K119, H269…H300
*note – PIR sensor is positioned in the end of the luminaire for lengths up to 1800 mm luminaire housing is 72 mm longer
*note – PIR sensor is positioned in the middle of the luminaire for lengths over 1800 mm luminaire housing is 70 mm longer
*note – EM + PIR options are applicable for models longer than 1200 mm
PIR BLT DALI – Integrated wireless PIR sensor with CASAMBI app control and DALI driver. Requires DALI power supply in the system
*note – for option PIR luminaire housing is 50 mm longer
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
*note – EM option is applicable for models longer than 1000 mm
*note – EM + PIR options are applicable for models longer than 1200 mm
*note – ask for EM option compatibility with models: K090…K093, H270…H273
1LIN – Through wiring single phase d=1.5 mm² with two push-in terminal blocks
2LIN – Through wiring two phases d=1.5 mm² with two push-in terminal blocks
3LIN – Through wiring three phases d=1.5 mm² with two push-in terminal blocks
*note – LIN options are applicable for models longer than 800 mm
CBF3-2.0m clear – Cable 3×0.75 mm² for suspended luminaire up to 2.0 meters, transparent
*note – for suspended luminaires it is recommended to use one of CBF option for easier mounting
L – for in-line connection end/first luminaire
LL – for in-line connection intermediate luminaire
I-join L – Luminaire designed to in-line connection with join element – end/first luminaire (joint element not included)
I-join LL – Luminaire designed to in-line connection with join element – intermediate luminaire (joint element not included)
L I-join LL – Luminaire designed for in-line connection with join element and intermediate luminaire (joint element not included)
*note – for I-join L and I-join LL models joint kit not included, 1LIN option included (5TB option for lengths up to 800 mm)
SUS – Suspended version
IP44 – IP44 protection degree
*note – IP44 option not applicable for L and LL models
RAL9003S – RAL 9003S colour
RAL9005S – RAL 9005S colour
RAL – RAL colour

Accessories:
CAP cable 3×0.75 2.0m clear – Cable 3×0.75 mm² for suspended luminaire up to 2.0 meters, transparent
CAP cable clip D6.3mm SET clear – Cable and suspension wire clip set, 4 pcs. For cable diameter up to 6,3 mm and wire diameter 1 mm
Suspension MTG KIT SUSI – Suspension wire set “I” type, 1.5 m adjustable, 1 pcs
*note – 2 pcs MTG SUSI KIT for length up to 2000 mm, 3 pcs MTG SUSI KIT for lengths 2000 – 3000 mm
*note – SUS option is required
WALL MTG KIT – Decor LED RAL9006S – Support bracket for Decor LED luminaire installation onto the wall, 1 pcs
*note – 2 pcs WALL MTG KIT – Decor LED elements for length up to 2000 mm, 3 pcs for lengths 2000 – 3000 mm required
CAP4, white/ light grey/ black – Square decorative metal cap for hiding cable inlet with suspension wire attachment point, push-in terminals 3x1x1.5 mm², white/ light grey/ black
CAP5, white/ light grey/ black – Square decorative metal cap for hiding cable inlet with suspension wire attachment point, push-in terminals 5x1x1.5 mm², white/ light grey/ black
I-JOIN MTG KIT Decor LED RAL9006S – “I” type join kit for connecting luminaires in-line
L-JOIN MTG KIT Decor LED RAL9006S – “L” type join kit for connecting luminaires in-line
T-JOIN MTG KIT Decor LED RAL9006S – “T” type join kit for connecting luminaires in-line
X-JOIN MTG KIT Decor LED RAL9006S – “X” type join kit for connecting luminaires in-line

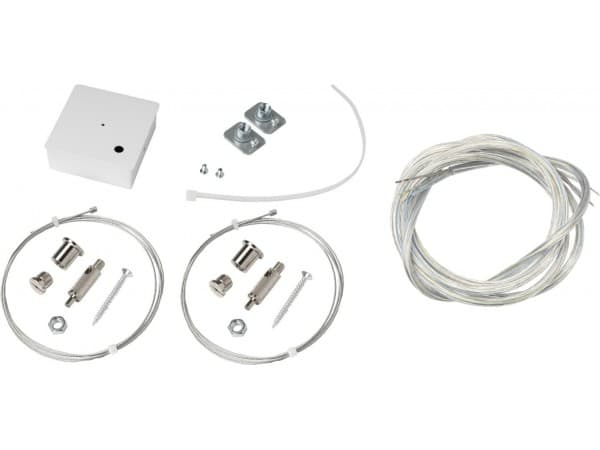

All-in-one Suspended MTG KIT, light grey/ white/ black – Complete suspended installation kit. 3x1x1.5 mm², light grey/ white/ black (includes SUSI elements 2 pcs, clear cable and CAP4)
All-in-one Suspended MTG KIT, 5TB, light grey/ white/ black – Complete suspended installation kit. 5x1x1.5 mm², light grey/ white/ black (includes SUSI elements 2 pcs, clear cable and CAP5)
All-in-one Suspended MTG KIT + SUS, light grey/ white/ black – Complete suspended installation kit. 3x1x1.5 mm², light grey/ white/ black (includes SUSI elements 2 pcs, SUS slide elements 2 pcs, clear cable and CAP4)
All-in-one Suspended MTG KIT + SUS, 5TB, light grey/ white/ black – Complete suspended installation kit. 5x1x1.5 mm², light grey/ white/ black (includes SUSI elements 2 pcs, SUS slide elements 2 pcs, clear cable and CAP5)
