esviesa.lt | Norte I LED SPORT IK10 IP65

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Norte I LED1x10500 G103 T840 ALU L60 SPORT	935	114	91	100000/L80B10	9480	58.7	161	80+	4000	1.9
Norte I LED1x12350 G104 T840 ALU L60 SPORT	935	114	91	100000/L80B10	11179	70.1	159	80+	4000	1.9
Norte I LED1x14250 G105 T840 ALU L60 SPORT	935	114	91	100000/L80B10	12891	82.5	156	80+	4000	1.9
Norte I LED1x15650 G106 T840 ALU L60 SPORT	1190	114	91	100000/L80B10	14147	86.9	163	80+	4000	2.6
Norte I LED1x18550 G107 T840 ALU L60 SPORT	1190	114	91	100000/L80B10	16768	104.0	161	80+	4000	2.6
Norte I LED1x21250 G108 T840 ALU L60 SPORT	1190	114	91	100000/L80B10	19237	122.1	158	80+	4000	2.6
Norte I LED1x20900 G110 T840 ALU L60 SPORT	1444	114	91	100000/L80B10	18863	114.6	165	80+	4000	3.3
Norte I LED1x24700 G111 T840 ALU L60 SPORT	1444	114	91	100000/L80B10	22357	137.2	163	80+	4000	3.3
Norte I LED1x26450 G116 T840 ALU L60 SPORT	1444	114	91	100000/L80B10	23925	149.6	160	80+	4000	3.3
Norte I LED1x28350 G112 T840 ALU L60 SPORT	1444	114	91	100000/L80B10	25649	162.8	158	80+	4000	3.3
Norte I LED1x31100 G113 T840 ALU L60 SPORT	1953	114	91	100000/L80B10	28148	173.2	163	80+	4000	4.6
Norte I LED1x36900 G114 T840 ALU L60 SPORT	1953	114	91	100000/L80B10	33363	207.4	161	80+	4000	4.6
Norte I LED1x42300 G115 T840 ALU L60 SPORT	1953	114	91	100000/L80B10	38273	243.5	157	80+	4000	4.6
Norte I LED1x10500 G103 T840 ALU L75 SPORT	935	114	91	100000/L80B10	9039	58.7	154	80+	4000	1.5
Norte I LED1x12350 G104 T840 ALU L75 SPORT	935	114	91	100000/L80B10	10659	70.1	152	80+	4000	1.5
Norte I LED1x14250 G105 T840 ALU L75 SPORT	935	114	91	100000/L80B10	12291	82.5	149	80+	4000	1.5
Norte I LED1x15650 G106 T840 ALU L75 SPORT	1190	114	91	100000/L80B10	13489	86.9	155	80+	4000	2.2
Norte I LED1x18550 G107 T840 ALU L75 SPORT	1190	114	91	100000/L80B10	15988	104.0	154	80+	4000	2.2
Norte I LED1x21250 G108 T840 ALU L75 SPORT	1190	114	91	100000/L80B10	18342	122.1	150	80+	4000	2.2
Norte I LED1x20900 G110 T840 ALU L75 SPORT	1444	114	91	100000/L80B10	17985	114.6	157	80+	4000	2.8
Norte I LED1x24700 G111 T840 ALU L75 SPORT	1444	114	91	100000/L80B10	21317	137.2	155	80+	4000	2.8
Norte I LED1x26450 G116 T840 ALU L75 SPORT	1444	114	91	100000/L80B10	22812	149.6	152	80+	4000	2.8
Norte I LED1x28350 G112 T840 ALU L75 SPORT	1444	114	91	100000/L80B10	24456	162.8	150	80+	4000	2.8
Norte I LED1x31100 G113 T840 ALU L75 SPORT	1953	114	91	100000/L80B10	26839	173.2	155	80+	4000	4.1
Norte I LED1x36900 G114 T840 ALU L75 SPORT	1953	114	91	100000/L80B10	31811	207.4	153	80+	4000	4.1
Norte I LED1x42300 G115 T840 ALU L75 SPORT	1953	114	91	100000/L80B10	36493	243.5	150	80+	4000	4.1
Norte I LED1x10500 G103 T840 ALU L90x90 SPORT	935	114	91	100000/L80B10	9480	58.7	161	80+	4000	1.9
Norte I LED1x12350 G104 T840 ALU L90x90 SPORT	935	114	91	100000/L80B10	11179	70.1	159	80+	4000	1.9
Norte I LED1x14250 G105 T840 ALU L90x90 SPORT	935	114	91	100000/L80B10	12891	82.5	156	80+	4000	1.9
Norte I LED1x15650 G106 T840 ALU L90x90 SPORT	1190	114	91	100000/L80B10	14147	86.9	163	80+	4000	2.6
Norte I LED1x18550 G107 T840 ALU L90x90 SPORT	1190	114	91	100000/L80B10	16768	104.0	161	80+	4000	2.6
Norte I LED1x21250 G108 T840 ALU L90x90 SPORT	1190	114	91	100000/L80B10	19237	122.1	158	80+	4000	2.6
Norte I LED1x20850 G110 T840 ALU L90x90 SPORT	1444	114	91	100000/L80B10	18863	114.6	165	80+	4000	3.3
Norte I LED1x24700 G111 T840 ALU L90x90 SPORT	1444	114	91	100000/L80B10	22357	137.2	163	80+	4000	3.3
Norte I LED1x26450 G116 T840 ALU L90x90 SPORT	1444	114	91	100000/L80B10	23925	149.6	160	80+	4000	3.3
Norte I LED1x28350 G112 T840 ALU L90x90 SPORT	1444	114	91	100000/L80B10	25649	162.8	158	80+	4000	3.3
Norte I LED1x31100 G113 T840 ALU L90x90 SPORT	1953	114	91	100000/L80B10	28148	173.2	163	80+	4000	4.6
Norte I LED1x36900 G114 T840 ALU L90x90 SPORT	1953	114	91	100000/L80B10	33363	207.4	161	80+	4000	4.6
Norte I LED1x42300 G115 T840 ALU L90x90 SPORT	1953	114	91	100000/L80B10	38273	243.5	157	80+	4000	4.6
Norte I LED1x10500 G103 T840 ALU L120 SPORT	935	114	91	100000/L80B10	9480	58.7	161	80+	4000	1.9
Norte I LED1x12350 G104 T840 ALU L120 SPORT	935	114	91	100000/L80B10	11179	70.1	159	80+	4000	1.9
Norte I LED1x14250 G105 T840 ALU L120 SPORT	935	114	91	100000/L80B10	12891	82.5	156	80+	4000	1.9
Norte I LED1x15650 G106 T840 ALU L120 SPORT	1190	114	91	100000/L80B10	14147	86.9	163	80+	4000	2.6
Norte I LED1x18550 G107 T840 ALU L120 SPORT	1190	114	91	100000/L80B10	16768	104.0	161	80+	4000	2.6
Norte I LED1x21250 G108 T840 ALU L120 SPORT	1190	114	91	100000/L80B10	19237	122.1	158	80+	4000	2.6
Norte I LED1x20900 G110 T840 ALU L120 SPORT	1444	114	91	100000/L80B10	18863	114.6	165	80+	4000	3.3
Norte I LED1x24700 G111 T840 ALU L120 SPORT	1444	114	91	100000/L80B10	22357	137.2	163	80+	4000	3.3
Norte I LED1x26450 G116 T840 ALU L120 SPORT	1444	114	91	100000/L80B10	23925	149.6	160	80+	4000	3.3
Norte I LED1x28350 G112 T840 ALU L120 SPORT	1444	114	91	100000/L80B10	25649	162.8	158	80+	4000	3.3
Norte I LED1x31100 G113 T840 ALU L120 SPORT	1953	114	91	100000/L80B10	28148	173.2	163	80+	4000	4.6
Norte I LED1x36900 G114 T840 ALU L120 SPORT	1953	114	91	100000/L80B10	33363	207.4	161	80+	4000	4.6
Norte I LED1x42300 G115 T840 ALU L120 SPORT	1953	114	91	100000/L80B10	38273	243.5	157	80+	4000	4.6
Norte I LED1x10500 G103 T840 ALU L1A50 SPORT	935	114	91	100000/L80B10	9149	58.7	156	80+	4000	1.5
Norte I LED1x12350 G104 T840 ALU L1A50 SPORT	935	114	91	100000/L80B10	10789	70.1	154	80+	4000	1.5
Norte I LED1x14250 G105 T840 ALU L1A50 SPORT	935	114	91	100000/L80B10	12441	82.5	151	80+	4000	1.5
Norte I LED1x15650 G106 T840 ALU L1A50 SPORT	1190	114	91	100000/L80B10	13653	86.9	157	80+	4000	2.2
Norte I LED1x18550 G107 T840 ALU L1A50 SPORT	1190	114	91	100000/L80B10	16183	104.0	156	80+	4000	2.2
Norte I LED1x21250 G108 T840 ALU L1A50 SPORT	1190	114	91	100000/L80B10	18565	122.1	152	80+	4000	2.2
Norte I LED1x20900 G110 T840 ALU L1A50 SPORT	1444	114	91	100000/L80B10	18205	114.6	159	80+	4000	2.8
Norte I LED1x24700 G111 T840 ALU L1A50 SPORT	1444	114	91	100000/L80B10	21577	137.2	157	80+	4000	2.8
Norte I LED1x26450 G116 T840 ALU L1A50 SPORT	1444	114	91	100000/L80B10	23090	149.6	154	80+	4000	2.8
Norte I LED1x28350 G112 T840 ALU L1A50 SPORT	1444	114	91	100000/L80B10	24754	162.8	152	80+	4000	2.8
Norte I LED1x31100 G113 T840 ALU L1A50 SPORT	1953	114	91	100000/L80B10	27166	173.2	157	80+	4000	4.1
Norte I LED1x36900 G114 T840 ALU L1A50 SPORT	1953	114	91	100000/L80B10	32199	207.4	155	80+	4000	4.1
Norte I LED1x42300 G115 T840 ALU L1A50 SPORT	1953	114	91	100000/L80B10	36938	243.5	152	80+	4000	4.1

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
T857 – Colour temperature 5700K, CRI 80+
T865 – Colour temperature 6500K, CRI 80+
L30x65 – Optics with 30×65º beam angle
L40 – Optics with 40×40º beam angle
L60 – Optics with 60×60º beam angle
L75 – Optics with 75×75º beam angle
L90x90 – Optics with 90×90º beam angle
L120 – Optics with 120×120º beam angle
L1A50 – Optics with asymmetric beam

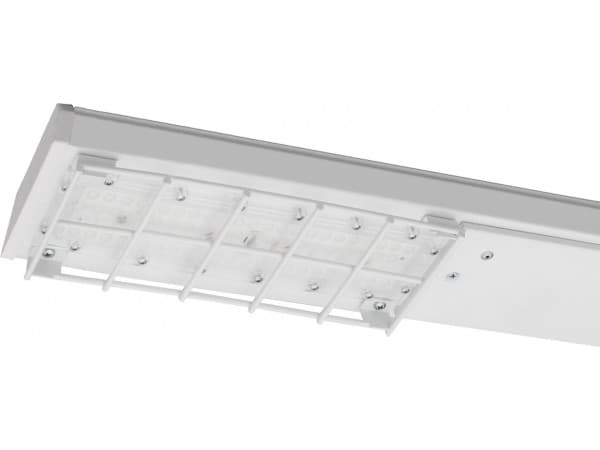

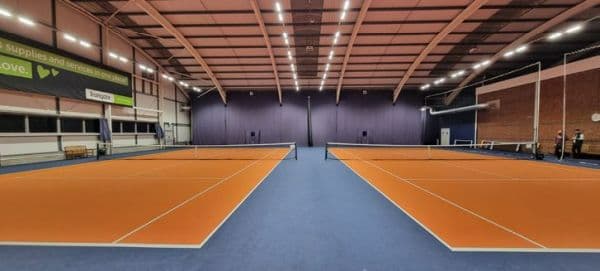

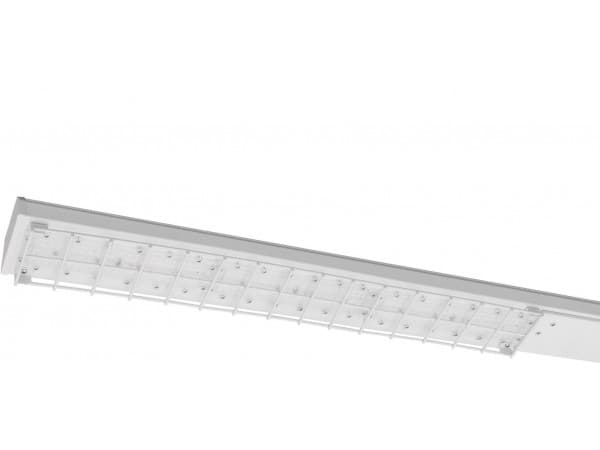

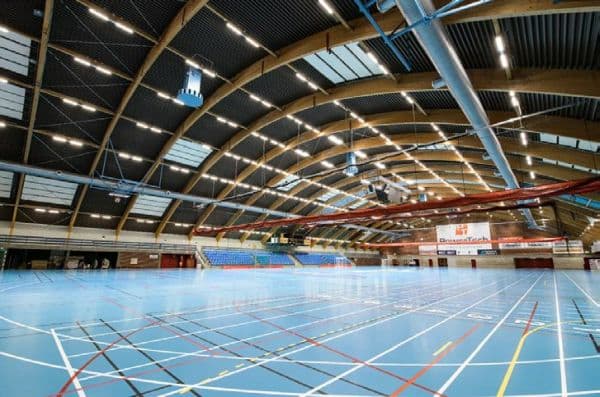

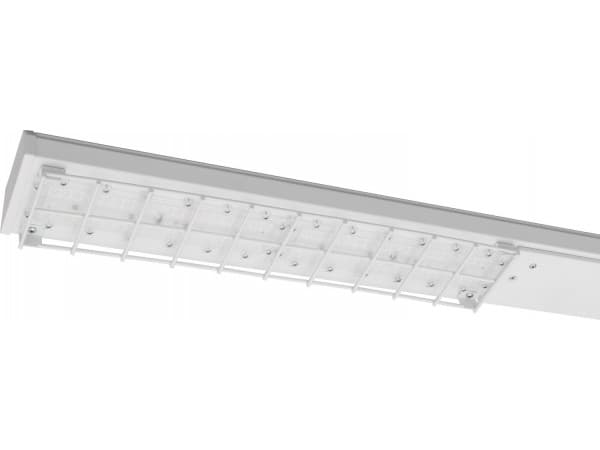

SPORT – Luminaire equipped with white painted protection grid suitable for sport halls
DALI – Driver with DALI interface and switch-control dimming
*note – for models with power above 155W two DALI addresses are used
HBEAIRB-M – Master luminaire with integrated smart sensor for high ceiling (up to 16 m) and driver with wireless communication and grouping possibilities for lighting control
HBEAIRB-S – Slave luminaire with integrated EAIR type driver for lighting control
*note – max system size 1x HBEAIRB-M + 1x HBEAIRB-S
*note – the impact protection rating of the HBEAIRB-M option is IK05, except when the SPORT option is used
*note – max wire length from HBEAIRB-M to last HBEAIRB-S – 11 m
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth), with integrated DALI PS
KRBLT – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), on/off
KRBLT DALI – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), DALI with integrated PS
COR – Driver with Corridor function (never off)
COR1min – Driver with Corridor function 1 min (switch off after 1 min)
COR30min – Driver with Corridor function 30 min (switch off after 30 min)
HBPIR-M – Batten-fit PIR sensor for ceiling heights up to 12 meters, on-off, master luminaire
HBPIR DALI-M – Batten-fit PIR sensor for ceiling heights up to 12 meters, DALI with integrated PS, master luminaire
HBPIR KRBLT – Batten-fit PIR sensor for ceiling heights up to 12 meters, KR system app control, on-off
HBPIR KRBLT DALI – Batten-fit PIR sensor for ceiling heights up to 12 meters, KR system app control and DALI with integrated PS
*note – Luminaire with integrated PIR sensor protection degree is IK05
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
*note – Operating temperature range for luminaires with EM option, ºC: 0…+35
1LIN – Through wiring single phase d=1.5 mm² with two push-in terminal blocks
2LIN – Through wiring two phases d=1.5 mm² with two push-in terminal blocks
3LIN – Through wiring three phases d=1.5 mm² with two push-in terminal blocks
1LIN2.5 – Through wiring single phase d=2.5 mm² with two push-in terminal blocks
2LIN2.5 – Through wiring two phases d=2.5 mm² with two push-in terminal blocks
3LIN2.5 – Through wiring three phases d=2.5 mm² with two push-in terminal blocks

Accessories:
Adjustable brackets MTG KIT – Norte I LED – Ceiling and wall mounting brackets for Norte I LED with angle adjustment +/-75 degrees (every 15), galvanized steel, 2 pcs
Remote Control HRC-11 – The functionality of the sensors is controlled by a number of parameters which can be changed or programmed remote with an infrared handset
*note – remote control for HBPIR-M; HBPIR DALI-M
