esviesa.lt | Cygni LED IK09 IP66

Accent LED luminaire

More information:

Type:

Surface mounted accent LED luminaire

Specification:

Surface mounted accent LED luminaire
Light distribution type: direct
Optical system: lenses, 30°, tempered glass diffuser, impact resistant
Housing: aluminium
Colour: light grey
Mains voltage: 220-240V, 50-60Hz
LED lifetime, h: 50000/L80B50
SDCM: 3
Protection class IEC: I
Ingress protection code: IP66
Mechanical impact resistance: IK09
Operating temperature range, ⁰C: -25…+40
Cable, 1.0m, 3x1.5 mm²

Installation:

On the horizontal or vertical surface (mounting bracket included)

Application:

Outdoor. Facade illumination

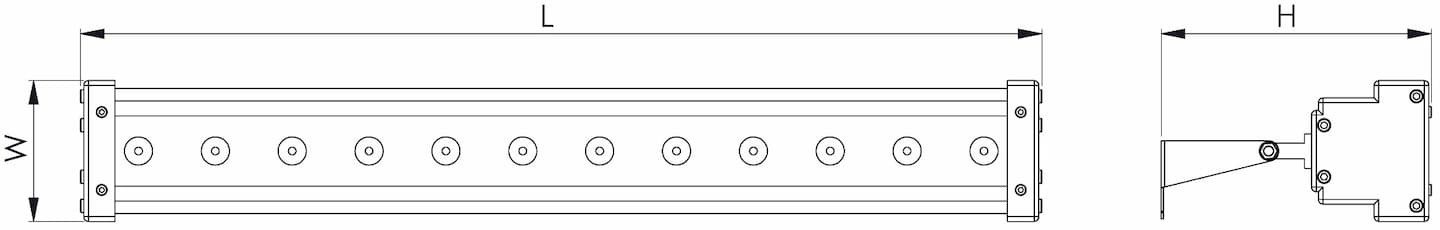

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Cygni LED1x1900 D775 T740 L30	705	82	164	50000/L80B50	1897	13.9	136	70+	4000	3.0
Cygni LED1x2400 D776 T740 L30	705	82	164	50000/L80B50	2593	19.2	135	70+	4000	3.0
Cygni LED1x3200 D777 T740 L30	705	82	164	50000/L80B50	3630	27.1	134	70+	4000	3.0
Cygni LED1x3800 D778 T740 L30	1265	82	164	50000/L80B50	3794	27.3	139	70+	4000	6.0
Cygni LED1x4800 D779 T740 L30	1265	82	164	50000/L80B50	5185	37.5	138	70+	4000	6.0
Cygni LED1x6400 D780 T740 L30	1265	82	164	50000/L80B50	7259	53.1	137	70+	4000	6.0

Available options:
T730 – Colour temperature 3000K, CRI 70+
T740 – Colour temperature 4000K, CRI 70+
L30 – Optics with 30×30º beam angle
DALI – Driver with DALI interface and switch-control dimming
1LIN 2xCBF3x0.3m – Through wiring single phase d=1.5 mm² with two flexible cables 3×1.5 mm². Cable lengths: 0.3 m

Accessories:
Power supply connector – IP66/IP68, 3×1.5mm2 – Quick and easy to connect power supply and luminaire cable connector – IP66/IP68, 3×1.5 mm², 450V/10A, 1 pcs
