esviesa.lt | Pegasus H LED 1x IK02 IP20

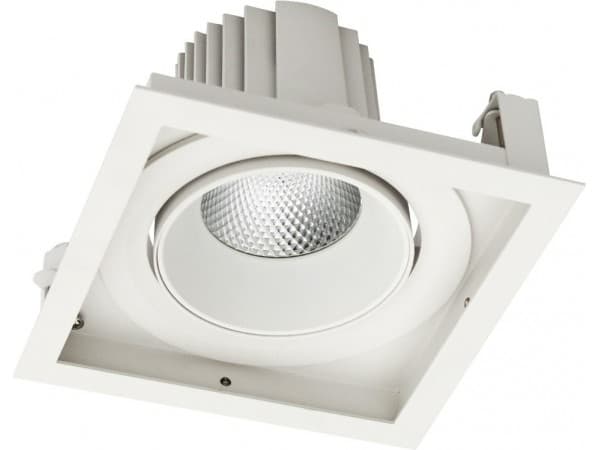

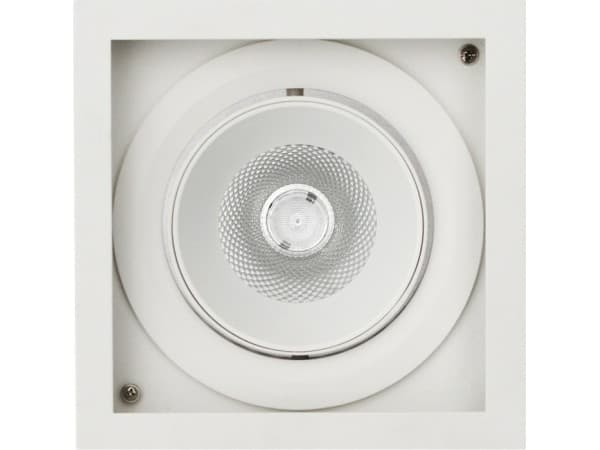

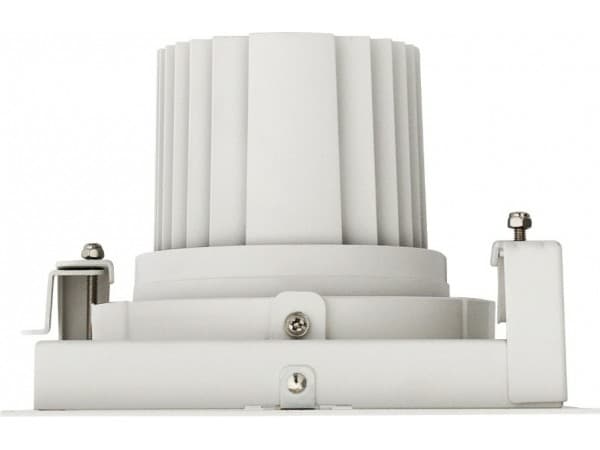

Recessed adjustable LED spotlight

More information:

Type:

Recessed mounted adjustable LED spotlight. Ideal for areas requiring good color rendering and high lighting levels

Specification:

Recessed mounted adjustable LED spotlight
Light distribution type: direct
Optical system: faceted aluminium reflector, clear PMMA diffuser
Horizontal rotation 355° and tilting ±30°
Housing: aluminium
Colour: white (RAL 9016)
Mains voltage: 220-240V, 0/50/60Hz
LED lifetime, h: 60000/L80B10 (T930, T940: 50000/L80B10)
SDCM: 3
Protection class IEC: II
Ingress protection code: IP20
Mechanical impact resistance: IK02
Operating temperature range, °C: 0…+35
Push-in terminal, 2x1.5 mm²

Installation:

In ceilings with cut-out openings (mounting brackets included)

Application:

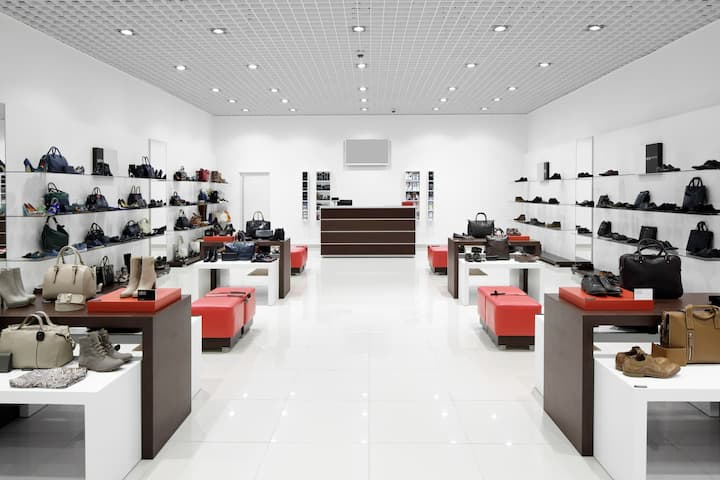

Ideal for all display lighting, showroom, museum, exhibition, public place

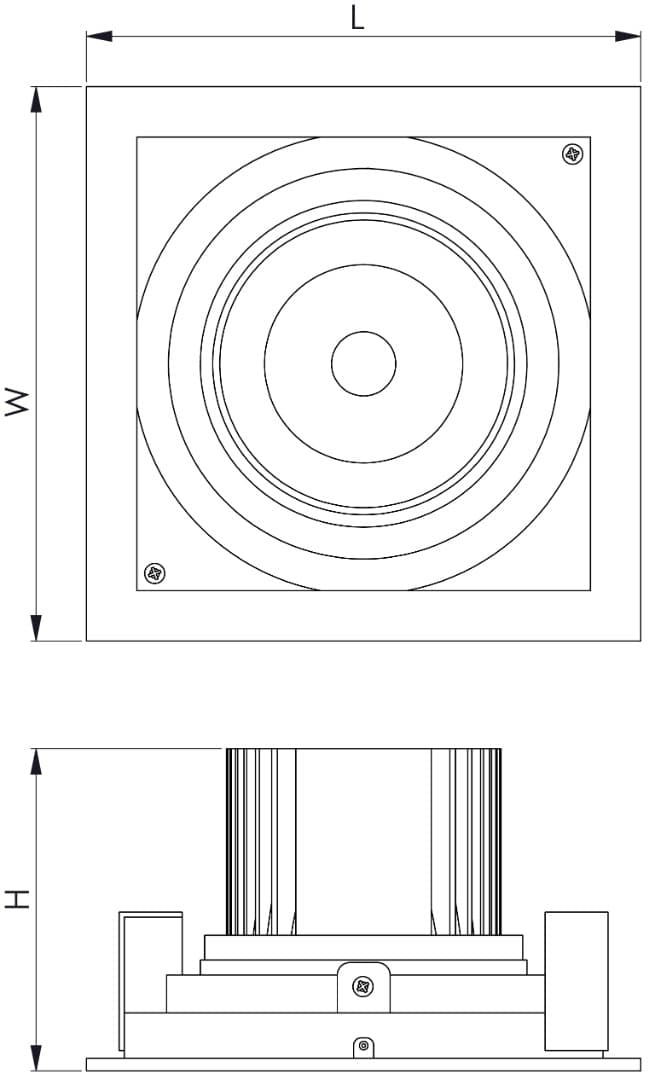

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Pegasus H LED1x1900 E828 T840 R40	175	175	119	60000/L80B10	1901	13.5	141	80+	4000	1.4
Pegasus H LED1x2500 E829 T840 R40	175	175	119	60000/L80B10	2583	18.7	138	80+	4000	1.4
Pegasus H LED1x3350 E830 T840 R40	175	175	119	60000/L80B10	3478	26.5	131	80+	4000	1.4
Pegasus H LED1x1900 E828 T940 R40	175	175	119	50000/L80B10	1606	13.3	121	90+	4000	1.4
Pegasus H LED1x2500 E829 T940 R40	175	175	119	50000/L80B10	2202	18.2	121	90+	4000	1.4
Pegasus H LED1x3350 E830 T940 R40	175	175	119	50000/L80B10	2993	25.8	116	90+	4000	1.4

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
T930 – Colour temperature 3000K, CRI 90+
T940 – Colour temperature 4000K, CRI 90+
T825 BREAD – Special spectrum for bread 2500K, CRI 80+
T820 MEAT – Special spectrum for meat 2000K “pink”, CRI 80+
T831 MEAT&WHITE – Special spectrum for meat products with increased white colour contrast 3100K “pink”, CRI 80+
T930 VEGETABLES – Special spectrum for colourful products. Fruits, fashion 3000K, CRI 90+
T932 FASHION – Special spectrum for fashion 3200K, CRI 90+
T931 FASHION&WHITE – Special spectrum for fashion with dominant white colour 3100K, CRI 90+
T927 NATURAL – Colour temperature 2700K, CRI 95+ NATURAL
T930 NATURAL – Colour temperature 3000K, CRI 95+ NATURAL
T940 NATURAL – Colour temperature 4000K, CRI 95+ NATURAL
R24 – Reflector with 24° light beam angle
R40 – Reflector with 40° light beam angle (standard)
DALI – Driver with DALI interface and switch-control dimming
WIE3-0.5m – 3-pole “Wieland – gesis classic” type or compatible connector with 0.5 m cable
WIE5D-0.5m – 5-pole DALI “Wieland – gesis classic” type or compatible connector with 0.5 m cable
Europlug-1.5m – 2-pole “Europlug” type plug with 2×1.0 mm² 1.5 m cable
Europlug-3.0m – 2-pole “Europlug” type plug with 2×1.0 mm² 3.0 m cable
RAL – RAL colour
*note – price for uncommon RAL colour or quantity less then MOQ could be different from indicated. Ask before placing an order
