esviesa.lt | Auriga C LED IK04 IP44 UGR

Recessed LED downlight

More information:

Type:

Recessed mounted LED downlight

Specification:

Recessed mounted LED downlight
Light distribution type: direct
Optical system: clear glass diffuser, faceted aluminium reflector, 40°, low glare / opal PMMA diffuser / translucent micro-prismatic PMMA diffuser
Housing: aluminium
Colour: white, RAL9016
Mains voltage: 220-240V, 0/50-60Hz
LED lifetime, h: 60000/L80B10
SDCM: 3
Protection class IEC: II
Ingress protection code: IP44
Mechanical impact resistance: IK04
Operating temperature range, °C: 0…+35
Push-in terminal, 2x1x1.5 mm²

Installation:

In ceilings with cut-out openings (mounting brackets included)

Application:

Indoor. Retail, office, public place, corridor, showroom, hotel, bathroom, exhibition, education

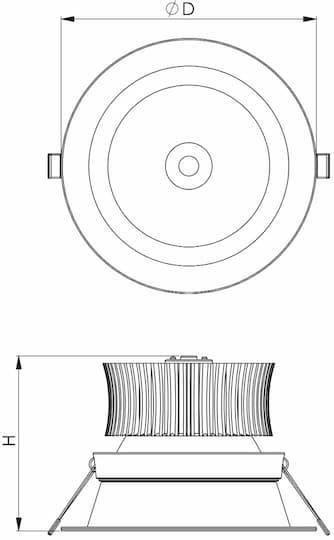

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg	UGR index

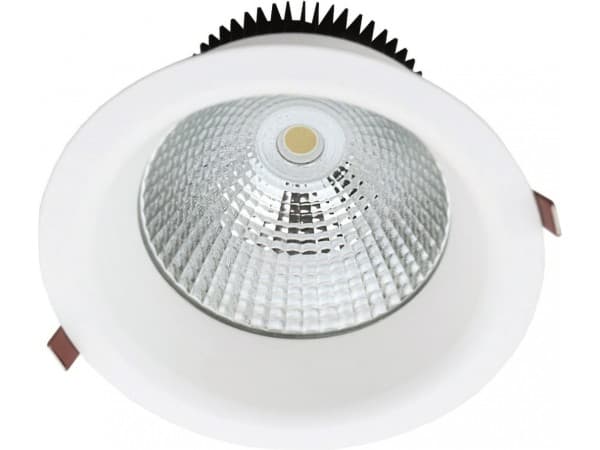

Auriga C LED1x1800 D336 T840 CLR	195	195	140	60000/L80B10	1813	13.5	134	80+	4000	0.8	≤16
Auriga C LED1x2400 D337 T840 CLR	195	195	140	60000/L80B10	2463	18.7	132	80+	4000	0.8	≤16
Auriga C LED1x3200 D338 T840 CLR	195	195	140	60000/L80B10	3316	26.5	125	80+	4000	0.8	≤19

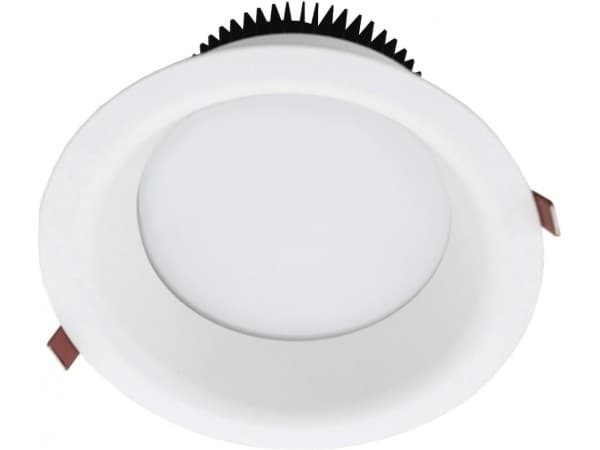

Auriga C LED1x1800 D336 T840 OP LT80	195	195	140	60000/L80B10	1658	13.5	123	80+	4000	0.8
Auriga C LED1x2400 D337 T840 OP LT80	195	195	140	60000/L80B10	2253	18.7	120	80+	4000	0.8
Auriga C LED1x3200 D338 T840 OP LT80	195	195	140	60000/L80B10	3033	26.5	114	80+	4000	0.8

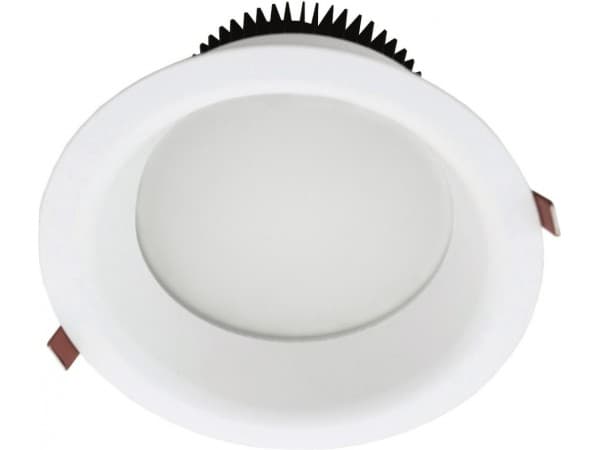

Auriga C LED1x1800 D336 T840 MPRZ LT92	195	195	140	60000/L80B10	1636	13.5	121	80+	4000	0.8
Auriga C LED1x2400 D337 T840 MPRZ LT92	195	195	140	60000/L80B10	2223	18.7	119	80+	4000	0.8
Auriga C LED1x3200 D338 T840 MPRZ LT92	195	195	140	60000/L80B10	2993	26.5	113	80+	4000	0.8

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
T930 – Colour temperature 3000K, CRI 90+
T940 – Colour temperature 4000K, CRI 90+
OP LT80 – Opal diffuser with high light transmittance
MPRZ LT92 – Translucent micro-prismatic diffuser with high light transmittance
OP TP(a) – TP(a) rated thermoplastic opal diffuser
T927 NATURAL – Colour temperature 2700K, CRI 95+ NATURAL
T930 NATURAL – Colour temperature 3000K, CRI 95+ NATURAL
T940 NATURAL – Colour temperature 4000K, CRI 95+ NATURAL
DALI – Driver with DALI interface and switch-control dimming
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
WIE3-0.5m – 3-pole “Wieland – gesis classic” type or compatible connector with 0.5 m cable
WIE5D-0.5m – 5-pole DALI “Wieland – gesis classic” type or compatible connector with 0.5 m cable
QBX2-0.1m – 2-pole quick connection box on 0.1 m cable, push-in terminal, 2x2x2.5 mm²
Europlug-1.5m – 2-pole “Europlug” type plug with 2×1.0 mm² 1.5 m cable
Europlug-3.0m – 2-pole “Europlug” type plug with 2×1.0 mm² 3.0 m cable
RAL – RAL colour
