esviesa.lt | TOWN MODULAR FLOODLIGHT IK08 IP66

Floodlight

More information:

Type:

Aluminium IP66 LED floodlight.

Specification:

Modular floodlight made of 1070 extruded aluminium with high heat dissipation capacity, powder coated in RAL7045. PMMA optics and tempered glass protector. Can be configured with different optics to adapt the light beam to any architectural project. Specially designed for the illumination of monuments, façades, historic buildings and cultural spaces. Double adjustment of orientation by means of a bracket and by independent module with a range of -45º to +90º. Floor, wall or ceiling installation. Architectural and monumental use.

Installation:

Suitable for horizontal and/or vertical surfaces.

Application:

Outdoor use (IP66): Public areas, Industry, Architectural lighting

Name	Dimensions, mm	Lifetime, h	Luminaire output, lm	Power, W	System efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg

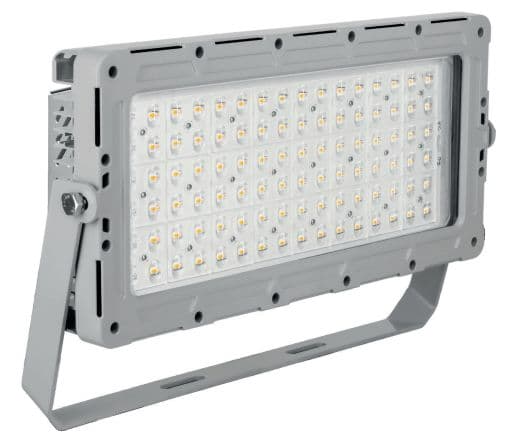

TOWN AM100	520x120x320	102000	–	200	–	70+	RGB+W-AMBER	7.50
TOWN AM101	520x120x320	102000	–	200	–	70+	RGB+W-1800	7.50
TOWN AM102	520x120x320	102000	–	200	–	70+	RGB+W-2200	7.50
TOWN AM103	520x120x320	102000	–	200	–	70+	RGB+W-2700	7.50
TOWN AM104	520x120x320	102000	–	200	–	70+	RGB+W-3000	7.50
TOWN AM105	520x120x320	102000	–	200	–	70+	RGB+W-4000	7.50
TOWN AM106	520x120x320	102000	–	200	–	70+	RGB+W-5000	7.50
TOWN AM107	520x120x320	102000	–	200	–	70+	RGB+W-5700	7.50
TOWN AM108	520x120x320	102000	–	200	–	70+	RED	7.50
TOWN AM109	520x120x320	102000	–	200	–	70+	GREEN	7.50
TOWN AM110	520x120x320	102000	–	200	–	70+	BLUE	7.50
TOWN AM111	520x120x320	102000	15300	200	77	70+	1800-5700	7.50

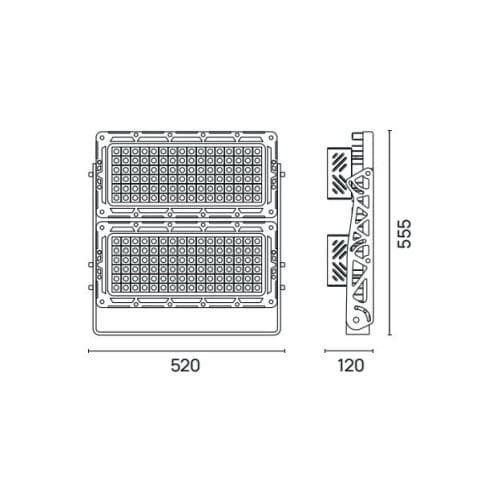

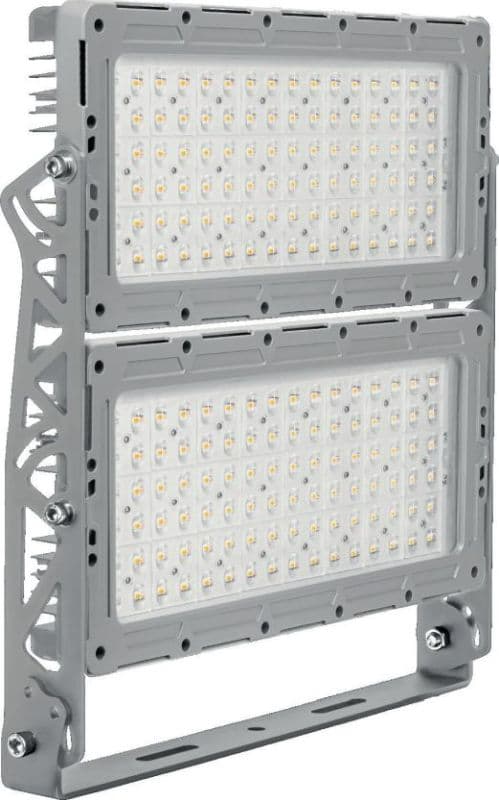

TOWN AM112	520x120x555	102000	–	400	–	70+	RGB+W-AMBER	23.30
TOWN AM113	520x120x555	102000	–	400	–	70+	RGB+W-1800	23.30
TOWN AM114	520x120x555	102000	–	400	–	70+	RGB+W-2200	23.30
TOWN AM115	520x120x555	102000	–	400	–	70+	RGB+W-2700	23.30
TOWN AM116	520x120x555	102000	–	400	–	70+	RGB+W-3000	23.30
TOWN AM117	520x120x555	102000	–	400	–	70+	RGB+W-4000	23.30
TOWN AM118	520x120x555	102000	–	400	–	70+	RGB+W-5000	23.30
TOWN AM119	520x120x555	102000	–	400	–	70+	RGB+W-5700	23.30
TOWN AM120	520x120x555	102000	–	400	–	70+	RED	23.30
TOWN AM121	520x120x555	102000	–	400	–	70+	GREEN	23.30
TOWN AM122	520x120x555	102000	–	400	–	70+	BLUE	23.30
TOWN AM123	520x120x555	102000	30600	400	77	70+	1800-5700	23.30

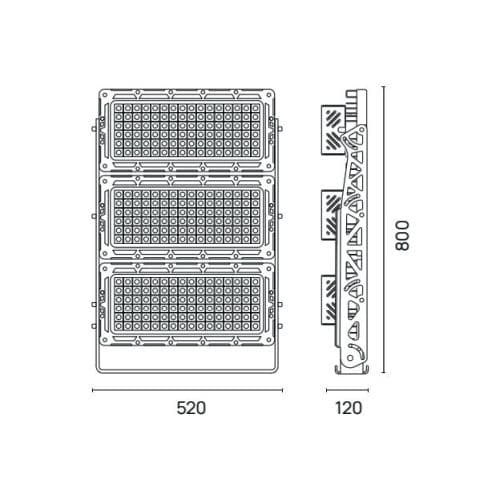

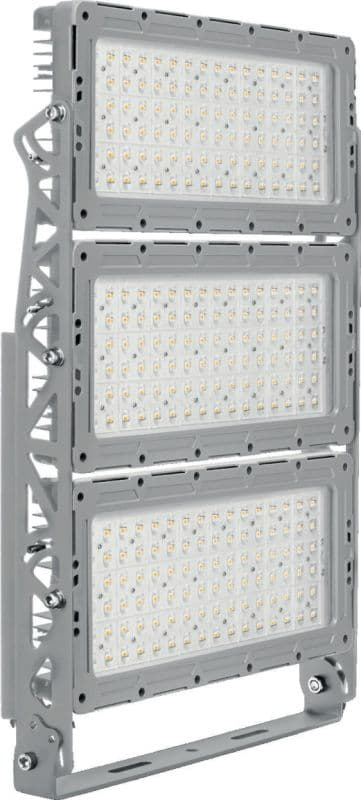

TOWN AM124	520x120x800	102000	–	600	–	70+	RGB+W-AMBER	31.10
TOWN AM125	520x120x800	102000	–	600	–	70+	RGB+W-1800	31.10
TOWN AM126	520x120x800	102000	–	600	–	70+	RGB+W-2200	31.10
TOWN AM127	520x120x800	102000	–	600	–	70+	RGB+W-2700	31.10
TOWN AM128	520x120x800	102000	–	600	–	70+	RGB+W-3000	31.10
TOWN AM129	520x120x800	102000	–	600	–	70+	RGB+W-4000	31.10
TOWN AM130	520x120x800	102000	–	600	–	70+	RGB+W-5000	31.10
TOWN AM131	520x120x800	102000	–	600	–	70+	RGB+W-5700	31.10
TOWN AM132	520x120x800	102000	–	600	–	70+	RED	31.10
TOWN AM133	520x120x800	102000	–	600	–	70+	GREEN	31.10
TOWN AM134	520x120x800	102000	–	600	–	70+	BLUE	31.10
TOWN AM135	520x120x800	102000	45900	600	77	70+	1800-5700	31.10
