esviesa.lt | Taku LED IK08 IP66

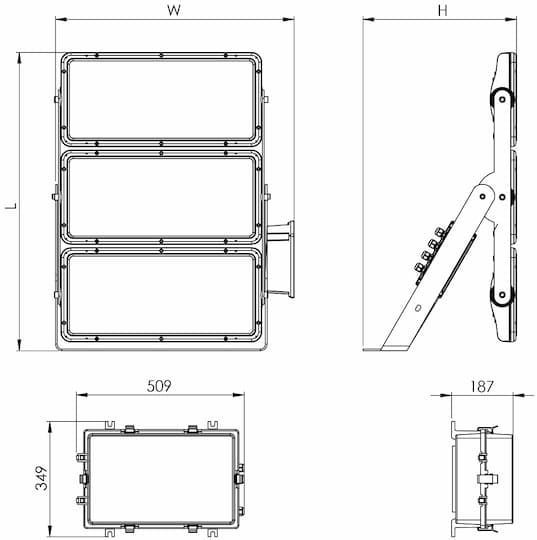

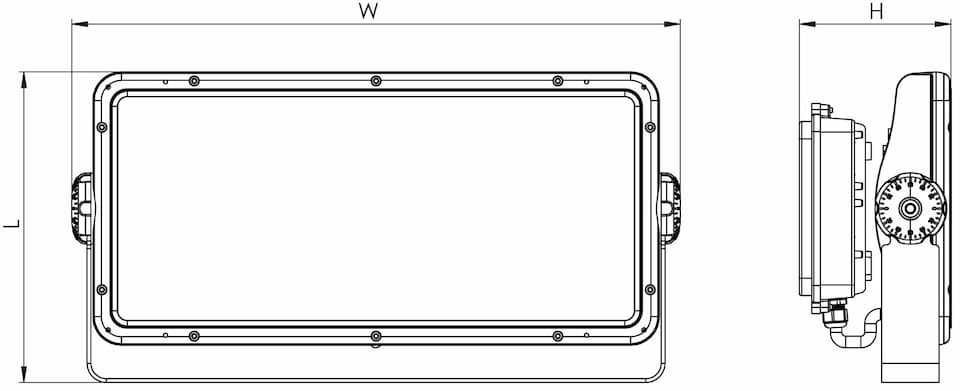

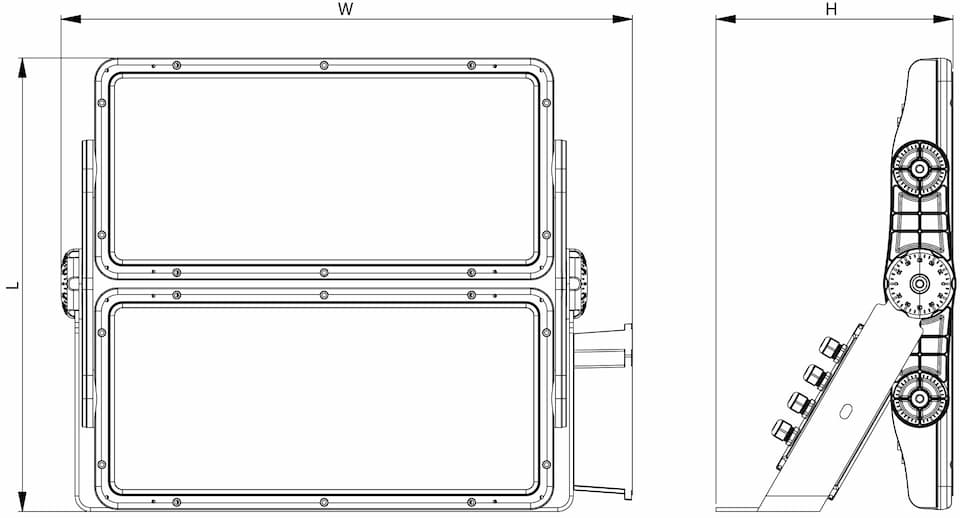

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Taku LED1x52100 E950 T740 LS30	320	640	165	135000/L80B10	52056	336	155	70+	4000	15.6
Taku LED1x58400 E951 T740 LS30	320	640	165	135000/L80B10	58384	383	152	70+	4000	15.6
Taku LED1x70900 E952 T740 LS30	320	640	165	135000/L80B10	70868	488	145	70+	4000	15.6
Taku LED2x52100 E953 T740 LS30	580	750	300	135000/L80B10	104112	671	155	70+	4000	34.5
Taku LED2x58400 E954 T740 LS30	580	750	300	135000/L80B10	116767	766	152	70+	4000	34.5
Taku LED2x70900 E955 T740 LS30	580	750	300	135000/L80B10	141736	977	145	70+	4000	34.5
Taku LED3x52100 J835 T740 LS30	637	464	900	135000/L80B10	156167	1007	155	70+	4000	41.5
Taku LED3x58400 J836 T740 LS30	637	464	900	135000/L80B10	175151	1149	152	70+	4000	41.5
Taku LED3x70900 J837 T740 LS30	637	464	900	135000/L80B10	212604	1465	145	70+	4000	41.5
Taku LED1x52100 E950 T740 LS45	320	640	165	135000/L80B10	52056	336	155	70+	4000	15.6
Taku LED1x58400 E951 T740 LS45	320	640	165	135000/L80B10	58384	383	152	70+	4000	15.6
Taku LED1x70900 E952 T740 LS45	320	640	165	135000/L80B10	70868	488	145	70+	4000	15.6
Taku LED2x52100 E953 T740 LS45	580	750	300	135000/L80B10	104112	671	155	70+	4000	34.5
Taku LED2x58400 E954 T740 LS45	580	750	300	135000/L80B10	116767	766	152	70+	4000	34.5
Taku LED2x70900 E955 T740 LS45	580	750	300	135000/L80B10	141736	977	145	70+	4000	34.5
Taku LED3x52100 J835 T740 LS45	637	464	900	135000/L80B10	156167	1007	155	70+	4000	41.5
Taku LED3x58400 J836 T740 LS45	637	464	900	135000/L80B10	175151	1149	152	70+	4000	41.5
Taku LED3x70900 J837 T740 LS45	637	464	900	135000/L80B10	212604	1465	145	70+	4000	41.5
Taku LED1x52100 E950 T740 LS60	320	640	165	135000/L80B10	52056	336	155	70+	4000	15.6
Taku LED1x58400 E951 T740 LS60	320	640	165	135000/L80B10	58384	383	152	70+	4000	15.6
Taku LED1x70900 E952 T740 LS60	320	640	165	135000/L80B10	70868	488	145	70+	4000	15.6
Taku LED2x52100 E953 T740 LS60	580	750	300	135000/L80B10	104112	671	155	70+	4000	34.5
Taku LED2x58400 E954 T740 LS60	580	750	300	135000/L80B10	116767	766	152	70+	4000	34.5
Taku LED2x70900 E955 T740 LS60	580	750	300	135000/L80B10	141736	977	145	70+	4000	34.5
Taku LED3x52100 J835 T740 LS60	637	464	900	135000/L80B10	156167	1007	155	70+	4000	41.5
Taku LED3x58400 J836 T740 LS60	637	464	900	135000/L80B10	175151	1149	152	70+	4000	41.5
Taku LED3x70900 J837 T740 LS60	637	464	900	135000/L80B10	212604	1465	145	70+	4000	41.5
Taku LED1x50400 E950 T740 LS90	320	640	165	135000/L80B10	50377	336	150	70+	4000	15.6
Taku LED1x56500 E951 T740 LS90	320	640	165	135000/L80B10	56500	383	148	70+	4000	15.6
Taku LED1x68600 E952 T740 LS90	320	640	165	135000/L80B10	68582	488	140	70+	4000	15.6
Taku LED2x50400 E953 T740 LS90	580	750	300	135000/L80B10	100753	671	150	70+	4000	34.5
Taku LED2x56500 E954 T740 LS90	580	750	300	135000/L80B10	113000	766	148	70+	4000	34.5
Taku LED2x68600 E955 T740 LS90	580	750	300	135000/L80B10	137164	977	140	70+	4000	34.5
Taku LED3x50400 J835 T740 LS90	637	464	900	135000/L80B10	151130	1007	150	70+	4000	41.5
Taku LED3x56500 J836 T740 LS90	637	464	900	135000/L80B10	169501	1149	148	70+	4000	41.5
Taku LED3x68600 J837 T740 LS90	637	464	900	135000/L80B10	205745	1465	140	70+	4000	41.5
Taku LED1x45900 E950 T740 LSA1	320	640	165	135000/L80B10	45899	336	137	70+	4000	15.6
Taku LED1x51500 E951 T740 LSA1	320	640	165	135000/L80B10	51478	383	134	70+	4000	15.6
Taku LED1x62500 E952 T740 LSA1	320	640	165	135000/L80B10	62486	488	128	70+	4000	15.6
Taku LED2x45900 E953 T740 LSA1	580	750	300	135000/L80B10	91797	671	137	70+	4000	34.5
Taku LED2x51500 E954 T740 LSA1	580	750	300	135000/L80B10	102956	766	134	70+	4000	34.5
Taku LED2x62500 E955 T740 LSA1	580	750	300	135000/L80B10	124971	977	128	70+	4000	34.5
Taku LED3x45900 J835 T740 LSA1	637	464	900	135000/L80B10	137696	1007	137	70+	4000	41.5
Taku LED3x51500 J836 T740 LSA1	637	464	900	135000/L80B10	154434	1149	134	70+	4000	41.5
Taku LED3x62500 J837 T740 LSA1	637	464	900	135000/L80B10	187457	1465	128	70+	4000	41.5
Taku LED1x47050 E950 T740 LSA2	320	640	165	135000/L80B10	47018	336	140	70+	4000	15.6
Taku LED1x52750 E951 T740 LSA2	320	640	165	135000/L80B10	52734	383	138	70+	4000	15.6
Taku LED1x64050 E952 T740 LSA2	320	640	165	135000/L80B10	64010	488	131	70+	4000	15.6
Taku LED2x47050 E953 T740 LSA2	580	750	300	135000/L80B10	94036	671	140	70+	4000	34.5
Taku LED2x52750 E954 T740 LSA2	580	750	300	135000/L80B10	105467	766	138	70+	4000	34.5
Taku LED2x64050 E955 T740 LSA2	580	750	300	135000/L80B10	128019	977	131	70+	4000	34.5
Taku LED3x47050 J835 T740 LSA2	637	464	900	135000/L80B10	141054	1007	140	70+	4000	41.5
Taku LED3x52750 J836 T740 LSA2	637	464	900	135000/L80B10	158201	1149	138	70+	4000	41.5
Taku LED3x64050 J837 T740 LSA2	637	464	900	135000/L80B10	192029	1465	131	70+	4000	41.5
Taku LED1x48150 E950 T740 LSM1	320	640	165	135000/L80B10	48138	336	143	70+	4000	15.6
Taku LED1x54000 E951 T740 LSM1	320	640	165	135000/L80B10	53989	383	141	70+	4000	15.6
Taku LED1x65550 E952 T740 LSM1	320	640	165	135000/L80B10	65534	488	134	70+	4000	15.6
Taku LED2x48150 E953 T740 LSM1	580	750	300	135000/L80B10	96275	671	143	70+	4000	34.5
Taku LED2x54000 E954 T740 LSM1	580	750	300	135000/L80B10	107978	766	141	70+	4000	34.5
Taku LED2x65550 E955 T740 LSM1	580	750	300	135000/L80B10	131067	977	134	70+	4000	34.5
Taku LED3x48150 J835 T740 LSM1	637	464	900	135000/L80B10	144413	1007	143	70+	4000	41.5
Taku LED3x54000 J836 T740 LSM1	637	464	900	135000/L80B10	161967	1149	141	70+	4000	41.5
Taku LED3x65550 J837 T740 LSM1	637	464	900	135000/L80B10	196601	1465	134	70+	4000	41.5
Taku LED1x52650 E950 T740 LS20 ta+55C	640	165	320	135000/L80B10	52616	336	155	70+	4000	15.7
Taku LED1x59050 E951 T740 LS20 ta+55C	640	165	320	135000/L80B10	59011	383	152	70+	4000	15.7
Taku LED2x52650 E953 T740 LS20 ta+55C	750	300	580	135000/L80B10	105231	671	155	70+	4000	34.5
Taku LED2x59050 E954 T740 LS20 ta+55C	750	300	580	135000/L80B10	118023	766	152	70+	4000	34.5
Taku LED3x52650 J835 T740 LS20 ta+55C	637	464	900	135000/L80B10	157847	1007	157	70+	4000	41.5
Taku LED3x59050 J836 T740 LS20 ta+55C	637	464	900	135000/L80B10	177034	1149	154	70+	4000	41.5

Available options:
T740 – Colour temperature 4000K, CRI 70+
LS30 – Optics with 30×30º beam angle
LS45 – Optics with 45×45º beam angle
LS60 – Optics with 60×60º beam angle
LS90 – Optics with 90×90º beam angle
LSA1 – Optics with asymmetric beam SA1
LSA2 – Optics with asymmetric beam SA2
LSM1 – Optics with asymmetric beam SM1
DALI – Driver with DALI interface
10KV – Surge protection device 10kV (L/N)
C5-M – Product prepared and suitable for installation in coastal areas
*note – for models: E950…E952

Spotlights, accent

Surface luminaires

Suspended luminaires

Recessed luminaires

Wall luminaires

Industrial lighting

Emergency, exit sign

Facade lighting

Park lighting

Street lighting

Interior lighting

Spotlights, accent

Surface luminaires

Suspended luminaires

Recessed luminaires

Wall luminaires

Industrial lighting

Emergency, exit sign

Facade lighting

Park lighting

Street lighting

Interior lighting

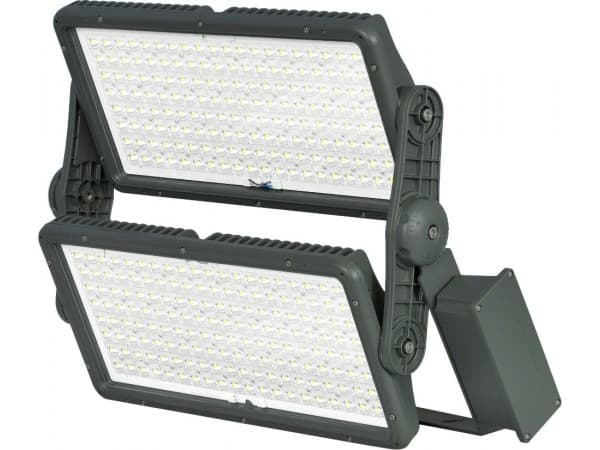

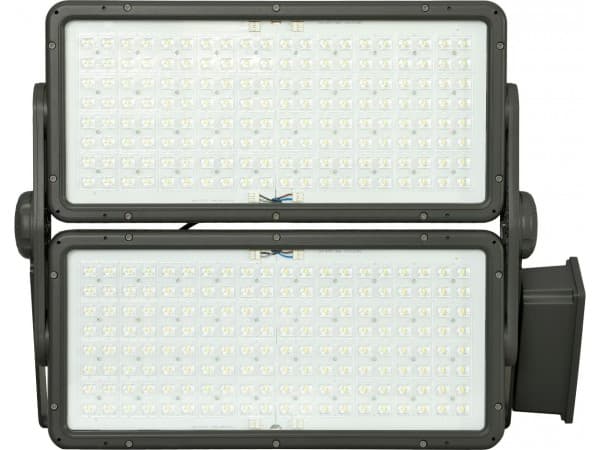

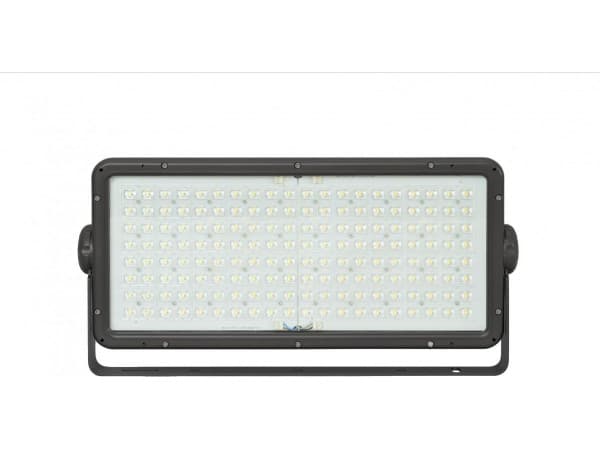

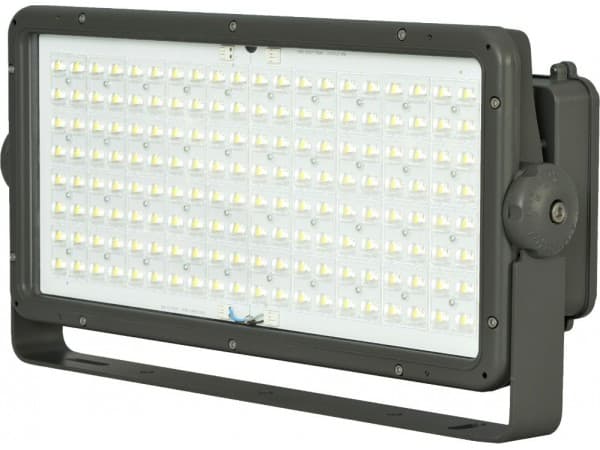

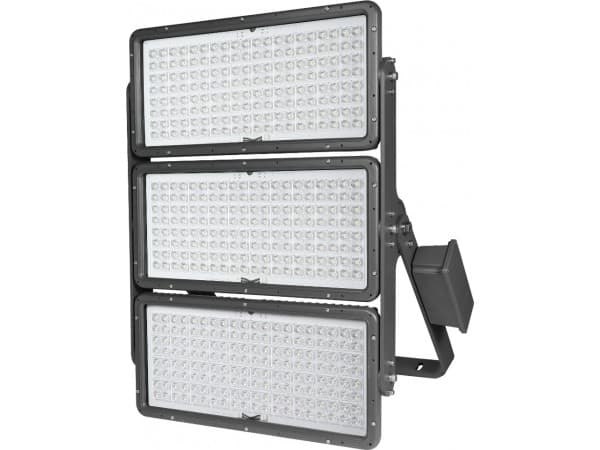

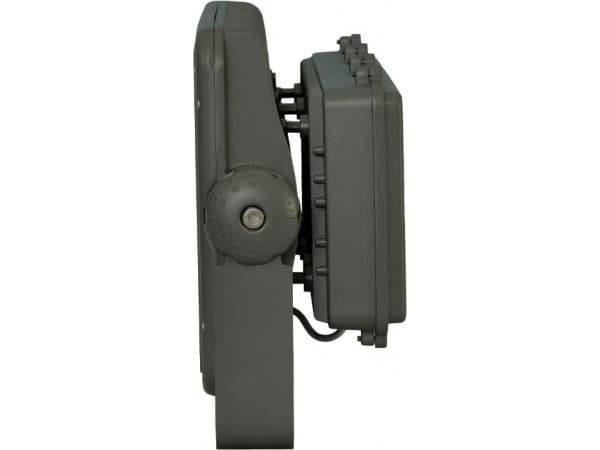

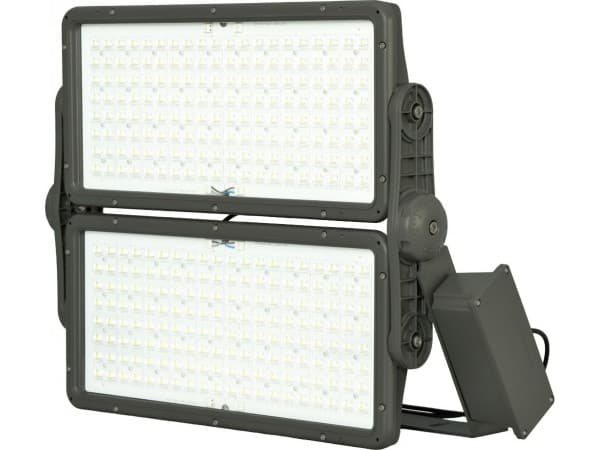

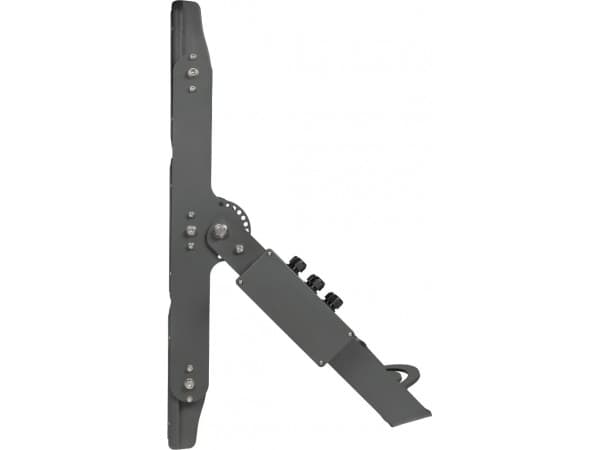

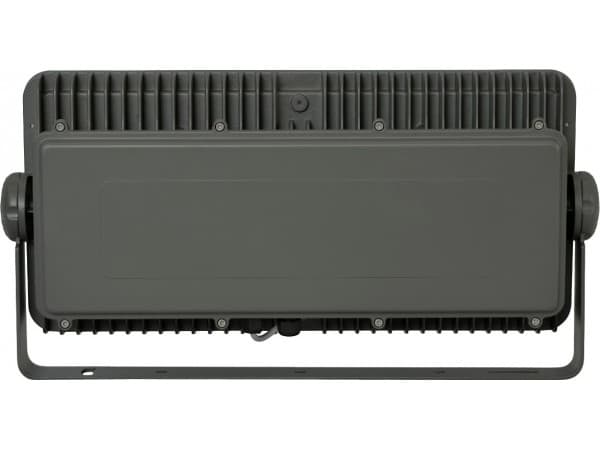

Taku LED IK08 IP66
