| Name | Length, mm | Width, mm | Height, mm | LED lifetime, h | Output, lm | Power, W | Efficacy, lm/W | CRI (Ra) | CCT, K | Weight, kg |

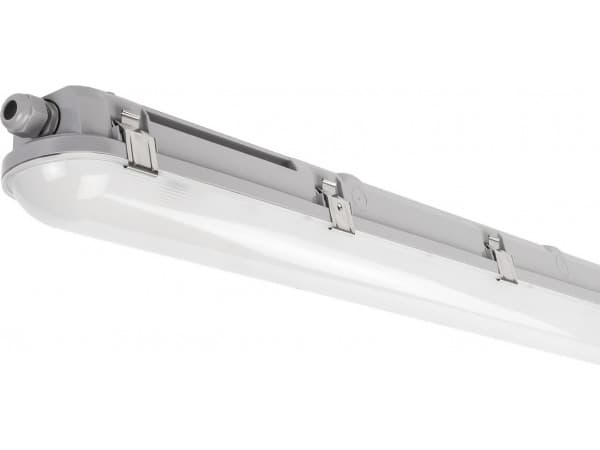

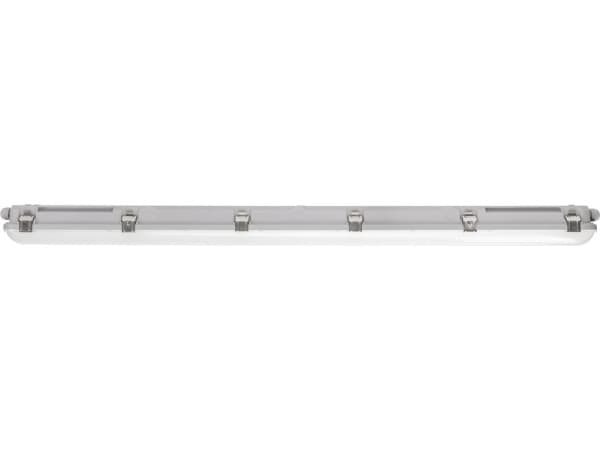

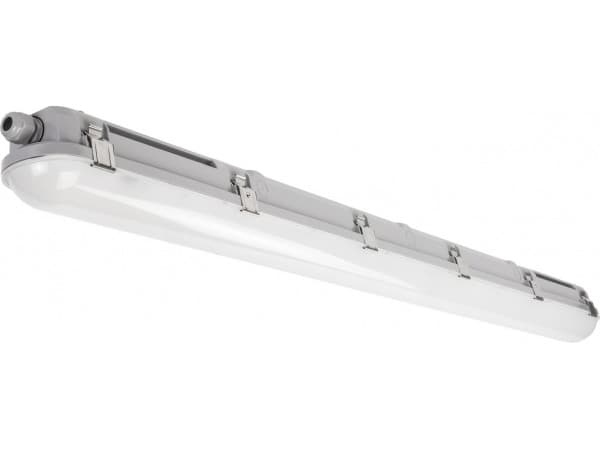

| Typhoon LED1x3400/3950/4800/5600 K557 T840 PC/PC OP | 1200 | 85 | 80 | 100000/L80B10 | 3360/3920/ 4760/5600 | 24/28/32/40 | 140 | 80+ | 4000 | 1.4 |
| Typhoon LED1x3400/3950/4800/5600 K570 T840/865 PC/PC OP 3LIN | 1200 | 85 | 80 | 100000/L80B10 | 3360/3920/ 4760/5600 | 24/28/32/40 | 140 | 80+ | 4000/6500 | 1.4 |
| Typhoon LED1x4900/5600/6750/8400 K571 T840 PC/PC OP | 1500 | 85 | 80 | 100000/L80B10 | 4900/5600/ 6720/8400 | 35/40/48/60 | 140 | 80+ | 4000 | 1.5 |
| Typhoon LED1x4900/5600/6750/8400 K572 T840/865 PC/PC OP 3LIN | 1500 | 85 | 80 | 100000/L80B10 | 4900/5600/ 6720/8400 | 35/40/48/60 | 140 | 80+ | 4000/6500 | 1.5 |
Available options:
DALI – Driver with DALI interface and switch-control dimming
*note – DALI option available only for the highest-power models
*note – for DALI LIN option wires are 2×0.5 mm²
COR – Driver with Corridor function (never off)
COR1min – Driver with Corridor function 1 min (switch off after 1 min)
COR30min – Driver with Corridor function 30 min (switch off after 30 min)
*note – COR option available only for the highest-power models
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
*note – operating temperature range for Luminaires with EM option, °C: 0…+35
*note – ask the compatibility of the specific model with EM options
Accessories:
Suspension MTG KIT SUSI – Suspension wire set “I” type, 1.5 m adjustable, 1 pcs
*note – 2 pcs MTG KIT SUSI for one fitting required
