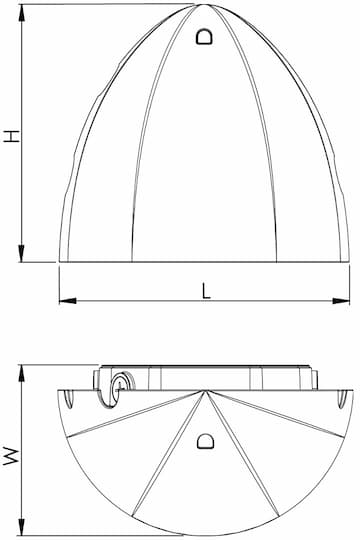

| Name | Length, mm | Width, mm | Height, mm | LED lifetime, h | Output, lm | Power, W | Efficacy, lm/W | CRI (Ra) | CCT, K | Weight, kg |
| Antares A LED1x 1600/2100/2350/2550/3200 K120 T830/840/850 CLR | 238 | 139 | 212 | 80000/L80B50 | 1570/2055/2320/2530/3180 | 13/16/18/ 20/25 | 120-140 | 80+ | 3000/4000/5000 | 1.9 |
Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
T850 – Colour temperature 5000K, CRI 80+
DALI – Driver with DALI interface
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
*note – operating temperature range for luminaires with EM option, °C: 0…+35
PCA – Photocell 20 mm miniature type, IP65, 35 lux; 1:05 ratio
CBF3x1.5-N m – Outgoing flexible cable 3×1.5 mm², length according to customer specification
CBF5x1.5-N m – Outgoing flexible cable 5×1.5 mm², length according to customer specification
*note – please specify the length of outgoing cable before placing an order
II – Electric shock protection class II
10KV – Additional Surge Protection device – 10KV
RAL – RAL colour
