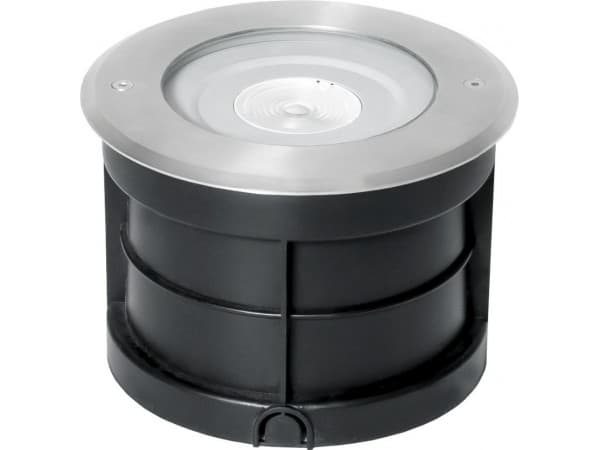

esviesa.lt | Atlas LED IK10 IP67

Ground-mounted LED luminaire

More information:

Type:

Ground-mounted LED luminaire

Specification:

Ground-mounted LED luminaire
Light distribution type: direct
Optical system: lens, tempered glass diffuser, impact resistant
Housing: aluminium, dark grey, RAL7043
Frame: stainless-steel, brushed
Mains voltage: 220-240V, 50-60Hz
LED lifetime, h: 60000/L80B10
SDCM: 3
Protection class IEC: I
Ingress protection code: IP67
Mechanical impact resistance: IK10
Operating temperature range, ºC: -25…+40
Cable, 1.0m, 3x1.5 mm²

Installation:

In the ground

Application:

Outdoor. Facade illumination, public space

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Atlas LED1x1650 J725 T840 L30	210	210	120	60000/L80B10	1636	13.4	122	80+	4000	2.2
Atlas LED1x2250 J726 T840 L30	210	210	120	60000/L80B10	2335	19.7	119	80+	4000	2.2
Atlas LED1x2250 J727 T840 L30	260	260	125	60000/L80B10	2223	19.3	115	80+	4000	3.3
Atlas LED1x3000 J728 T840 L30	260	260	125	60000/L80B10	3204	26.1	123	80+	4000	3.3
Atlas LED1x3000 J729 T840 L30	320	320	160	60000/L80B10	3204	26.1	123	80+	4000	5.2
Atlas LED1x3800 J730 T840 L30	320	320	160	60000/L80B10	3952	34.4	115	80+	4000	5.2

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
DALI – Driver with DALI interface

Accessories:
Power supply connector I IP68 2x3x2.5mm2 – Connection box IP68 filled with gel, “I” type, 2x3x2.5 mm², 250V/6A, external cable diameter: 5,5-10 mm, 1 pcs
*For installation IP68 waterproof connectors are recommended
Power supply connector T IP68 3x3x2.5mm2 – Junction box IP68 filled with gel, “T” type, 3x3x2.5 mm², 250V/16A, external cable diameter: 6,5-12 mm, luminaire cable diameter: 5,5-10 mm, 1 pcs
*For installation IP68 waterproof connectors are recommended
