esviesa.lt | Indus P LED White IK08 IP65

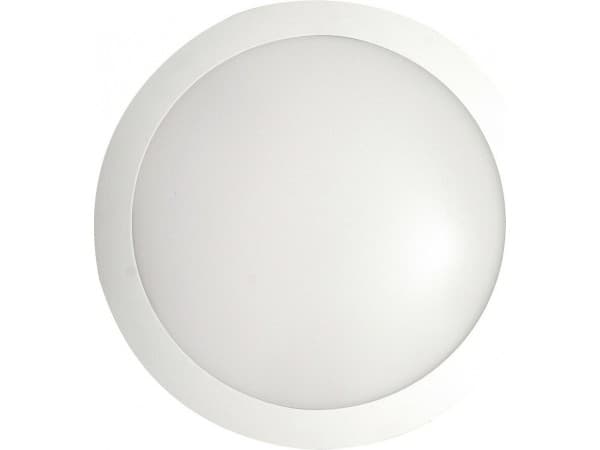

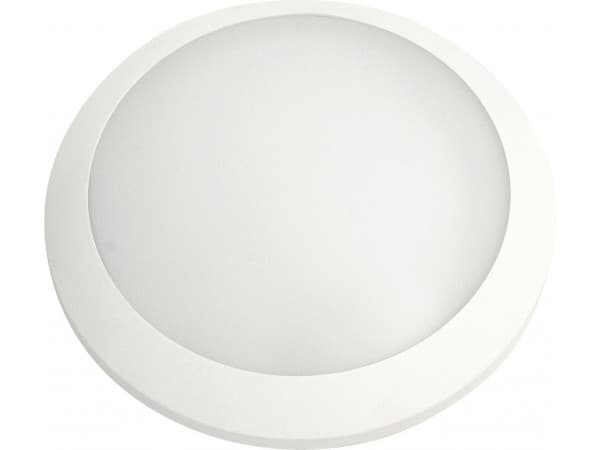

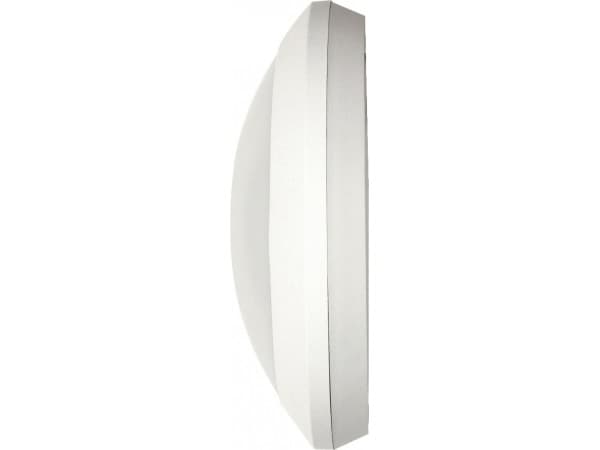

Surface LED luminaire

More information:

Type:

A surface LED luminaire with rounded profile, good dust and weather resistance

Specification:

Surface mounted plastic LED luminaire
Light distribution type: direct
Optical system: opal acrylic diffuser, UV resistant
Housing: thermoplastic
Colour: white; dark grey; black
Mains voltage: 220-240V, 50-60Hz
LED lifetime, h: 50000/L80B10
SDCM: 3
Protection class IEC: II
Ingress protection code: IP65
Mechanical impact resistance: IK08
Operating temperature range, °C: -15…+35 (from 0°C with EM3)
Push-in terminal, 2x2x2.5 mm²

Installation:

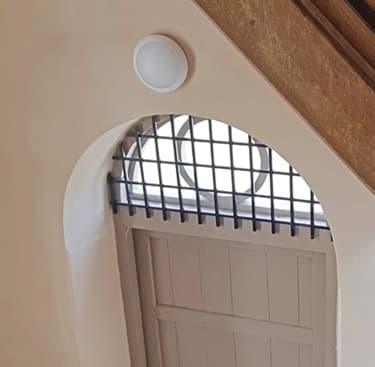

On the ceiling or wall

Application:

Indoor, outdoor with roof. For use in most industrial and many commercial applications. Office, education, corridor, staircase, healthcare, bathroom, public place

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Indus P LED1x1200 D501 T840 1G	295	295	100	50000/L80B10	1102	9.3	118	80+	4000	1.1
Indus P LED1x1650 D502 T840 1G	295	295	100	50000/L80B10	1539	13.5	114	80+	4000	1.1
Indus P LED1x1200 D501 T840 MW 1G	295	295	100	50000/L80B10	1102	9.3	118	80+	4000	1.1
Indus P LED1x1650 D502 T840 MW 1G	295	295	100	50000/L80B10	1539	13.5	114	80+	4000	1.1

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
LOUVER – Decorative louver
DALI – Driver with DALI interface
*note – for this model DALI option is not compatible with SWITCHDIM functionality
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth), with integrated DALI PS
KRBLT – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), on/off
KRBLT DALI – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), DALI with integrated PS
MW – Integrated microwave (MW) motion sensor with on-off control
MWRFM+ – Integrated microwave (MW) motion sensor with integrated RF (radio wave) transceiver. Sensor can serve as both master and slave. Functions: Staircase, Corridor, dimming control
MW DALI2 – Integrated microwave (MW) motion sensor with DALI2 controls, requires power supply
MW KRBLT – Integrated wireless microwave (MW) motion sensor with KR system app control, on-off
MW KRBLT DALI – Integrated wireless microwave (MW) motion sensor with KR system app control and DALI power supply
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
*note – Operating temperature range for Luminaires with EM option, °C: 0… +35
DGREY – Dark grey thermoplastic body
BLACK – Black thermoplastic body
