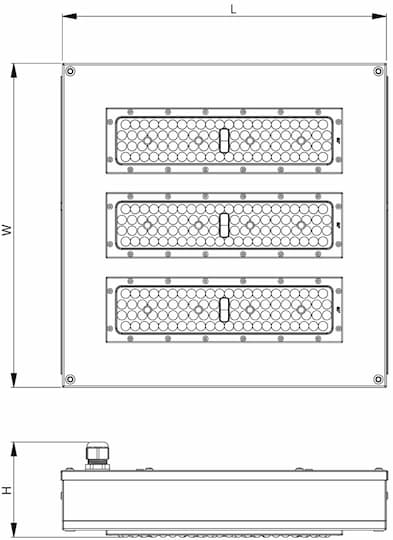

| Name | Length, mm | Width, mm | Height, mm | LED lifetime, h | Output, lm | Power, W | Efficacy, lm/W | CRI (Ra) | CCT, K | Weight, kg | UGR index |
| Brubu N LED1x9450 G350 T840 L60 | 435 | 435 | 85 | 100000/L80B10 | 9935 | 52.8 | 188 | 80+ | 4000 | 5.0 | ≤22 |
| Brubu N LED1x12350 G351 T840 L60 | 435 | 435 | 85 | 100000/L80B10 | 12997 | 71.1 | 183 | 80+ | 4000 | 5.0 | ≤22 |
| Brubu N LED1x15200 G352 T840 L60 | 435 | 435 | 85 | 100000/L80B10 | 16030 | 88.8 | 181 | 80+ | 4000 | 5.0 | ≤22 |

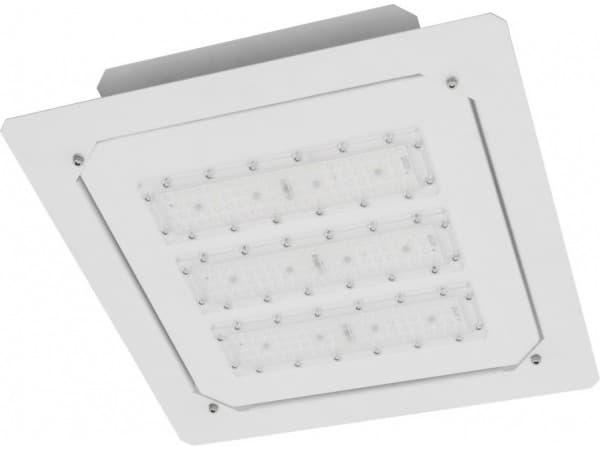

| Brubu N LED1x9450 G350 T840 L75 | 435 | 435 | 85 | 100000/L80B10 | 9516 | 52.8 | 180 | 80+ | 4000 | 5.0 | ≤22 |
| Brubu N LED1x12350 G351 T840 L75 | 435 | 435 | 85 | 100000/L80B10 | 12450 | 71.1 | 175 | 80+ | 4000 | 5.0 | ≤22 |
| Brubu N LED1x15200 G352 T840 L75 | 435 | 435 | 85 | 100000/L80B10 | 15355 | 88.8 | 173 | 80+ | 4000 | 5.0 | ≤22 |
| Brubu N LED1x9450 G350 T840 L120 | 435 | 435 | 85 | 100000/L80B10 | 9935 | 52.8 | 188 | 80+ | 4000 | 5.0 | |
| Brubu N LED1x12350 G351 T840 L120 | 435 | 435 | 85 | 100000/L80B10 | 12997 | 71.1 | 183 | 80+ | 4000 | 5.0 | |
| Brubu N LED1x15200 G352 T840 L120 | 435 | 435 | 85 | 100000/L80B10 | 16030 | 88.8 | 181 | 80+ | 4000 | 5.0 | |

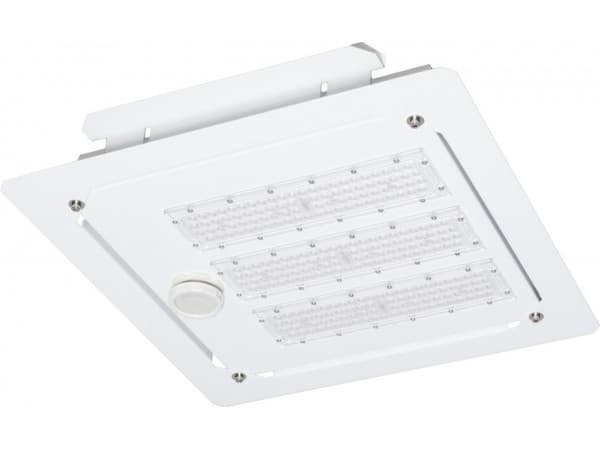

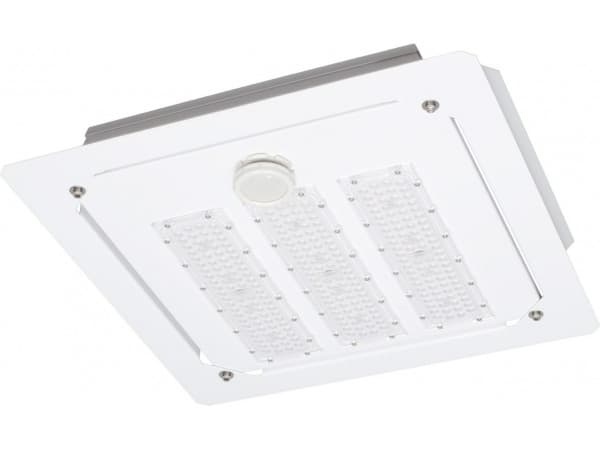

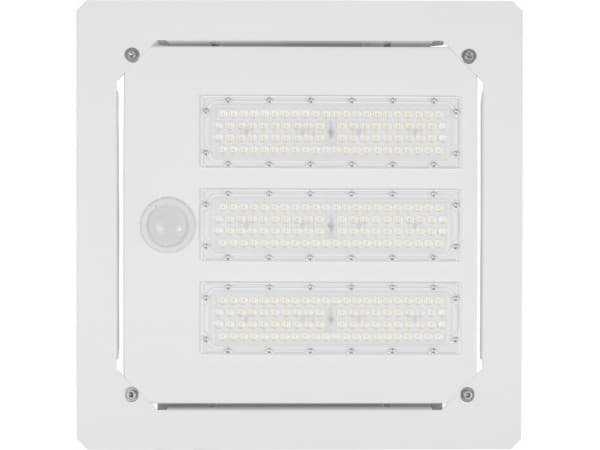

| Brubu N LED1x15200 G352 T840 L60 COR HBPIR-M | 435 | 435 | 85 | 100000/L80B10 | 16030 | 89.8 | 179 | 80+ | 4000 | 5.0 | ≤22 |
| Brubu N LED1x15200 G352 T840 L75 COR HBPIR-M | 435 | 435 | 85 | 100000/L80B10 | 15355 | 89.8 | 171 | 80+ | 4000 | 5.0 | ≤22 |
| Brubu N LED1x15200 G352 T840 L120 COR HBPIR-M | 435 | 435 | 85 | 100000/L80B10 | 16030 | 89.8 | 179 | 80+ | 4000 | 5.0 |
Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
L30x65 – Optics with 30×65° beam angle
L40 – Optics with 40×40° beam angle
L60 – Optics with 60×60° beam angle
L75 – Optics with 75×75° beam angle
L90x90 – Optics with 90×90° beam angle
L120 – Optics with 120×120° beam angle
DALI – Driver with DALI interface
COR – Driver with Corridor function (never off)
COR1min – Driver with Corridor function 1 min (switch off after 1 min)
COR30min – Driver with Corridor function 30 min (switch off after 30 min)

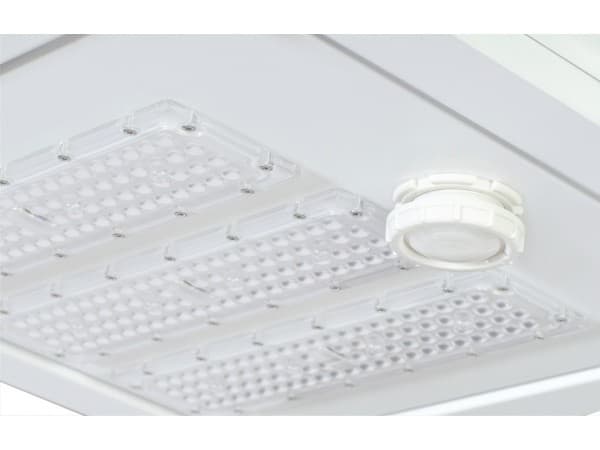

HBPIR-M – Master luminaire with integrated PIR sensor for high ceiling (up to 12 meters) with on-off control, possibility to connect and control other (slave) luminaires (parameters according to datasheet)
*note – this model does not have daylight harvesting function
Accessories:
Power supply connector – IP66/IP68, 3×1.5mm2 – Quick and easy to connect power supply and luminaire cables connector – IP66/IP68, 3×1.5 mm², 450V/10A, 1 pcs
Power supply socket – IP66/IP68, 5×1.5mm2 – Quick and easy to connect power supply cable socket – IP66/IP68, 5×1.5 mm², 400V/16A, 1 pcs
Power supply plug – IP66/IP68, 5×1.5mm2 – Quick and easy to connect power supply cable plug – IP66/IP68, 5×1.5 mm², 400V/16A, 1 pcs

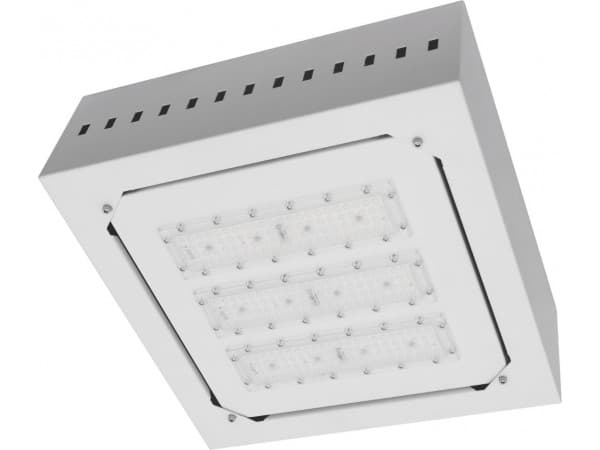

Surface MTG BOX Brubu N LED white 435x435x120mm – Surface mounting box for Brubu N LED, white steel, 435x435x120 mm, 1 pcs
