esviesa.lt | Cursa LED IK02 IP20

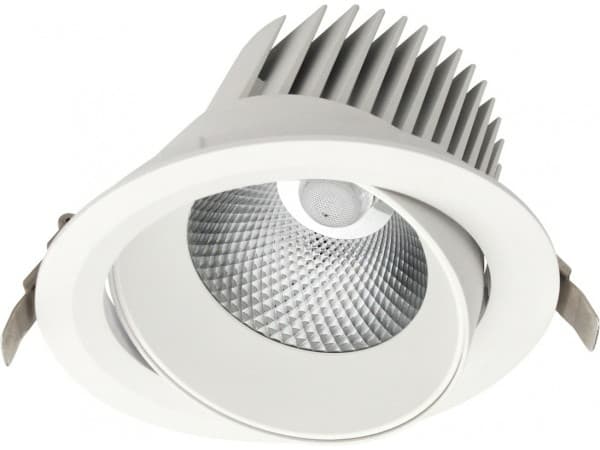

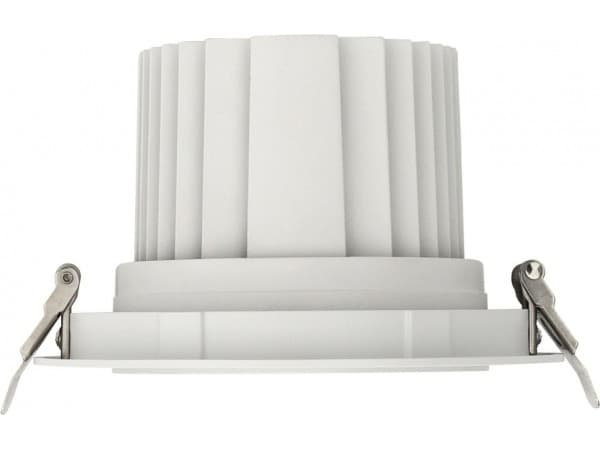

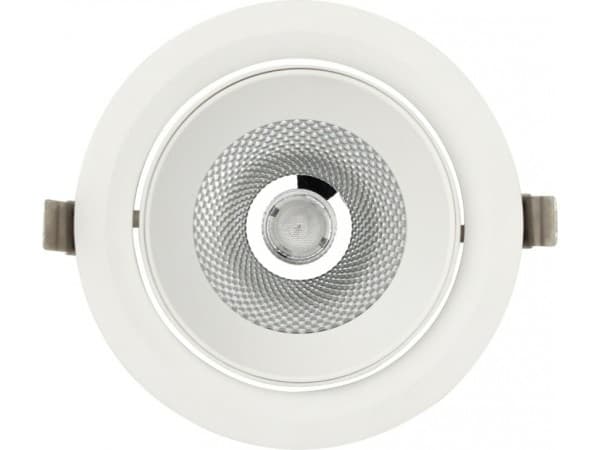

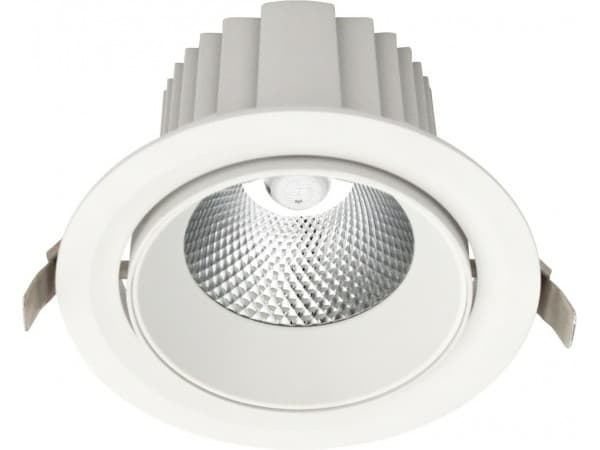

Recessed adjustable LED spotlight

More information:

Type:

Recessed mounted adjustable LED spotlight. Ideal for areas requiring good color rendering and high lighting levels

Specification:

Recessed mounted adjustable LED spotlight
Light distribution type: direct
Optical system: faceted aluminium reflector, clear PMMA diffuser, tilting ±30°, rotatable 355°
Housing: aluminium
Colour: white, RAL9016
Mains voltage: 220-240V, 0/50-60Hz
LED lifetime, h: 60000/L80B10
SDCM: 3
Protection class IEC: II
Ingress protection code: IP20
Mechanical impact resistance: IK02
Operating temperature range, °C: 0…+35
Push-in terminal, 2x1.5 mm²

Installation:

In ceilings with cut-out openings (mounting brackets included)

Application:

Indoor. Retail, showroom, museum, exhibition, public place

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Cursa LED1x1950 E834 T840 R40	180	180	125	60000/L80B10	1946	13.5	144	80+	4000	1.4
Cursa LED1x2600 E835 T840 R40	180	180	125	60000/L80B10	2644	18.7	141	80+	4000	1.4
Cursa LED1x3400 E836 T840 R40	180	180	125	60000/L80B10	3559	26.5	134	80+	4000	1.4
Cursa LED1x4300 J190 T840 R40	180	180	125	60000/L80B10	4464	34.0	131	80+	4000	1.5
Cursa LED1x4850 E837 T840 R40	180	180	125	60000/L80B10	5099	40.2	127	80+	4000	1.5
Cursa LED1x1950 E834 T940 R40	180	180	125	50000/L80B10	1644	13.3	124	90+	4000	1.4
Cursa LED1x2600 E835 T940 R40	180	180	125	50000/L80B10	2254	18.2	124	90+	4000	1.4
Cursa LED1x3400 E836 T940 R40	180	180	125	50000/L80B10	3062	25.8	119	90+	4000	1.4
Cursa LED1x4300 J190 T940 R40	180	180	125	50000/L80B10	3799	34.0	112	90+	4000	1.5
Cursa LED1x4850 E837 T940 R40	180	180	125	50000/L80B10	4338	40.2	108	90+	4000	1.5

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
T930 – Colour temperature 3000K, CRI 90+
T940 – Colour temperature 4000K, CRI 90+
T825 BREAD – Special spectrum for bread 2500K, CRI 80+
T820 MEAT – Special spectrum for meat 2000K “pink”, CRI 80+
T831 MEAT&WHITE – Special spectrum for meat products with increased white colour contrast 3100K “pink”, CRI 80+
T930 VEGETABLES – Special spectrum for colourful products. Fruits, fashion 3000K, CRI 90+
T932 FASHION – Special spectrum for fashion 3200K, CRI 90+
T931 FASHION&WHITE – Special spectrum for fashion with dominant white colour 3100K, CRI 90+
T927 NATURAL – Colour temperature 2700K, CRI 95+ NATURAL
T930 NATURAL – Colour temperature 3000K, CRI 95+ NATURAL
T940 NATURAL – Colour temperature 4000K, CRI 95+ NATURAL
R24 – Reflector with 24° light beam angle
R40 – Reflector with 40° light beam angle (standard)
DALI – Driver with DALI interface and switch-control dimming
WIE3-0.5m – 3-pole “Wieland – gesis classic” type or compatible connector with 0.5 m cable
WIE5D-0.5m – 5-pole DALI “Wieland – gesis classic” type or compatible connector with 0.5 m cable
Europlug-1.5m – 2-pole “Europlug” type plug with 2×1.0 mm² 1.5 m cable
Europlug-3.0m – 2-pole “Europlug” type plug with 2×1.0 mm² 3.0 m cable
RAL – RAL colour
*note – price for uncommon RAL colour or quantity less then MOQ could be different from indicated. Ask before placing an order
