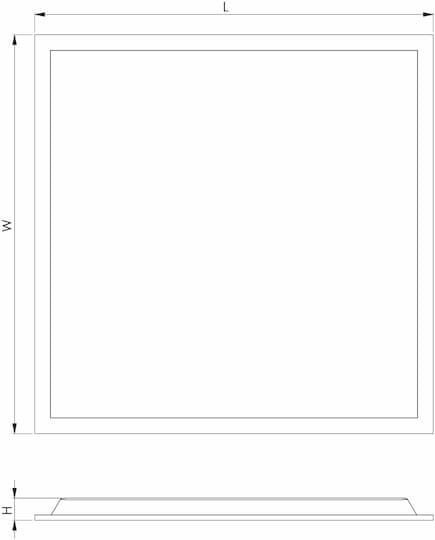

| Name | Length, mm | Width, mm | Height, mm | LED lifetime, h | Output, lm | Power, W | Efficacy, lm/W | CRI (Ra) | CCT, K | Weight, kg | UGR index |
| Levanto UGR LED1x2750/3130/3470/3800/4180 J732 T840 MPRZ w/o driver | 595 | 595 | 33 | 50000/L80B10 | 2750/3130/3470/3800/4180 | 18/21/23/25/28 | 153/149/151/152/149 | 80+ | 4000 | 1.8 | ≤19 |
| Levanto PLN LED1x2860/3250/3630/4010/4350 J731 T840 OP w/o driver | 595 | 595 | 33 | 50000/L80B10 | 2860/3250/3630/4010/4350 | 18/21/23/25/28 | 159/155/158/160/155 | 80+ | 4000 | 1.5 | ≤22 |
| Levanto UGR LED1x2750/3130/3470/3800/4180 J844 T840 MPRZ TP(a) w/o driver | 595 | 595 | 33 | 50000/L80B10 | 2750/3130/3470/3800/4180 | 18/21/23/25/28 | 153/149/152/155/150 | 80+ | 4000 | 1.8 | ≤19 |
| Levanto UGR LED1x2900/3300/3700/4000/4400 J996 T840 MPRZ w/o driver W625 | 620 | 620 | 33 | 50000/L80B10 | 2877/3359/3739/3975/4441 | 18/21/23/25/28 | 159/160/162/159/158 | 80+ | 4000 | 1.8 | ≤19 |
| Levanto UGR LED1x2870/3290/3620/3860/4500 K397 T840 MPRZ w/o driver | 1195 | 295 | 26 | 50000/L80B10 | 2870/3290/3620/3860/4500 | 18/21/23/25/28 | 159/157/157/154/161 | 80+ | 4000 | 1.7 | ≤19 |
*Note – panel and driver must be ordered separately
Available options:
EAIRB-M – Master luminaire with integrated smart sensor and driver with Bluetooth communication and grouping possibilities for lighting control
IP44 – IP44 protection degree
WIE3-0.5m – 3-pole “Wieland – gesis classic” type or compatible connector with 0.5 m cable
WIE5D-0.5m – 5-pole DALI “Wieland – Gesis classic” type or compatible connector with 0.5 m cable
Europlug-1.5m – 2-pole “Europlug” type plug with 1.5 m cable
Europlug-3.0m – 2-pole “Europlug” type plug with 3.0 m cable
QBX2-0.1m – 2-pole quick connection box on 0.1 m cable, push-in terminal, 2x2x2.5 mm²
W625 – Designed for the German market to fit 625×625 suspended ceiling
Accessories:
| LED ON/OFF driver Levanto J731-J732 (all powers) | ON/OFF LED driver, selectable: 18/21/23/25/28W |
| LED DALI2/SDIM LOOP driver Levanto J731-J732 (28W) | Dimmable DALI2 LED driver for 28W, with looping and switch-dim functionality |
| LED EAIRB-S driver Levanto J731-J732 (28W) | Dimmable EAIR type driver for 28W, with lighting control |
| LED COR LOOP driver Levanto J731-J732 (28W) | Dimmable driver for 28W, with looping and corridor functionality |
| EM3 & ON/OFF driver KIT Levanto J731-J732 (all powers) | Emergency 3h kit with ON/OFF LED driver, selectable: 18/21/23/25/28W |
| EM3 & DALI2 driver KIT Levanto J731-J732 (28W) | Emergency 3h kit with dimmable DALI2 LED driver for 28W, with looping and switch-dim functionality |
| EM3A & ON/OFF driver KIT Levanto J731-J732 (all powers) | Emergency 3h autotest kit with ON/OFF LED driver, selectable: 18/21/23/25/28W |
| EM3A & DALI2 driver KIT Levanto J731-J732 (28W) | Emergency 3h autotest kit with dimmable DALI2 LED driver for 28W, with looping and switch-dim functionality |
| EM3D & ON/OFF Levanto J731-J732 (all powers) | Emergency 3h DALI2 kit with ON/OFF LED driver, selectable: 18/21/23/25/28W |
| EM3D Levanto J731-J732 DALI driver KIT (28W) | Emergency 3h DALI2 kit with dimmable DALI2 LED driver for 28W, with looping and switch-dim functionality |
Recessed MTG FRAME S626x626 RAL9003S – Frame for LED luminaire 595×595 mm installation into plasterboard ceiling (1 pcs), white steel
Recessed MTG FRAME S326x1226 RAL9003S – Frame for LED luminaire 1195×295 mm installation into plasterboard ceiling (1 pcs), white steel

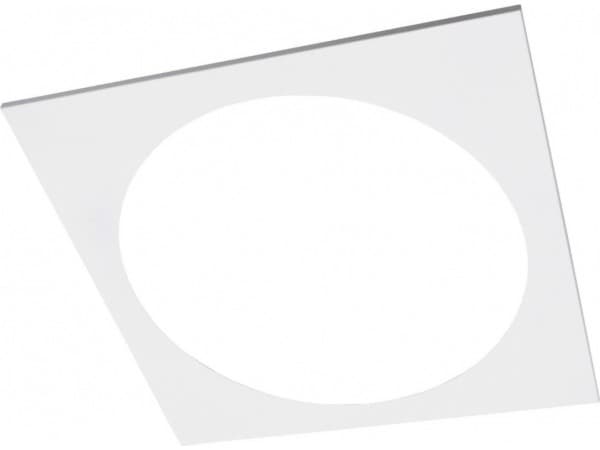

Decorative COVER 595×595/D500 Levanto PLN/UGR LED RAL9003 – Decorative cover with 500 mm round opening for LED panel 595×595 mm (1 pcs), white steel

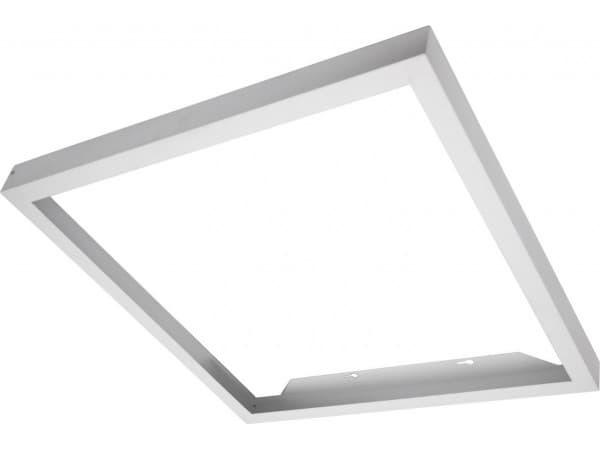

Surface MTG BOX S606x606x70 Levanto PLN/UGR LED v2 RAL9003S – Surface mounting box for LED panel 595×595 mm (1 pcs), white steel
*note – surface mounting box is compatible with EM3 option
Surface MTG BOX S1206x306x70 Levanto PLN/UGR LED v2/Calima R LED RAL9003S – Surface mounting box for LED panel 1206×306 mm (1 pcs), white steel
*note – surface mounting box is compatible with EM3 option
Suspension MTG kit Levanto UGR/PLN G series – Suspension kit for LED panel
Decorative REFLECTOR 595×595 Levanto PLN/UGR LED RAL – Decorative reflector for LED panel 595×595 mm (1 pcs), steel
Decorative BORDER 595×595 Levanto PLN/UGR LED RAL – Decorative perforated reflector for LED panel 595×595 mm (1 pcs), steel

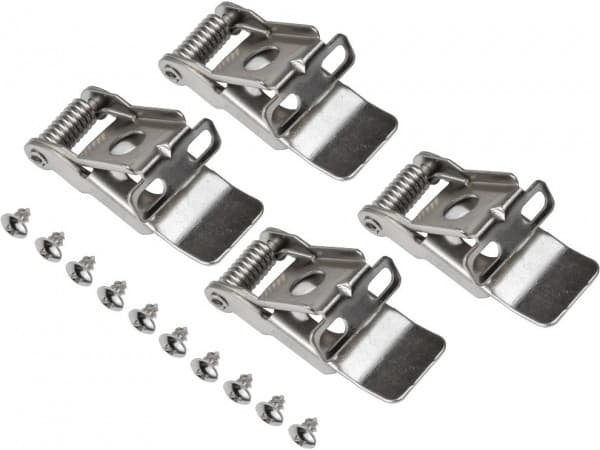

Recessed MTG kit LEVANTO PLN G series – Recessed MTG kit

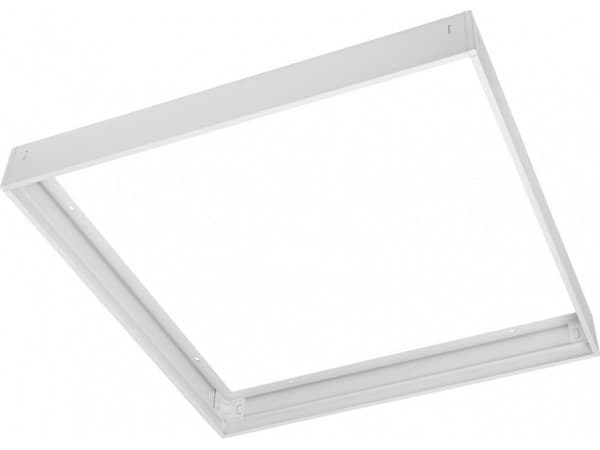

Surface MTG kit Levanto UGR/PLN G2 series S600x600 RAL9016 – Surface mounting kit for recessed LED luminaires 600×600 mm (1 pcs), white extruded aluminium
Surface MTG kit Levanto UGR/PLN G2 series S300x1200 RAL9016 – Surface mounting kit for recessed LED luminaires 300×1200 mm (1 pcs), white extruded aluminium
