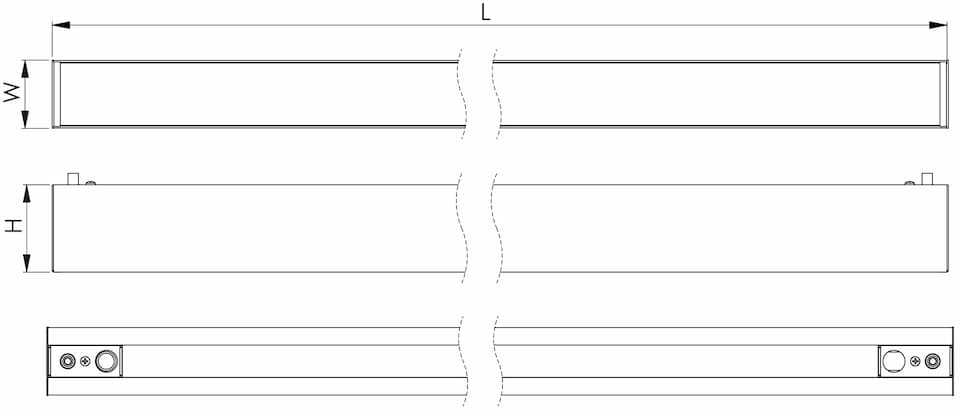

| Name | Length, mm | Width, mm | Height, mm | LED lifetime, h | Output, lm | Power, W | Efficacy, lm/W | CRI (Ra) | CCT, K | Weight, kg | UGR index |
| Decor L LED1x1550/950 H351 T840 OP LG3 LO1 | 1133 | 59 | 80 | 50000/L80B10 | 2452 | 19.3 | 127 | 80+ | 4000 | 2.7 | |
| Decor L LED1x2100/1300 H352 T840 OP LG3 LO2 | 1133 | 59 | 80 | 50000/L80B10 | 3340 | 27.2 | 123 | 80+ | 4000 | 2.7 | |
| Decor L LED1x2900/1750 H353 T840 OP LG3 LO3 | 1133 | 59 | 80 | 50000/L80B10 | 4592 | 38.2 | 120 | 80+ | 4000 | 2.7 | |
| Decor L LED1x1950/1200 H354 T840 OP LG3 LO1 | 1413 | 59 | 80 | 50000/L80B10 | 3064 | 22.8 | 134 | 80+ | 4000 | 3.2 | |
| Decor L LED1x2600/1600 H355 T840 OP LG3 LO2 | 1413 | 59 | 80 | 50000/L80B10 | 4176 | 33.7 | 124 | 80+ | 4000 | 3.2 | |
| Decor L LED1x3600/2200 H356 T840 OP LG3 LO3 | 1413 | 59 | 80 | 50000/L80B10 | 5739 | 47.8 | 120 | 80+ | 4000 | 3.2 | |
| Decor L LED1x1450/950 H351 T840 DPRZ LT80 LG3 LO1 | 1133 | 59 | 80 | 50000/L80B10 | 2350 | 19.3 | 122 | 80+ | 4000 | 2.7 | ≤16 |
| Decor L LED1x1950/1300 H352 T840 DPRZ LT80 LG3 LO2 | 1133 | 59 | 80 | 50000/L80B10 | 3201 | 27.2 | 118 | 80+ | 4000 | 2.7 | ≤16 |
| Decor L LED1x2700/1750 H353 T840 DPRZ LT80 LG3 LO3 | 1133 | 59 | 80 | 50000/L80B10 | 4401 | 38.2 | 115 | 80+ | 4000 | 2.7 | ≤16 |
| Decor L LED1x1800/1200 H354 T840 DPRZ LT80 LG3 LO1 | 1413 | 59 | 80 | 50000/L80B10 | 2937 | 22.8 | 129 | 80+ | 4000 | 3.2 | ≤16 |
| Decor L LED1x2450/1600 H355 T840 DPRZ LT80 LG3 LO2 | 1413 | 59 | 80 | 50000/L80B10 | 4002 | 33.7 | 119 | 80+ | 4000 | 3.2 | ≤16 |
| Decor L LED1x3350/2200 H356 T840 DPRZ LT80 LG3 LO3 | 1413 | 59 | 80 | 50000/L80B10 | 5501 | 47.8 | 115 | 80+ | 4000 | 3.2 | ≤16 |
Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
OP – Opal diffuser with high light transmittance
DPRZ LT80 – De-glaring micro-prismatic diffuser with matt light scattering layer (UGR≤16)
LG3 – Luminaire fits to LG3 requirements (with direct/indirect light distribution)
LO1 – Light output level 1
LO2 – Light output level 2
LO3 – Light output level 3
DALI – Driver with DALI interface and switch-control dimming
*note – for DALI LIN option wires are 2×0.5 mm²
DALIsep – Driver with DALI interface and with possibility to control down and up light separately
*note – for DALI LIN option wires are 2×0.5 mm²
EAIRB – Integrated smart sensor and driver with wireless communication and grouping possibilities for lighting control
*note – ingress protection IP20
*note – for option EAIRB luminaire housing is 72 mm longer
*note – the EAIRB sensor are positioned in the end of the luminaire for lengths up to 1800 mm, and in the middle of the luminaire for lengths over 1800 mm
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth)
KRBLT – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), on/off
KRBLT DALI – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), DALI with integrated PS
TW – Integrated light source and driver for Tunable white control 2700-6500 K
PULL – Pull switch device, on/off
PULLDIM – Pull switch device and driver with switch-control dimming
*note – for PULL and PULLDIM option luminaire housing is 50 mm longer and switch is positioned at the end of luminaire
Lsep – Option that enables to control (on/off) Down and up lights separately
5TB – 5-pole terminal block in middle of luminaire for easy through wiring
*note – 5TB option is included as standard
MW – Integrated microwave (MW) motion sensor with on-off control
*note – for option MW luminaire housing is 72 mm longer
*note – the MW sensor is positioned in the end of the luminaire for lengths up to 1800 mm, and in the middle of the luminaire for lengths over 1800 mm
PIR – Integrated PIR sensor with on-off control
PIR BLT DALI – Integrated wireless PIR sensor with CASAMBI app control and DALI driver. Requires DALI power supply in the system
*note – for PIR options luminaire housing is 72 mm longer
*note – PIR sensor is positioned in the end of the luminaire for lengths up to 1800 mm, and in the middle of the luminaire for lengths over 1800 mm
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
*note – When emergency mode is active, only DOWN part is illuminated
*note – EM options applicable for models longer than 1000 mm
*note – Operating temperature range for Luminaires with EM option, ºC: 0… +35
*note – PIR+EM+DALI+L and LL options are applicable for models longer than 1200 mm
1LIN – Through wiring single phase d=1.5 mm² with two push-in terminal blocks
2LIN – Through wiring two phases d=1.5 mm² with two push-in terminal blocks
3LIN – Through wiring three phases d=1.5 mm² with two push-in terminal blocks
CBF3-2.0m clear – Cable 3×0.75 mm² for suspended luminaire up to 2.0 meters, transparent
*note – for suspended luminaires it is recommended to use one of CBF option for easier mounting
L – for in-line connection end/first luminaire
LL – for in-line connection intermediate luminaire
*note – for L and LL models joint kit not included and 1LIN option included (5TB option for lengths up to 800 mm)
RAL9003S – RAL 9003S colour
RAL9005S – RAL 9005S colour
RAL – RAL colour
Accessories:
CAP cable 3×0.75 2.0m clear – Cable 3×0.75 mm² for suspended luminaire up to 2.0 meters, transparent
CAP cable clip D6.3mm SET clear – Cable and suspension wire clip set, 4 pcs. For cable diameter up to 6,3 mm and wire diameter 1 mm
Suspension MTG KIT SUSI – Suspension wire set “I” type, 1.5 m adjustable, 1 pcs
*note – 2 pcs of MTG SUSI KIT required
CAP4, white/ light grey/ black – Square decorative metal cap for hiding cable inlet with suspension wire attachment point, push-in terminals 3x1x1.5 mm², white/ light grey/ black
CAP5, white/ light grey/ black – Square decorative metal cap for hiding cable inlet with suspension wire attachment point, push-in terminals 5x1x1.5 mm², white/ light grey/ black
WALL MTG KIT – Decor L/LP LED RAL9006S – Support bracket for luminaire installation onto wall. Decor L/LP LED, 1 pcs
*note – 2pcs WALL MTG KIT – elements for length up to 2000 mm, 3 pcs for lengths 2000 – 3000 mm required
