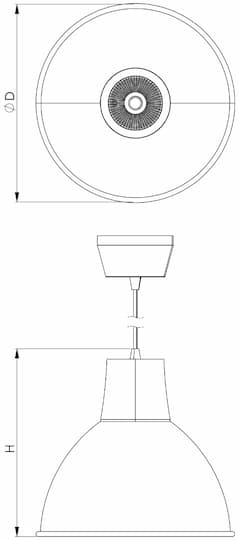

| Name | Length, mm | Width, mm | Height, mm | LED lifetime, h | Output, lm | Power, W | Efficacy, lm/W | CRI (Ra) | CCT, K | Weight, kg |

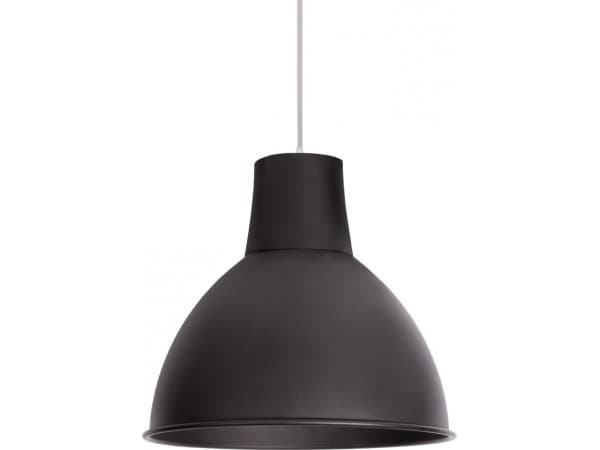

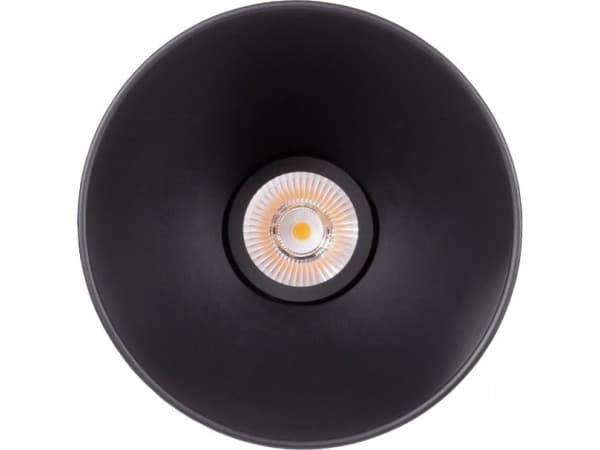

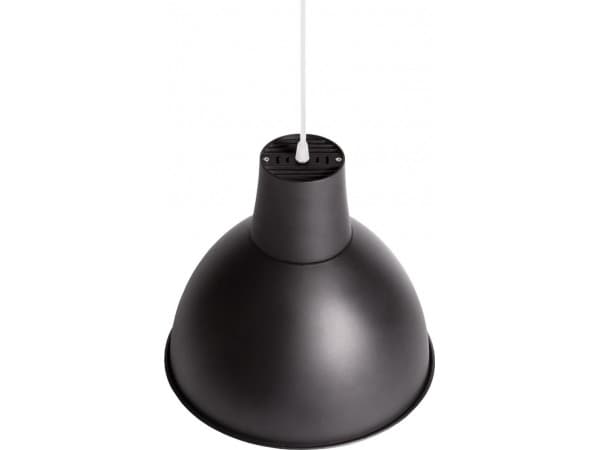

| Chara LEDx1500 J216 T840 R60 RAL9005 | 315 | 315 | 300 | 60000/L80B10 | 1459 | 13.4 | 109 | 80+ | 4000 | 1.3 |
| Chara LEDx2000 J217 T840 R60 RAL9005 | 315 | 315 | 300 | 60000/L80B10 | 1983 | 19.5 | 102 | 80+ | 4000 | 1.3 |
| Chara LEDx2700 J218 T840 R60 RAL9005 | 315 | 315 | 300 | 60000/L80B10 | 2669 | 27.1 | 98 | 80+ | 4000 | 1.3 |
| Chara LEDx3350 J219 T840 R60 RAL9005 | 315 | 315 | 300 | 60000/L80B10 | 3348 | 35.1 | 95 | 80+ | 4000 | 1.3 |
| Chara LEDx3850 J220 T840 R60 RAL9005 | 315 | 315 | 300 | 60000/L80B10 | 3824 | 42.1 | 91 | 80+ | 4000 | 1.3 |
| Chara LEDx1500 J216 T940 R60 RAL9005 | 315 | 315 | 300 | 50000/L80B10 | 1233 | 13.1 | 94 | 90+ | 4000 | 1.3 |
| Chara LEDx2000 J217 T940 R60 RAL9005 | 315 | 315 | 300 | 50000/L80B10 | 1690 | 19.1 | 88 | 90+ | 4000 | 1.3 |
| Chara LEDx2700 J218 T940 R60 RAL9005 | 315 | 315 | 300 | 50000/L80B10 | 2297 | 26.4 | 87 | 90+ | 4000 | 1.3 |
| Chara LEDx3350 J219 T940 R60 RAL9005 | 315 | 315 | 300 | 50000/L80B10 | 2849 | 35.1 | 81 | 90+ | 4000 | 1.3 |
| Chara LEDx3850 J220 T940 R60 RAL9005 | 315 | 315 | 300 | 50000/L80B10 | 3254 | 42.1 | 77 | 90+ | 4000 | 1.3 |
Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
T930 – Colour temperature 3000K, CRI 90+
T940 – Colour temperature 4000K, CRI 90+
T825 BREAD – Special spectrum for bread 2500K, CRI 80+
T820 MEAT – Special spectrum for meat 2000K “pink”, CRI 80+
T831 MEAT&WHITE – Special spectrum for meat products with increased white colour contrast 3100K “pink”, CRI 80+
T930 VEGETABLES – Special spectrum for colourful products. Fruits, fashion 3000K, CRI 90+
T932 FASHION – Special spectrum for fashion 3200K, CRI 90+
T931 FASHION&WHITE – Special spectrum for fashion with dominant white colour 3100K, CRI 90+
T927 NATURAL – Colour temperature 2700K, CRI 95+ NATURAL
T930 NATURAL – Colour temperature 3000K, CRI 95+ NATURAL
T940 NATURAL – Colour temperature 4000K, CRI 95+ NATURAL
R15 – Reflector with 15° light beam angle
R24 – Reflector with 24° light beam angle
R32 – Reflector with 32° light beam angle
R60 – Reflector with 60° light beam angle (standard)
DALI – Driver with DALI interface and switch-control dimming
*note – Stucchi tracks are not compatible with switch-control dimming
Track – Luminaire version with track adaptor designed to be fixed into 4/6-conductors surface/recessed tracks. Track adaptor (3-phase + N) with phase selector, cable length 0,20 m
TRACK N m – Luminaire version with track adaptor. Track adaptor (3-phase + N) with phase selector, custom cable length, m
*note – with Track option, IEC protection class is II
*note – please specify cable length before placing an order
RAL – RAL colour
