| Name | Length, mm | Width, mm | Height, mm | LED lifetime, h | Output, lm | Power, W | Efficacy, lm/W | CRI (Ra) | CCT, K | Weight, kg |

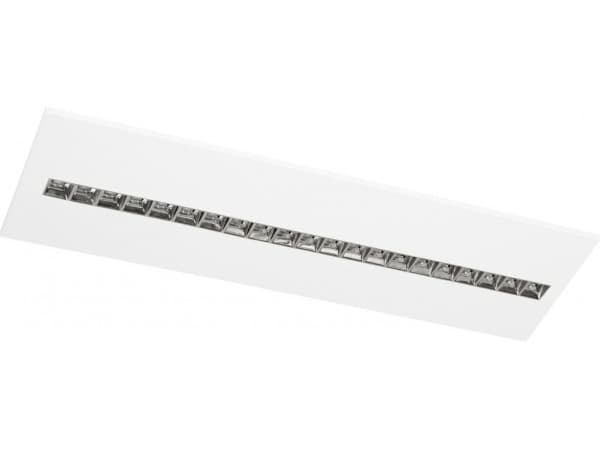

| Eridanus R LED1x1500 G950 T840 WAC | 595 | 295 | 31 | 100000/L80B10 | 1203 | 9.2 | 131 | 80+ | 4000 | 1.7 |
| Eridanus R LED1x1800 G951 T840 WAC | 595 | 295 | 31 | 100000/L80B10 | 1476 | 11.1 | 133 | 80+ | 4000 | 1.7 |
| Eridanus R LED1x2150 G952 T840 WAC | 595 | 295 | 31 | 100000/L80B10 | 1740 | 13.4 | 130 | 80+ | 4000 | 1.7 |
| Eridanus R LED1x2450 G953 T840 WAC | 595 | 295 | 31 | 100000/L80B10 | 2006 | 15.7 | 128 | 80+ | 4000 | 1.7 |

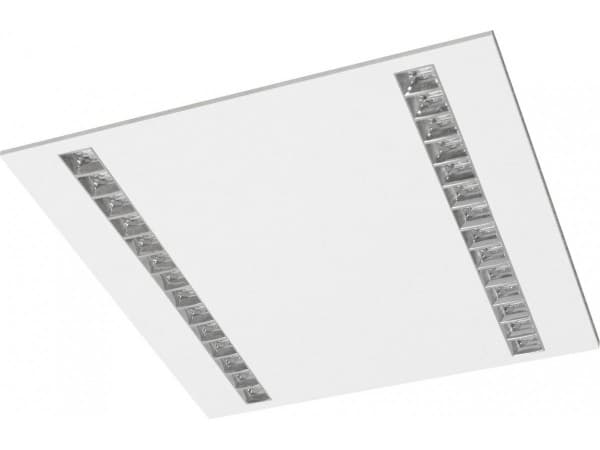

| Eridanus R LED2x1500 G954 T840 WAC | 595 | 595 | 31 | 100000/L80B10 | 2407 | 17.6 | 137 | 80+ | 4000 | 2.7 |
| Eridanus R LED2x1800 G955 T840 WAC | 595 | 595 | 31 | 100000/L80B10 | 2953 | 21.9 | 135 | 80+ | 4000 | 2.7 |
| Eridanus R LED2x2150 G956 T840 WAC | 595 | 595 | 31 | 100000/L80B10 | 3480 | 26.1 | 133 | 80+ | 4000 | 2.7 |
| Eridanus R LED2x2450 G957 T840 WAC | 595 | 595 | 31 | 100000/L80B10 | 4011 | 30.8 | 130 | 80+ | 4000 | 2.7 |
| Eridanus R LED1x2950 G958 T840 WAC | 1195 | 295 | 31 | 100000/L80B10 | 2407 | 17.6 | 137 | 80+ | 4000 | 2.8 |
| Eridanus R LED1x3600 G959 T840 WAC | 1195 | 295 | 31 | 100000/L80B10 | 2953 | 21.9 | 135 | 80+ | 4000 | 2.8 |
| Eridanus R LED1x4250 G960 T840 WAC | 1195 | 295 | 31 | 100000/L80B10 | 3480 | 26.1 | 133 | 80+ | 4000 | 2.8 |
| Eridanus R LED1x4900 G961 T840 WAC | 1195 | 295 | 31 | 100000/L80B10 | 4011 | 30.8 | 130 | 80+ | 4000 | 2.8 |
| Eridanus R LED2x2950 G962 T840 WAC | 1195 | 595 | 31 | 100000/L80B10 | 4814 | 33.7 | 143 | 80+ | 4000 | 4.8 |
| Eridanus R LED2x3600 G963 T840 WAC | 1195 | 595 | 31 | 100000/L80B10 | 5906 | 41.9 | 141 | 80+ | 4000 | 4.8 |
| Eridanus R LED2x4250 G964 T840 WAC | 1195 | 595 | 31 | 100000/L80B10 | 6960 | 50.5 | 138 | 80+ | 4000 | 4.8 |
| Eridanus R LED2x4900 G965 T840 WAC | 1195 | 595 | 31 | 100000/L80B10 | 8022 | 58.9 | 136 | 80+ | 4000 | 4.8 |
Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
WMC – White matt reflector with clear lens
BMC – Black matt reflector with clear lens
MGC – Metallic mirror finish reflector with clear lens
MMC – Metallic matt reflector with clear lens
WAC – Metallic mirror finish asymmetrical reflector with white shade and clear lens
BAC – Metallic mirror finish asymmetrical reflector with black shade and clear lens
DALI – Driver with DALI interface and switch-control dimming
EAIRB-M – Master luminaire with integrated smart sensor and driver with Bluetooth communication and grouping possibilities for lighting control
*note – ingress protection IP20
EAIRB-S – Slave luminaire with integrated EAIR type driver for lighting control
*note – max system size 1x EAIRB-M + 3x EAIRB-S
*note – max wire length from EAIRB-M to last EAIRB-S – 11 meters
*note – EAIRB options are not applicable for models: G950; G951
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth), with integrated DALI PS
KRBLT – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), on/off
KRBLT DALI – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), DALI with integrated PS
COR – Driver with Corridor function (never off)
COR1min – Driver with Corridor function 1 min (switch off after 1 min)
COR30min – Driver with Corridor function 30 min (switch off after 30 min)
PIR(BASIC) – Integrated PIR sensor with on-off control, basic version
PIR – Integrated PIR sensor with on-off control
PIR DALI – Integrated PIR sensor with DALI control and power supply
PIR BLT DALI2 – Integrated wireless PIR sensor with CASAMBI app control. Requires DALI power supply
PIR KRBLT DALI – Integrated wireless PIR sensor with KR system app control and DALI power supply
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
EM3LER – Emergency version 3 hours, lens – escape route
EM3LOA – Emergency version 3 hours, lens – open areas
*note – luminaire EM versions are supplied with higher external gearbox
WIE3-0.5m – 3-pole “Wieland – gesis classic” type or compatible connector with 0.5 m cable
WIE5D-0.5m – 5-pole DALI “Wieland – gesis classic” type or compatible connector with 0.5 m cable
Schuko-1.5m – 3-pole “Schuko” type plug with 3×1.0 mm² 1.5 m cable
Schuko-3.0m – 3-pole “Schuko” type plug with 3×1.0 mm² 3.0 m cable
W625 – Designed for the German market to fit 625×625 suspended ceiling
SB – Support brackets for installation into a plasterboard ceiling
DROP T24 – Luminaire version for drop tile style suspended ceilings (600 T24)
DROP T15 – Luminaire version for drop tile style suspended ceilings (600 T15)
RAL – RAL colour
Accessories:
Recessed MTG FRAME S626x626 RAL9003 – Frame for LED luminaire 595×595 mm installation into plasterboard ceiling (1 pcs), white steel
Recessed MTG FRAME S326x1226 RAL9003 – Frame for LED luminaire 1195×295 mm installation into plasterboard ceiling (1 pcs), white steel
Remote Control HRC-12 – Remote control unit. The functionality of the sensors is controlled by a number of parameters which can be changed or programmed remote with an infrared handset
*note – compatible with options: PIR
Remote Control HRC-11 – Remote control unit. The functionality of the sensors is controlled by a number of parameters which can be changed or programmed remote with an infrared handset
*note – compatible with options: PIR; PIR DALI
