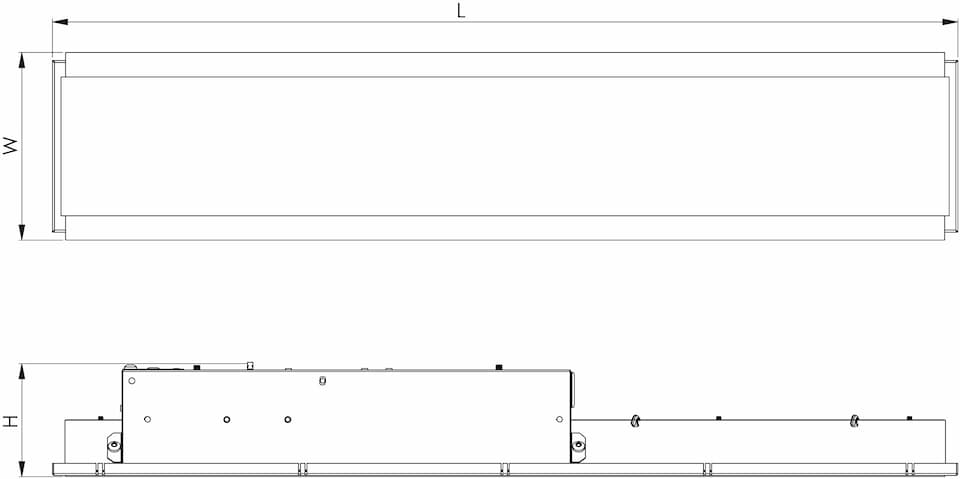

| Name | Length, mm | Width, mm | Height, mm | LED lifetime, h | Output, lm | Power, W | Efficacy, lm/W | CRI (Ra) | CCT, K | Weight, kg | UGR index |
| Line R LED 1×1700 H214 T840 DPRZ LT80 LO1 | 595 | 123 | 72 | 50000/L80B10 | 1746 | 13.9 | 126 | 80+ | 4000 | 1.6 | ≤19 |
| Line R LED 1×2350 H215 T840 DPRZ LT80 LO2 | 595 | 123 | 72 | 50000/L80B10 | 2401 | 19.5 | 123 | 80+ | 4000 | 1.6 | ≤22 |
| Line R LED 1×3400 H216 T840 DPRZ LT80 LO1 | 1195 | 123 | 72 | 50000/L80B10 | 3493 | 26.9 | 130 | 80+ | 4000 | 2.4 | ≤19 |
| Line R LED 1×4650 H217 T840 DPRZ LT80 LO2 | 1195 | 123 | 72 | 50000/L80B10 | 4801 | 38.2 | 126 | 80+ | 4000 | 2.4 | ≤22 |

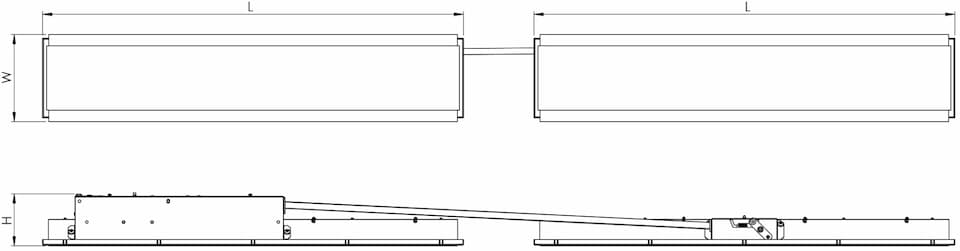

| Line R LED 2x1x1700 H226 T840 DPRZ LT80 LO1 | 2×595 | 123 | 72 | 50000/L80B10 | 3493 | 26.9 | 130 | 80+ | 4000 | 2.6 | ≤19 |
| Line R LED 2x1x2350 H213 T840 DPRZ LT80 LO2 | 2×595 | 123 | 72 | 50000/L80B10 | 4801 | 38.2 | 126 | 80+ | 4000 | 2.6 | ≤22 |
| Line R LED 1×1900 H214 T840 MPRZ LT92 LO1 | 595 | 123 | 72 | 50000/L80B10 | 1892 | 13.9 | 136 | 80+ | 4000 | 1.6 | |
| Line R LED 1×2600 H215 T840 MPRZ LT92 LO2 | 595 | 123 | 72 | 50000/L80B10 | 2601 | 19.5 | 133 | 80+ | 4000 | 1.6 | |
| Line R LED 1×3750 H216 T840 MPRZ LT92 LO1 | 1195 | 123 | 72 | 50000/L80B10 | 3784 | 26.9 | 141 | 80+ | 4000 | 2.4 | |
| Line R LED 1×5150 H217 T840 MPRZ LT92 LO2 | 1195 | 123 | 72 | 50000/L80B10 | 5201 | 38.2 | 136 | 80+ | 4000 | 2.4 | |
| Line R LED 2x1x1900 H226 T840 MPRZ LT92 LO1 | 2×595 | 123 | 72 | 50000/L80B10 | 3784 | 26.9 | 141 | 80+ | 4000 | 2.6 | |
| Line R LED 2x1x2600 H213 T840 MPRZ LT92 LO2 | 2×595 | 123 | 72 | 50000/L80B10 | 5201 | 38.2 | 136 | 80+ | 4000 | 2.6 | |
| Line R LED 1×1950 G922 T840 DPRZ LT80 LO1 | 595 | 123 | 72 | 100000/L80B10 | 1993 | 13.7 | 145 | 80+ | 4000 | 1.6 | ≤22 |
| Line R LED 1×2700 G923 T840 DPRZ LT80 LO2 | 595 | 123 | 72 | 100000/L80B10 | 2761 | 18.8 | 147 | 80+ | 4000 | 1.6 | ≤22 |
| Line R LED 1×3850 G924 T840 DPRZ LT80 LO1 | 1195 | 123 | 72 | 100000/L80B10 | 3986 | 25.9 | 154 | 80+ | 4000 | 2.4 | ≤22 |
| Line R LED 1×5350 G925 T840 DPRZ LT80 LO2 | 1195 | 123 | 72 | 100000/L80B10 | 5523 | 37.6 | 147 | 80+ | 4000 | 2.4 | ≤22 |

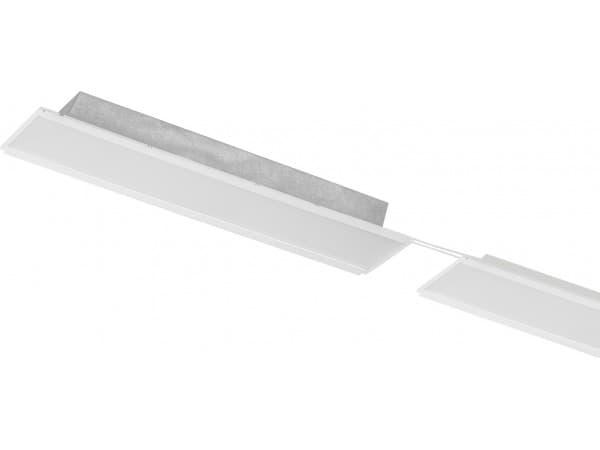

| Line R LED 2x1x1950 G920 T840 DPRZ LT80 LO1 | 2×595 | 123 | 72 | 100000/L80B10 | 3986 | 25.9 | 154 | 80+ | 4000 | 2.6 | ≤22 |
| Line R LED 2x1x2700 G921 T840 DPRZ LT80 LO2 | 2×595 | 123 | 72 | 100000/L80B10 | 5523 | 37.6 | 147 | 80+ | 4000 | 2.6 | ≤22 |
| Line R LED 1×2150 G922 T840 MPRZ LT92 LO1 | 595 | 123 | 72 | 100000/L80B10 | 2159 | 13.7 | 158 | 80+ | 4000 | 1.6 | |
| Line R LED 1×3000 G923 T840 MPRZ LT92 LO2 | 595 | 123 | 72 | 100000/L80B10 | 2992 | 18.8 | 159 | 80+ | 4000 | 1.6 | |
| Line R LED 1×4300 G924 T840 MPRZ LT92 LO1 | 1195 | 123 | 72 | 100000/L80B10 | 4319 | 25.9 | 167 | 80+ | 4000 | 2.4 | |
| Line R LED 1×5950 G925 T840 MPRZ LT92 LO2 | 1195 | 123 | 72 | 100000/L80B10 | 5983 | 37.6 | 159 | 80+ | 4000 | 2.4 | |
| Line R LED 2x1x2150 G920 T840 MPRZ LT92 LO1 | 2×595 | 123 | 72 | 100000/L80B10 | 4319 | 25.9 | 167 | 80+ | 4000 | 2.6 | |
| Line R LED 2x1x3000 G921 T840 MPRZ LT92 LO2 | 2×595 | 123 | 72 | 100000/L80B10 | 5983 | 37.6 | 159 | 80+ | 4000 | 2.6 |
Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
OP TP(a) – TP(a) rated thermoplastic opal diffuser
DALI – Driver with DALI interface and switch-control dimming
EAIRB-M – Master luminaire with integrated smart sensor and driver with Bluetooth communication and grouping possibilities for lighting control
*note – ingress protection IP20
EAIRB-S – Slave luminaire with integrated EAIR type driver for lighting control
*note – max system size 1x EAIRB-M + 3x EAIRB-S
*note – max wire length from EAIRB-M to last EAIRB-S – 11 meters
*note – EAIRB option not applicable for model: G922
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth)
KRBLT – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), on/off
KRBLT DALI – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), DALI with integrated PS
TW – Integrated light source and driver for Tunable white control 2700-6500 K
BLT TW – Integrated light source, wireless control unit and driver for Tunable white control 2700-6500 K via mobile device (via Bluetooth)
COR – Driver with Corridor function (never off)
COR1min – Driver with Corridor function 1 min (switch off after 1 min)
COR30min – Driver with Corridor function 30 min (switch off after 30 min)
PIR(BASIC) – Integrated PIR sensor with on-off control, basic version
PIR – Integrated PIR sensor with on-off control
PIR DALI – Integrated PIR sensor with DALI control and power supply
PIR BLT DALI2 – Integrated wireless PIR sensor with CASAMBI app control. Requires DALI power supply
PIR KRBLT DALI – Integrated wireless PIR sensor with KR system app control and DALI power supply
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
WIE3-0.5m – 3-pole “Wieland – gesis classic” type or compatible connector with 0.5 m cable
WIE5D-0.5m – 5-pole DALI “Wieland – gesis classic” type or compatible connector with 0.5 m cable
Schuko-1.5m – 3-pole “Schuko” type plug with 3×1.0 mm² 1.5 m cable
Schuko-3.0m – 3-pole “Schuko” type plug with 3×1.0 mm² 3.0 m cable
CONCB/4 – Longer connecting cable for installing luminaires into every fourth ceiling tile
*note – CONCB/4 option is only available for models: G920, G921
W625 – Designed for the German market to fit 625×625 suspended ceiling
