| Name | Length, mm | Width, mm | Height, mm | LED lifetime, h | Output, lm | Power, W | Efficacy, lm/W | CRI (Ra) | CCT, K | Weight, kg |
| Lodos H LED1x6200 J251 T840 OP LT80 | 600 | 600 | 56* | 50000/L80B10 | 6157 | 37.9 | 162 | 80+ | 4000 | 5.2 |
| Lodos H LED1x7400 J252 T840 OP LT80 | 600 | 600 | 56* | 50000/L80B10 | 7385 | 45.7 | 162 | 80+ | 4000 | 5.2 |
| Lodos H LED1x8650 J253 T840 OP LT80 | 600 | 600 | 56* | 50000/L80B10 | 8604 | 52.5 | 164 | 80+ | 4000 | 5.2 |
| Lodos H LED1x9850 J254 T840 OP LT80 | 900 | 900 | 61* | 50000/L80B10 | 9821 | 59.3 | 166 | 80+ | 4000 | 9.7 |
| Lodos H LED1x11500 J255 T840 OP LT80 | 900 | 900 | 61* | 50000/L80B10 | 11480 | 68.7 | 167 | 80+ | 4000 | 9.7 |
| Lodos H LED1x13150 J256 T840 OP LT80 | 900 | 900 | 61* | 50000/L80B10 | 13132 | 79.7 | 165 | 80+ | 4000 | 9.7 |
| Lodos H LED1x5750 J251 T840 DPRZ LT80 | 600 | 600 | 56* | 50000/L80B10 | 5737 | 37.9 | 151 | 80+ | 4000 | 5.2 |
| Lodos H LED1x6900 J252 T840 DPRZ LT80 | 600 | 600 | 56* | 50000/L80B10 | 6882 | 45.7 | 151 | 80+ | 4000 | 5.2 |
| Lodos H LED1x8050 J253 T840 DPRZ LT80 | 600 | 600 | 56* | 50000/L80B10 | 8017 | 52.5 | 153 | 80+ | 4000 | 5.2 |
| Lodos H LED1x9400 J254 T840 DPRZ LT80 | 900 | 900 | 61* | 50000/L80B10 | 9375 | 59.3 | 158 | 80+ | 4000 | 9.7 |
| Lodos H LED1x11000 J255 T840 DPRZ LT80 | 900 | 900 | 61* | 50000/L80B10 | 10958 | 68.7 | 160 | 80+ | 4000 | 9.7 |
| Lodos H LED1x12550 J256 T840 DPRZ LT80 | 900 | 900 | 61* | 50000/L80B10 | 12535 | 79.7 | 157 | 80+ | 4000 | 9.7 |

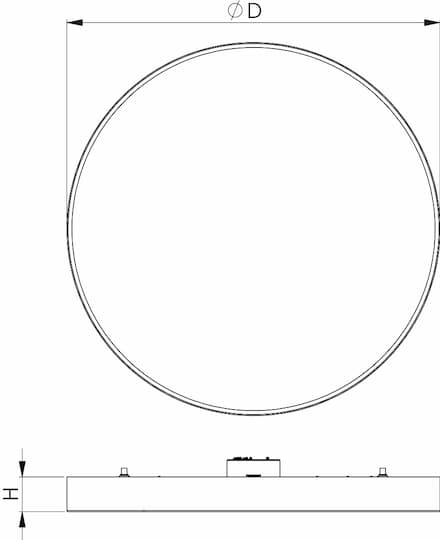

*note – 56mm / 61mm are the visual height of the luminaires. With gearbox, luminaire height is 88 / 93mm accordingly
Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
OP LT80 – Opal diffuser with high light transmittance
DPRZ LT80 – De-glaring micro-prismatic diffuser with matt light scattering layer
DALI – Driver with DALI interface and switch-control dimming
EAIRB-M – Master luminaire with integrated smart sensor and driver with wireless communication and grouping possibilities for lighting control
*note – for EAIRB-M options ingress protection IP20
EAIRB-S – Slave luminaire with integrated EAIR type driver for lighting control
*note – max system size 1x EAIR-M + 3x EAIR-S
*note – max wire length from EAIR-M to last EAIR-S – 11 m
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth)
KRBLT – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), on/off
KRBLT DALI – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), DALI with integrated PS
COR – Driver with Corridor function (never off)
COR1min – Driver with Corridor function 1 min (switch off after 1 min)
COR30min – Driver with Corridor function 30 min (switch off after 30 min)
CBF3-2.0m clear – Cable 3×0.75 mm² for suspended luminaire up to 2.0 meters, transparent
CBF3-3.0m clear – Cable 3×0.75 mm² for suspended luminaire up to 3.0 meters, transparent
CBF5-2.0m clear – Cable 5×0.75 mm² for suspended luminaire up to 2.0 meters, transparent
CBF5-3.0m clear – Cable 5×0.75 mm² for suspended luminaire up to 3.0 meters, transparent
RAL – RAL colour
*note – price for uncommon RAL colour or quantity less then MOQ could be different from indicated. Ask before placing an order
Accessories:
CAP cable 3×0.75 2.0m clear – Cable 3×0.75 mm² for suspended luminaire up to 2.0 meters, transparent
CAP cable clip D6.3mm SET clear – Cable and suspension wire clip set, 4 pcs. For cable diameter up to 6,3 mm and wire diameter 1 mm
3-point Suspension MTG KIT with round cap, white/ light grey/ black – Suspension wire set with round cap 3x”I” type, 1.5 m adjustable, white/ light grey/ black, 1 pcs
CAP4, white/ light grey/ black – Square decorative metal cap for hiding cable inlet with suspension wire attachment point, push-in terminals 3x1x1.5 mm², white/ light grey/ black
CAP5, white/ light grey/ black – Square decorative metal cap for hiding cable inlet with suspension wire attachment point, push-in terminals 5x1x1.5 mm², white/ light grey/ black
