esviesa.lt | Etesian U LED IK05 IP40 UGR

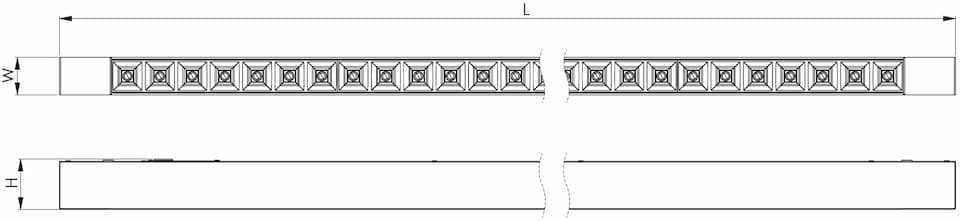

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg	UGR index
Etesian U LED1x2950 J102 T840 WMC LO1	1245	47	60	100000/L80B10	2920	17.6	166	80+	4000	2.3	≤16
Etesian U LED1x3600 J103 T840 WMC LO2	1245	47	60	100000/L80B10	3583	21.9	164	80+	4000	2.3	≤16
Etesian U LED1x4250 J104 T840 WMC LO3	1245	47	60	100000/L80B10	4223	26.1	162	80+	4000	2.3	≤16
Etesian U LED1x4900 J105 T840 WMC LO4	1245	47	60	100000/L80B10	4867	30.8	158	80+	4000	2.3	≤19
Etesian U LED1x3650 J106 T840 WMC LO1	1524	47	60	100000/L80B10	3650	21.7	168	80+	4000	2.6	≤16
Etesian U LED1x4500 J107 T840 WMC LO2	1524	47	60	100000/L80B10	4479	26.8	167	80+	4000	2.6	≤16
Etesian U LED1x5300 J108 T840 WMC LO3	1524	47	60	100000/L80B10	5278	32.0	165	80+	4000	2.6	≤16
Etesian U LED1x6150 J109 T840 WMC LO4	1524	47	60	100000/L80B10	6147	37.8	163	80+	4000	2.6	≤19
Etesian U LED1x5850 J110 T840 WMC LO1	2424	47	60	100000/L80B10	5840	33.3	175	80+	4000	4.0	≤16
Etesian U LED1x7200 J111 T840 WMC LO2	2424	47	60	100000/L80B10	7166	41.9	171	80+	4000	4.0	≤16
Etesian U LED1x8450 J112 T840 WMC LO3	2424	47	60	100000/L80B10	8446	50.6	167	80+	4000	4.0	≤16
Etesian U LED1x9750 J113 T840 WMC LO4	2424	47	60	100000/L80B10	9734	59.0	165	80+	4000	4.0	≤19
Etesian U LED1x7300 J114 T840 WMC LO1	2982	47	60	100000/L80B10	7300	41.6	175	80+	4000	4.7	≤16
Etesian U LED1x9000 J115 T840 WMC LO2	2982	47	60	100000/L80B10	8957	52.4	171	80+	4000	4.7	≤16
Etesian U LED1x10600 J116 T840 WMC LO3	2982	47	60	100000/L80B10	10557	62.6	169	80+	4000	4.7	≤16
Etesian U LED1x12300 J117 T840 WMC LO4	2982	47	60	100000/L80B10	12293	73.3	168	80+	4000	4.7	≤19
Etesian U LED1x2700 J102 T840 BMC LO1	1245	47	60	100000/L80B10	2631	17.6	149	80+	4000	2.3	≤16
Etesian U LED1x3350 J103 T840 BMC LO2	1245	47	60	100000/L80B10	3229	21.9	147	80+	4000	2.3	≤16
Etesian U LED1x3900 J104 T840 BMC LO3	1245	47	60	100000/L80B10	3805	26.1	146	80+	4000	2.3	≤16
Etesian U LED1x4500 J105 T840 BMC LO4	1245	47	60	100000/L80B10	4386	30.8	142	80+	4000	2.3	≤16
Etesian U LED1x3400 J106 T840 BMC LO1	1524	47	60	100000/L80B10	3289	21.7	152	80+	4000	2.6	≤16
Etesian U LED1x4150 J107 T840 BMC LO2	1524	47	60	100000/L80B10	4036	26.8	151	80+	4000	2.6	≤16
Etesian U LED1x4900 J108 T840 BMC LO3	1524	47	60	100000/L80B10	4756	32.0	149	80+	4000	2.6	≤16
Etesian U LED1x5700 J109 T840 BMC LO4	1524	47	60	100000/L80B10	5539	37.8	147	80+	4000	2.6	≤16
Etesian U LED1x5400 J110 T840 BMC LO1	2424	47	60	100000/L80B10	5262	33.3	158	80+	4000	4.0	≤16
Etesian U LED1x6650 J111 T840 BMC LO2	2424	47	60	100000/L80B10	6457	41.9	154	80+	4000	4.0	≤16
Etesian U LED1x7800 J112 T840 BMC LO3	2424	47	60	100000/L80B10	7610	50.6	150	80+	4000	4.0	≤16
Etesian U LED1x9000 J113 T840 BMC LO4	2424	47	60	100000/L80B10	8771	59.0	149	80+	4000	4.0	≤16
Etesian U LED1x6750 J114 T840 BMC LO1	2982	47	60	100000/L80B10	6578	41.6	158	80+	4000	4.7	≤16
Etesian U LED1x8300 J115 T840 BMC LO2	2982	47	60	100000/L80B10	8071	52.4	154	80+	4000	4.7	≤16
Etesian U LED1x9750 J116 T840 BMC LO3	2982	47	60	100000/L80B10	9513	62.6	152	80+	4000	4.7	≤16
Etesian U LED1x11350 J117 T840 BMC LO4	2982	47	60	100000/L80B10	11078	73.3	151	80+	4000	4.7	≤19
Etesian U LED1x2950 J102 T840 MGC LO1	1245	47	60	100000/L80B10	3048	17.6	173	80+	4000	2.3	≤16
Etesian U LED1x3600 J103 T840 MGC LO2	1245	47	60	100000/L80B10	3740	21.9	171	80+	4000	2.3	≤16
Etesian U LED1x4250 J104 T840 MGC LO3	1245	47	60	100000/L80B10	4408	26.1	169	80+	4000	2.3	≤16
Etesian U LED1x4900 J105 T840 MGC LO4	1245	47	60	100000/L80B10	5081	30.8	165	80+	4000	2.3	≤16
Etesian U LED1x3650 J106 T840 MGC LO1	1524	47	60	100000/L80B10	3810	21.7	176	80+	4000	2.6	≤16
Etesian U LED1x4500 J107 T840 MGC LO2	1524	47	60	100000/L80B10	4676	26.8	174	80+	4000	2.6	≤16
Etesian U LED1x5300 J108 T840 MGC LO3	1524	47	60	100000/L80B10	5511	32.0	172	80+	4000	2.6	≤16
Etesian U LED1x6150 J109 T840 MGC LO4	1524	47	60	100000/L80B10	6417	37.8	170	80+	4000	2.6	≤19
Etesian U LED1x5850 J110 T840 MGC LO1	2424	47	60	100000/L80B10	6097	33.3	183	80+	4000	4.0	≤16
Etesian U LED1x7200 J111 T840 MGC LO2	2424	47	60	100000/L80B10	7481	41.9	179	80+	4000	4.0	≤16
Etesian U LED1x8450 J112 T840 MGC LO3	2424	47	60	100000/L80B10	8817	50.6	174	80+	4000	4.0	≤16
Etesian U LED1x9750 J113 T840 MGC LO4	2424	47	60	100000/L80B10	10162	59.0	172	80+	4000	4.0	≤19
Etesian U LED1x7300 J114 T840 MGC LO1	2982	47	60	100000/L80B10	7621	41.6	183	80+	4000	4.7	≤16
Etesian U LED1x9000 J115 T840 MGC LO2	2982	47	60	100000/L80B10	9351	52.4	178	80+	4000	4.7	≤16
Etesian U LED1x10600 J116 T840 MGC LO3	2982	47	60	100000/L80B10	11021	62.6	176	80+	4000	4.7	≤16
Etesian U LED1x12300 J117 T840 MGC LO4	2982	47	60	100000/L80B10	12834	73.3	175	80+	4000	4.7	≤19
Etesian U LED1x2950 J102 T840 MMC LO1	1245	47	60	100000/L80B10	2984	17.6	170	80+	4000	2.3	≤16
Etesian U LED1x3600 J103 T840 MMC LO2	1245	47	60	100000/L80B10	3662	21.9	167	80+	4000	2.3	≤16
Etesian U LED1x4250 J104 T840 MMC LO3	1245	47	60	100000/L80B10	4316	26.1	165	80+	4000	2.3	≤16
Etesian U LED1x4900 J105 T840 MMC LO4	1245	47	60	100000/L80B10	4974	30.8	161	80+	4000	2.3	≤19
Etesian U LED1x3650 J106 T840 MMC LO1	1524	47	60	100000/L80B10	3730	21.7	172	80+	4000	2.6	≤16
Etesian U LED1x4500 J107 T840 MMC LO2	1524	47	60	100000/L80B10	4577	26.8	171	80+	4000	2.6	≤16
Etesian U LED1x5300 J108 T840 MMC LO3	1524	47	60	100000/L80B10	5395	32.0	169	80+	4000	2.6	≤16
Etesian U LED1x6150 J109 T840 MMC LO4	1524	47	60	100000/L80B10	6282	37.8	166	80+	4000	2.6	≤19
Etesian U LED1x5850 J110 T840 MMC LO1	2424	47	60	100000/L80B10	5968	33.3	179	80+	4000	4.0	≤16
Etesian U LED1x7200 J111 T840 MMC LO2	2424	47	60	100000/L80B10	7323	41.9	175	80+	4000	4.0	≤16
Etesian U LED1x8450 J112 T840 MMC LO3	2424	47	60	100000/L80B10	8631	50.6	171	80+	4000	4.0	≤16
Etesian U LED1x9750 J113 T840 MMC LO4	2424	47	60	100000/L80B10	9948	59.0	169	80+	4000	4.0	≤19
Etesian U LED1x7300 J114 T840 MMC LO1	2982	47	60	100000/L80B10	7460	41.6	179	80+	4000	4.7	≤16
Etesian U LED1x9000 J115 T840 MMC LO2	2982	47	60	100000/L80B10	9154	52.4	175	80+	4000	4.7	≤16
Etesian U LED1x10600 J116 T840 MMC LO3	2982	47	60	100000/L80B10	10789	62.6	172	80+	4000	4.7	≤16
Etesian U LED1x12300 J117 T840 MMC LO4	2982	47	60	100000/L80B10	12564	73.3	171	80+	4000	4.7	≤19
Etesian U LED1x2950 J102 T840 WAC LO1	1245	47	60	100000/L80B10	2407	17.6	137	80+	4000	2.3
Etesian U LED1x3600 J103 T840 WAC LO2	1245	47	60	100000/L80B10	2953	21.9	135	80+	4000	2.3
Etesian U LED1x4250 J104 T840 WAC LO3	1245	47	60	100000/L80B10	3480	26.1	133	80+	4000	2.3
Etesian U LED1x4900 J105 T840 WAC LO4	1245	47	60	100000/L80B10	4011	30.8	130	80+	4000	2.3
Etesian U LED1x3650 J106 T840 WAC LO1	1524	47	60	100000/L80B10	3008	21.7	139	80+	4000	2.6
Etesian U LED1x4500 J107 T840 WAC LO2	1524	47	60	100000/L80B10	3691	26.8	138	80+	4000	2.6
Etesian U LED1x5300 J108 T840 WAC LO3	1524	47	60	100000/L80B10	4350	32.0	136	80+	4000	2.6
Etesian U LED1x6150 J109 T840 WAC LO4	1524	47	60	100000/L80B10	5066	37.8	134	80+	4000	2.6
Etesian U LED1x5850 J110 T840 WAC LO1	2424	47	60	100000/L80B10	4813	33.3	145	80+	4000	4.0
Etesian U LED1x7200 J111 T840 WAC LO2	2424	47	60	100000/L80B10	5906	41.9	141	80+	4000	4.0
Etesian U LED1x8450 J112 T840 WAC LO3	2424	47	60	100000/L80B10	6961	50.6	138	80+	4000	4.0
Etesian U LED1x9750 J113 T840 WAC LO4	2424	47	60	100000/L80B10	8022	59.0	136	80+	4000	4.0
Etesian U LED1x7300 J114 T840 WAC LO1	2982	47	60	100000/L80B10	6016	41.6	145	80+	4000	4.7
Etesian U LED1x9000 J115 T840 WAC LO2	2982	47	60	100000/L80B10	7382	52.4	141	80+	4000	4.7
Etesian U LED1x10600 J116 T840 WAC LO3	2982	47	60	100000/L80B10	8701	62.6	139	80+	4000	4.7
Etesian U LED1x12300 J117 T840 WAC LO4	2982	47	60	100000/L80B10	10132	73.3	138	80+	4000	4.7

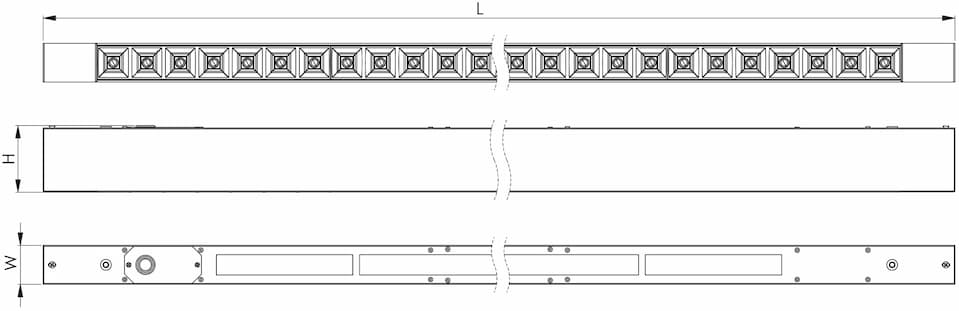

LG3:

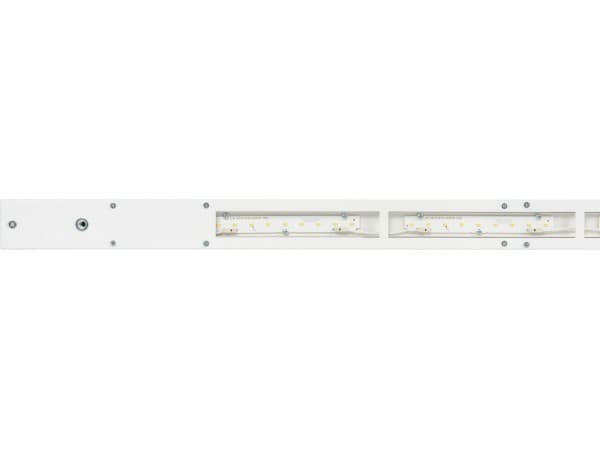

Etesian U LED1x2950/1450 J118 T840 WMC LG3 LO1	1245	47	78	100000/L80B10	4335	25.5	170	80+	4000	2.9	≤16
Etesian U LED1x3600/1750 J119 T840 WMC LG3 LO2	1245	47	78	100000/L80B10	5322	32.2	165	80+	4000	2.9	≤16
Etesian U LED1x4250/2050 J120 T840 WMC LG3 LO3	1245	47	78	100000/L80B10	6273	38.5	163	80+	4000	2.9	≤16
Etesian U LED1x4900/2400 J121 T840 WMC LG3 LO4	1245	47	78	100000/L80B10	7236	45.3	160	80+	4000	2.9	≤16
Etesian U LED1x3650/1700 J122 T840 WMC LG3 LO1	1524	47	78	100000/L80B10	5348	31.8	168	80+	4000	3.5	≤16
Etesian U LED1x4500/2100 J123 T840 WMC LG3 LO2	1524	47	78	100000/L80B10	6565	39.7	165	80+	4000	3.5	≤16
Etesian U LED1x5300/2500 J124 T840 WMC LG3 LO3	1524	47	78	100000/L80B10	7737	48.0	161	80+	4000	3.5	≤16
Etesian U LED1x6150/2850 J125 T840 WMC LG3 LO4	1524	47	78	100000/L80B10	8989	56.1	160	80+	4000	3.5	≤16
Etesian U LED1x5850/2850 J126 T840 WMC LG3 LO1	2424	47	78	100000/L80B10	8670	49.9	174	80+	4000	5.5	≤16
Etesian U LED1x7200/3500 J127 T840 WMC LG3 LO2	2424	47	78	100000/L80B10	10644	62.3	171	80+	4000	5.5	≤16
Etesian U LED1x8450/4100 J128 T840 WMC LG3 LO3	2424	47	78	100000/L80B10	12546	75.3	167	80+	4000	5.5	≤16
Etesian U LED1x9750/4750 J129 T840 WMC LG3 LO4	2424	47	78	100000/L80B10	14473	88.8	163	80+	4000	5.5	≤16
Etesian U LED1x7300/3400 J130 T840 WMC LG3 LO1	2982	47	78	100000/L80B10	10695	61.6	174	80+	4000	6.7	≤16
Etesian U LED1x9000/4200 J131 T840 WMC LG3 LO2	2982	47	78	100000/L80B10	13129	77.7	169	80+	4000	6.7	≤16
Etesian U LED1x10600/4950 J132 T840 WMC LG3 LO3	2982	47	78	100000/L80B10	15475	94.0	165	80+	4000	6.7	≤16
Etesian U LED1x12300/5700 J133 T840 WMC LG3 LO4	2982	47	78	100000/L80B10	17977	111.1	162	80+	4000	6.7	≤16
Etesian U LED1x2700/1450 J118 T840 BMC LG3 LO1	1245	47	78	100000/L80B10	4046	25.5	159	80+	4000	2.9	≤16
Etesian U LED1x3350/1750 J119 T840 BMC LG3 LO2	1245	47	78	100000/L80B10	4968	32.2	154	80+	4000	2.9	≤16
Etesian U LED1x3900/2050 J120 T840 BMC LG3 LO3	1245	47	78	100000/L80B10	5855	38.5	152	80+	4000	2.9	≤16
Etesian U LED1x4500/2400 J121 T840 BMC LG3 LO4	1245	47	78	100000/L80B10	6755	45.3	149	80+	4000	2.9	≤16
Etesian U LED1x3400/1700 J122 T840 BMC LG3 LO1	1524	47	78	100000/L80B10	4987	31.8	157	80+	4000	3.5	≤16
Etesian U LED1x4150/2100 J123 T840 BMC LG3 LO2	1524	47	78	100000/L80B10	6122	39.7	154	80+	4000	3.5	≤16
Etesian U LED1x4900/2500 J124 T840 BMC LG3 LO3	1524	47	78	100000/L80B10	7215	48.0	150	80+	4000	3.5	≤16
Etesian U LED1x5700/2850 J125 T840 BMC LG3 LO4	1524	47	78	100000/L80B10	8381	56.1	149	80+	4000	3.5	≤16
Etesian U LED1x5400/2850 J126 T840 BMC LG3 LO1	2424	47	78	100000/L80B10	8092	49.9	162	80+	4000	5.5	≤16
Etesian U LED1x6650/3500 J127 T840 BMC LG3 LO2	2424	47	78	100000/L80B10	9935	62.3	159	80+	4000	5.5	≤16
Etesian U LED1x7800/4100 J128 T840 BMC LG3 LO3	2424	47	78	100000/L80B10	11710	75.3	156	80+	4000	5.5	≤16
Etesian U LED1x9000/4750 J129 T840 BMC LG3 LO4	2424	47	78	100000/L80B10	13510	88.8	152	80+	4000	5.5	≤16
Etesian U LED1x6750/3400 J130 T840 BMC LG3 LO1	2982	47	78	100000/L80B10	9973	61.6	162	80+	4000	6.7	≤16
Etesian U LED1x8300/4200 J131 T840 BMC LG3 LO2	2982	47	78	100000/L80B10	12243	77.7	158	80+	4000	6.7	≤16
Etesian U LED1x9750/4950 J132 T840 BMC LG3 LO3	2982	47	78	100000/L80B10	14431	94.0	154	80+	4000	6.7	≤16
Etesian U LED1x11350/5700 J133 T840 BMC LG3 LO4	2982	47	78	100000/L80B10	16762	111.1	151	80+	4000	6.7	≤16
Etesian U LED1x2950/1450 J118 T840 MGC LG3 LO1	1245	47	78	100000/L80B10	4463	25.5	175	80+	4000	2.9	≤16
Etesian U LED1x3600/1750 J119 T840 MGC LG3 LO2	1245	47	78	100000/L80B10	5479	32.2	170	80+	4000	2.9	≤16
Etesian U LED1x4250/2050 J120 T840 MGC LG3 LO3	1245	47	78	100000/L80B10	6458	38.5	168	80+	4000	2.9	≤16
Etesian U LED1x4900/2400 J121 T840 MGC LG3 LO4	1245	47	78	100000/L80B10	7450	45.3	164	80+	4000	2.9	≤16
Etesian U LED1x3650/1700 J122 T840 MGC LG3 LO1	1524	47	78	100000/L80B10	5508	31.8	173	80+	4000	3.5	≤16
Etesian U LED1x4500/2100 J123 T840 MGC LG3 LO2	1524	47	78	100000/L80B10	6762	39.7	170	80+	4000	3.5	≤16
Etesian U LED1x5300/2500 J124 T840 MGC LG3 LO3	1524	47	78	100000/L80B10	7970	48.0	166	80+	4000	3.5	≤16
Etesian U LED1x6150/2850 J125 T840 MGC LG3 LO4	1524	47	78	100000/L80B10	9259	56.1	165	80+	4000	3.5	≤16
Etesian U LED1x5850/2850 J126 T840 MGC LG3 LO1	2424	47	78	100000/L80B10	8927	49.9	179	80+	4000	5.5	≤16
Etesian U LED1x7200/3500 J127 T840 MGC LG3 LO2	2424	47	78	100000/L80B10	10959	62.3	176	80+	4000	5.5	≤16
Etesian U LED1x8450/4100 J128 T840 MGC LG3 LO3	2424	47	78	100000/L80B10	12917	75.3	172	80+	4000	5.5	≤16
Etesian U LED1x9750/4750 J129 T840 MGC LG3 LO4	2424	47	78	100000/L80B10	14901	88.8	168	80+	4000	5.5	≤16
Etesian U LED1x7300/3400 J130 T840 MGC LG3 LO1	2982	47	78	100000/L80B10	11016	61.6	179	80+	4000	6.7	≤16
Etesian U LED1x9000/4200 J131 T840 MGC LG3 LO2	2982	47	78	100000/L80B10	13523	77.7	174	80+	4000	6.7	≤16
Etesian U LED1x10600/4950 J132 T840 MGC LG3 LO3	2982	47	78	100000/L80B10	15939	94.0	170	80+	4000	6.7	≤16
Etesian U LED1x12300/5700 J133 T840 MGC LG3 LO4	2982	47	78	100000/L80B10	18518	111.1	167	80+	4000	6.7	≤16
Etesian U LED1x2950/1450 J118 T840 MMC LG3 LO1	1245	47	78	100000/L80B10	4399	25.5	173	80+	4000	2.9	≤16
Etesian U LED1x3600/1750 J119 T840 MMC LG3 LO2	1245	47	78	100000/L80B10	5401	32.2	168	80+	4000	2.9	≤16
Etesian U LED1x4250/2050 J120 T840 MMC LG3 LO3	1245	47	78	100000/L80B10	6366	38.5	165	80+	4000	2.9	≤16
Etesian U LED1x4900/2400 J121 T840 MMC LG3 LO4	1245	47	78	100000/L80B10	7343	45.3	162	80+	4000	2.9	≤16
Etesian U LED1x3650/1700 J122 T840 MMC LG3 LO1	1524	47	78	100000/L80B10	5428	31.8	171	80+	4000	3.5	≤16
Etesian U LED1x4500/2100 J123 T840 MMC LG3 LO2	1524	47	78	100000/L80B10	6663	39.7	168	80+	4000	3.5	≤16
Etesian U LED1x5300/2500 J124 T840 MMC LG3 LO3	1524	47	78	100000/L80B10	7854	48.0	164	80+	4000	3.5	≤16
Etesian U LED1x6150/2850 J125 T840 MMC LG3 LO4	1524	47	78	100000/L80B10	9124	56.1	163	80+	4000	3.5	≤16
Etesian U LED1x5850/2850 J126 T840 MMC LG3 LO1	2424	47	78	100000/L80B10	8798	49.9	176	80+	4000	5.5	≤16
Etesian U LED1x7200/3500 J127 T840 MMC LG3 LO2	2424	47	78	100000/L80B10	10801	62.3	173	80+	4000	5.5	≤16
Etesian U LED1x8450/4100 J128 T840 MMC LG3 LO3	2424	47	78	100000/L80B10	12731	75.3	169	80+	4000	5.5	≤16
Etesian U LED1x9750/4750 J129 T840 MMC LG3 LO4	2424	47	78	100000/L80B10	14687	88.8	165	80+	4000	5.5	≤16
Etesian U LED1x7300/3400 J130 T840 MMC LG3 LO1	2982	47	78	100000/L80B10	10855	61.6	176	80+	4000	6.7	≤16
Etesian U LED1x9000/4200 J131 T840 MMC LG3 LO2	2982	47	78	100000/L80B10	13326	77.7	172	80+	4000	6.7	≤16
Etesian U LED1x10600/4950 J132 T840 MMC LG3 LO3	2982	47	78	100000/L80B10	15707	94.0	167	80+	4000	6.7	≤16
Etesian U LED1x12300/5700 J133 T840 MMC LG3 LO4	2982	47	78	100000/L80B10	18248	111.1	164	80+	4000	6.7	≤16

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+

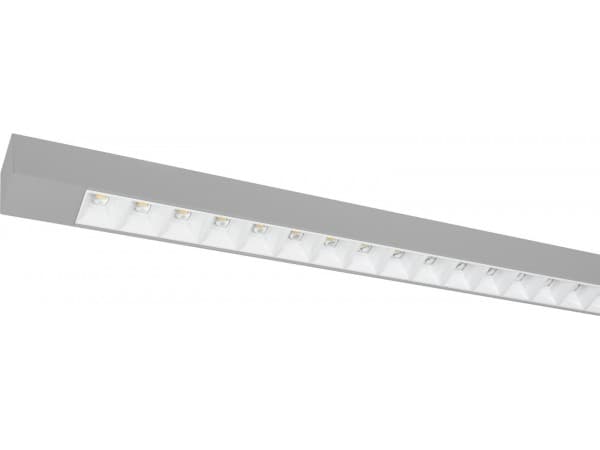

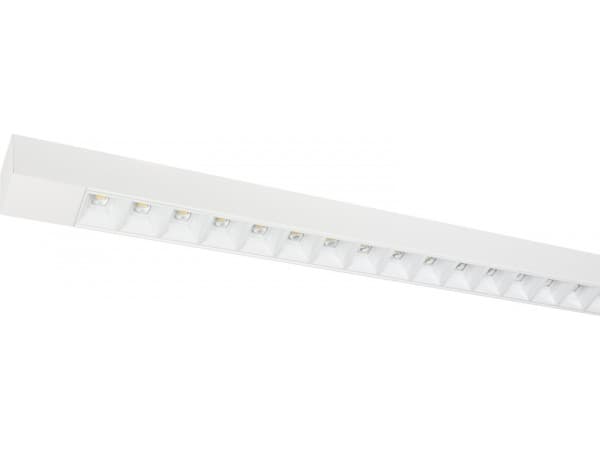

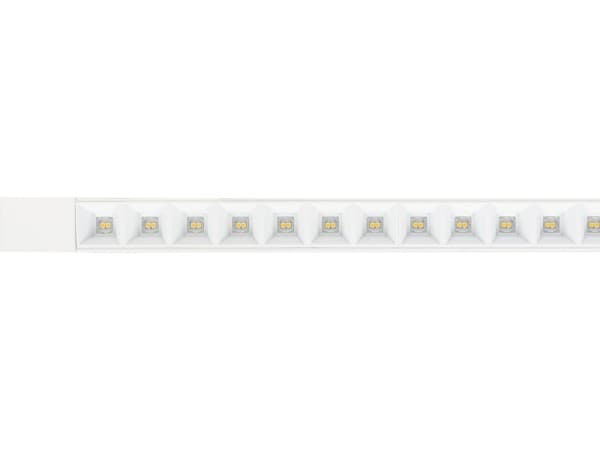

WMC – White matt reflector with clear lens

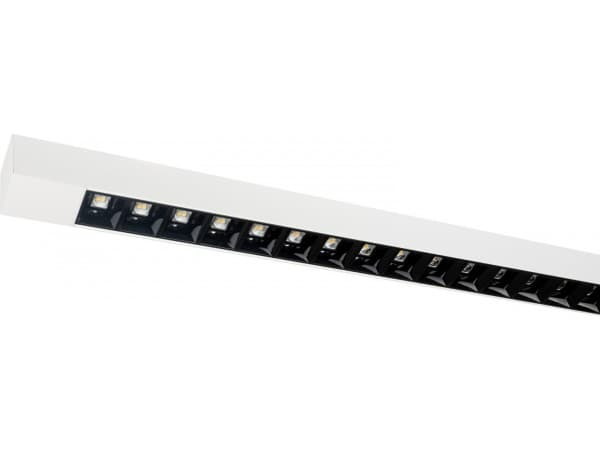

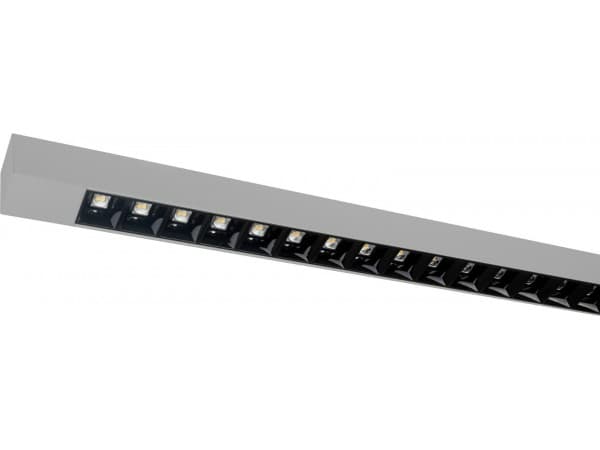

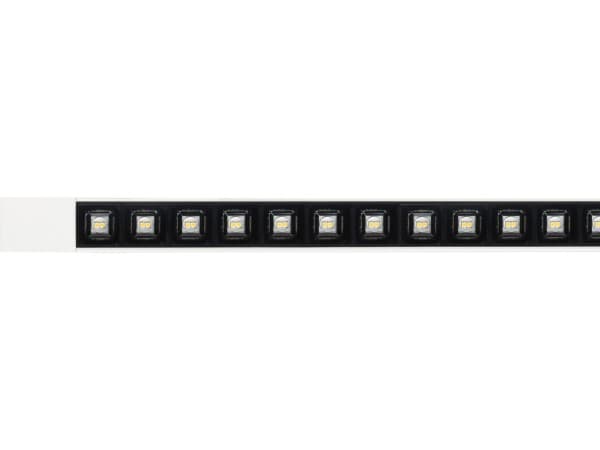

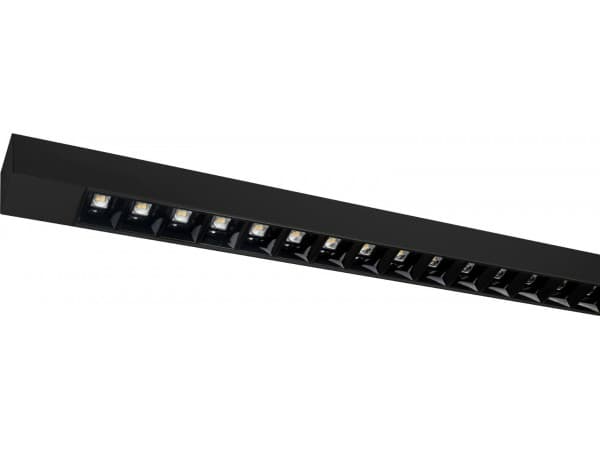

BMC – Black matt reflector with clear lens
MGC – Metallic mirror finish reflector with clear lens
MMC – Metallic matt reflector with clear lens
WAC – Metallic mirror finish asymmetrical reflector with white shade and clear lens (except LG3)
BAC – Metallic mirror finish asymmetrical reflector with black shade and clear lens (except LG3)

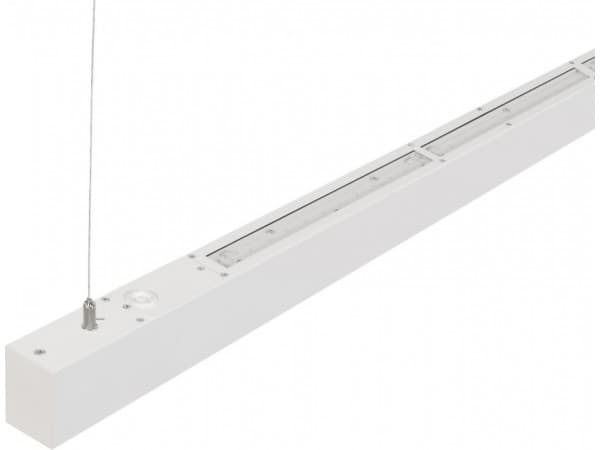

LG3 – Luminaire fits to LG3 requirements (with direct/indirect light distribution)
LO1…4 – Light output level 1 to 4
DALI – Driver with DALI interface and switch-control dimming
DALIsep – Driver with DALI interface and with possibility to control down and up light separately
EAIRB – Integrated smart sensor and driver with Bluetooth communication and grouping possibilities for lighting control
EAIRB-M – Master luminaire with integrated smart sensor and driver with Bluetooth communication and grouping possibilities for lighting control
*note – for EAIRB, EAIRB-M options ingress protection IP20
*note – the EAIRB sensor is positioned in the end of the luminaire for lengths up to 2000 mm, and in the middle of the luminaire for lengths over 2000 mm
EAIRB-S – Slave luminaire with integrated EAIR type driver for lighting control
*note – max system size 1x EAIRB-M + 3x EAIRB-S
*note – max wire length from EAIRB-M to last EAIRB-S – 11 m
*note – EAIRB options are not applicable for model: J133
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth)
COR – Driver with Corridor function (never off)
COR1min – Driver with Corridor function 1 min (switch off after 1 min)
COR30minDriver with Corridor function 30 min (switch off after 30 min)
*note – COR options are not applicable for models: J132, J133
PULL – Pull switch device, on/off
PULLDIM – Pull switch device and driver with switch-control dimming
PIR(BASIC) – Integrated PIR sensor with on-off control, basic version
PIR BLT DALI2 – Integrated wireless PIR sensor with CASAMBI app control. Requires DALI power supply
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
*note – EM options are not compatible with some of COR and EAIRB models. Please check before placing an order
Lsep – Option that enables to control (on/off) Down and up lights separately
CBF3-2.0m clear – Cable 3×0.75 mm² for suspended luminaire up to 2.0 meters, transparent
CBF3-3.0m clear – Cable 3×0.75 mm² for suspended luminaire up to 3.0 meters, transparent
CBF5-2.0m clear – Cable 5×0.75 mm² for suspended luminaire up to 2.0 meters, transparent
CBF5-3.0m clear – Cable 5×0.75 mm² for suspended luminaire up to 3.0 meters, transparent
1LIN I-join L – Luminaire designed to in-line connection with join element – end/first luminaire (joint element not included). Through wired 3×1.5 mm² with two push-in terminal blocks
1LIN I-join LL – Luminaire designed to in-line connection with join element – intermediate luminaire (joint element not included). Through wired 3×1.5 mm² with two push-in terminal blocks
RAL – RAL colour

Accessories:

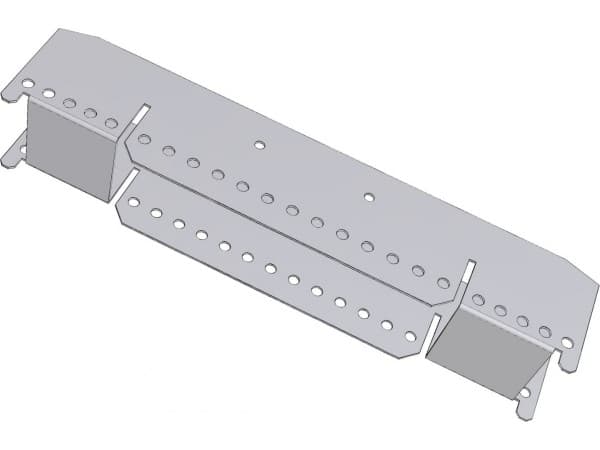

I-JOIN MTG KIT Etesian S/U LED – “I” type join kit for connecting luminaires in-line
CAP cable 3×0.75 2.0m clear – Cable 3×0.75 mm² for suspended luminaire up to 2.0 meters, transparent
CAP cable clip D6.3mm SET clear – Cable and suspension wire clip set, 4 pcs. For cable diameter up to 6,3 mm and wire diameter 1 mm
Suspension MTG KIT SUSI – Suspension wire set “I” type, 1.5 m adjustable, 1 pcs
*note – at least 2 pcs MTG KIT SUSI for one fitting required. For exact quantity please refer to installation manual
CAP4, white/ light grey/ black – Square decorative metal cap for hiding cable inlet with suspension wire attachment point, push-in terminals 3x1x1.5 mm², white/ light grey/ black
CAP5, white/ light grey/ black – Square decorative metal cap for hiding cable inlet with suspension wire attachment point, push-in terminals 5x1x1.5 mm², white/ light grey/ black
Remote Control HRC-12 – The functionality of the sensors is controlled by a number of parameters which can be changed or programmed remote with an infrared handset
*note – compatible with options: PIR
Remote Control HRC-11 – The functionality of the sensors is controlled by a number of parameters which can be changed or programmed remote with an infrared handset
*note – compatible with options: PIR; PIR DALI
