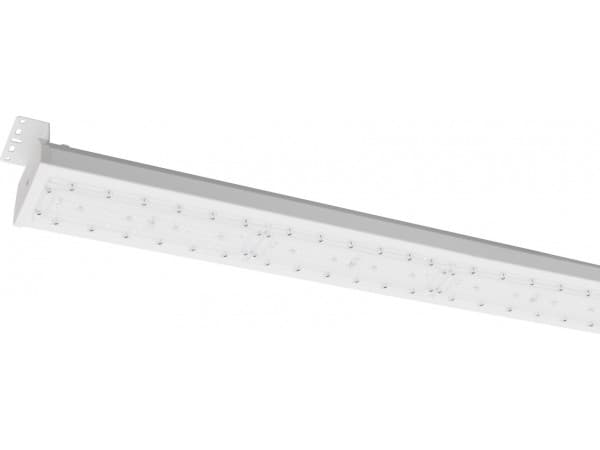

esviesa.lt | Norte C LED IK08 IP65

High-bay LED luminaire

More information:

Type:

Surface mounted or suspended high-bay LED luminaire for use in low temperatures -35 ºC environments

Specification:

Surface mounted or suspended high-bay LED luminaire for use in low temperatures -35 ºC environments
Light distribution type: direct
Optical system: lenses, silicone rubber gasket, impact resistance
Housing: aluminium
Colour: white, RAL9003
Mains voltage: 220-240V, 0/50-60Hz
LED lifetime, h: 100000/L80B10
SDCM: 3
Protection class IEC: I
Ingress protection code: IP65
Mechanical impact resistance: IK08
Protection symbol: D
Operating temperature range, ºC: -35...+35
Cable 2.0 m, 3x1.5 mm²

Installation:

On the ceiling or wall, or suspended (requires accessories)

Application:

Indoor. Cold storage, industry, warehouse, transport terminal

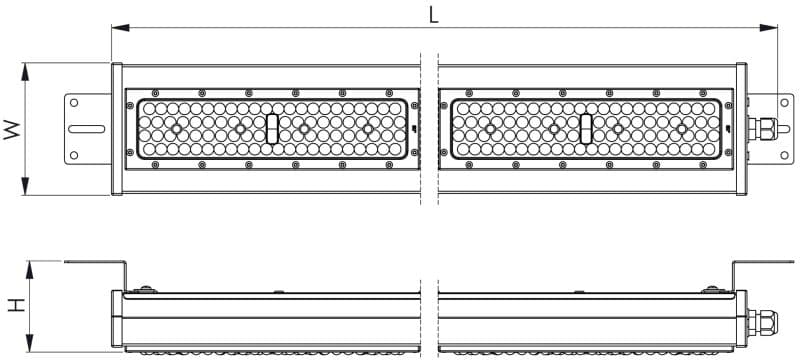

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Norte C LED1x10700 G331 T840 L30x65 CBF3-2.0m Tmin-35	554	114	80	100000/L80B10	10012	61.2	164	80+	4000	1.8
Norte C LED1x16050 G332 T840 L30x65 CBF3-2.0m Tmin-35	807	114	80	100000/L80B10	15018	89.8	167	80+	4000	2.0
Norte C LED1x21400 G333 T840 L30x65 CBF3-2.0m Tmin-35	1060	114	80	100000/L80B10	20024	117.2	171	80+	4000	2.4
Norte C LED1x10700 G331 T840 L40 CBF3-2.0m Tmin-35	554	114	80	100000/L80B10	10237	61.2	167	80+	4000	1.8
Norte C LED1x16050 G332 T840 L40 CBF3-2.0m Tmin-35	807	114	80	100000/L80B10	15355	89.8	171	80+	4000	2.0
Norte C LED1x21400 G333 T840 L40 CBF3-2.0m Tmin-35	1060	114	80	100000/L80B10	20474	117.2	175	80+	4000	2.4
Norte C LED1x10700 G331 T840 L60 CBF3-2.0m Tmin-35	554	114	80	100000/L80B10	10687	61.2	175	80+	4000	1.8
Norte C LED1x16050 G332 T840 L60 CBF3-2.0m Tmin-35	807	114	80	100000/L80B10	16030	89.8	179	80+	4000	2.0
Norte C LED1x21400 G333 T840 L60 CBF3-2.0m Tmin-35	1060	114	80	100000/L80B10	21374	117.2	182	80+	4000	2.4
Norte C LED1x10700 G331 T840 L75 CBF3-2.0m Tmin-35	554	114	80	100000/L80B10	10237	61.2	167	80+	4000	1.8
Norte C LED1x16050 G332 T840 L75 CBF3-2.0m Tmin-35	807	114	80	100000/L80B10	15355	89.8	171	80+	4000	2.0
Norte C LED1x21400 G333 T840 L75 CBF3-2.0m Tmin-35	1060	114	80	100000/L80B10	20474	117.2	175	80+	4000	2.4
Norte C LED1x10700 G331 T840 L90x90 CBF3-2.0m Tmin-35	554	114	80	100000/L80B10	10687	61.2	175	80+	4000	1.8
Norte C LED1x16050 G332 T840 L90x90 CBF3-2.0m Tmin-35	807	114	80	100000/L80B10	16030	89.8	179	80+	4000	2.0
Norte C LED1x21400 G333 T840 L90x90 CBF3-2.0m Tmin-35	1060	114	80	100000/L80B10	21374	117.2	182	80+	4000	2.4
Norte C LED1x10700 G331 T840 L120 CBF3-2.0m Tmin-35	554	114	80	100000/L80B10	10687	61.2	175	80+	4000	1.8
Norte C LED1x16050 G332 T840 L120 CBF3-2.0m Tmin-35	807	114	80	100000/L80B10	16030	89.8	179	80+	4000	2.0
Norte C LED1x21400 G333 T840 L120 CBF3-2.0m Tmin-35	1060	114	80	100000/L80B10	21374	117.2	182	80+	4000	2.4

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
T857 – Colour temperature 5700K, CRI 80+
T865 – Colour temperature 6500K, CRI 80+
L30x65 – Optics with 30×65º beam angle
L40 – Optics with 40×40º beam angle
L60 – Optics with 60×60º beam angle
L75 – Optics with 75×75º beam angle
L90x90 – Optics with 90×90º beam angle
L120 – Optics with 120×120º beam angle
DALI – Driver with DALI interface
COR – Driver with Corridor function (never off)
COR1min – Driver with Corridor function 1 min (switch off after 1 min)
COR30min – Driver with Corridor function 30 min (switch off after 30 min)

Accessories:

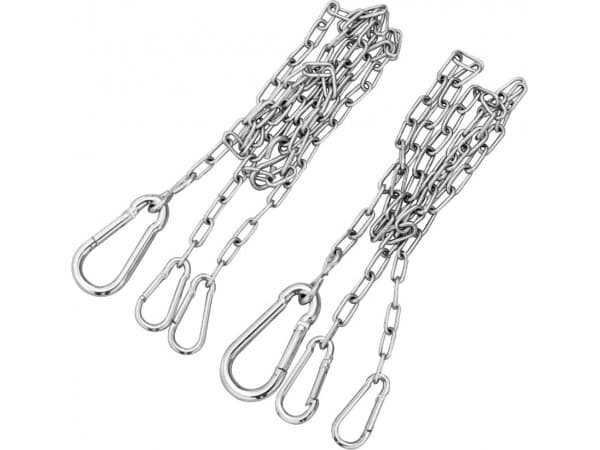

Suspension MTG KIT – Norte I LED 1.5m – Suspension kit for Norte I LED high-bay, 1.5 m
Suspension MTG KIT – Norte I LED 3.0m – Suspension kit for Norte I LED high-bay, 3.0 m
Suspension MTG KIT – Norte I LED 5.0m – Suspension kit for Norte I LED high-bay, 5.0 m

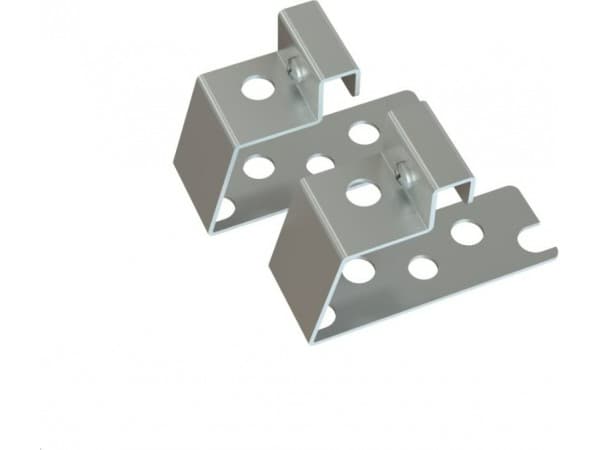

Wire suspension BRACKETS – Norte I LED – Wire suspension brackets for Norte I LED high-bay, 2 pcs
