esviesa.lt | Columbus LED IK20 IP66

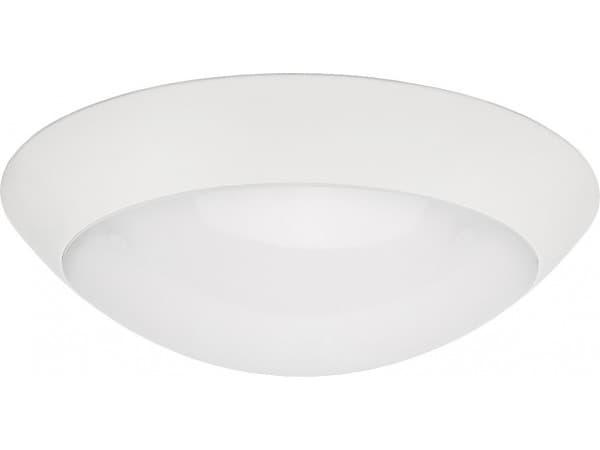

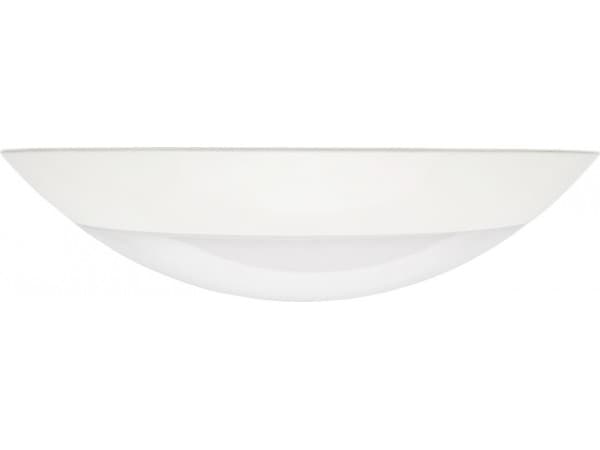

Surface mounted anti-vandal LED luminaire

More information:

Type:

Surface mounted anti-vandal LED luminaire, IK20 (250J)

Specification:

Surface mounted anti-vandal LED luminaire, IK20 (250J)
Light distribution type: direct
Optical system: opal polycarbonate diffuser, vandal resistant, frame with stainless-steel security screws
Housing: die-casting aluminium
Colour: white (RAL 9016)
Mains voltage: 220-240V, 50/60Hz
LED lifetime, h: 50000/L80B50
SDCM: 3
Protection class IEC: I
Ingress protection code: IP66
Mechanical impact resistance: IK20
Protection symbol: D
Glow wire test, °C: 750
Operating temperature range, °C: -20...+40
Push-in terminal, 3x2x2.5 mm²

Installation:

On the ceiling or wall

Application:

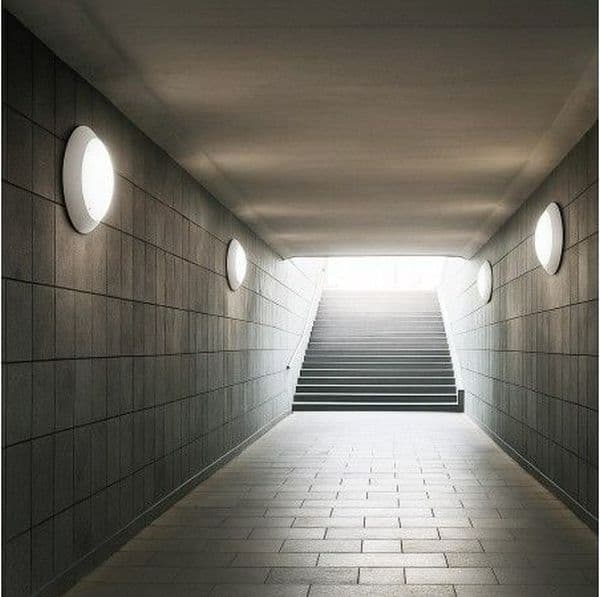

Indoor/outdoor with roof. Public place, parking area, transport terminal, metro, prison, psychiatric hospital, underground passages

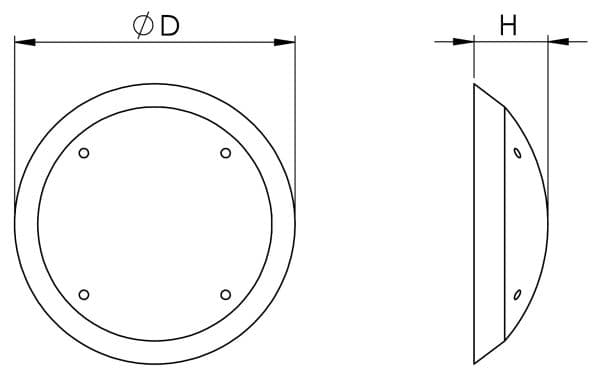

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Columbus LED1x2000 K469 T840 OP	455	455	115	50000/L80B50	1960	16.4	120	80	4000	4.2
Columbus LED1x2900 K470 T840 OP	455	455	115	50000/L80B50	2863	24.1	119	80	4000	4.2
Columbus LED1x3900 K447 T840 OP	455	455	115	50000/L80B50	3878	32.9	118	80	4000	4.2
Columbus LED1x2000 K469 T830 OP	455	455	115	50000/L80B50	1814	16.4	111	80	3000	4.2
Columbus LED1x2900 K470 T830 OP	455	455	115	50000/L80B50	2649	24.1	110	80	3000	4.2
Columbus LED1x3900 K447 T830 OP	455	455	115	50000/L80B50	3589	32.9	109	80	3000	4.2

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
NIGHT LIGHT – Night lighting (5W)
DALI – Driver with DALI interface and switch-control dimming
MW – Integrated microwave (MW) motion sensor with on-off control
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth), with integrated DALI PS
KRBLT – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), on/off
KRBLT DALI – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), DALI with integrated PS
COR (K469-K470) – Driver with Corridor function (never off)
COR (K447) – Driver with Corridor function (never off)
COR1min (K469-K470) – Driver with Corridor function 1 min (switch off after 1 min)
COR1min (K447) – Driver with Corridor function 1 min (switch off after 1 min)
COR30min (K469-K470) – Driver with Corridor function 30 min (switch off after 30 min)
COR30min (K447) – Driver with Corridor function 30 min (switch off after 30 min)
EM3 – Emergency version 3 hours
EM3 (5 Years warranty) – Emergency version 3 hours (5 Years warranty)
EM3 (8 Years warranty) – Emergency version 3 hours (8 Years warranty)
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3A (5 Years warranty) – Emergency version equipped with an autonomous testing system, 3 hours (5 Years warranty)
EM3A (8 Years warranty) – Emergency version equipped with an autonomous testing system, 3 hours (8 Years warranty)
EM3D – Emergency version 3 hours with DALI interface
EM3D (5 Years warranty) – Emergency version 3 hours with DALI interface (5 Years warranty)
EM3D (8 Years warranty) – Emergency version 3 hours with DALI interface (8 Years warranty)
*note – Operating temperature range for luminaires with EM option, °C: 0…+35
RAL – RAL colour
