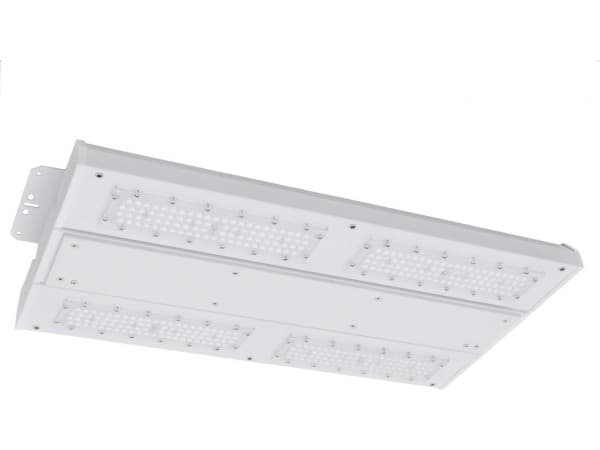

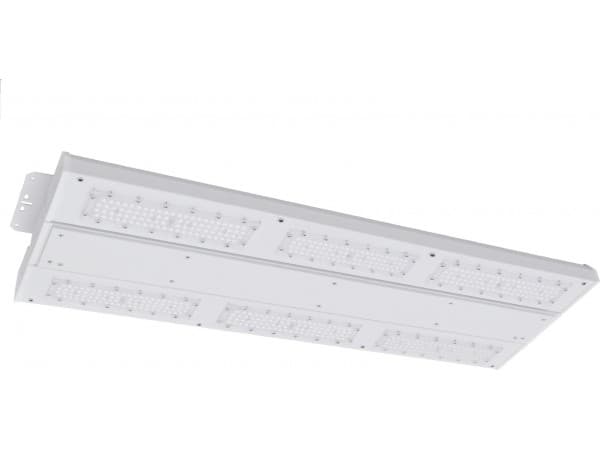

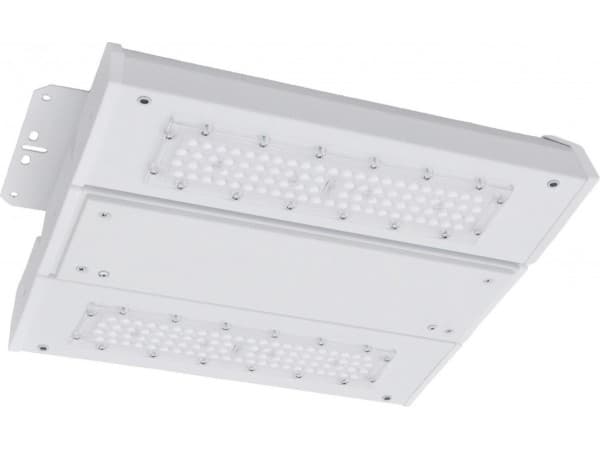

Norte L LED IK08 IP65 UGR

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
T857 – Colour temperature 5700K, CRI 80+
T865 – Colour temperature 6500K, CRI 80+
L30x65 – Optics with 30×65° beam angle
L40 – Optics with 40×40° beam angle
L60 – Optics with 60×60° beam angle
L75 – Optics with 75×75° beam angle
L90x90 – Optics with 90×90° beam angle
L120 – Optics with 120×120° beam angle
L1A50 – Optics with asymmetric beam
DALI – Driver with DALI interface and switch-control dimming
          *note – for models with power above 155 W two DALI addresses are used
HBEAIRB-M – Master luminaire with integrated smart sensor for high ceiling (up to 16 m) and driver with wireless communication and grouping possibilities for lighting control
HBEAIRB-S – Slave luminaire with integrated EAIR type driver for lighting control
          *note – max system size 1x HBEAIRB-M + 1x HBEAIRB-S
          *note – the impact protection rating of the HBEAIRB-M option is IK05, except when the SPORT option is used
          *note – max wire length from HBEAIRB-M to last HBEAIRB-S – 11 m
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth), with integrated DALI PS
KRBLT – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), on/off
KRBLT DALI – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), DALI with integrated PS
COR – Driver with Corridor function (never off)
COR1min – Driver with Corridor function 1 min (switch off after 1 min)
COR30min – Driver with Corridor function 30 min (switch off after 30 min)
HBPIR-M – Batten-fit PIR sensor for ceiling heights up to 12 meters, on-off, master luminaire
HBPIR DALI-M – Batten-fit PIR sensor for ceiling heights up to 12 meters, DALI with integrated PS, master luminaire
HBPIR KRBLT – Batten-fit PIR sensor for ceiling heights up to 12 meters, KR system app control, on-off
HBPIR KRBLT DALI – Batten-fit PIR sensor for ceiling heights up to 12 meters, KR system app control and DALI with integrated PS
          *note – luminaire with integrated PIR sensor protection degree is IK05
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
          *note – operating temperature range for luminaires with EM option, °C: 0…+35
1LIN – Through wiring single phase d=1.5 mm² with two push-in terminal blocks
2LIN – Through wiring two phases d=1.5 mm² with two push-in terminal blocks
3LIN – Through wiring three phases d=1.5 mm² with two push-in terminal blocks
1LIN2.5 – Through wiring single phase d=2.5 mm² with two push-in terminal blocks
2LIN2.5 – Through wiring two phases d=2.5 mm² with two push-in terminal blocks
3LIN2.5 – Through wiring three phases d=2.5 mm² with two push-in terminal blocks

Accessories:
Suspension MTG KIT – Norte L LED 1.5m – Suspension kit for Norte L LED high-bay, 1.5 m
Suspension MTG KIT – Norte L LED 3.0m – Suspension kit for Norte L LED high-bay, 3.0 m
Suspension MTG KIT – Norte L LED 5.0m – Suspension kit for Norte L LED high-bay, 5.0 m
Adjustable brackets MTG KIT – Norte L LED – Ceiling and wall mounting brackets for Norte L LED with angle adjustment +/-75 degrees (every 15), galvanized steel, 2 pcs
Wire suspension BRACKETS – Norte L LED – Wire suspension brackets for Norte L LED high-bay, 2 pcs

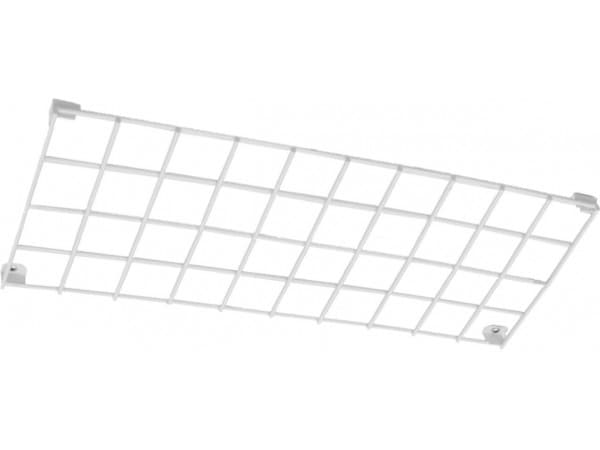

GRID MTG KIT Norte L LED – 435x340mm RAL9003 – Protective grid for Norte L LED luminaires up to size 435×340, white
GRID MTG KIT Norte L LED – 645x340mm RAL9003 – Protective grid for Norte L LED luminaires up to size 645×340, white
GRID MTG KIT Norte L LED – 945x340mm RAL9003 – Protective grid for Norte L LED luminaires up to size 945×340, white
Remote Control HRC-11 – The functionality of the sensors is controlled by a number of parameters which can be changed or programmed remote with an infrared handset
          *note – remote control for HBPIR-M; HBPIR DALI-M
