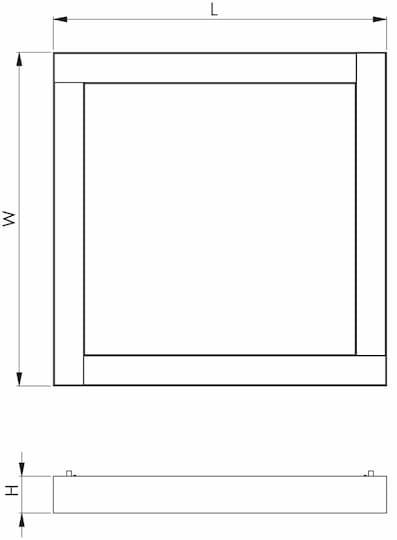

| Name | Length, mm | Width, mm | Height, mm | LED lifetime, h | Output, lm | Power, W | Efficacy, lm/W | CRI (Ra) | CCT, K | Weight, kg | UGR index |
| Quadro LED1x3250 J344 T840 OP LT80 | 620 | 620 | 68 | 50000/L80B10 | 3214 | 24.8 | 130 | 80+ | 4000 | 4.6 | |
| Quadro LED1x4400 J345 T840 OP LT80 | 620 | 620 | 68 | 50000/L80B10 | 4380 | 34.7 | 126 | 80+ | 4000 | 4.6 | |
| Quadro LED1x6050 J346 T840 OP LT80 | 620 | 620 | 68 | 50000/L80B10 | 6021 | 50.9 | 118 | 80+ | 4000 | 4.6 | |
| Quadro LED1x4550 D906 T840 OP LT80 | 900 | 900 | 68 | 50000/L80B10 | 4542 | 36.4 | 125 | 80+ | 4000 | 6.6 | |
| Quadro LED1x6200 D907 T840 OP LT80 | 900 | 900 | 68 | 50000/L80B10 | 6181 | 52.5 | 118 | 80+ | 4000 | 6.6 | |
| Quadro LED1x8400 D908 T840 OP LT80 | 900 | 900 | 68 | 50000/L80B10 | 8383 | 77.8 | 108 | 80+ | 4000 | 6.6 | |
| Quadro LED1x6100 D909 T840 OP LT80 | 1180 | 1180 | 68 | 50000/L80B10 | 6056 | 48.5 | 125 | 80+ | 4000 | 8.8 | |
| Quadro LED1x8250 D910 T840 OP LT80 | 1180 | 1180 | 68 | 50000/L80B10 | 8241 | 70.0 | 118 | 80+ | 4000 | 8.8 | |
| Quadro LED1x11200 D911 T840 OP LT80 | 1180 | 1180 | 68 | 50000/L80B10 | 11177 | 103.7 | 108 | 80+ | 4000 | 8.8 | |
| Quadro LED1x2850 J344 T840 DPRZ LT80 | 620 | 620 | 68 | 50000/L80B10 | 2807 | 24.8 | 113 | 80+ | 4000 | 4.6 | ≤19 |
| Quadro LED1x3850 J345 T840 DPRZ LT80 | 620 | 620 | 68 | 50000/L80B10 | 3825 | 34.7 | 110 | 80+ | 4000 | 4.6 | ≤19 |
| Quadro LED1x5300 J346 T840 DPRZ LT80 | 620 | 620 | 68 | 50000/L80B10 | 5258 | 50.9 | 103 | 80+ | 4000 | 4.6 | ≤19 |
| Quadro LED1x4550 D906 T840 DPRZ LT80 | 900 | 900 | 68 | 50000/L80B10 | 3765 | 36.4 | 103 | 80+ | 4000 | 6.6 | ≤19 |
| Quadro LED1x6200 D907 T840 DPRZ LT80 | 900 | 900 | 68 | 50000/L80B10 | 5124 | 52.5 | 98 | 80+ | 4000 | 6.6 | ≤19 |
| Quadro LED1x8400 D908 T840 DPRZ LT80 | 900 | 900 | 68 | 50000/L80B10 | 6949 | 77.8 | 89 | 80+ | 4000 | 6.6 | ≤19 |
| Quadro LED1x6100 D909 T840 DPRZ LT80 | 1180 | 1180 | 68 | 50000/L80B10 | 5020 | 48.5 | 104 | 80+ | 4000 | 8.8 | ≤19 |
| Quadro LED1x8250 D910 T840 DPRZ LT80 | 1180 | 1180 | 68 | 50000/L80B10 | 6832 | 70.0 | 98 | 80+ | 4000 | 8.8 | ≤19 |
| Quadro LED1x11200 D911 T840 DPRZ LT80 | 1180 | 1180 | 68 | 50000/L80B10 | 9265 | 103.7 | 89 | 80+ | 4000 | 8.8 | ≤19 |
| Quadro LED1x3250/1000 K042 T840 OP LG3 | 620 | 620 | 75 | 50000/L80B10 | 4178 | 32.3 | 129 | 80+ | 4000 | 5.5 | |
| Quadro LED1x4400/1350 K043 T840 OP LG3 | 620 | 620 | 75 | 50000/L80B10 | 5694 | 45.1 | 126 | 80+ | 4000 | 5.5 | |
| Quadro LED1x6050/1850 K044 T840 OP LG3 | 620 | 620 | 75 | 50000/L80B10 | 7827 | 66.2 | 118 | 80+ | 4000 | 5.5 | |
| Quadro LED1x4550/1400 K045 T840 OP LG3 | 900 | 900 | 75 | 50000/L80B10 | 5905 | 47.3 | 125 | 80+ | 4000 | 7.9 | |
| Quadro LED1x6200/1900 K046 T840 OP LG3 | 900 | 900 | 75 | 50000/L80B10 | 8035 | 68.3 | 118 | 80+ | 4000 | 7.9 | |
| Quadro LED1x8400/2550 K047 T840 OP LG3 | 900 | 900 | 75 | 50000/L80B10 | 10897 | 101.1 | 108 | 80+ | 4000 | 7.9 | |
| Quadro LED1x6100/1850 K048 T840 OP LG3 | 1180 | 1180 | 75 | 50000/L80B10 | 7873 | 63.1 | 125 | 80+ | 4000 | 10.6 | |
| Quadro LED1x8250/2500 K049 T840 OP LG3 | 1180 | 1180 | 75 | 50000/L80B10 | 10714 | 91.0 | 118 | 80+ | 4000 | 10.6 | |
| Quadro LED1x11200/3400 K050 T840 OP LG3 | 1180 | 1180 | 75 | 50000/L80B10 | 14530 | 134.8 | 108 | 80+ | 4000 | 10.6 |
Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
OP – Opal diffuser with high light transmittance
DPRZ LT80 – De-glaring micro-prismatic diffuser, matt (UGR≤19)
LG3 – Luminaire fits to LG3 requirements (with direct/indirect light distribution)
DALI – Driver with DALI interface and switch-control dimming
*note – DALI option for model 1180×1180 mm
*note – DALI option in models D909, D910, D911 uses 2 DALI addresses
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth)
KRBLT – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), on/off
KRBLT DALI – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), DALI with integrated PS
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
SR – Luminaire for surface mounting

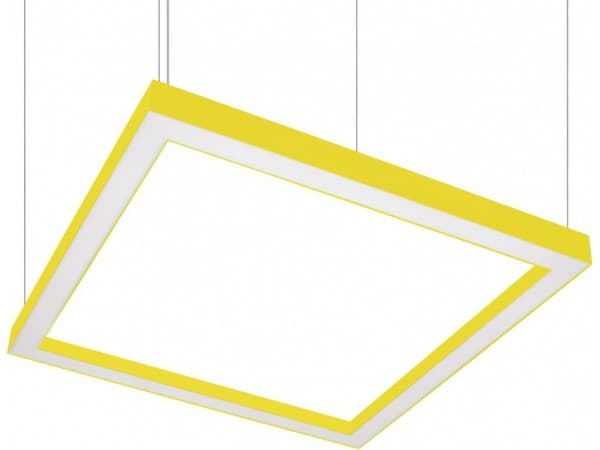

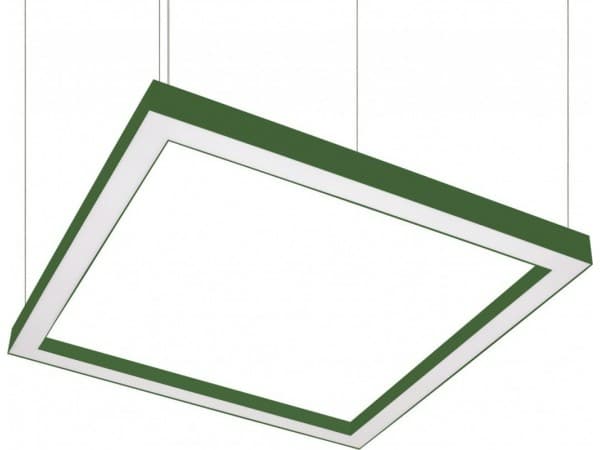

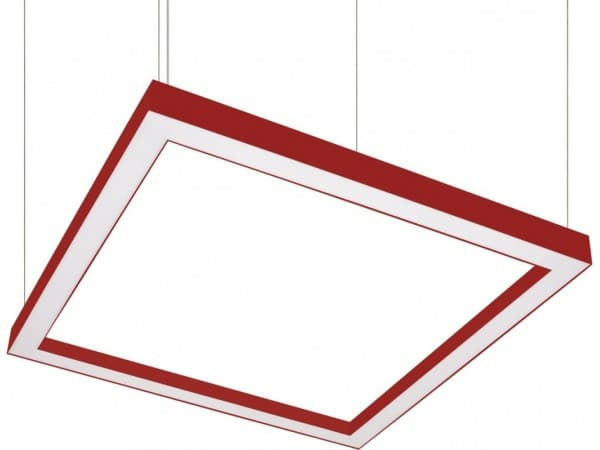

RAL – RAL colour
*note – price for uncommon RAL colour or quantity less then MOQ could be different from indicated. Ask before placing an order
Accessories:
CAP cable 3×0.75 2.0m clear – Cable 3×0.75 mm² for suspended luminaire up to 2.0 meters, transparent
CAP cable clip D6.3mm SET clear – Cable and suspension wire clip set, 4 pcs. For cable diameter up to 6,3 mm and wire diameter 1 mm
Suspension MTG KIT SUSI – Suspension wire set “I” type, 1.5 m adjustable, 1 pcs
*note – 4 pcs MTG KIT SUSI for 1 luminaire required
CAP4, white/ light grey/ black – Square decorative metal cap for hiding cable inlet with suspension wire attachment point, push-in terminals 3x1x1.5 mm², white/ light grey/ black
CAP5, white/ light grey/ black – Square decorative metal cap for hiding cable inlet with suspension wire attachment point, push-in terminals 5x1x1.5 mm², white/ light grey/ black
