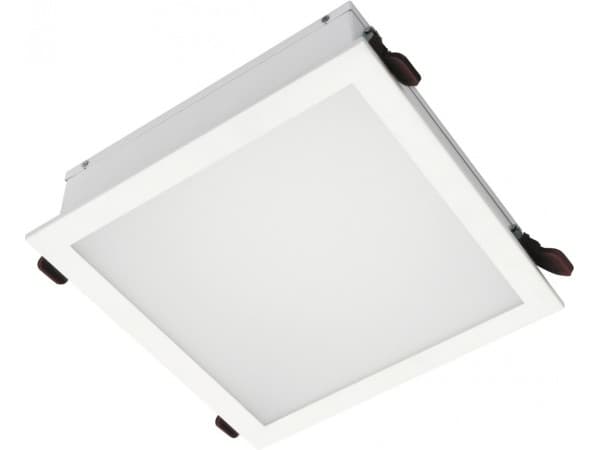

esviesa.lt | Tetra A LED IK05 IP44

Recessed LED downlight

More information:

Type:

Recessed mounted LED downlight

Specification:

Recessed mounted LED downlight
Light distribution type: direct
Optical system: translucent micro-prismatic PMMA diffuser
Housing: steel
Colour: white, RAL9003S
Mains voltage: 220-240V, 0/50-60Hz
LED lifetime, h: 50000/L80B10 (75000/L80B50 low power versions)
SDCM: 3
Protection class IEC: II
Ingress protection code: IP44
Mechanical impact resistance: IK05
Operating temperature range, °C: 0…+35
Push-in terminal, 2x1x1.5 mm²

Installation:

In ceilings with cut-out openings (mounting brackets included)

Application:

Indoor. Retail, office, public place, corridor, showroom, hotel, bathroom, exhibition, education

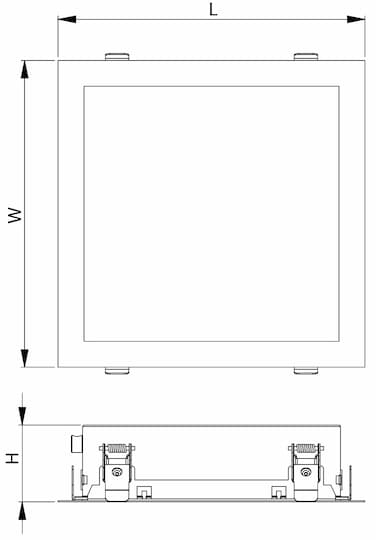

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Tetra A LED1x1200 D984 T840 MPRZ LT92	260	260	65	50000/L80B10	1167	10.2	114	80+	4000	1.5
Tetra A LED1x1650 D985 T840 MPRZ LT92	260	260	65	50000/L80B10	1631	14.7	111	80+	4000	1.5
Tetra A LED1x2200 D986 T840 MPRZ LT92	260	260	65	50000/L80B10	2197	20.1	109	80+	4000	1.5
Tetra A LED1x2700 D987 T840 MPRZ LT92	260	260	65	50000/L80B10	2688	27.6	97	80+	4000	1.5

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
DALI – Driver with DALI interface and switch-control dimming
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
WIE3-0.5m – 3-pole “Wieland – gesis classic” type or compatible connector with 0.5 m cable
WIE5D-0.5m – 5-pole DALI “Wieland – gesis classic” type or compatible connector with 0.5 m cable
QBX3-0.1m – 3-pole quick connection box on 0.1m cable, push-in terminal, 3x2x2.5 mm²
Europlug-1.5m – 2-pole “Europlug” type plug with 2×1.0 mm² 1.5 m cable
Europlug-3.0m – 2-pole “Europlug” type plug with 2×1.0 mm² 3.0 m cable
RAL – RAL colour
