| Name | Length, mm | Width, mm | Height, mm | LED lifetime, h | Output, lm | Power, W | Efficacy, lm/W | CRI (Ra) | CCT, K | Weight, kg | UGR index |
| Serpens LED1x1300 K313 T840 OP LO1 1LIN LL CORNER90 SB | 465 | 465 | 68 | 100000/L80B10 | 1295 | 10.1 | 128 | 80+ | 4000 | 1.9 | |
| Serpens LED1x1800 K314 T840 OP LO2 1LIN LL CORNER90 SB | 465 | 465 | 68 | 100000/L80B10 | 1783 | 14.0 | 127 | 80+ | 4000 | 1.9 | |
| Serpens LED1x2500 K315 T840 OP LO3 1LIN LL CORNER90 SB | 465 | 465 | 68 | 100000/L80B10 | 2493 | 20.2 | 123 | 80+ | 4000 | 1.9 | |
| Serpens LED1x3750 K316 T840 OP LO4 1LIN LL CORNER90 SB | 465 | 465 | 68 | 100000/L80B10 | 3739 | 29.2 | 128 | 80+ | 4000 | 1.9 | |
| Serpens LED1x1250 K313 T840 DPRZ LT80 LO1 1LIN LL CORNER90 SB | 465 | 465 | 68 | 100000/L80B10 | 1209 | 10.1 | 120 | 80+ | 4000 | 1.9 | ≤19 |
| Serpens LED1x1700 K314 T840 DPRZ LT80 LO2 1LIN LL CORNER90 SB | 465 | 465 | 68 | 100000/L80B10 | 1664 | 14.0 | 119 | 80+ | 4000 | 1.9 | ≤19 |
| Serpens LED1x2350 K315 T840 DPRZ LT80 LO3 1LIN LL CORNER90 SB | 465 | 465 | 68 | 100000/L80B10 | 2326 | 20.2 | 115 | 80+ | 4000 | 1.9 | ≤19 |
| Serpens LED1x3500 K316 T840 DPRZ LT80 LO4 1LIN LL CORNER90 SB | 465 | 465 | 68 | 100000/L80B10 | 3490 | 29.2 | 120 | 80+ | 4000 | 1.9 | ≤22 |
| Serpens LED1x1150 H447 T840 OP LO1 1LIN LL CORNER90 SB | 465 | 465 | 68 | 50000/L80B10 | 1145 | 10.0 | 115 | 80+ | 4000 | 1.9 | |
| Serpens LED1x1600 H448 T840 OP LO1 1LIN LL CORNER90 SB | 465 | 465 | 68 | 50000/L80B10 | 1559 | 14.0 | 111 | 80+ | 4000 | 1.9 | |
| Serpens LED1x2150 H449 T840 OP LO1 1LIN LL CORNER90 SB | 465 | 465 | 68 | 50000/L80B10 | 2144 | 20.2 | 106 | 80+ | 4000 | 1.9 | |
| Serpens LED1x3250 H450 T840 OP LO1 1LIN LL CORNER90 SB | 465 | 465 | 68 | 50000/L80B10 | 3215 | 29.3 | 110 | 80+ | 4000 | 1.9 | |
| Serpens LED1x1100 H447 T840 DPRZ LT80 LO1 1LIN LL CORNER90 SB | 465 | 465 | 68 | 50000/L80B10 | 1068 | 10.0 | 107 | 80+ | 4000 | 1.9 | ≤19 |
| Serpens LED1x1500 H448 T840 DPRZ LT80 LO1 1LIN LL CORNER90 SB | 465 | 465 | 68 | 50000/L80B10 | 1455 | 14.0 | 104 | 80+ | 4000 | 1.9 | ≤19 |
| Serpens LED1x2050 H449 T840 DPRZ LT80 LO1 1LIN LL CORNER90 SB | 465 | 465 | 68 | 50000/L80B10 | 2001 | 20.2 | 99 | 80+ | 4000 | 1.9 | ≤19 |
| Serpens LED1x3050 H450 T840 DPRZ LT80 LO1 1LIN LL CORNER90 SB | 465 | 465 | 68 | 50000/L80B10 | 3001 | 29.3 | 102 | 80+ | 4000 | 1.9 | ≤22 |
Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
DALI – Driver with DALI interface and switch-control dimming
*note – for DALI LIN option wires are 2×0.5 mm²
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth), with integrated DALI PS
KRBLT – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), on/off
KRBLT DALI – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), DALI with integrated PS
TW – Integrated light source and driver for Tunable white control 2700-6500 K
*note – ask for special models with option TW
5TB – 5-pole terminal block in middle of luminaire for easy through wiring
1LIN – Through wiring single phase d=1.5 mm² with two push-in terminal blocks
2LIN – Through wiring two phases d=1.5 mm² with two push-in terminal blocks
3LIN – Through wiring three phases d=1.5 mm² with two push-in terminal blocks
CBF3-2.0m – Outgoing flexible cable 3×0.75 mm² 2.0 m
OP – Opal diffuser with high light transmittance
DPRZ LT80 – De-glaring micro-prismatic diffuser with matt light scattering layer
LL – for in-line connection intermediate luminaire
RAL9006S – RAL 9006S colour

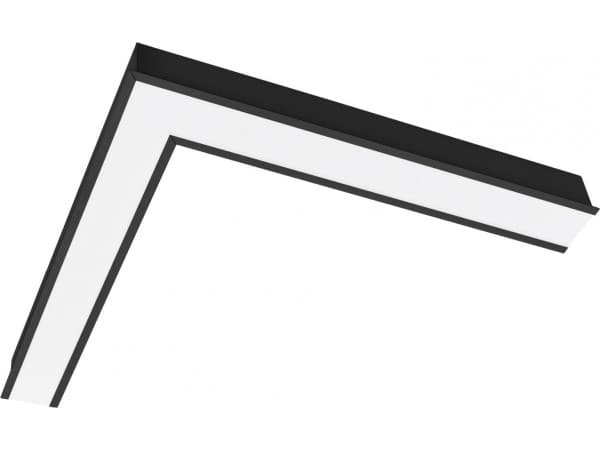

RAL9005S – RAL 9005S colour
RAL – RAL colour
