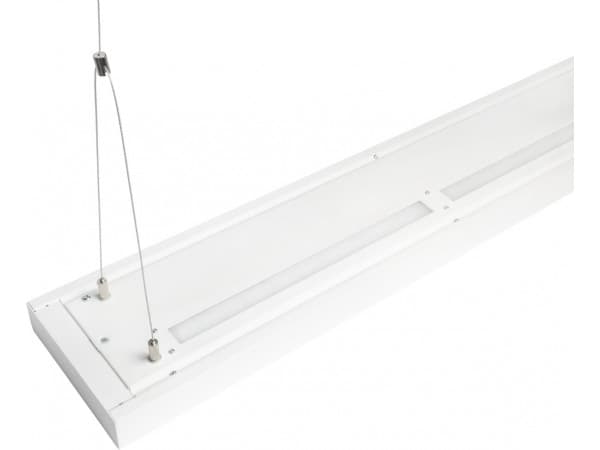

esviesa.lt | Calima U LED IK05 IP40 UGR

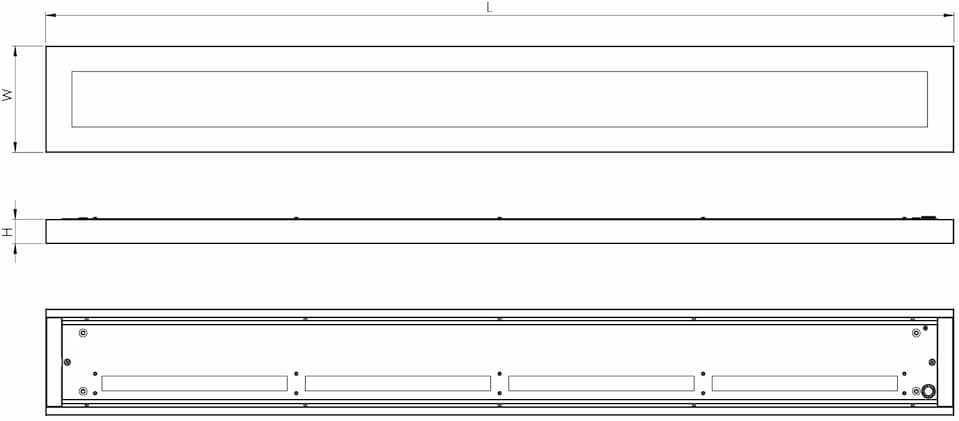

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg	UGR index
Calima U LED1x2600 H143 T840 DPRZ LT80	1215	175	40	50000/L80B10	2570	18.4	140	80+	4000	4.1	≤19
Calima U LED1x3550 H144 T840 DPRZ LT80	1215	175	40	50000/L80B10	3534	25.7	137	80+	4000	4.1	≤19
Calima U LED1x5100 H207 T840 DPRZ LT80	1215	175	40	50000/L80B10	5051	35.5	142	80+	4000	4.1	low glare
Calima U LED1x3250 H145 T840 DPRZ LT80	1495	175	40	50000/L80B10	3213	22.7	141	80+	4000	5.1	≤19
Calima U LED1x4450 H146 T840 DPRZ LT80	1495	175	40	50000/L80B10	4418	31.8	139	80+	4000	5.1	≤19
Calima U LED1x6350 H208 T840 DPRZ LT80	1495	175	40	50000/L80B10	6313	45.4	139	80+	4000	5.1	low glare
Calima U LED1x2700 G173 T840 DPRZ LT80	1215	175	40	100000/L80B10	2689	18.7	144	80+	4000	4.1	<19
Calima U LED1x3550 G174 T840 DPRZ LT80	1215	175	40	100000/L80B10	3507	22.3	157	80+	4000	4.1	<19
Calima U LED1x4600 G175 T840 DPRZ LT80	1215	175	40	100000/L80B10	4570	29.8	153	80+	4000	4.1	<19
Calima U LED1x3400 G176 T840 DPRZ LT80	1495	175	40	100000/L80B10	3362	22.3	151	80+	4000	5.1	<19
Calima U LED1x4400 G177 T840 DPRZ LT80	1495	175	40	100000/L80B10	4383	27.3	160	80+	4000	5.1	<19
Calima U LED1x5750 G178 T840 DPRZ LT80	1495	175	40	100000/L80B10	5713	36.8	155	80+	4000	5.1	low glare
Calima U LED1x2900 G173 T840 MPRZ LT92	1215	175	40	100000/L80B10	2879	18.7	154	80+	4000	4.1
Calima U LED1x3800 G174 T840 MPRZ LT92	1215	175	40	100000/L80B10	3754	22.3	168	80+	4000	4.1
Calima U LED1x4900 G175 T840 MPRZ LT92	1215	175	40	100000/L80B10	4893	29.8	164	80+	4000	4.1
Calima U LED1x3600 G176 T840 MPRZ LT92	1495	175	40	100000/L80B10	3599	22.3	161	80+	4000	5.1
Calima U LED1x4700 G177 T840 MPRZ LT92	1495	175	40	100000/L80B10	4693	27.3	172	80+	4000	5.1
Calima U LED1x6150 G178 T840 MPRZ LT92	1495	175	40	100000/L80B10	6116	36.8	166	80+	4000	5.1
Calima U LED1x2600/1450 H147 T840 DPRZ LT80 LG3	1215	175	40	50000/L80B10	3997	26.4	151	80+	4000	4.6	≤16
Calima U LED1x3550/1950 H148 T840 DPRZ LT80 LG3	1215	175	40	50000/L80B10	5447	38.6	141	80+	4000	4.6	≤16
Calima U LED1x4300/2100 H209 T840 DPRZ LT80 LG3	1215	175	40	50000/L80B10	6372	43.4	147	80+	4000	4.6	≤19
Calima U LED1x3250/1900 H149 T840 DPRZ LT80 LG3	1495	175	40	50000/L80B10	5114	33.8	151	80+	4000	5.6	≤16
Calima U LED1x4450/2550 H150 T840 DPRZ LT80 LG3	1495	175	40	50000/L80B10	6968	48.8	143	80+	4000	5.6	≤16
Calima U LED1x5400/2800 H210 T840 DPRZ LT80 LG3	1495	175	40	50000/L80B10	8138	54.2	150	80+	4000	5.6	≤19
Calima U LED1x2700/2200 G179 T840 DPRZ LT80 LG3	1215	175	40	100000/L80B10	4872	29.6	165	80+	4000	4.6	<16
Calima U LED1x4050/3300 G180 T840 DPRZ LT80 LG3	1215	175	40	100000/L80B10	7309	43.9	166	80+	4000	4.6	<16
Calima U LED1x3400/2950 G181 T840 DPRZ LT80 LG3	1495	175	40	100000/L80B10	6273	37.6	167	80+	4000	5.6	<16
Calima U LED1x5050/4400 G182 T840 DPRZ LT80 LG3	1495	175	40	100000/L80B10	9408	56.4	167	80+	4000	5.6	<16
Calima U LED1x2900/2200 G179 T840 MPRZ LT92 LG3	1215	175	40	100000/L80B10	5062	29.6	171	80+	4000	4.6
Calima U LED1x4350/3300 G180 T840 MPRZ LT92 LG3	1215	175	40	100000/L80B10	7594	43.9	173	80+	4000	4.6
Calima U LED1x3600/2950 G181 T840 MPRZ LT92 LG3	1495	175	40	100000/L80B10	6510	37.6	173	80+	4000	5.6
Calima U LED1x5400/4400 G182 T840 MPRZ LT92 LG3	1495	175	40	100000/L80B10	9764	56.4	173	80+	4000	5.6

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
DPRZ LT80 – De-glaring matt micro-prismatic diffuser
MPRZ LT92 – Translucent micro-prismatic diffuser with high light transmittance
DALI – Driver with DALI interface and switch-control dimming
*note – for DALI LIN option wires are 2×0.5 mm²
EAIRB-M – Master luminaire with integrated smart sensor and driver with wireless communication and grouping possibilities for lighting control
*note – ingress protection IP20
EAIRB-S – Slave luminaire with integrated EAIR type driver for lighting control
*note – max system size 1x EAIR-M + 3x EAIR-S
*note – max wire length from EAIRB-M to last EAIRB-S – 11 meters
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth)
TW – Integrated light source and driver for Tunable white control 2700-6500 K
BLT TW – Integrated light source, wireless control unit and driver for Tunable white control 2700-6500 K via mobile device (via Bluetooth)
COR – Driver with Corridor function (never off)
COR1min – Driver with Corridor function 1 min (switch off after 1 min)
COR30min – Driver with Corridor function 30 min (switch off after 30 min)
PULL – Pull switch device, on/off
PULLDIM – Pull switch device and driver with switch-control dimming
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
EM3LER – Emergency version 3 hours, lens – escape route
EM3LOA – Emergency version 3 hours, lens – open areas
1LIN – Through wiring 3×1.5 mm² with two push-in terminal blocks
3LIN – Through wiring 5×1.5 mm² with two push-in terminal blocks
CBF3-2.0m clear – Cable 3×0.75 mm² for suspended luminaire up to 2.0 meters, transparent
CBF5-2.0m clear – Cable 5×0.75 mm² for suspended luminaire up to 2.0 meters, transparent
*note – for suspended luminaires it is recommended to use one of CBF option for easier mounting
L – Luminaire designed to in-line connection with join element – end/first luminaire (join kit not included)
LL – Luminaire designed to in-line connection with join element – intermediate luminaire (join kit not included)
*note – for L and LL models joint kit not included, 1LIN option included (5TB option for lengths up to 800mm)
RAL – RAL colour
*note – price for uncommon RAL colour or quantity less than MOQ could be different from indicated. Ask before placing an order

Accessories:
I-JOIN MTG KIT Calima U LED v2 RAL9003 – “I” type join kit for connecting luminaires in-line
CAP cable 3×0.75 2.0m clear – Cable 3×0.75 mm² for suspended luminaire up to 2.0 meters, transparent
BLANK Calima U LED 300mm 1LIN v2 RAL9003 – Blank part kit for connecting luminaires in-line, 1 pcs
BLANK Calima U LED 600mm 1LIN v2 RAL9003 – Blank part kit for connecting luminaires in-line, 1 pcs
BLANK Calima U LED 1215mm 1LIN v2 RAL9003 – Blank part kit for connecting luminaires in-line, 1 pcs
*note – BLANK through wiring option must meet luminaire option
Suspension MTG KIT SUSY – Suspension wire set “Y” type, 1.5 m adjustable, 1 pcs
*note – 2 pcs MTG KIT SUSY for 1 luminaire required
CAP4, light grey/ white/ black – Square decorative metal cap for hiding cable inlet with suspension wire attachment point, push-in terminals 3x1x1.5 mm², light grey/white/ black
CAP5, light grey/ white/ black – Square decorative metal cap for hiding cable inlet with suspension wire attachment point, push-in terminals 5x1x1.5 mm², light grey/white/ black
