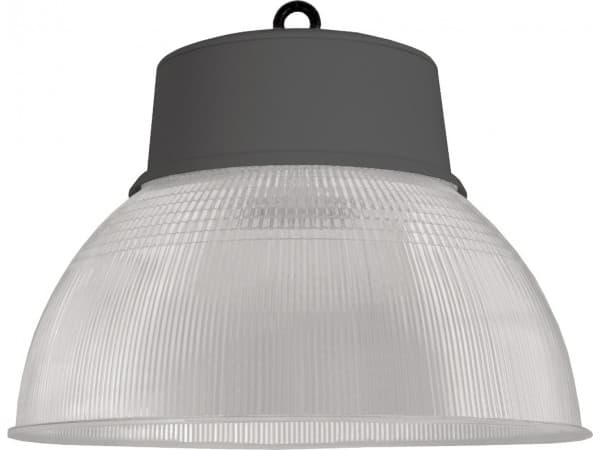

esviesa.lt | Prizma A LED IK08 IP20

Suspended LED luminaire

More information:

Type:

Suspended low-bay LED luminaire

Specification:

Suspended low-bay LED luminaire
Light distribution type: direct
Optical system: prismatic polycarbonate reflector and lenses
Housing: aluminium
Colour: dark grey, RAL7043
Mains voltage: 220-240V, 50-60Hz
LED lifetime, h: 100000/L80B50
SDCM: 4
Protection class IEC: I
Ingress protection code: IP20
Mechanical impact resistance: IK08
Operating temperature range, °C: 0...+40
Push-in terminal, 3x2x1.5 mm²

Installation:

Suspended (hook for wire suspension included)

Application:

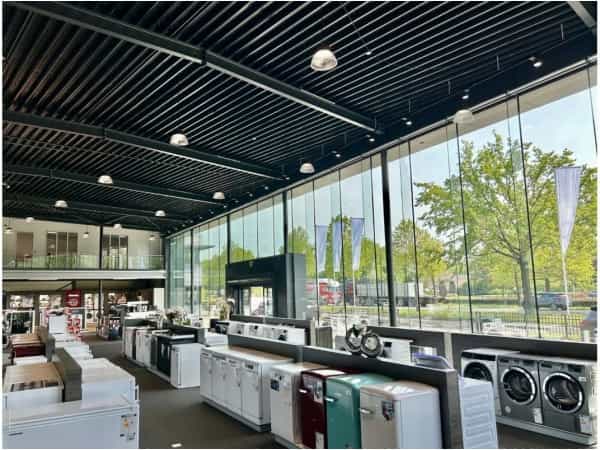

Indoor. Retail, public place, showroom, hall, exhibition

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Prizma A LED1x4200 J608 T840	410	410	289	100000/L80B50	4200	27	156	80+	4000	2.5
Prizma A LED1x6000 J609 T840	410	410	289	100000/L80B50	6000	39	154	80+	4000	2.5
Prizma A LED1x8400 J610 T840	410	410	289	100000/L80B50	8400	55	153	80+	4000	2.5
Prizma A LED1x10800 J611 T840	410	410	289	100000/L80B50	10800	71	152	80+	4000	2.5
Prizma A LED1x12600 J612 T840	410	410	289	100000/L80B50	12600	82	154	80+	4000	2.5

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
DALI – Driver with DALI interface and switch-control dimming
CBF3-2.0m clear – Cable 3×0.75 mm² for suspended luminaire up to 2.0 meters, transparent
CBF3-3.0m clear – Cable 3×0.75 mm² for suspended luminaire up to 3.0 meters, transparent
CBF5-2.0m clear – Cable 5×0.75 mm² for suspended luminaire up to 2.0 meters, transparent
CBF5-3.0m clear – Cable 5×0.75 mm² for suspended luminaire up to 3.0 meters, transparent
RAL – RAL colour
