esviesa.lt | Spica T LED IK02 IP20

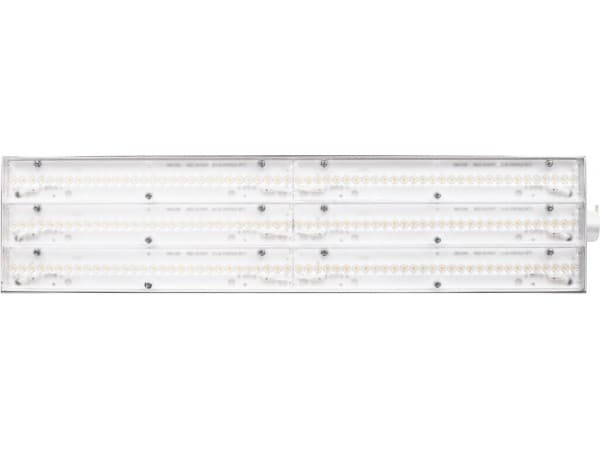

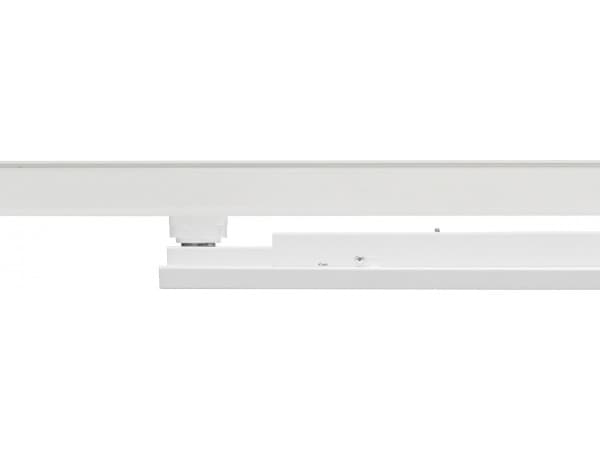

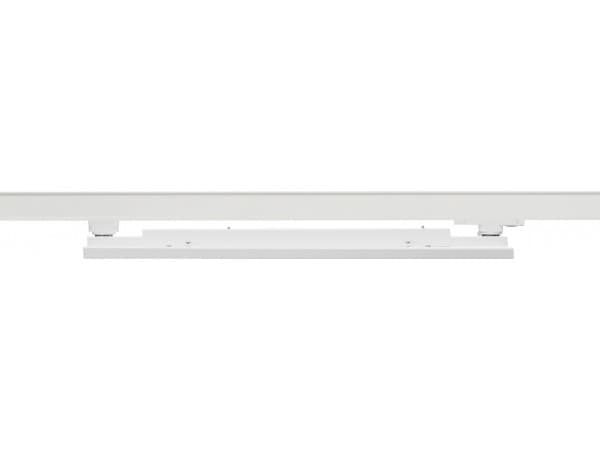

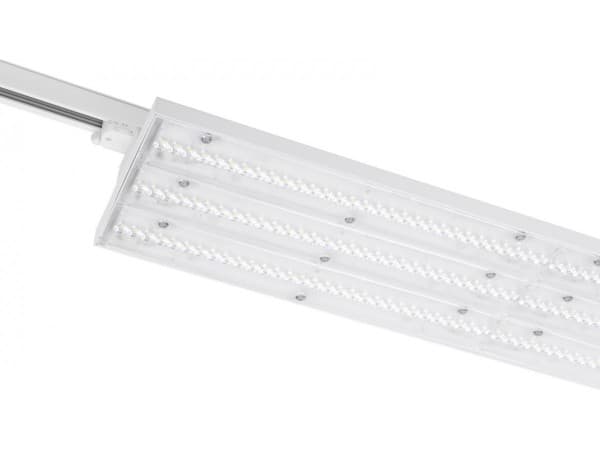

Track mounted linear LED luminaire

More information:

Type:

Track mounted linear LED luminaire

Specification:

Track mounted linear LED luminaire
Light distribution type: direct
Optical system: lenses
Housing: steel
Colour: white, RAL9003S; light grey, RAL7035S; black, RAL9005S
Mains voltage: 220-240V, 0/50-60Hz
LED lifetime, h: 100000/L80B10
SDCM: 3
Protection class IEC: I
Ingress protection code: IP20
Mechanical impact resistance: IK02
Operating temperature range, ºC: 0…+35
Track adaptor (3-phase + N) with phase selector

Installation:

In 3-phase track

Application:

Indoor. Retail, showroom, museum, exhibition, public place

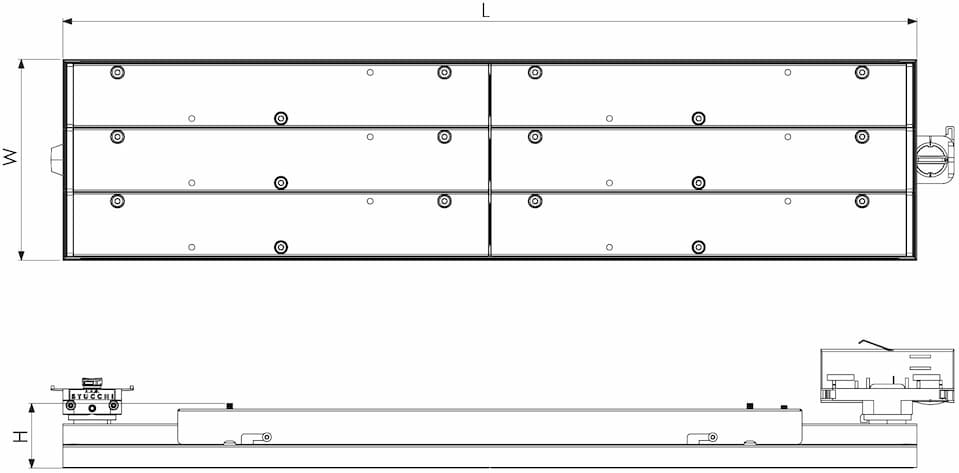

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Spica T LED1x8300 J188 T840 L75	575	136	54	100000/L80B10	8285	44.1	188	80+	4000	2.0
Spica T LED1x11350 J189 T840 L75	575	136	54	100000/L80B10	11331	61.8	183	80+	4000	2.0
Spica T LED1x8300 J188 T840 L30	575	136	54	100000/L80B10	8198	44.1	186	80+	4000	2.0
Spica T LED1x11350 J189 T840 L30	575	136	54	100000/L80B10	11213	61.8	181	80+	4000	2.0
Spica T LED1x8300 J188 T840 L40x75	575	136	54	100000/L80B10	8198	44.1	186	80+	4000	2.0
Spica T LED1x11350 J189 T840 L40x75	575	136	54	100000/L80B10	11213	61.8	181	80+	4000	2.0
Spica T LED1x8300 J188 T840 L75W	575	136	54	100000/L80B10	8285	44.1	188	80+	4000	2.0
Spica T LED1x11350 J189 T840 L75W	575	136	54	100000/L80B10	11331	61.8	183	80+	4000	2.0
Spica T LED1x8300 J188 T840 L90W	575	136	54	100000/L80B10	8285	44.1	188	80+	4000	2.0
Spica T LED1x11350 J189 T840 L90W	575	136	54	100000/L80B10	11331	61.8	183	80+	4000	2.0
Spica T LED1x8300 J188 T840 L100	575	136	54	100000/L80B10	8026	44.1	182	80+	4000	2.0
Spica T LED1x11350 J189 T840 L100	575	136	54	100000/L80B10	10977	61.8	178	80+	4000	2.0
Spica T LED1x8300 J188 T840 L2A25	575	136	54	100000/L80B10	8285	44.1	188	80+	4000	2.0
Spica T LED1x11350 J189 T840 L2A25	575	136	54	100000/L80B10	11331	61.8	183	80+	4000	2.0
Spica T LED1x8300 J188 T840 L1A18	575	136	54	100000/L80B10	8112	44.1	184	80+	4000	2.0
Spica T LED1x11350 J189 T840 L1A18	575	136	54	100000/L80B10	11095	61.8	180	80+	4000	2.0

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
L30 – Optics with 30° beam angle, narrow
L40x75 – Optics with 40×75° beam angle, high rack
L75W – Optics with 75° beam angle, wide
L75 – Optics with 75° beam angle, standard
L90W – Optics with 90° beam angle, wide
L100 – Optics with 100° beam angle, diffused
L2A25 – Optics with double asymmetric beam, retail
L1A18 – Optics with asymmetric beam
DALI – Driver with DALI interface
*note – for this model DALI option is not compatible with switch-control dimming functionality
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth), with integrated DALI PS
KRBLT – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), on/off
KRBLT DALI – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), DALI with integrated PS
RAL7035 – Light grey colour body and adaptor
RAL9005 – Black colour body and adaptor
RAL – RAL colour
*note – standard tracks and adapters RAL colours: RAL9010, RAL9005, RAL7035
