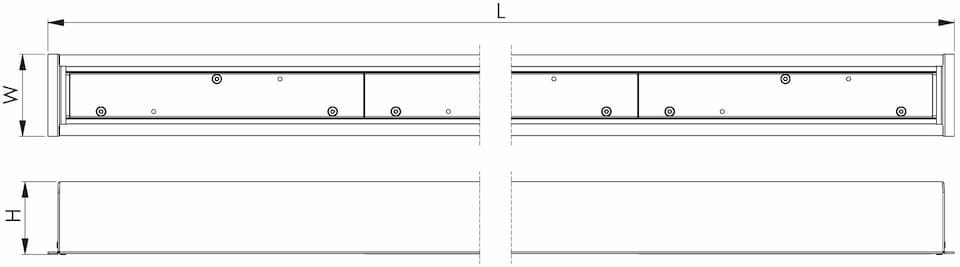

| Name | Length, mm | Width, mm | Height, mm | LED lifetime, h | Output, lm | Power, W | Efficacy, lm/W | CRI (Ra) | CCT, K | Weight, kg | UGR index |
| Serpens O LED1x3850 K337 T840 L75 LO1 SB | 1167 | 77 | 68 | 100000/L80B10 | 3804 | 21.7 | 175 | 80+ | 4000 | 2.3 | ≤16 |
| Serpens O LED1x5350 K338 T840 L75 LO2 SB | 1167 | 77 | 68 | 100000/L80B10 | 5317 | 31.7 | 168 | 80+ | 4000 | 2.3 | ≤19 |
| Serpens O LED1x5500 K339 T840 L75 LO3 SB | 1167 | 77 | 68 | 100000/L80B10 | 5492 | 29.8 | 184 | 80+ | 4000 | 2.3 | ≤19 |
| Serpens O LED1x6600 K340 T840 L75 LO4 SB | 1167 | 77 | 68 | 100000/L80B10 | 6556 | 35.7 | 184 | 80+ | 4000 | 2.3 | ≤19 |
| Serpens O LED1x7600 K341 T840 L75 LO5 SB | 1167 | 77 | 68 | 100000/L80B10 | 7560 | 41.5 | 182 | 80+ | 4000 | 2.3 | ≤19 |
| Serpens O LED1x4800 K342 T840 L75 LO1 SB | 1447 | 77 | 68 | 100000/L80B10 | 4755 | 27.4 | 174 | 80+ | 4000 | 2.6 | ≤16 |
| Serpens O LED1x6650 K343 T840 L75 LO2 SB | 1447 | 77 | 68 | 100000/L80B10 | 6647 | 38.8 | 171 | 80+ | 4000 | 2.6 | ≤19 |
| Serpens O LED1x6900 K344 T840 L75 LO3 SB | 1447 | 77 | 68 | 100000/L80B10 | 6864 | 36.5 | 188 | 80+ | 4000 | 2.6 | ≤19 |
| Serpens O LED1x8200 K345 T840 L75 LO4 SB | 1447 | 77 | 68 | 100000/L80B10 | 8195 | 44.1 | 186 | 80+ | 4000 | 2.6 | ≤19 |
| Serpens O LED1x9450 K346 T840 L75 LO5 SB | 1447 | 77 | 68 | 100000/L80B10 | 9450 | 51.3 | 184 | 80+ | 4000 | 2.6 | ≤19 |
| Serpens O LED1x9550 K347 T840 L75 LO1 SB | 2850 | 77 | 68 | 100000/L80B10 | 9510 | 51.4 | 185 | 80+ | 4000 | 5.0 | ≤16 |
| Serpens O LED1x13300 K348 T840 L75 LO2 SB | 2850 | 77 | 68 | 100000/L80B10 | 13294 | 75.1 | 177 | 80+ | 4000 | 5.0 | ≤19 |
| Serpens O LED1x13750 K349 T840 L75 LO3 SB | 2850 | 77 | 68 | 100000/L80B10 | 13729 | 72.1 | 190 | 80+ | 4000 | 5.0 | ≤19 |
| Serpens O LED1x16400 K350 T840 L75 LO4 SB | 2850 | 77 | 68 | 100000/L80B10 | 16390 | 86.4 | 190 | 80+ | 4000 | 5.0 | ≤19 |
| Serpens O LED1x18950 K351 T840 L75 LO5 SB | 2850 | 77 | 68 | 100000/L80B10 | 18901 | 101.6 | 186 | 80+ | 4000 | 5.0 | ≤19 |
Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
L30 – Optics with 30° beam angle
L40x75 – Optics with 40×75° beam angle
L75W – Optics with 75° beam angle, wide
L75 – Optics with 75° beam angle
L90W – Optics with 90° beam angle, wide
L100 – Optics with 100° beam angle, diffused
L2A25 – Optics with double asymmetric beam
L1A18-L – Optics with asymmetric beam, light direction – left
L1A18-R – Optics with asymmetric beam, light direction – right
DALI – Driver with DALI interface and switch-control dimming
*note – for DALI LIN option wires are 2×0.5 mm²
EAIRB – Integrated smart sensor and driver with wireless communication and grouping possibilities for lighting control
*note – For option EAIRB luminaire housing is 72 mm longer
*note – the EAIRB sensor are positioned in the end of the luminaire for lengths up to 1800 mm, and in the middle of the luminaire for lengths over 1800 mm
*note – ingress protection IP20
BLT – Integrated wireless control unit and driver for lighting control via mobile device (via Bluetooth), with integrated DALI PS
KRBLT – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), on/off
KRBLT DALI – Integrated wireless control unit and driver for lighting control via mobile device (KR system app), DALI with integrated PS
PULL – Pull switch device, on/off
PULLDIM – Pull switch device and driver with switch-control dimming
*note – For PULL and PULLDIM option luminaire housing is 50 mm longer and switch is positioned at the end of luminaire
MW – Integrated microwave (MW) motion sensor with on-off control
*note – for option MW luminaire housing is 72 mm longer
*note – MW sensor is positioned in the end of the luminaire for lengths up to 1800 mm, and in the middle of the luminaire for lengths over 1800 mm
PIR – Integrated PIR sensor with on-off control
PIR DALI – Integrated PIR sensor with power supply and DALI driver
PIR BLT DALI – Integrated wireless PIR sensor with CASAMBI app control and DALI driver. Requires DALI power supply in the system
PIR KRBLT DALI – Integrated wireless PIR sensor with power supply and DALI driver for KR system controls
*note – for option PIR luminaire housing is 72 mm longer
*note – PIR sensor is positioned in the end of the luminaire for lengths up to 1800 mm, and in the middle of the luminaire for lengths over 1800 mm
*note – ingress protection IP40
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
*note – EM options applicable for models longer than 1000 mm
*note – EM+PIR +DALI+LL options are not applicable with models K337…K341
*note – ask for EM+PIR+DALI+L options compatibility with models K337…K341
1LIN – Through wiring single phase d=1.5 mm² with two push-in terminal blocks
2LIN – Through wiring two phases d=1.5 mm² with two push-in terminal blocks
3LIN – Through wiring three phases d=1.5 mm² with two push-in terminal blocks
CBF3-2.0m – Outgoing flexible cable 3×0.75 mm² 2.0 m
L – for in-line connection end/first luminaire
LL – for in-line connection intermediate luminaire
*note – for L and LL models joint kit and 1LIN option included (5TB option for lengths up to 800 mm)
RAL9006S – RAL 9006S colour
RAL9005S – RAL 9005S colour
RAL – RAL colour
