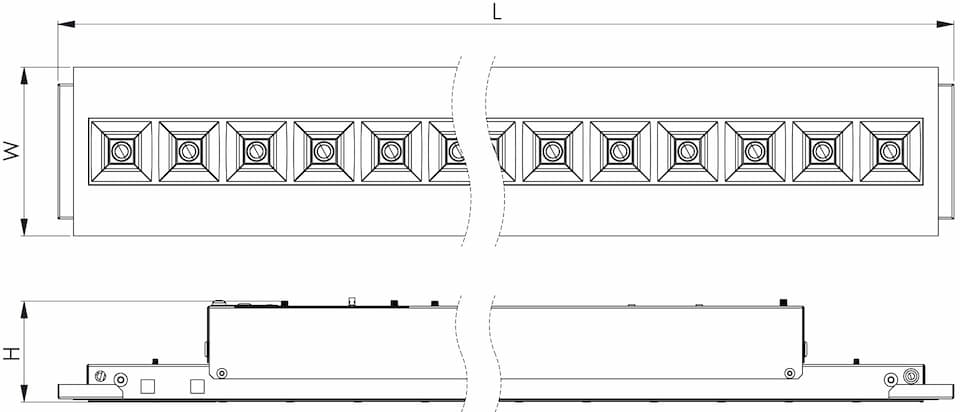

| Name | Length, mm | Width, mm | Height, mm | LED lifetime, h | Output, lm | Power, W | Efficacy, lm/W | CRI (Ra) | CCT, K | Weight, kg | UGR index |

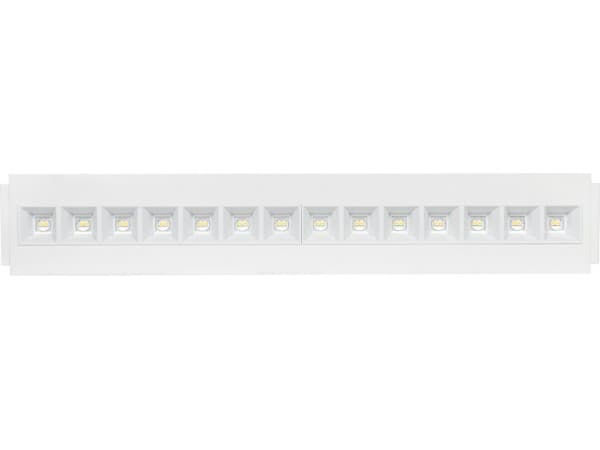

| Line U LED1x1500 J234 T840 WMC | 595 | 100 | 61 | 100000/L80B10 | 1460 | 9.6 | 152 | 80+ | 4000 | 1.0 | ≤16 |
| Line U LED1x1800 J235 T840 WMC | 595 | 100 | 61 | 100000/L80B10 | 1792 | 11.3 | 159 | 80+ | 4000 | 1.0 | ≤16 |
| Line U LED1x2150 J236 T840 WMC | 595 | 100 | 61 | 100000/L80B10 | 2111 | 13.9 | 152 | 80+ | 4000 | 1.0 | ≤19 |
| Line U LED1x2450 J237 T840 WMC | 595 | 100 | 61 | 100000/L80B10 | 2433 | 16.4 | 148 | 80+ | 4000 | 1.0 | ≤19 |
| Line U LED2x1x1500 J238 T840 WMC | 2×595 | 100 | 61 | 100000/L80B10 | 2920 | 17.6 | 166 | 80+ | 4000 | 2.0 | ≤16 |
| Line U LED2x1x1800 J239 T840 WMC | 2×595 | 100 | 61 | 100000/L80B10 | 3583 | 21.9 | 164 | 80+ | 4000 | 2.0 | ≤16 |
| Line U LED2x1x2150 J240 T840 WMC | 2×595 | 100 | 61 | 100000/L80B10 | 4222 | 26.7 | 158 | 80+ | 4000 | 2.0 | ≤19 |
| Line U LED2x1x2450 J241 T840 WMC | 2×595 | 100 | 61 | 100000/L80B10 | 4867 | 30.4 | 160 | 80+ | 4000 | 2.0 | ≤19 |
| Line U LED1x2950 J242 T840 WMC | 1195 | 100 | 61 | 100000/L80B10 | 2920 | 17.6 | 166 | 80+ | 4000 | 1.8 | ≤16 |
| Line U LED1x3600 J243 T840 WMC | 1195 | 100 | 61 | 100000/L80B10 | 3583 | 21.9 | 164 | 80+ | 4000 | 1.8 | ≤16 |
| Line U LED1x4250 J244 T840 WMC | 1195 | 100 | 61 | 100000/L80B10 | 4222 | 26.7 | 158 | 80+ | 4000 | 1.8 | ≤19 |
| Line U LED1x4900 J245 T840 WMC | 1195 | 100 | 61 | 100000/L80B10 | 4867 | 30.4 | 160 | 80+ | 4000 | 1.8 | ≤19 |

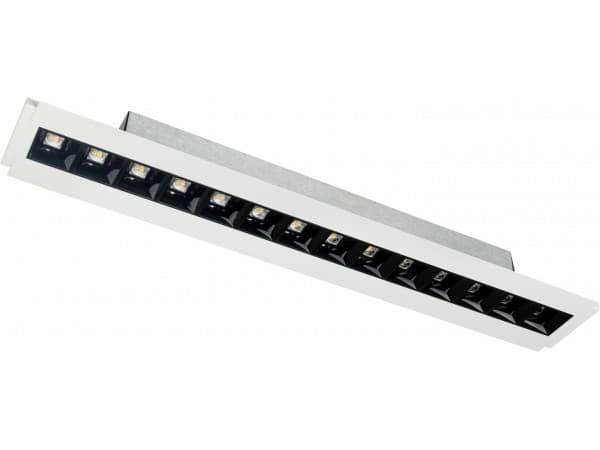

| Line U LED1x1350 J234 T840 BMC | 595 | 100 | 61 | 100000/L80B10 | 1315 | 9.6 | 137 | 80+ | 4000 | 1.0 | ≤16 |
| Line U LED1x1700 J235 T840 BMC | 595 | 100 | 61 | 100000/L80B10 | 1615 | 11.3 | 143 | 80+ | 4000 | 1.0 | ≤16 |
| Line U LED1x1950 J236 T840 BMC | 595 | 100 | 61 | 100000/L80B10 | 1902 | 13.9 | 137 | 80+ | 4000 | 1.0 | ≤16 |
| Line U LED1x2250 J237 T840 BMC | 595 | 100 | 61 | 100000/L80B10 | 2193 | 16.4 | 134 | 80+ | 4000 | 1.0 | ≤19 |
| Line U LED2x1x1350 J238 T840 BMC | 2×595 | 100 | 61 | 100000/L80B10 | 2631 | 17.6 | 149 | 80+ | 4000 | 2.0 | ≤16 |
| Line U LED2x1x1700 J239 T840 BMC | 2×595 | 100 | 61 | 100000/L80B10 | 3228 | 21.9 | 147 | 80+ | 4000 | 2.0 | ≤16 |
| Line U LED2x1x1950 J240 T840 BMC | 2×595 | 100 | 61 | 100000/L80B10 | 3805 | 26.7 | 143 | 80+ | 4000 | 2.0 | ≤16 |
| Line U LED2x1x2250 J241 T840 BMC | 2×595 | 100 | 61 | 100000/L80B10 | 4385 | 30.4 | 144 | 80+ | 4000 | 2.0 | ≤19 |
| Line U LED1x2700 J242 T840 BMC | 1195 | 100 | 61 | 100000/L80B10 | 2631 | 17.6 | 149 | 80+ | 4000 | 1.8 | ≤16 |
| Line U LED1x3350 J243 T840 BMC | 1195 | 100 | 61 | 100000/L80B10 | 3228 | 21.9 | 147 | 80+ | 4000 | 1.8 | ≤16 |
| Line U LED1x3900 J244 T840 BMC | 1195 | 100 | 61 | 100000/L80B10 | 3805 | 26.7 | 143 | 80+ | 4000 | 1.8 | ≤16 |
| Line U LED1x4500 J245 T840 BMC | 1195 | 100 | 61 | 100000/L80B10 | 4385 | 30.4 | 144 | 80+ | 4000 | 1.8 | ≤19 |
Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
WMC – White matt reflector with clear lens
BMC – Black matt reflector with clear lens
MGC – Metallic mirror finish reflector with clear lens
MMC – Metallic matt reflector with clear lens
WAC – Metallic mirror finish asymmetrical reflector with white shade and clear lens
BAC – Metallic mirror finish asymmetrical reflector with black shade and clear lens
*note – module quantities per model: J234…J237 – 2; J238…J245 – 4
DALI – Driver with DALI interface and switch-control dimming
EAIRB-S – Slave luminaire with integrated EAIR type driver for lighting control
*note – max system size 1x EAIRB-M + 3x EAIRB-S
*note – max wire length from EAIRB-M to last EAIRB-S – 11 m
COR – Driver with Corridor function (never off)
COR1min – Driver with Corridor function 1 min (switch off after 1 min)
COR30min – Driver with Corridor function 30 min (switch off after 30 min)
EM3 – Emergency version 3 hours
EM3A – Emergency version equipped with an autonomous testing system, 3 hours
EM3D – Emergency version 3 hours with DALI interface
WIE3 – 3-pole “”Wieland – gesis classic”” type or compatible connector
WIE5 – 5-pole “”Wieland – gesis classic”” type or compatible connector
WIE5D – 5-pole DALI “”Wieland – gesis classic”” type or compatible connector
2WIE3 – Two 3-pole “”Wieland – gesis classic”” type or compatible connectors. Through wired, 3×1.5 mm²
Schuko-1.5m – 3-pole “”Schuko”” type plug with 3×1.0 mm² 1.5 m cable
Schuko-3.0m – 3-pole “”Schuko”” type plug with 3×1.0 mm² 3.0 m cable
CONCB/4 – Longer connecting cable for installing luminaires into every fourth ceiling tile
*note – CONCB/4 option is only available for models: J238, J239, J240, J241
RAL – RAL colour
