esviesa.lt | Auva LED IK09 IP66

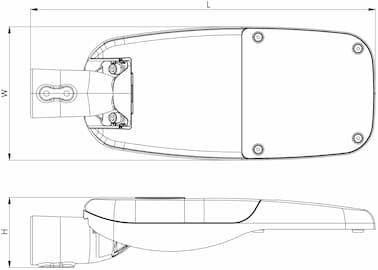

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Auva LED1x1900 J001 T740 LSM1	525	205	102	100000/L90B10	1897	12.5	152	70+	4000	3.5
Auva LED1x2250 J002 T740 LSM1	525	205	102	100000/L90B10	2233	15.1	148	70+	4000	3.5
Auva LED1x2600 J003 T740 LSM1	525	205	102	100000/L90B10	2582	17.2	150	70+	4000	3.5
Auva LED1x2900 J004 T740 LSM1	525	205	102	100000/L90B10	2892	19.8	146	70+	4000	3.5
Auva LED1x3250 J005 T740 LSM1	525	205	102	100000/L90B10	3223	22.2	145	70+	4000	3.5
Auva LED1x3700 J006 T740 LSM1	525	205	102	100000/L90B10	3667	26.1	140	70+	4000	3.5
Auva LED1x3800 J007 T740 LSM1	525	205	102	100000/L90B10	3793	23.9	159	70+	4000	3.5
Auva LED1x4500 J008 T740 LSM1	525	205	102	100000/L90B10	4466	28.9	155	70+	4000	3.5
Auva LED1x5200 J009 T740 LSM1	525	205	102	100000/L90B10	5163	33.6	154	70+	4000	3.5
Auva LED1x5800 J010 T740 LSM1	525	205	102	100000/L90B10	5785	38.7	149	70+	4000	3.5
Auva LED1x6450 J011 T740 LSM1	525	205	102	100000/L90B10	6446	43.9	147	70+	4000	3.5
Auva LED1x7350 J012 T740 LSM1	525	205	102	100000/L90B10	7335	51.7	142	70+	4000	3.5
Auva LED1x5700 J013 T740 LSM1	525	250	102	100000/L90B10	5690	35.8	159	70+	4000	4.9
Auva LED1x6700 J014 T740 LSM1	525	250	102	100000/L90B10	6700	43.3	155	70+	4000	4.9
Auva LED1x7750 J015 T740 LSM1	525	250	102	100000/L90B10	7745	51.0	152	70+	4000	4.9
Auva LED1x8700 J016 T740 LSM1	525	250	102	100000/L90B10	8677	58.6	148	70+	4000	5.0
Auva LED1x9700 J017 T740 LSM1	525	250	102	100000/L90B10	9669	66.5	145	70+	4000	5.0
Auva LED1x11050 J018 T740 LSM1	525	250	102	100000/L90B10	11002	78.3	141	70+	4000	5.0
Auva LED1x7600 J019 T740 LSM1	625	288	102	100000/L90B10	7586	48.3	157	70+	4000	7.2
Auva LED1x8950 J020 T740 LSM1	625	288	102	100000/L90B10	8933	57.7	155	70+	4000	7.2
Auva LED1x10350 J021 T740 LSM1	625	288	102	100000/L90B10	10327	68.0	152	70+	4000	7.3
Auva LED1x11600 J022 T740 LSM1	625	288	102	100000/L90B10	11569	77.3	150	70+	4000	7.3
Auva LED1x12900 J023 T740 LSM1	625	288	102	100000/L90B10	12892	87.7	147	70+	4000	7.3
Auva LED1x14700 J024 T740 LSM1	625	288	102	100000/L90B10	14669	103.3	142	70+	4000	7.3
Auva LED1x11400 J025 T740 LSM1	625	288	102	100000/L90B10	11379	71.6	159	70+	4000	7.2
Auva LED1x13400 J026 T740 LSM1	625	288	102	100000/L90B10	13399	86.6	155	70+	4000	7.3
Auva LED1x15500 J027 T740 LSM1	625	288	102	100000/L90B10	15490	100.9	154	70+	4000	7.3
Auva LED1x17400 J028 T740 LSM1	625	288	102	100000/L90B10	17354	116.0	150	70+	4000	7.3
Auva LED1x19350 J029 T740 LSM1	625	288	102	100000/L90B10	19338	131.6	147	70+	4000	7.3
Auva LED1x15200 J031 T740 LSM1	776	320	102	100000/L90B10	15173	94.5	161	70+	4000	9.4
Auva LED1x17900 J032 T740 LSM1	776	320	102	100000/L90B10	17866	114.2	156	70+	4000	9.4
Auva LED1x20700 J033 T740 LSM1	776	320	102	100000/L90B10	20653	134.5	154	70+	4000	9.4
Auva LED1x23150 J034 T740 LSM1	776	320	102	100000/L90B10	23138	154.7	150	70+	4000	9.4
Auva LED1x25800 J035 T740 LSM1	776	320	102	100000/L90B10	25784	175.5	147	70+	4000	9.4
Auva LED1x1900 J001 T740 LSM2	525	205	102	100000/L90B10	1940	12.5	155	70+	4000	3.5
Auva LED1x2250 J002 T740 LSM2	525	205	102	100000/L90B10	2285	15.1	151	70+	4000	3.5
Auva LED1x2600 J003 T740 LSM2	525	205	102	100000/L90B10	2641	17.2	154	70+	4000	3.5
Auva LED1x2900 J004 T740 LSM2	525	205	102	100000/L90B10	2959	19.8	149	70+	4000	3.5
Auva LED1x3250 J005 T740 LSM2	525	205	102	100000/L90B10	3297	22.2	149	70+	4000	3.5
Auva LED1x3700 J006 T740 LSM2	525	205	102	100000/L90B10	3752	26.1	144	70+	4000	3.5
Auva LED1x3800 J007 T740 LSM2	525	205	102	100000/L90B10	3880	23.9	162	70+	4000	3.5
Auva LED1x4500 J008 T740 LSM2	525	205	102	100000/L90B10	4569	28.9	158	70+	4000	3.5
Auva LED1x5200 J009 T740 LSM2	525	205	102	100000/L90B10	5282	33.6	157	70+	4000	3.5
Auva LED1x5800 J010 T740 LSM2	525	205	102	100000/L90B10	5918	38.7	153	70+	4000	3.5
Auva LED1x6450 J011 T740 LSM2	525	205	102	100000/L90B10	6594	43.9	150	70+	4000	3.5
Auva LED1x7350 J012 T740 LSM2	525	205	102	100000/L90B10	7503	51.7	145	70+	4000	3.5
Auva LED1x5700 J013 T740 LSM2	525	250	102	100000/L90B10	5820	35.8	163	70+	4000	4.9
Auva LED1x6700 J014 T740 LSM2	525	250	102	100000/L90B10	6854	43.3	158	70+	4000	4.9
Auva LED1x7750 J015 T740 LSM2	525	250	102	100000/L90B10	7923	51.0	155	70+	4000	4.9
Auva LED1x8700 J016 T740 LSM2	525	250	102	100000/L90B10	8876	58.6	151	70+	4000	5.0
Auva LED1x9700 J017 T740 LSM2	525	250	102	100000/L90B10	9891	66.5	149	70+	4000	5.0
Auva LED1x11050 J018 T740 LSM2	525	250	102	100000/L90B10	11255	78.3	144	70+	4000	5.0
Auva LED1x7600 J019 T740 LSM2	625	288	102	100000/L90B10	7761	48.3	161	70+	4000	7.2
Auva LED1x8950 J020 T740 LSM2	625	288	102	100000/L90B10	9138	57.7	158	70+	4000	7.2
Auva LED1x10350 J021 T740 LSM2	625	288	102	100000/L90B10	10564	68.0	155	70+	4000	7.3
Auva LED1x11600 J022 T740 LSM2	625	288	102	100000/L90B10	11835	77.3	153	70+	4000	7.3
Auva LED1x12900 J023 T740 LSM2	625	288	102	100000/L90B10	13189	87.7	150	70+	4000	7.3
Auva LED1x14700 J024 T740 LSM2	625	288	102	100000/L90B10	15007	103.3	145	70+	4000	7.3
Auva LED1x11400 J025 T740 LSM2	625	288	102	100000/L90B10	11641	71.6	163	70+	4000	7.2
Auva LED1x13400 J026 T740 LSM2	625	288	102	100000/L90B10	13707	86.6	158	70+	4000	7.3
Auva LED1x15500 J027 T740 LSM2	625	288	102	100000/L90B10	15846	100.9	157	70+	4000	7.3
Auva LED1x17400 J028 T740 LSM2	625	288	102	100000/L90B10	17753	116.0	153	70+	4000	7.3
Auva LED1x19350 J029 T740 LSM2	625	288	102	100000/L90B10	19783	131.6	150	70+	4000	7.3
Auva LED1x15200 J031 T740 LSM2	776	320	102	100000/L90B10	15521	94.5	164	70+	4000	9.4
Auva LED1x17900 J032 T740 LSM2	776	320	102	100000/L90B10	18277	114.2	160	70+	4000	9.4
Auva LED1x20700 J033 T740 LSM2	776	320	102	100000/L90B10	21128	134.5	157	70+	4000	9.4
Auva LED1x23150 J034 T740 LSM2	776	320	102	100000/L90B10	23670	154.7	153	70+	4000	9.4
Auva LED1x25800 J035 T740 LSM2	776	320	102	100000/L90B10	26377	175.5	150	70+	4000	9.4
Auva LED1x1900 J001 T740 LSS1	525	205	102	100000/L90B10	1897	12.5	152	70+	4000	3.5
Auva LED1x2250 J002 T740 LSS1	525	205	102	100000/L90B10	2233	15.1	148	70+	4000	3.5
Auva LED1x2600 J003 T740 LSS1	525	205	102	100000/L90B10	2582	17.2	150	70+	4000	3.5
Auva LED1x2900 J004 T740 LSS1	525	205	102	100000/L90B10	2892	19.8	146	70+	4000	3.5
Auva LED1x3250 J005 T740 LSS1	525	205	102	100000/L90B10	3223	22.2	145	70+	4000	3.5
Auva LED1x3700 J006 T740 LSS1	525	205	102	100000/L90B10	3667	26.1	140	70+	4000	3.5
Auva LED1x3800 J007 T740 LSS1	525	205	102	100000/L90B10	3793	23.9	159	70+	4000	3.5
Auva LED1x4500 J008 T740 LSS1	525	205	102	100000/L90B10	4466	28.9	155	70+	4000	3.5
Auva LED1x5200 J009 T740 LSS1	525	205	102	100000/L90B10	5163	33.6	154	70+	4000	3.5
Auva LED1x5800 J010 T740 LSS1	525	205	102	100000/L90B10	5785	38.7	149	70+	4000	3.5
Auva LED1x6450 J011 T740 LSS1	525	205	102	100000/L90B10	6446	43.9	147	70+	4000	3.5
Auva LED1x7350 J012 T740 LSS1	525	205	102	100000/L90B10	7335	51.7	142	70+	4000	3.5
Auva LED1x5700 J013 T740 LSS1	525	250	102	100000/L90B10	5690	35.8	159	70+	4000	4.9
Auva LED1x6700 J014 T740 LSS1	525	250	102	100000/L90B10	6700	43.3	155	70+	4000	4.9
Auva LED1x7750 J015 T740 LSS1	525	250	102	100000/L90B10	7745	51.0	152	70+	4000	4.9
Auva LED1x8700 J016 T740 LSS1	525	250	102	100000/L90B10	8677	58.6	148	70+	4000	5.0
Auva LED1x9700 J017 T740 LSS1	525	250	102	100000/L90B10	9669	66.5	145	70+	4000	5.0
Auva LED1x11050 J018 T740 LSS1	525	250	102	100000/L90B10	11002	78.3	141	70+	4000	5.0
Auva LED1x7600 J019 T740 LSS1	625	288	102	100000/L90B10	7586	48.3	157	70+	4000	7.2
Auva LED1x8950 J020 T740 LSS1	625	288	102	100000/L90B10	8933	57.7	155	70+	4000	7.2
Auva LED1x10350 J021 T740 LSS1	625	288	102	100000/L90B10	10327	68.0	152	70+	4000	7.3
Auva LED1x11600 J022 T740 LSS1	625	288	102	100000/L90B10	11569	77.3	150	70+	4000	7.3
Auva LED1x12900 J023 T740 LSS1	625	288	102	100000/L90B10	12892	87.7	147	70+	4000	7.3
Auva LED1x14700 J024 T740 LSS1	625	288	102	100000/L90B10	14669	103.3	142	70+	4000	7.3
Auva LED1x11400 J025 T740 LSS1	625	288	102	100000/L90B10	11379	71.6	159	70+	4000	7.2
Auva LED1x13400 J026 T740 LSS1	625	288	102	100000/L90B10	13399	86.6	155	70+	4000	7.3
Auva LED1x15500 J027 T740 LSS1	625	288	102	100000/L90B10	15490	100.9	154	70+	4000	7.3
Auva LED1x17400 J028 T740 LSS1	625	288	102	100000/L90B10	17354	116.0	150	70+	4000	7.3
Auva LED1x19350 J029 T740 LSS1	625	288	102	100000/L90B10	19338	131.6	147	70+	4000	7.3
Auva LED1x15200 J031 T740 LSS1	776	320	102	100000/L90B10	15173	94.5	161	70+	4000	9.4
Auva LED1x17900 J032 T740 LSS1	776	320	102	100000/L90B10	17866	114.2	156	70+	4000	9.4
Auva LED1x20700 J033 T740 LSS1	776	320	102	100000/L90B10	20653	134.5	154	70+	4000	9.4
Auva LED1x23150 J034 T740 LSS1	776	320	102	100000/L90B10	23138	154.7	150	70+	4000	9.4
Auva LED1x25800 J035 T740 LSS1	776	320	102	100000/L90B10	25784	175.5	147	70+	4000	9.4
Auva LED1x1900 J001 T740 LSS2	525	205	102	100000/L90B10	1918	12.5	153	70+	4000	3.5
Auva LED1x2250 J002 T740 LSS2	525	205	102	100000/L90B10	2259	15.1	150	70+	4000	3.5
Auva LED1x2600 J003 T740 LSS2	525	205	102	100000/L90B10	2611	17.2	152	70+	4000	3.5
Auva LED1x2900 J004 T740 LSS2	525	205	102	100000/L90B10	2926	19.8	148	70+	4000	3.5
Auva LED1x3250 J005 T740 LSS2	525	205	102	100000/L90B10	3260	22.2	147	70+	4000	3.5
Auva LED1x3700 J006 T740 LSS2	525	205	102	100000/L90B10	3710	26.1	142	70+	4000	3.5
Auva LED1x3800 J007 T740 LSS2	525	205	102	100000/L90B10	3837	23.9	161	70+	4000	3.5
Auva LED1x4500 J008 T740 LSS2	525	205	102	100000/L90B10	4518	28.9	156	70+	4000	3.5
Auva LED1x5200 J009 T740 LSS2	525	205	102	100000/L90B10	5223	33.6	155	70+	4000	3.5
Auva LED1x5800 J010 T740 LSS2	525	205	102	100000/L90B10	5851	38.7	151	70+	4000	3.5
Auva LED1x6450 J011 T740 LSS2	525	205	102	100000/L90B10	6520	43.9	149	70+	4000	3.5
Auva LED1x7350 J012 T740 LSS2	525	205	102	100000/L90B10	7419	51.7	144	70+	4000	3.5
Auva LED1x5700 J013 T740 LSS2	525	250	102	100000/L90B10	5755	35.8	161	70+	4000	4.9
Auva LED1x6700 J014 T740 LSS2	525	250	102	100000/L90B10	6777	43.3	157	70+	4000	4.9
Auva LED1x7750 J015 T740 LSS2	525	250	102	100000/L90B10	7834	51.0	154	70+	4000	4.9
Auva LED1x8700 J016 T740 LSS2	525	250	102	100000/L90B10	8777	58.6	150	70+	4000	5.0
Auva LED1x9700 J017 T740 LSS2	525	250	102	100000/L90B10	9780	66.5	147	70+	4000	5.0
Auva LED1x11050 J018 T740 LSS2	525	250	102	100000/L90B10	11129	78.3	142	70+	4000	5.0
Auva LED1x7600 J019 T740 LSS2	625	288	102	100000/L90B10	7673	48.3	159	70+	4000	7.2
Auva LED1x8950 J020 T740 LSS2	625	288	102	100000/L90B10	9036	57.7	157	70+	4000	7.2
Auva LED1x10350 J021 T740 LSS2	625	288	102	100000/L90B10	10445	68.0	154	70+	4000	7.3
Auva LED1x11600 J022 T740 LSS2	625	288	102	100000/L90B10	11702	77.3	151	70+	4000	7.3
Auva LED1x12900 J023 T740 LSS2	625	288	102	100000/L90B10	13040	87.7	149	70+	4000	7.3
Auva LED1x14700 J024 T740 LSS2	625	288	102	100000/L90B10	14838	103.3	144	70+	4000	7.3
Auva LED1x11400 J025 T740 LSS2	625	288	102	100000/L90B10	11510	71.6	161	70+	4000	7.2
Auva LED1x13400 J026 T740 LSS2	625	288	102	100000/L90B10	13553	86.6	157	70+	4000	7.3
Auva LED1x15500 J027 T740 LSS2	625	288	102	100000/L90B10	15668	100.9	155	70+	4000	7.3
Auva LED1x17400 J028 T740 LSS2	625	288	102	100000/L90B10	17553	116.0	151	70+	4000	7.3
Auva LED1x19350 J029 T740 LSS2	625	288	102	100000/L90B10	19560	131.6	149	70+	4000	7.3
Auva LED1x15200 J031 T740 LSS2	776	320	102	100000/L90B10	15347	94.5	162	70+	4000	9.4
Auva LED1x17900 J032 T740 LSS2	776	320	102	100000/L90B10	18071	114.2	158	70+	4000	9.4
Auva LED1x20700 J033 T740 LSS2	776	320	102	100000/L90B10	20890	134.5	155	70+	4000	9.4
Auva LED1x23150 J034 T740 LSS2	776	320	102	100000/L90B10	23404	154.7	151	70+	4000	9.4
Auva LED1x25800 J035 T740 LSS2	776	320	102	100000/L90B10	26081	175.5	149	70+	4000	9.4
Auva LED1x1900 J001 T740 LSPR	525	205	102	100000/L90B10	1918	12.5	153	70+	4000	3.5
Auva LED1x2250 J002 T740 LSPR	525	205	102	100000/L90B10	2259	15.1	150	70+	4000	3.5
Auva LED1x2600 J003 T740 LSPR	525	205	102	100000/L90B10	2611	17.2	152	70+	4000	3.5
Auva LED1x2900 J004 T740 LSPR	525	205	102	100000/L90B10	2926	19.8	148	70+	4000	3.5
Auva LED1x3250 J005 T740 LSPR	525	205	102	100000/L90B10	3260	22.2	147	70+	4000	3.5
Auva LED1x3700 J006 T740 LSPR	525	205	102	100000/L90B10	3710	26.1	142	70+	4000	3.5
Auva LED1x3800 J007 T740 LSPR	525	205	102	100000/L90B10	3837	23.9	161	70+	4000	3.5
Auva LED1x4500 J008 T740 LSPR	525	205	102	100000/L90B10	4518	28.9	156	70+	4000	3.5
Auva LED1x5200 J009 T740 LSPR	525	205	102	100000/L90B10	5223	33.6	155	70+	4000	3.5
Auva LED1x5800 J010 T740 LSPR	525	205	102	100000/L90B10	5851	38.7	151	70+	4000	3.5
Auva LED1x6450 J011 T740 LSPR	525	205	102	100000/L90B10	6520	43.9	149	70+	4000	3.5
Auva LED1x7350 J012 T740 LSPR	525	205	102	100000/L90B10	7419	51.7	144	70+	4000	3.5
Auva LED1x5700 J013 T740 LSPR	525	250	102	100000/L90B10	5755	35.8	161	70+	4000	4.9
Auva LED1x6700 J014 T740 LSPR	525	250	102	100000/L90B10	6777	43.3	157	70+	4000	4.9
Auva LED1x7750 J015 T740 LSPR	525	250	102	100000/L90B10	7834	51.0	154	70+	4000	4.9
Auva LED1x8700 J016 T740 LSPR	525	250	102	100000/L90B10	8777	58.6	150	70+	4000	5.0
Auva LED1x9700 J017 T740 LSPR	525	250	102	100000/L90B10	9780	66.5	147	70+	4000	5.0
Auva LED1x11050 J018 T740 LSPR	525	250	102	100000/L90B10	11129	78.3	142	70+	4000	5.0
Auva LED1x7600 J019 T740 LSPR	625	288	102	100000/L90B10	7673	48.3	159	70+	4000	7.2
Auva LED1x8950 J020 T740 LSPR	625	288	102	100000/L90B10	9036	57.7	157	70+	4000	7.2
Auva LED1x10350 J021 T740 LSPR	625	288	102	100000/L90B10	10445	68.0	154	70+	4000	7.3
Auva LED1x11600 J022 T740 LSPR	625	288	102	100000/L90B10	11702	77.3	151	70+	4000	7.3
Auva LED1x12900 J023 T740 LSPR	625	288	102	100000/L90B10	13040	87.7	149	70+	4000	7.3
Auva LED1x14700 J024 T740 LSPR	625	288	102	100000/L90B10	14838	103.3	144	70+	4000	7.3
Auva LED1x11400 J025 T740 LSPR	625	288	102	100000/L90B10	11510	71.6	161	70+	4000	7.2
Auva LED1x13400 J026 T740 LSPR	625	288	102	100000/L90B10	13553	86.6	157	70+	4000	7.3
Auva LED1x15500 J027 T740 LSPR	625	288	102	100000/L90B10	15668	100.9	155	70+	4000	7.3
Auva LED1x17400 J028 T740 LSPR	625	288	102	100000/L90B10	17553	116.0	151	70+	4000	7.3
Auva LED1x19350 J029 T740 LSPR	625	288	102	100000/L90B10	19560	131.6	149	70+	4000	7.3
Auva LED1x15200 J031 T740 LSPR	776	320	102	100000/L90B10	15347	94.5	162	70+	4000	9.4
Auva LED1x17900 J032 T740 LSPR	776	320	102	100000/L90B10	18071	114.2	158	70+	4000	9.4
Auva LED1x20700 J033 T740 LSPR	776	320	102	100000/L90B10	20890	134.5	155	70+	4000	9.4
Auva LED1x23150 J034 T740 LSPR	776	320	102	100000/L90B10	23404	154.7	151	70+	4000	9.4
Auva LED1x25800 J035 T740 LSPR	776	320	102	100000/L90B10	26081	175.5	149	70+	4000	9.4
Auva LED1x1900 J001 T740 LSPL	525	205	102	100000/L90B10	1918	12.5	153	70+	4000	3.5
Auva LED1x2250 J002 T740 LSPL	525	205	102	100000/L90B10	2259	15.1	150	70+	4000	3.5
Auva LED1x2600 J003 T740 LSPL	525	205	102	100000/L90B10	2611	17.2	152	70+	4000	3.5
Auva LED1x2900 J004 T740 LSPL	525	205	102	100000/L90B10	2926	19.8	148	70+	4000	3.5
Auva LED1x3250 J005 T740 LSPL	525	205	102	100000/L90B10	3260	22.2	147	70+	4000	3.5
Auva LED1x3700 J006 T740 LSPL	525	205	102	100000/L90B10	3710	26.1	142	70+	4000	3.5
Auva LED1x3800 J007 T740 LSPL	525	205	102	100000/L90B10	3837	23.9	161	70+	4000	3.5
Auva LED1x4500 J008 T740 LSPL	525	205	102	100000/L90B10	4518	28.9	156	70+	4000	3.5
Auva LED1x5200 J009 T740 LSPL	525	205	102	100000/L90B10	5223	33.6	155	70+	4000	3.5
Auva LED1x5800 J010 T740 LSPL	525	205	102	100000/L90B10	5851	38.7	151	70+	4000	3.5
Auva LED1x6450 J011 T740 LSPL	525	205	102	100000/L90B10	6520	43.9	149	70+	4000	3.5
Auva LED1x7350 J012 T740 LSPL	525	205	102	100000/L90B10	7419	51.7	144	70+	4000	3.5
Auva LED1x5700 J013 T740 LSPL	525	250	102	100000/L90B10	5755	35.8	161	70+	4000	4.9
Auva LED1x6700 J014 T740 LSPL	525	250	102	100000/L90B10	6777	43.3	157	70+	4000	4.9
Auva LED1x7750 J015 T740 LSPL	525	250	102	100000/L90B10	7834	51.0	154	70+	4000	4.9
Auva LED1x8700 J016 T740 LSPL	525	250	102	100000/L90B10	8777	58.6	150	70+	4000	5.0
Auva LED1x9700 J017 T740 LSPL	525	250	102	100000/L90B10	9780	66.5	147	70+	4000	5.0
Auva LED1x11050 J018 T740 LSPL	525	250	102	100000/L90B10	11129	78.3	142	70+	4000	5.0
Auva LED1x7600 J019 T740 LSPL	625	288	102	100000/L90B10	7673	48.3	159	70+	4000	7.2
Auva LED1x8950 J020 T740 LSPL	625	288	102	100000/L90B10	9036	57.7	157	70+	4000	7.2
Auva LED1x10350 J021 T740 LSPL	625	288	102	100000/L90B10	10445	68.0	154	70+	4000	7.3
Auva LED1x11600 J022 T740 LSPL	625	288	102	100000/L90B10	11702	77.3	151	70+	4000	7.3
Auva LED1x12900 J023 T740 LSPL	625	288	102	100000/L90B10	13040	87.7	149	70+	4000	7.3
Auva LED1x14700 J024 T740 LSPL	625	288	102	100000/L90B10	14838	103.3	144	70+	4000	7.3
Auva LED1x11400 J025 T740 LSPL	625	288	102	100000/L90B10	11510	71.6	161	70+	4000	7.2
Auva LED1x13400 J026 T740 LSPL	625	288	102	100000/L90B10	13553	86.6	157	70+	4000	7.3
Auva LED1x15500 J027 T740 LSPL	625	288	102	100000/L90B10	15668	100.9	155	70+	4000	7.3
Auva LED1x17400 J028 T740 LSPL	625	288	102	100000/L90B10	17553	116.0	151	70+	4000	7.3
Auva LED1x19350 J029 T740 LSPL	625	288	102	100000/L90B10	19560	131.6	149	70+	4000	7.3
Auva LED1x15200 J031 T740 LSPL	776	320	102	100000/L90B10	15347	94.5	162	70+	4000	9.4
Auva LED1x17900 J032 T740 LSPL	776	320	102	100000/L90B10	18071	114.2	158	70+	4000	9.4
Auva LED1x20700 J033 T740 LSPL	776	320	102	100000/L90B10	20890	134.5	155	70+	4000	9.4
Auva LED1x23150 J034 T740 LSPL	776	320	102	100000/L90B10	23404	154.7	151	70+	4000	9.4
Auva LED1x25800 J035 T740 LSPL	776	320	102	100000/L90B10	26081	175.5	149	70+	4000	9.4
Auva LED1x1900 J001 T740 LSA1	525	205	102	100000/L90B10	1831	12.5	146	70+	4000	3.5
Auva LED1x2250 J002 T740 LSA1	525	205	102	100000/L90B10	2156	15.1	143	70+	4000	3.5
Auva LED1x2600 J003 T740 LSA1	525	205	102	100000/L90B10	2493	17.2	145	70+	4000	3.5
Auva LED1x2900 J004 T740 LSA1	525	205	102	100000/L90B10	2793	19.8	141	70+	4000	3.5
Auva LED1x3250 J005 T740 LSA1	525	205	102	100000/L90B10	3112	22.2	140	70+	4000	3.5
Auva LED1x3700 J006 T740 LSA1	525	205	102	100000/L90B10	3541	26.1	136	70+	4000	3.5
Auva LED1x3800 J007 T740 LSA1	525	205	102	100000/L90B10	3662	23.9	153	70+	4000	3.5
Auva LED1x4500 J008 T740 LSA1	525	205	102	100000/L90B10	4312	28.9	149	70+	4000	3.5
Auva LED1x5200 J009 T740 LSA1	525	205	102	100000/L90B10	4985	33.6	148	70+	4000	3.5
Auva LED1x5800 J010 T740 LSA1	525	205	102	100000/L90B10	5585	38.7	144	70+	4000	3.5
Auva LED1x6450 J011 T740 LSA1	525	205	102	100000/L90B10	6224	43.9	142	70+	4000	3.5
Auva LED1x7350 J012 T740 LSA1	525	205	102	100000/L90B10	7082	51.7	137	70+	4000	3.5
Auva LED1x5700 J013 T740 LSA1	525	250	102	100000/L90B10	5493	35.8	153	70+	4000	4.9
Auva LED1x6700 J014 T740 LSA1	525	250	102	100000/L90B10	6469	43.3	149	70+	4000	4.9
Auva LED1x7750 J015 T740 LSA1	525	250	102	100000/L90B10	7478	51.0	147	70+	4000	4.9
Auva LED1x8700 J016 T740 LSA1	525	250	102	100000/L90B10	8378	58.6	143	70+	4000	5.0
Auva LED1x9700 J017 T740 LSA1	525	250	102	100000/L90B10	9336	66.5	140	70+	4000	5.0
Auva LED1x11050 J018 T740 LSA1	525	250	102	100000/L90B10	10623	78.3	136	70+	4000	5.0
Auva LED1x7600 J019 T740 LSA1	625	288	102	100000/L90B10	7325	48.3	152	70+	4000	7.2
Auva LED1x8950 J020 T740 LSA1	625	288	102	100000/L90B10	8625	57.7	149	70+	4000	7.2
Auva LED1x10350 J021 T740 LSA1	625	288	102	100000/L90B10	9970	68.0	147	70+	4000	7.3
Auva LED1x11600 J022 T740 LSA1	625	288	102	100000/L90B10	11170	77.3	145	70+	4000	7.3
Auva LED1x12900 J023 T740 LSA1	625	288	102	100000/L90B10	12448	87.7	142	70+	4000	7.3
Auva LED1x14700 J024 T740 LSA1	625	288	102	100000/L90B10	14164	103.3	137	70+	4000	7.3
Auva LED1x11400 J025 T740 LSA1	625	288	102	100000/L90B10	10987	71.6	153	70+	4000	7.2
Auva LED1x13400 J026 T740 LSA1	625	288	102	100000/L90B10	12937	86.6	149	70+	4000	7.3
Auva LED1x15500 J027 T740 LSA1	625	288	102	100000/L90B10	14956	100.9	148	70+	4000	7.3
Auva LED1x17400 J028 T740 LSA1	625	288	102	100000/L90B10	16755	116.0	144	70+	4000	7.3
Auva LED1x19350 J029 T740 LSA1	625	288	102	100000/L90B10	18671	131.6	142	70+	4000	7.3
Auva LED1x15200 J031 T740 LSA1	776	320	102	100000/L90B10	14649	94.5	155	70+	4000	9.4
Auva LED1x17900 J032 T740 LSA1	776	320	102	100000/L90B10	17250	114.2	151	70+	4000	9.4
Auva LED1x20700 J033 T740 LSA1	776	320	102	100000/L90B10	19941	134.5	148	70+	4000	9.4
Auva LED1x23150 J034 T740 LSA1	776	320	102	100000/L90B10	22340	154.7	144	70+	4000	9.4
Auva LED1x25800 J035 T740 LSA1	776	320	102	100000/L90B10	24895	175.5	142	70+	4000	9.4
Auva LED1x1900 J001 T740 LSA2	525	205	102	100000/L90B10	1831	12.5	146	70+	4000	3.5
Auva LED1x2250 J002 T740 LSA2	525	205	102	100000/L90B10	2156	15.1	143	70+	4000	3.5
Auva LED1x2600 J003 T740 LSA2	525	205	102	100000/L90B10	2493	17.2	145	70+	4000	3.5
Auva LED1x2900 J004 T740 LSA2	525	205	102	100000/L90B10	2793	19.8	141	70+	4000	3.5
Auva LED1x3250 J005 T740 LSA2	525	205	102	100000/L90B10	3112	22.2	140	70+	4000	3.5
Auva LED1x3700 J006 T740 LSA2	525	205	102	100000/L90B10	3541	26.1	136	70+	4000	3.5
Auva LED1x3800 J007 T740 LSA2	525	205	102	100000/L90B10	3662	23.9	153	70+	4000	3.5
Auva LED1x4500 J008 T740 LSA2	525	205	102	100000/L90B10	4312	28.9	149	70+	4000	3.5
Auva LED1x5200 J009 T740 LSA2	525	205	102	100000/L90B10	4985	33.6	148	70+	4000	3.5
Auva LED1x5800 J010 T740 LSA2	525	205	102	100000/L90B10	5585	38.7	144	70+	4000	3.5
Auva LED1x6450 J011 T740 LSA2	525	205	102	100000/L90B10	6224	43.9	142	70+	4000	3.5
Auva LED1x7350 J012 T740 LSA2	525	205	102	100000/L90B10	7082	51.7	137	70+	4000	3.5
Auva LED1x5700 J013 T740 LSA2	525	250	102	100000/L90B10	5493	35.8	153	70+	4000	4.9
Auva LED1x6700 J014 T740 LSA2	525	250	102	100000/L90B10	6469	43.3	149	70+	4000	4.9
Auva LED1x7750 J015 T740 LSA2	525	250	102	100000/L90B10	7478	51.0	147	70+	4000	4.9
Auva LED1x8700 J016 T740 LSA2	525	250	102	100000/L90B10	8378	58.6	143	70+	4000	5.0
Auva LED1x9700 J017 T740 LSA2	525	250	102	100000/L90B10	9336	66.5	140	70+	4000	5.0
Auva LED1x11050 J018 T740 LSA2	525	250	102	100000/L90B10	10623	78.3	136	70+	4000	5.0
Auva LED1x7600 J019 T740 LSA2	625	288	102	100000/L90B10	7325	48.3	152	70+	4000	7.2
Auva LED1x8950 J020 T740 LSA2	625	288	102	100000/L90B10	8625	57.7	149	70+	4000	7.2
Auva LED1x10350 J021 T740 LSA2	625	288	102	100000/L90B10	9970	68.0	147	70+	4000	7.3
Auva LED1x11600 J022 T740 LSA2	625	288	102	100000/L90B10	11170	77.3	145	70+	4000	7.3
Auva LED1x12900 J023 T740 LSA2	625	288	102	100000/L90B10	12448	87.7	142	70+	4000	7.3
Auva LED1x14700 J024 T740 LSA2	625	288	102	100000/L90B10	14164	103.3	137	70+	4000	7.3
Auva LED1x11400 J025 T740 LSA2	625	288	102	100000/L90B10	10987	71.6	153	70+	4000	7.2
Auva LED1x13400 J026 T740 LSA2	625	288	102	100000/L90B10	12937	86.6	149	70+	4000	7.3
Auva LED1x15500 J027 T740 LSA2	625	288	102	100000/L90B10	14956	100.9	148	70+	4000	7.3
Auva LED1x17400 J028 T740 LSA2	625	288	102	100000/L90B10	16755	116.0	144	70+	4000	7.3
Auva LED1x19350 J029 T740 LSA2	625	288	102	100000/L90B10	18671	131.6	142	70+	4000	7.3
Auva LED1x15200 J031 T740 LSA2	776	320	102	100000/L90B10	14649	94.5	155	70+	4000	9.4
Auva LED1x17900 J032 T740 LSA2	776	320	102	100000/L90B10	17250	114.2	151	70+	4000	9.4
Auva LED1x20700 J033 T740 LSA2	776	320	102	100000/L90B10	19941	134.5	148	70+	4000	9.4
Auva LED1x23150 J034 T740 LSA2	776	320	102	100000/L90B10	22340	154.7	144	70+	4000	9.4
Auva LED1x25800 J035 T740 LSA2	776	320	102	100000/L90B10	24895	175.5	142	70+	4000	9.4
Auva LED1x1900 J001 T740 LS140	525	205	102	100000/L90B10	1940	12.5	155	70+	4000	3.5
Auva LED1x2250 J002 T740 LS140	525	205	102	100000/L90B10	2285	15.1	151	70+	4000	3.5
Auva LED1x2600 J003 T740 LS140	525	205	102	100000/L90B10	2641	17.2	154	70+	4000	3.5
Auva LED1x2900 J004 T740 LS140	525	205	102	100000/L90B10	2959	19.8	149	70+	4000	3.5
Auva LED1x3250 J005 T740 LS140	525	205	102	100000/L90B10	3297	22.2	149	70+	4000	3.5
Auva LED1x3700 J006 T740 LS140	525	205	102	100000/L90B10	3752	26.1	144	70+	4000	3.5
Auva LED1x3800 J007 T740 LS140	525	205	102	100000/L90B10	3880	23.9	162	70+	4000	3.5
Auva LED1x4500 J008 T740 LS140	525	205	102	100000/L90B10	4569	28.9	158	70+	4000	3.5
Auva LED1x5200 J009 T740 LS140	525	205	102	100000/L90B10	5282	33.6	157	70+	4000	3.5
Auva LED1x5800 J010 T740 LS140	525	205	102	100000/L90B10	5918	38.7	153	70+	4000	3.5
Auva LED1x6450 J011 T740 LS140	525	205	102	100000/L90B10	6594	43.9	150	70+	4000	3.5
Auva LED1x7350 J012 T740 LS140	525	205	102	100000/L90B10	7503	51.7	145	70+	4000	3.5
Auva LED1x5700 J013 T740 LS140	525	250	102	100000/L90B10	5820	35.8	163	70+	4000	4.9
Auva LED1x6700 J014 T740 LS140	525	250	102	100000/L90B10	6854	43.3	158	70+	4000	4.9
Auva LED1x7750 J015 T740 LS140	525	250	102	100000/L90B10	7923	51.0	155	70+	4000	4.9
Auva LED1x8700 J016 T740 LS140	525	250	102	100000/L90B10	8876	58.6	151	70+	4000	5.0
Auva LED1x9700 J017 T740 LS140	525	250	102	100000/L90B10	9891	66.5	149	70+	4000	5.0
Auva LED1x11050 J018 T740 LS140	525	250	102	100000/L90B10	11255	78.3	144	70+	4000	5.0
Auva LED1x7600 J019 T740 LS140	625	288	102	100000/L90B10	7761	48.3	161	70+	4000	7.2
Auva LED1x8950 J020 T740 LS140	625	288	102	100000/L90B10	9138	57.7	158	70+	4000	7.2
Auva LED1x10350 J021 T740 LS140	625	288	102	100000/L90B10	10564	68.0	155	70+	4000	7.3
Auva LED1x11600 J022 T740 LS140	625	288	102	100000/L90B10	11835	77.3	153	70+	4000	7.3
Auva LED1x12900 J023 T740 LS140	625	288	102	100000/L90B10	13189	87.7	150	70+	4000	7.3
Auva LED1x14700 J024 T740 LS140	625	288	102	100000/L90B10	15007	103.3	145	70+	4000	7.3
Auva LED1x11400 J025 T740 LS140	625	288	102	100000/L90B10	11641	71.6	163	70+	4000	7.2
Auva LED1x13400 J026 T740 LS140	625	288	102	100000/L90B10	13707	86.6	158	70+	4000	7.3
Auva LED1x15500 J027 T740 LS140	625	288	102	100000/L90B10	15846	100.9	157	70+	4000	7.3
Auva LED1x17400 J028 T740 LS140	625	288	102	100000/L90B10	17753	116.0	153	70+	4000	7.3
Auva LED1x19350 J029 T740 LS140	625	288	102	100000/L90B10	19783	131.6	150	70+	4000	7.3
Auva LED1x15200 J031 T740 LS140	776	320	102	100000/L90B10	15521	94.5	164	70+	4000	9.4
Auva LED1x17900 J032 T740 LS140	776	320	102	100000/L90B10	18277	114.2	160	70+	4000	9.4
Auva LED1x20700 J033 T740 LS140	776	320	102	100000/L90B10	21128	134.5	157	70+	4000	9.4
Auva LED1x23150 J034 T740 LS140	776	320	102	100000/L90B10	23670	154.7	153	70+	4000	9.4
Auva LED1x25800 J035 T740 LS140	776	320	102	100000/L90B10	26377	175.5	150	70+	4000	9.4
Auva LED1x1900 J001 T740 LSM1 ta+55C	525	205	102	100000/L90B10	1897	12.5	152	70+	4000	3.5
Auva LED1x2250 J002 T740 LSM1 ta+55C	525	205	102	100000/L90B10	2233	15.1	148	70+	4000	3.5
Auva LED1x2600 J003 T740 LSM1 ta+50C	525	205	102	100000/L90B10	2582	18.8	137	70+	4000	3.5
Auva LED1x3800 J007 T740 LSM1 ta+55C	525	205	102	100000/L90B10	3793	23.9	159	70+	4000	3.5
Auva LED1x4500 J008 T740 LSM1 ta+55C	525	205	102	100000/L90B10	4466	28.9	155	70+	4000	3.5
Auva LED1x5200 J009 T740 LSM1 ta+50C	525	205	102	100000/L90B10	5163	35.5	145	70+	4000	3.5
Auva LED1x5700 J013 T740 LSM1 ta+55C	525	250	102	100000/L90B10	5690	35.8	159	70+	4000	4.9
Auva LED1x6700 J014 T740 LSM1 ta+55C	525	250	102	100000/L90B10	6700	43.3	155	70+	4000	4.9
Auva LED1x7750 J015 T740 LSM1 ta+50C	525	250	102	100000/L90B10	7745	51.0	152	70+	4000	4.9
Auva LED1x7600 J019 T740 LSM1 ta+55C	625	288	102	100000/L90B10	7586	48.3	157	70+	4000	7.2
Auva LED1x8950 J020 T740 LSM1 ta+55C	625	288	102	100000/L90B10	8933	57.7	155	70+	4000	7.2
Auva LED1x10350 J021 T740 LSM1 ta+50C	625	288	102	100000/L90B10	10327	68.0	152	70+	4000	7.3
Auva LED1x11400 J025 T740 LSM1 ta+55C	625	288	102	100000/L90B10	11379	71.6	159	70+	4000	7.2
Auva LED1x13400 J026 T740 LSM1 ta+55C	625	288	102	100000/L90B10	13399	86.6	155	70+	4000	7.3
Auva LED1x15500 J027 T740 LSM1 ta+50C	625	288	102	100000/L90B10	15490	100.9	154	70+	4000	7.3
Auva LED1x17900 J032 T740 LSM1 ta+55C	776	320	102	100000/L90B10	17866	114.2	156	70+	4000	9.4
Auva LED1x20700 J033 T740 LSM1 ta+50C	776	320	102	100000/L90B10	20653	134.5	154	70+	4000	9.4
Auva LED1x1900 J001 T730 LSM1 ENEC+	525	205	102	100000/L90B10	1758	12.5	141	70+	3000	3.5
Auva LED1x2250 J002 T730 LSM1 ENEC+	525	205	102	100000/L90B10	2065	15.2	136	70+	3000	3.5
Auva LED1x2600 J003 T730 LSM1 ENEC+	525	205	102	100000/L90B10	2378	19.1	125	70+	3000	3.5
Auva LED1x2900 J004 T730 LSM1 ENEC+	525	205	102	100000/L90B10	2658	21.7	122	70+	3000	3.5
Auva LED1x3250 J005 T730 LSM1 ENEC+	525	205	102	100000/L90B10	2950	24.4	121	70+	3000	3.5
Auva LED1x3700 J006 T730 LSM1 ENEC+	525	205	102	100000/L90B10	3341	28.5	117	70+	3000	3.5
Auva LED1x3800 J007 T730 LSM1 ENEC+	525	205	102	100000/L90B10	3516	24.0	147	70+	3000	3.5
Auva LED1x4500 J008 T730 LSM1 ENEC+	525	205	102	100000/L90B10	4130	29.1	142	70+	3000	3.5
Auva LED1x5200 J009 T730 LSM1 ENEC+	525	205	102	100000/L90B10	4756	36.0	132	70+	3000	3.5
Auva LED1x5800 J010 T730 LSM1 ENEC+	525	205	102	100000/L90B10	5317	41.5	128	70+	3000	3.5
Auva LED1x6450 J011 T730 LSM1 ENEC+	525	205	102	100000/L90B10	5901	47.2	125	70+	3000	3.5
Auva LED1x7350 J012 T730 LSM1 ENEC+	525	205	102	100000/L90B10	6681	52.7	127	70+	3000	3.5
Auva LED1x5700 J013 T730 LSM1 ENEC+	525	250	102	100000/L90B10	5274	36.0	147	70+	3000	4.9
Auva LED1x6700 J014 T730 LSM1 ENEC+	525	250	102	100000/L90B10	6194	43.7	142	70+	3000	4.9
Auva LED1x7750 J015 T730 LSM1 ENEC+	525	250	102	100000/L90B10	7134	51.6	138	70+	3000	4.9
Auva LED1x8700 J016 T730 LSM1 ENEC+	525	250	102	100000/L90B10	7975	59.5	134	70+	3000	5.0
Auva LED1x9700 J017 T730 LSM1 ENEC+	525	250	102	100000/L90B10	8851	67.7	131	70+	3000	5.0
Auva LED1x11050 J018 T730 LSM1 ENEC+	525	250	102	100000/L90B10	10022	80.0	125	70+	3000	5.0
Auva LED1x7600 J019 T730 LSM1 ENEC+	625	288	102	100000/L90B10	7032	48.5	145	70+	3000	7.2
Auva LED1x8950 J020 T730 LSM1 ENEC+	625	288	102	100000/L90B10	8259	58.2	142	70+	3000	7.2
Auva LED1x10350 J021 T730 LSM1 ENEC+	625	288	102	100000/L90B10	9512	68.8	138	70+	3000	7.3
Auva LED1x11600 J022 T730 LSM1 ENEC+	625	288	102	100000/L90B10	10634	78.5	135	70+	3000	7.3
Auva LED1x12900 J023 T730 LSM1 ENEC+	625	288	102	100000/L90B10	11801	89.2	132	70+	3000	7.3
Auva LED1x14700 J024 T730 LSM1 ENEC+	625	288	102	100000/L90B10	13363	105.5	127	70+	3000	7.3
Auva LED1x11400 J025 T730 LSM1 ENEC+	625	288	102	100000/L90B10	10548	72.0	147	70+	3000	7.2
Auva LED1x13400 J026 T730 LSM1 ENEC+	625	288	102	100000/L90B10	12389	87.4	142	70+	3000	7.3
Auva LED1x15500 J027 T730 LSM1 ENEC+	625	288	102	100000/L90B10	14268	102.1	140	70+	3000	7.3
Auva LED1x17400 J028 T730 LSM1 ENEC+	625	288	102	100000/L90B10	15951	117.7	136	70+	3000	7.3
Auva LED1x19350 J029 T730 LSM1 ENEC+	625	288	102	100000/L90B10	17702	133.9	132	70+	3000	7.3
Auva LED1x15200 J031 T730 LSM1 ENEC+	776	320	102	100000/L90B10	14065	95.0	148	70+	3000	9.4
Auva LED1x17900 J032 T730 LSM1 ENEC+	776	320	102	100000/L90B10	16518	115.2	143	70+	3000	9.4
Auva LED1x20700 J033 T730 LSM1 ENEC+	776	320	102	100000/L90B10	19024	136.1	140	70+	3000	9.4
Auva LED1x23150 J034 T730 LSM1 ENEC+	776	320	102	100000/L90B10	21268	157.0	135	70+	3000	9.4
Auva LED1x25800 J035 T730 LSM1 ENEC+	776	320	102	100000/L90B10	23603	178.5	132	70+	3000	9.4
Auva LED1x1900 J001 T740 LSM1 ENEC+	525	205	102	100000/L90B10	1878	12.5	150	70+	4000	3.5
Auva LED1x2250 J002 T740 LSM1 ENEC+	525	205	102	100000/L90B10	2216	15.2	146	70+	4000	3.5
Auva LED1x2600 J003 T740 LSM1 ENEC+	525	205	102	100000/L90B10	2563	18.0	142	70+	4000	3.5
Auva LED1x2900 J004 T740 LSM1 ENEC+	525	205	102	100000/L90B10	2880	20.7	139	70+	4000	3.5
Auva LED1x3250 J005 T740 LSM1 ENEC+	525	205	102	100000/L90B10	3211	23.6	136	70+	4000	3.5
Auva LED1x3700 J006 T740 LSM1 ENEC+	525	205	102	100000/L90B10	3667	27.9	131	70+	4000	3.5
Auva LED1x3800 J007 T740 LSM1 ENEC+	525	205	102	100000/L90B10	3756	24.0	157	70+	4000	3.5
Auva LED1x4500 J008 T740 LSM1 ENEC+	525	205	102	100000/L90B10	4431	29.1	152	70+	4000	3.5
Auva LED1x5200 J009 T740 LSM1 ENEC+	525	205	102	100000/L90B10	5127	34.0	151	70+	4000	3.5
Auva LED1x5800 J010 T740 LSM1 ENEC+	525	205	102	100000/L90B10	5760	39.2	147	70+	4000	3.5
Auva LED1x6450 J011 T740 LSM1 ENEC+	525	205	102	100000/L90B10	6422	44.6	144	70+	4000	3.5
Auva LED1x7350 J012 T740 LSM1 ENEC+	525	205	102	100000/L90B10	7334	52.7	139	70+	4000	3.5
Auva LED1x5700 J013 T740 LSM1 ENEC+	525	250	102	100000/L90B10	5702	36.0	158	70+	4000	4.9
Auva LED1x6700 J014 T740 LSM1 ENEC+	525	250	102	100000/L90B10	6647	43.7	152	70+	4000	4.9
Auva LED1x7750 J015 T740 LSM1 ENEC+	525	250	102	100000/L90B10	7690	51.6	149	70+	4000	4.9
Auva LED1x8700 J016 T740 LSM1 ENEC+	525	250	102	100000/L90B10	8640	59.5	145	70+	4000	5.0
Auva LED1x9700 J017 T740 LSM1 ENEC+	525	250	102	100000/L90B10	9633	67.7	142	70+	4000	5.0
Auva LED1x11050 J018 T740 LSM1 ENEC+	525	250	102	100000/L90B10	11001	80.0	138	70+	4000	5.0
Auva LED1x7600 J019 T740 LSM1 ENEC+	625	288	102	100000/L90B10	7511	48.5	155	70+	4000	7.2
Auva LED1x8950 J020 T740 LSM1 ENEC+	625	288	102	100000/L90B10	8863	58.2	152	70+	4000	7.2
Auva LED1x10350 J021 T740 LSM1 ENEC+	625	288	102	100000/L90B10	10253	68.8	149	70+	4000	7.3
Auva LED1x11600 J022 T740 LSM1 ENEC+	625	288	102	100000/L90B10	11519	78.5	147	70+	4000	7.3
Auva LED1x12900 J023 T740 LSM1 ENEC+	625	288	102	100000/L90B10	12844	89.2	144	70+	4000	7.3
Auva LED1x14700 J024 T740 LSM1 ENEC+	625	288	102	100000/L90B10	14668	105.5	139	70+	4000	7.3
Auva LED1x11400 J025 T740 LSM1 ENEC+	625	288	102	100000/L90B10	11267	72.0	156	70+	4000	7.2
Auva LED1x13400 J026 T740 LSM1 ENEC+	625	288	102	100000/L90B10	13294	87.4	152	70+	4000	7.3
Auva LED1x15500 J027 T740 LSM1 ENEC+	625	288	102	100000/L90B10	15380	102.1	151	70+	4000	7.3
Auva LED1x17400 J028 T740 LSM1 ENEC+	625	288	102	100000/L90B10	17279	117.7	147	70+	4000	7.3
Auva LED1x19350 J029 T740 LSM1 ENEC+	625	288	102	100000/L90B10	19267	133.9	144	70+	4000	7.3
Auva LED1x15200 J031 T740 LSM1 ENEC+	776	320	102	100000/L90B10	15022	95.0	158	70+	4000	9.4
Auva LED1x17900 J032 T740 LSM1 ENEC+	776	320	102	100000/L90B10	17725	115.2	154	70+	4000	9.4
Auva LED1x20700 J033 T740 LSM1 ENEC+	776	320	102	100000/L90B10	20507	136.1	151	70+	4000	9.4
Auva LED1x23150 J034 T740 LSM1 ENEC+	776	320	102	100000/L90B10	23039	157.0	147	70+	4000	9.4
Auva LED1x25800 J035 T740 LSM1 ENEC+	776	320	102	100000/L90B10	25689	178.5	144	70+	4000	9.4

Available options:
T730 – Colour temperature 3000K, CRI 70+
T740 – Colour temperature 4000K, CRI 70+
T750 – Colour temperature 5000K, CRI 70+
T757 – Colour temperature 5700K, CRI 70+
T765 – Colour temperature 6500K, CRI 70+
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
T850 – Colour temperature 5000K, CRI 80+
T857 – Colour temperature 5700K, CRI 80+
T865 – Colour temperature 6500K, CRI 80+
LSA1 – Optics with asymmetric beam SA1, Area lighting with shorter illumination distances
LSA2 – Optics with asymmetric beam SA2, Narrow forward throw beam for area lighting
LSM1 – Optics with asymmetric beam SM1, Universal road lighting
LSM2 – Optics with asymmetric beam SM2, Fulfilling EN13201 M class requirements where road width is similar to pole height
LSS1 – Optics with asymmetric beam SS1, Fulfilling EN13201 M class requirements where road width is equal or less the pole height
LSS2 – Optics with asymmetric beam SS2, Fulfilling EN13201 M class requirements for wider roads
LSPR – Fully asymmetric beam designed to highlight pedestrian crossings for right side traffic
LSPL – Fully asymmetric beam designed to highlight pedestrian crossings for left side traffic
LS140 – Optics with 140° beam angle
DALI – Driver with DALI interface
CLO – Driver with Constant Light Output functionality
ADIM – Driver with autonomous two-level dimming
PCA – Photocell 20 mm miniature type, IP65, 35 lux; 1:05 ratio
*note – PCA option is not applicable for ENEC models
DALI NEMA5p – Driver with DALI interface and integrated NEMA 5 pin socket. W/O sensor
DALI ZHAGA18 – Driver with D4i interface and integrated ZHAGA 18 socket. W/O sensor, up
DALI ZHAGA18 DOWN – Driver with D4i interface and integrated ZHAGA 18 socket. W/O sensor, down
DALI 2xZHAGA18 – Driver with D4i interface and integrated two ZHAGA 18 sockets. W/O sensor, up & down
II – Electric Shock protection class II
CBF3x1.5-N m – Outgoing flexible cable 3×1.5 mm². Cable length: according to the customer’s specification
CBF5x1.5-N m – Outgoing flexible cable 5×1.5 mm². Cable length: according to the customer’s specification
*note – please specify the length of outgoing cable before placing an order
Tmin-40C – Luminaire suitable for low ambient temperatures up to -40° C
*note – Tmin40C option is applicable for models J001…J002; J007…J008 and J012
10KV – Additional Surge Protection device – 10 KV
D76 – Luminaire prepared for mounting on 76 mm diameter pole
ETC – External temperature control for protecting LED modules against overheating
C5-M – Product prepared and suitable for installation in coastal areas
*note – C5-M option is applicable for models J013…J029
RAL7022S – Dark grey, RAL7022S
RAL – RAL colour

Accessories:
WALL MTG bracket (Street LED D60mm 10° P7035S) – Bracket for street luminaire installation onto wall, pole diameter D60 mm, 10° angle, light grey RAL7035S, 1 pcs

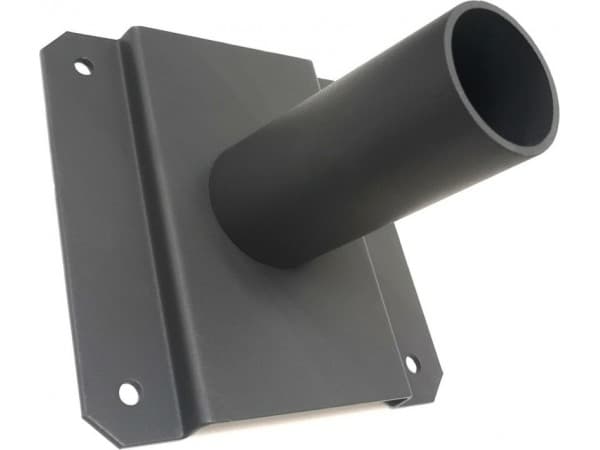

WALL MTG bracket (Street LED D60mm 10° P7022S) – Bracket for street luminaire installation onto wall, pole diameter D60 mm, 10° angle, dark grey RAL7022S, 1 pcs
Pole adapter RAL9006S (D60 into D48mm) – Console adapter from luminaire D60 to pole top D48 mm. Light grey, RAL9006S

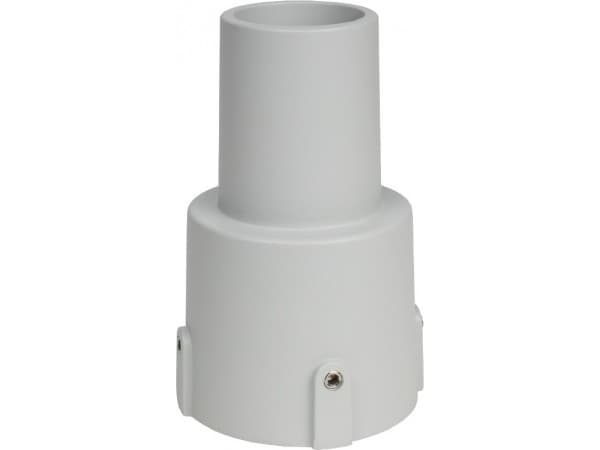

Pole adapter RAL7035S (D60 into D76mm) – Console adapter from luminaire D60 to pole top D76 mm. Light grey, RAL7035S
Power supply connector – IP66/IP68, 3×1.5mm2 – Quick and easy to connect power supply and luminaire cables connector – IP66/IP68, 3×1.5 mm², 450V/10A, 1 pcs
BLT ZHAGA18 Node – Zhaga book 18, IP66, IK09, -40 – 70°C, Bluetooth, light sensor
Sensor HBPIR ZHAGA 360 D20/12 DALI2 B – PIR, Zhaga18, DALI2 D4i, IP65, 360°, d<20 m, h<12 m, surface, black
