| Name | Length, mm | Width, mm | Height, mm | LED lifetime, h | Output, lm | Power, W | Efficacy, lm/W | CRI (Ra) | CCT, K | Weight, kg |
| Pavadinimas | Ilgis, mm | Plotis, mm | Aukštis, mm | Tarnavimo laikas, h | Šviesos srautas, lm | Galia, W | Efektyvumas, lm/W | CRI (Ra) | CCT, K | Svoris, kg |

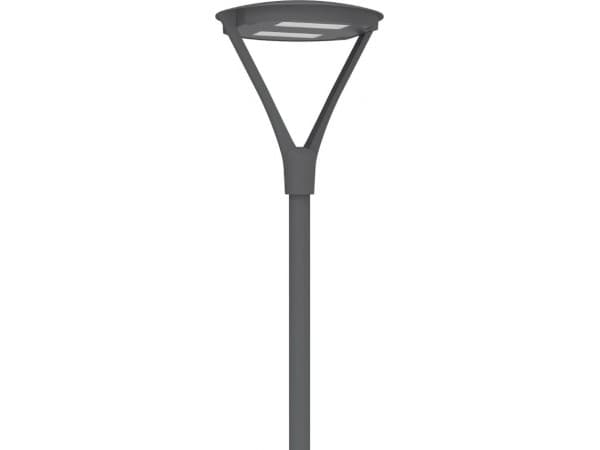

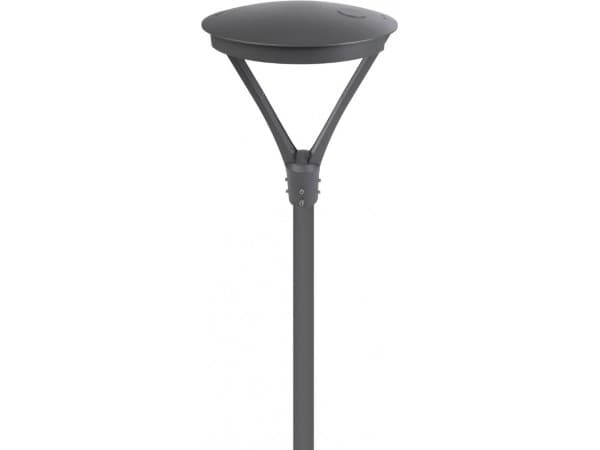

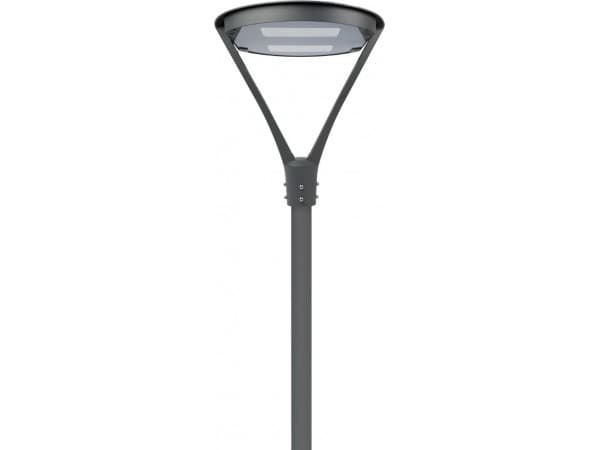

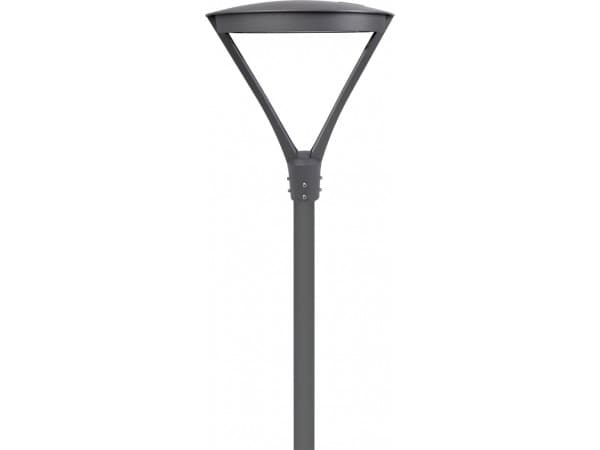

| Sadal LED1x5000/3900/2560 K399 T840/35/30 | 520 | 460 | 460 | 85000/L80B10 | 5000/3900/2560 | 40/30/20 | 125/130/128 | 80+ | 4000/3500/3000 | 7.6 |
Available options:
T830 – Colour temperature 3000K, CRI 80+
T835 – Colour temperature 3500K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
DALI – Driver with DALI interface
PCA – Photocell 20mm miniature type, IP65, 35 lux; 1:05 ratio
II – Electric Shock protection class II
ADIM – Driver with autonomous two-level dimming
CLO – Driver with Constant Light Output functionality
Tmin-40C – Luminaire suitable for low ambient temperatures up to -40 °C
DALI ZHAGA18 – Driver with D4i DALI interface and integrated ZHAGA 18 socket. W/O sensor, up
DALI NEMA5p – Driver with DALI interface and integrated NEMA 5 pin socket. W/O sensor
CBF3x1.5N m – Outgoing flexible cable 3×1.5 mm², length according to customer specification
CBF5x1.5-N m – Outgoing flexible cable 5×1.5 mm², length according to customer specification
*note – please specify the length of outgoing cable before placing an order
10KV – Additional Surge Protection device – 10 KV
RAL – RAL colour from OPTIONAL RAL colours list. Order quantity min. 10 pcs
*note – glass coating is always grey
Accessories:
Pole adapter RAL7035S (D60 into D76mm) – Console adapter from luminaire D60 to pole top D76 mm. Light grey, RAL7035S, 1 pcs
BLT ZHAGA18 Node – Zhaga book 18, IP66, IK09, -40 – 70 °C, Bluetooth, light sensor, 1 pcs
Power supply connector – IP66/IP68, 3×1.5mm2 – Quick and easy to connect power supply and luminaire cables connector – IP66/IP68, 3×1.5 mm², 450V/10A, 1 pcs
