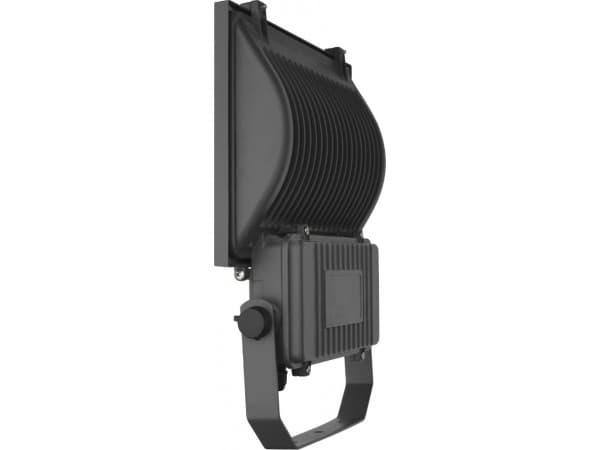

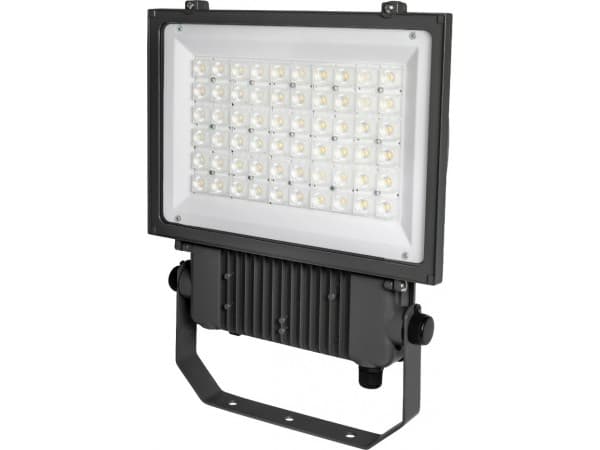

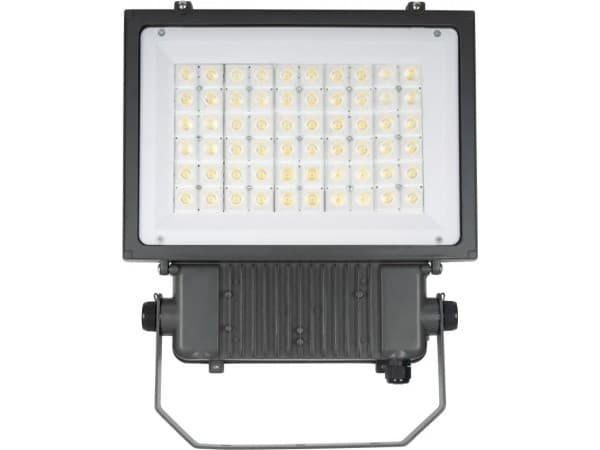

esviesa.lt | Boreas M LED IK08 IP66

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Boreas M LED1x4800 J444 T740 LS90	291	230	58	100000/L90B10	4774	28.4	168	70+	4000	1.9
Boreas M LED1x8300 J445 T740 LS90	291	230	58	100000/L90B10	8279	50.5	164	70+	4000	1.9
Boreas M LED1x10250 J446 T740 LS90	291	230	58	100000/L90B10	10224	64.9	158	70+	4000	1.9
Boreas M LED1x11050 J447 T740 LS90	338	280	59	100000/L90B10	11039	67.3	164	70+	4000	2.8
Boreas M LED1x13650 J448 T740 LS90	338	280	59	100000/L90B10	13633	87.5	156	70+	4000	2.8
Boreas M LED1x16600 J449 T740 LS90	381	312	62	100000/L90B10	16558	99.8	166	70+	4000	3.6
Boreas M LED1x20450 J450 T740 LS90	381	312	62	100000/L90B10	20449	129.8	158	70+	4000	3.6
Boreas M LED1x23300 J451 T740 LS90	381	312	62	100000/L90B10	23259	152.9	152	70+	4000	3.6
Boreas M LED1x20700 J452 T740 LS90	444	353	66	100000/L90B10	20698	124.8	166	70+	4000	5.0
Boreas M LED1x25600 J453 T740 LS90	444	353	66	100000/L90B10	25561	162.3	157	70+	4000	5.0
Boreas M LED1x33150 J454 T740 LS90	515	420	87	100000/L90B10	33116	197.6	168	70+	4000	7.6
Boreas M LED1x38800 G982 T740 LS90	565	460	100	100000/L90B10	38774	235.4	165	70+	4000	10.5
Boreas M LED1x43150 G983 T740 LS90	565	460	100	100000/L90B10	43126	270.1	160	70+	4000	10.5
Boreas M LED1x50700 G984 T740 LS90	565	460	100	100000/L90B10	50687	321.6	158	70+	4000	10.5
Boreas M LED1x4800 J444 T740 LS20	291	230	58	100000/L90B10	4826	28.4	170	70+	4000	1.9
Boreas M LED1x8300 J445 T740 LS20	291	230	58	100000/L90B10	8368	50.5	166	70+	4000	1.9
Boreas M LED1x10250 J446 T740 LS20	291	230	58	100000/L90B10	10334	64.9	159	70+	4000	1.9
Boreas M LED1x11050 J447 T740 LS20	338	280	59	100000/L90B10	11157	67.3	166	70+	4000	2.8
Boreas M LED1x13650 J448 T740 LS20	338	280	59	100000/L90B10	13779	87.5	157	70+	4000	2.8
Boreas M LED1x16600 J449 T740 LS20	381	312	62	100000/L90B10	16736	99.8	168	70+	4000	3.6
Boreas M LED1x20450 J450 T740 LS20	381	312	62	100000/L90B10	20669	129.8	159	70+	4000	3.6
Boreas M LED1x23300 J451 T740 LS20	381	312	62	100000/L90B10	23509	152.9	154	70+	4000	3.6
Boreas M LED1x20700 J452 T740 LS20	444	353	66	100000/L90B10	20920	124.8	168	70+	4000	5.0
Boreas M LED1x25600 J453 T740 LS20	444	353	66	100000/L90B10	25836	162.3	159	70+	4000	5.0
Boreas M LED1x33150 J454 T740 LS20	515	420	87	100000/L90B10	33472	197.6	169	70+	4000	7.6
Boreas M LED1x38800 G982 T740 LS20	565	460	100	100000/L90B10	39191	235.4	166	70+	4000	10.5
Boreas M LED1x43150 G983 T740 LS20	565	460	100	100000/L90B10	43590	270.1	161	70+	4000	10.5
Boreas M LED1x50700 G984 T740 LS20	565	460	100	100000/L90B10	51232	321.6	159	70+	4000	10.5
Boreas M LED1x4800 J444 T740 LS30	291	230	58	100000/L90B10	4774	28.4	168	70+	4000	1.9
Boreas M LED1x8300 J445 T740 LS30	291	230	58	100000/L90B10	8279	50.5	164	70+	4000	1.9
Boreas M LED1x10250 J446 T740 LS30	291	230	58	100000/L90B10	10224	64.9	158	70+	4000	1.9
Boreas M LED1x11050 J447 T740 LS30	338	280	59	100000/L90B10	11039	67.3	164	70+	4000	2.8
Boreas M LED1x13650 J448 T740 LS30	338	280	59	100000/L90B10	13633	87.5	156	70+	4000	2.8
Boreas M LED1x16600 J449 T740 LS30	381	312	62	100000/L90B10	16558	99.8	166	70+	4000	3.6
Boreas M LED1x20450 J450 T740 LS30	381	312	62	100000/L90B10	20449	129.8	158	70+	4000	3.6
Boreas M LED1x23300 J451 T740 LS30	381	312	62	100000/L90B10	23259	152.9	152	70+	4000	3.6
Boreas M LED1x20700 J452 T740 LS30	444	353	66	100000/L90B10	20698	124.8	166	70+	4000	5.0
Boreas M LED1x25600 J453 T740 LS30	444	353	66	100000/L90B10	25561	162.3	157	70+	4000	5.0
Boreas M LED1x33150 J454 T740 LS30	515	420	87	100000/L90B10	33116	197.6	168	70+	4000	7.6
Boreas M LED1x38800 G982 T740 LS30	565	460	100	100000/L90B10	38774	235.4	165	70+	4000	10.5
Boreas M LED1x43150 G983 T740 LS30	565	460	100	100000/L90B10	43126	270.1	160	70+	4000	10.5
Boreas M LED1x50700 G984 T740 LS30	565	460	100	100000/L90B10	50687	321.6	158	70+	4000	10.5
Boreas M LED1x4800 J444 T740 LS45	291	230	58	100000/L90B10	4877	28.4	172	70+	4000	1.9
Boreas M LED1x8300 J445 T740 LS45	291	230	58	100000/L90B10	8457	50.5	167	70+	4000	1.9
Boreas M LED1x10250 J446 T740 LS45	291	230	58	100000/L90B10	10444	64.9	161	70+	4000	1.9
Boreas M LED1x11050 J447 T740 LS45	338	280	59	100000/L90B10	11276	67.3	168	70+	4000	2.8
Boreas M LED1x13650 J448 T740 LS45	338	280	59	100000/L90B10	13926	87.5	159	70+	4000	2.8
Boreas M LED1x16600 J449 T740 LS45	381	312	62	100000/L90B10	16914	99.8	169	70+	4000	3.6
Boreas M LED1x20450 J450 T740 LS45	381	312	62	100000/L90B10	20889	129.8	161	70+	4000	3.6
Boreas M LED1x23300 J451 T740 LS45	381	312	62	100000/L90B10	23760	152.9	155	70+	4000	3.6
Boreas M LED1x20700 J452 T740 LS45	444	353	66	100000/L90B10	21143	124.8	169	70+	4000	5.0
Boreas M LED1x25600 J453 T740 LS45	444	353	66	100000/L90B10	26111	162.3	161	70+	4000	5.0
Boreas M LED1x33150 J454 T740 LS45	515	420	87	100000/L90B10	33828	197.6	171	70+	4000	7.6
Boreas M LED1x38800 G982 T740 LS45	565	460	100	100000/L90B10	39608	235.4	168	70+	4000	10.5
Boreas M LED1x43150 G983 T740 LS45	565	460	100	100000/L90B10	44054	270.1	163	70+	4000	10.5
Boreas M LED1x50700 G984 T740 LS45	565	460	100	100000/L90B10	51777	321.6	161	70+	4000	10.5
Boreas M LED1x4800 J444 T740 LS60	291	230	58	100000/L90B10	4723	28.4	166	70+	4000	1.9
Boreas M LED1x8300 J445 T740 LS60	291	230	58	100000/L90B10	8190	50.5	162	70+	4000	1.9
Boreas M LED1x10250 J446 T740 LS60	291	230	58	100000/L90B10	10114	64.9	156	70+	4000	1.9
Boreas M LED1x11050 J447 T740 LS60	338	280	59	100000/L90B10	10920	67.3	162	70+	4000	2.8
Boreas M LED1x13650 J448 T740 LS60	338	280	59	100000/L90B10	13486	87.5	154	70+	4000	2.8
Boreas M LED1x16600 J449 T740 LS60	381	312	62	100000/L90B10	16380	99.8	164	70+	4000	3.6
Boreas M LED1x20450 J450 T740 LS60	381	312	62	100000/L90B10	20229	129.8	156	70+	4000	3.6
Boreas M LED1x23300 J451 T740 LS60	381	312	62	100000/L90B10	23009	152.9	150	70+	4000	3.6
Boreas M LED1x20700 J452 T740 LS60	444	353	66	100000/L90B10	20475	124.8	164	70+	4000	5.0
Boreas M LED1x25600 J453 T740 LS60	444	353	66	100000/L90B10	25286	162.3	156	70+	4000	5.0
Boreas M LED1x33150 J454 T740 LS60	515	420	87	100000/L90B10	32760	197.6	166	70+	4000	7.6
Boreas M LED1x38800 G982 T740 LS60	565	460	100	100000/L90B10	38357	235.4	163	70+	4000	10.5
Boreas M LED1x43150 G983 T740 LS60	565	460	100	100000/L90B10	42663	270.1	158	70+	4000	10.5
Boreas M LED1x50700 G984 T740 LS60	565	460	100	100000/L90B10	50142	321.6	156	70+	4000	10.5
Boreas M LED1x4800 J444 T740 LSA1	291	230	58	100000/L90B10	4518	28.4	159	70+	4000	1.9
Boreas M LED1x8300 J445 T740 LSA1	291	230	58	100000/L90B10	7834	50.5	155	70+	4000	1.9
Boreas M LED1x10250 J446 T740 LSA1	291	230	58	100000/L90B10	9675	64.9	149	70+	4000	1.9
Boreas M LED1x11050 J447 T740 LSA1	338	280	59	100000/L90B10	10445	67.3	155	70+	4000	2.8
Boreas M LED1x13650 J448 T740 LSA1	338	280	59	100000/L90B10	12900	87.5	147	70+	4000	2.8
Boreas M LED1x16600 J449 T740 LSA1	381	312	62	100000/L90B10	15668	99.8	157	70+	4000	3.6
Boreas M LED1x20450 J450 T740 LSA1	381	312	62	100000/L90B10	19349	129.8	149	70+	4000	3.6
Boreas M LED1x23300 J451 T740 LSA1	381	312	62	100000/L90B10	22009	152.9	144	70+	4000	3.6
Boreas M LED1x20700 J452 T740 LSA1	444	353	66	100000/L90B10	19585	124.8	157	70+	4000	5.0
Boreas M LED1x25600 J453 T740 LSA1	444	353	66	100000/L90B10	24187	162.3	149	70+	4000	5.0
Boreas M LED1x33150 J454 T740 LSA1	515	420	87	100000/L90B10	31336	197.6	159	70+	4000	7.6
Boreas M LED1x38800 G982 T740 LSA1	565	460	100	100000/L90B10	36689	235.4	156	70+	4000	10.5
Boreas M LED1x43150 G983 T740 LSA1	565	460	100	100000/L90B10	40808	270.1	151	70+	4000	10.5
Boreas M LED1x50700 G984 T740 LSA1	565	460	100	100000/L90B10	47962	321.6	149	70+	4000	10.5
Boreas M LED1x4800 J444 T740 LSA2	291	230	58	100000/L90B10	4723	28.4	166	70+	4000	1.9
Boreas M LED1x8300 J445 T740 LSA2	291	230	58	100000/L90B10	8190	50.5	162	70+	4000	1.9
Boreas M LED1x10250 J446 T740 LSA2	291	230	58	100000/L90B10	10114	64.9	156	70+	4000	1.9
Boreas M LED1x11050 J447 T740 LSA2	338	280	59	100000/L90B10	10920	67.3	162	70+	4000	2.8
Boreas M LED1x13650 J448 T740 LSA2	338	280	59	100000/L90B10	13486	87.5	154	70+	4000	2.8
Boreas M LED1x16600 J449 T740 LSA2	381	312	62	100000/L90B10	16380	99.8	164	70+	4000	3.6
Boreas M LED1x20450 J450 T740 LSA2	381	312	62	100000/L90B10	20229	129.8	156	70+	4000	3.6
Boreas M LED1x23300 J451 T740 LSA2	381	312	62	100000/L90B10	23009	152.9	150	70+	4000	3.6
Boreas M LED1x20700 J452 T740 LSA2	444	353	66	100000/L90B10	20475	124.8	164	70+	4000	5.0
Boreas M LED1x25600 J453 T740 LSA2	444	353	66	100000/L90B10	25286	162.3	156	70+	4000	5.0
Boreas M LED1x33150 J454 T740 LSA2	515	420	87	100000/L90B10	32760	197.6	166	70+	4000	7.6
Boreas M LED1x38800 G982 T740 LSA2	565	460	100	100000/L90B10	38357	235.4	163	70+	4000	10.5
Boreas M LED1x43150 G983 T740 LSA2	565	460	100	100000/L90B10	42663	270.1	158	70+	4000	10.5
Boreas M LED1x50700 G984 T740 LSA2	565	460	100	100000/L90B10	50142	321.6	156	70+	4000	10.5
Boreas M LED1x4800 J444 T740 LSM1	291	230	58	100000/L90B10	4518	28.4	159	70+	4000	1.9
Boreas M LED1x8300 J445 T740 LSM1	291	230	58	100000/L90B10	7834	50.5	155	70+	4000	1.9
Boreas M LED1x10250 J446 T740 LSM1	291	230	58	100000/L90B10	9675	64.9	149	70+	4000	1.9
Boreas M LED1x11050 J447 T740 LSM1	338	280	59	100000/L90B10	10445	67.3	155	70+	4000	2.8
Boreas M LED1x13650 J448 T740 LSM1	338	280	59	100000/L90B10	12900	87.5	147	70+	4000	2.8
Boreas M LED1x16600 J449 T740 LSM1	381	312	62	100000/L90B10	15668	99.8	157	70+	4000	3.6
Boreas M LED1x20450 J450 T740 LSM1	381	312	62	100000/L90B10	19349	129.8	149	70+	4000	3.6
Boreas M LED1x23300 J451 T740 LSM1	381	312	62	100000/L90B10	22009	152.9	144	70+	4000	3.6
Boreas M LED1x20700 J452 T740 LSM1	444	353	66	100000/L90B10	19585	124.8	157	70+	4000	5.0
Boreas M LED1x25600 J453 T740 LSM1	444	353	66	100000/L90B10	24187	162.3	149	70+	4000	5.0
Boreas M LED1x33150 J454 T740 LSM1	515	420	87	100000/L90B10	31336	197.6	159	70+	4000	7.6
Boreas M LED1x38800 G982 T740 LSM1	565	460	100	100000/L90B10	36689	235.4	156	70+	4000	10.5
Boreas M LED1x43150 G983 T740 LSM1	565	460	100	100000/L90B10	40808	270.1	151	70+	4000	10.5
Boreas M LED1x50700 G984 T740 LSM1	565	460	100	100000/L90B10	47962	321.6	149	70+	4000	10.5
Boreas M LED1x4800 J444 T740 LSM2	291	230	58	100000/L90B10	4620	28.4	163	70+	4000	1.9
Boreas M LED1x8300 J445 T740 LSM2	291	230	58	100000/L90B10	8012	50.5	159	70+	4000	1.9
Boreas M LED1x10250 J446 T740 LSM2	291	230	58	100000/L90B10	9895	64.9	152	70+	4000	1.9
Boreas M LED1x11050 J447 T740 LSM2	338	280	59	100000/L90B10	10683	67.3	159	70+	4000	2.8
Boreas M LED1x13650 J448 T740 LSM2	338	280	59	100000/L90B10	13193	87.5	151	70+	4000	2.8
Boreas M LED1x16600 J449 T740 LSM2	381	312	62	100000/L90B10	16024	99.8	161	70+	4000	3.6
Boreas M LED1x20450 J450 T740 LSM2	381	312	62	100000/L90B10	19789	129.8	152	70+	4000	3.6
Boreas M LED1x23300 J451 T740 LSM2	381	312	62	100000/L90B10	22509	152.9	147	70+	4000	3.6
Boreas M LED1x20700 J452 T740 LSM2	444	353	66	100000/L90B10	20030	124.8	160	70+	4000	5.0
Boreas M LED1x25600 J453 T740 LSM2	444	353	66	100000/L90B10	24736	162.3	152	70+	4000	5.0
Boreas M LED1x33150 J454 T740 LSM2	515	420	87	100000/L90B10	32048	197.6	162	70+	4000	7.6
Boreas M LED1x38800 G982 T740 LSM2	565	460	100	100000/L90B10	37523	235.4	159	70+	4000	10.5
Boreas M LED1x43150 G983 T740 LSM2	565	460	100	100000/L90B10	41735	270.1	155	70+	4000	10.5
Boreas M LED1x50700 G984 T740 LSM2	565	460	100	100000/L90B10	49052	321.6	153	70+	4000	10.5
Boreas M LED1x4800 J444 T740 LSS1	291	230	58	100000/L90B10	4518	28.4	159	70+	4000	1.9
Boreas M LED1x8300 J445 T740 LSS1	291	230	58	100000/L90B10	7834	50.5	155	70+	4000	1.9
Boreas M LED1x10250 J446 T740 LSS1	291	230	58	100000/L90B10	9675	64.9	149	70+	4000	1.9
Boreas M LED1x11050 J447 T740 LSS1	338	280	59	100000/L90B10	10445	67.3	155	70+	4000	2.8
Boreas M LED1x13650 J448 T740 LSS1	338	280	59	100000/L90B10	12900	87.5	147	70+	4000	2.8
Boreas M LED1x16600 J449 T740 LSS1	381	312	62	100000/L90B10	15668	99.8	157	70+	4000	3.6
Boreas M LED1x20450 J450 T740 LSS1	381	312	62	100000/L90B10	19349	129.8	149	70+	4000	3.6
Boreas M LED1x23300 J451 T740 LSS1	381	312	62	100000/L90B10	22009	152.9	144	70+	4000	3.6
Boreas M LED1x20700 J452 T740 LSS1	444	353	66	100000/L90B10	19585	124.8	157	70+	4000	5.0
Boreas M LED1x25600 J453 T740 LSS1	444	353	66	100000/L90B10	24187	162.3	149	70+	4000	5.0
Boreas M LED1x33150 J454 T740 LSS1	515	420	87	100000/L90B10	31336	197.6	159	70+	4000	7.6
Boreas M LED1x38800 G982 T740 LSS1	565	460	100	100000/L90B10	36689	235.4	156	70+	4000	10.5
Boreas M LED1x43150 G983 T740 LSS1	565	460	100	100000/L90B10	40808	270.1	151	70+	4000	10.5
Boreas M LED1x50700 G984 T740 LSS1	565	460	100	100000/L90B10	47962	321.6	149	70+	4000	10.5
Boreas M LED1x4800 J444 T740 LSS2	291	230	58	100000/L90B10	4569	28.4	161	70+	4000	1.9
Boreas M LED1x8300 J445 T740 LSS2	291	230	58	100000/L90B10	7923	50.5	157	70+	4000	1.9
Boreas M LED1x10250 J446 T740 LSS2	291	230	58	100000/L90B10	9785	64.9	151	70+	4000	1.9
Boreas M LED1x11050 J447 T740 LSS2	338	280	59	100000/L90B10	10564	67.3	157	70+	4000	2.8
Boreas M LED1x13650 J448 T740 LSS2	338	280	59	100000/L90B10	13046	87.5	149	70+	4000	2.8
Boreas M LED1x16600 J449 T740 LSS2	381	312	62	100000/L90B10	15846	99.8	159	70+	4000	3.6
Boreas M LED1x20450 J450 T740 LSS2	381	312	62	100000/L90B10	19569	129.8	151	70+	4000	3.6
Boreas M LED1x23300 J451 T740 LSS2	381	312	62	100000/L90B10	22259	152.9	146	70+	4000	3.6
Boreas M LED1x20700 J452 T740 LSS2	444	353	66	100000/L90B10	19807	124.8	159	70+	4000	5.0
Boreas M LED1x25600 J453 T740 LSS2	444	353	66	100000/L90B10	24462	162.3	151	70+	4000	5.0
Boreas M LED1x33150 J454 T740 LSS2	515	420	87	100000/L90B10	31692	197.6	160	70+	4000	7.6
Boreas M LED1x38800 G982 T740 LSS2	565	460	100	100000/L90B10	37106	235.4	158	70+	4000	10.5
Boreas M LED1x43150 G983 T740 LSS2	565	460	100	100000/L90B10	41271	270.1	153	70+	4000	10.5
Boreas M LED1x50700 G984 T740 LSS2	565	460	100	100000/L90B10	48507	321.6	151	70+	4000	10.5
Boreas M LED1x4800 J444 T740 LS90 ta+55C	291	230	58	100000/L90B10	4774	28.4	168	70+	4000	1.9
Boreas M LED1x8300 J445 T740 LS90 ta+55C	291	230	58	100000/L90B10	8279	50.5	164	70+	4000	1.9
Boreas M LED1x11050 J447 T740 LS90 ta+55C	338	280	59	100000/L90B10	11039	67.3	164	70+	4000	2.8
Boreas M LED1x16600 J449 T740 LS90 ta+55C	381	312	62	100000/L90B10	16558	99.8	166	70+	4000	3.6
Boreas M LED1x20700 J452 T740 LS90 ta+55C	444	353	66	100000/L90B10	20698	124.8	166	70+	4000	5.0
Boreas M LED1x33150 J454 T740 LS90 ta+55C	515	420	87	100000/L90B10	33116	197.6	168	70+	4000	7.6
Boreas M LED1x38800 G982 T740 LS90 ta+55C	565	460	100	100000/L90B10	38774	235.4	165	70+	4000	10.5

Available options:
T730 – Colour temperature 3000K, CRI 70+
T740 – Colour temperature 4000K, CRI 70+
T750 – Colour temperature 5000K, CRI 70+
*note – for models: G982…G984 only T740 option is available
LS20 – Optics with 20×20º beam angle
LS30 – Optics with 30×30º beam angle
LS45 – Optics with 45×45º beam angle
LS60 – Optics with 60×60º beam angle
LS90 – Optics with 90×90º beam angle
LSA1 – Optics with asymmetric beam SA1
LSA2 – Optics with asymmetric beam SA2
LSM1 – Optics with asymmetric beam SM1
LSM2 – Optics with asymmetric beam SM2
LSS1 – Optics with asymmetric beam SS1
LSS2 – Optics with asymmetric beam SS2
DALI – Driver with DALI interface and switch-control dimming
*note – for models: G982…G984 DALI option is not applicable
ADIM – Driver with autonomous two-level dimming
CBF3x1.5-N m – Outgoing flexible cable 3×1.5 mm², length according to customer specification
CBF5x1.5-N m – Outgoing flexible cable 5×1.5 mm², length according to customer specification
*note – please specify the length of outgoing cable before placing an order
C5-M – Product prepared and suitable for installation in coastal areas
RAL – RAL colour

Accessories:
Power supply connector – IP66/IP68, 3×1.5mm2 – Quick and easy to connect power supply and luminaire cables connector – IP66/IP68, 3×1.5 mm², 450V/10A, 1 pcs
Power supply socket – IP66/IP68, 5×1.5mm2 – Quick and easy to connect power supply cable socket – IP66/IP68, 5×1.5 mm², 400V/16A, 1 pcs
Power supply plug – IP66/IP68, 5×1.5mm2 – Quick and easy to connect power supply cable plug – IP66/IP68, 5×1.5 mm², 400V/16A, 1 pcs
