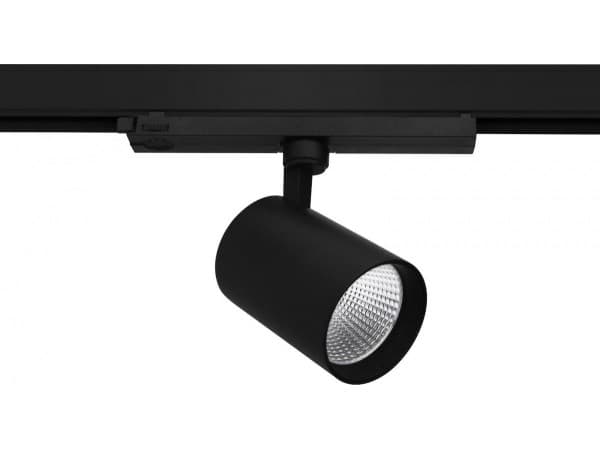

esviesa.lt | Capheus B LED Black IK02 IP20

Track mounted adjustable LED spotlight

More information:

Type:

A wide application LED track light with symmetric reflector designed for the accent lighting

Specification:

Track mounted adjustable LED spotlight
Light distribution type: direct
Optical system: faceted aluminium reflector, clear PMMA diffuser
Housing: aluminium
Colour: white, RAL9016; black, RAL9017
Mains voltage: 220-240V, 0/50-60Hz
LED lifetime, h: 60000/L80B10
SDCM: 3
Protection class IEC: II
Ingress protection code: IP20
Mechanical impact resistance: IK02
Operating temperature range, ºC: 0…+35
Track adaptor (3-phase + N) with phase selector

Installation:

In 3-phase track

Application:

Indoor. Retail, public place, showroom, museum, exhibition

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Capheus B LED1x1900 G603 T840 R40 RAL9017	170	82	164	60000/L80B10	1901	13.5	141	80+	4000	0.58
Capheus B LED1x2500 G604 T840 R40 RAL9017	170	82	164	60000/L80B10	2583	18.7	138	80+	4000	0.58
Capheus B LED1x3350 G605 T840 R40 RAL9017	170	82	164	60000/L80B10	3478	26.5	131	80+	4000	0.58
Capheus B LED1x4250 G606 T840 R40 RAL9017	234	99	180	60000/L80B10	4363	34.0	128	80+	4000	1.50
Capheus B LED1x4750 G667 T840 R40 RAL9017	234	99	180	60000/L80B10	4983	39.8	125	80+	4000	1.50
Capheus B LED1x1900 G603 T940 R40 RAL9017	170	82	164	50000/L80B10	1606	13.3	121	90+	4000	0.58
Capheus B LED1x2500 G604 T940 R40 RAL9017	170	82	164	50000/L80B10	2202	18.2	121	90+	4000	0.58
Capheus B LED1x3350 G605 T940 R40 RAL9017	170	82	164	50000/L80B10	2993	25.8	116	90+	4000	0.58
Capheus B LED1x4250 G606 T940 R40 RAL9017	234	99	180	50000/L80B10	3713	34.0	109	90+	4000	1.50
Capheus B LED1x4750 G667 T940 R40 RAL9017	234	99	180	50000/L80B10	4240	39.8	107	90+	4000	1.50

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
T930 – Colour temperature 3000K, CRI 90+
T940 – Colour temperature 4000K, CRI 90+
T825 BREAD – Special spectrum for bread 2500K, CRI 80+
T820 MEAT – Special spectrum for meat 2000K “pink”, CRI 80+
T831 MEAT&WHITE – Special spectrum for meat products with increased white colour contrast 3100K “pink”, CRI 80+
T930 VEGETABLES – Special spectrum for colourful products. Fruits, fashion 3000K, CRI 90+
T932 FASHION – Special spectrum for fashion 3200K, CRI 90+
T931 FASHION&WHITE – Special spectrum for fashion with dominant white colour 3100K, CRI 90+
R24 – Reflector with 24° light beam angle
R40 – Reflector with 40° light beam angle (standard)
R60 – Reflector with 55° light beam angle
DALI – Driver with DALI interface
*note – DALI option available with length 260 mm
*note – for this model DALI option is not compatible with switch-control dimming functionality
BLT – Integrated wireless control track driver for lighting control via mobile device (via Bluetooth)
KRBLT – Integrated wireless control track driver for lighting control via mobile device (KR system app)
