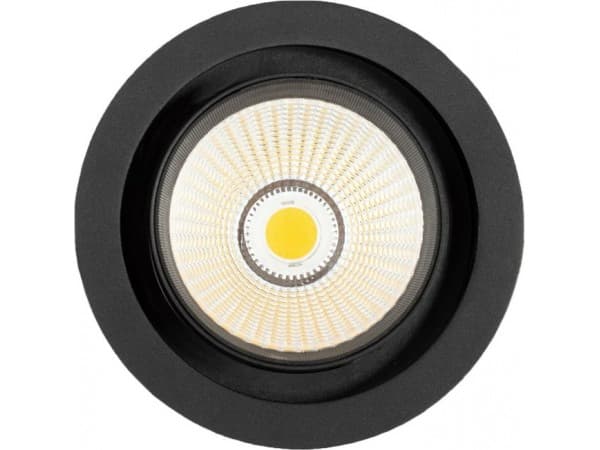

esviesa.lt | Sharqi A LED IK02 IP20

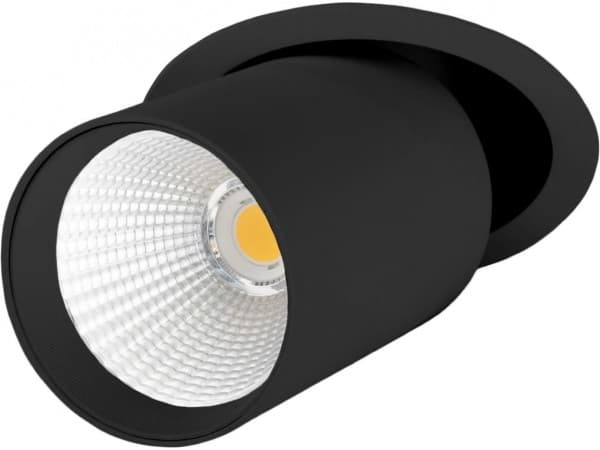

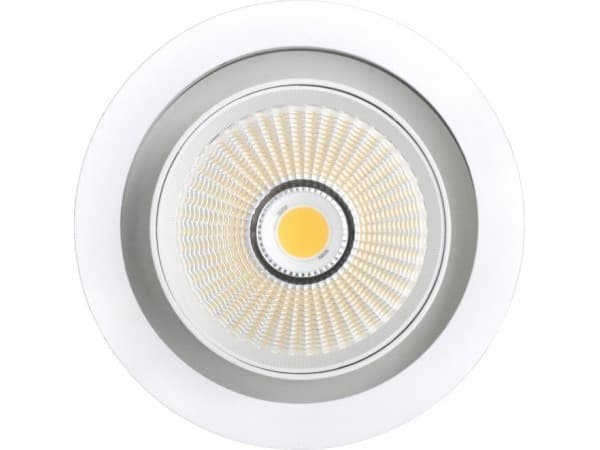

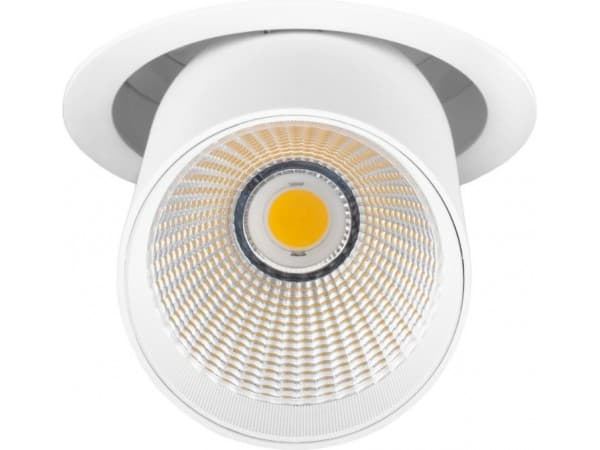

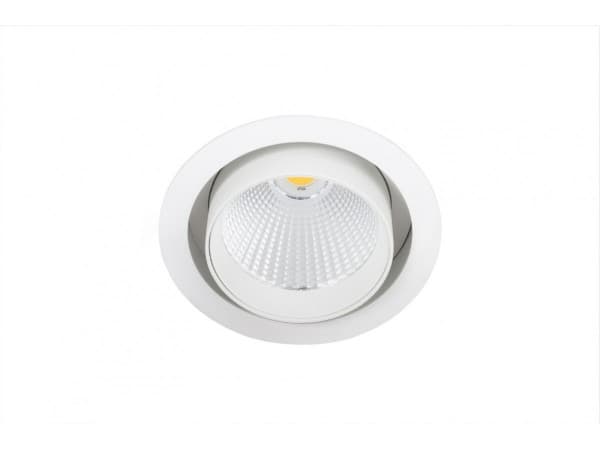

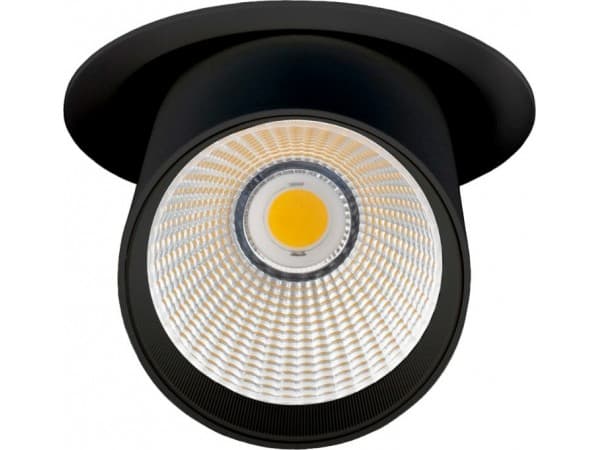

Adjustable LED spotlight

More information:

Type:

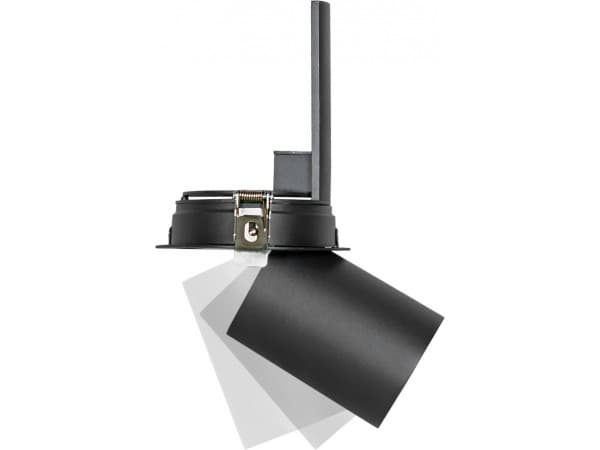

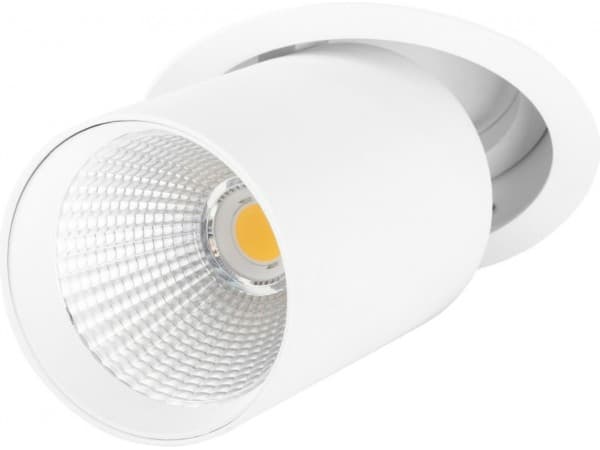

Recessed mounted adjustable LED spotlight with cylindrical design for the accent lighting

Specification:

Recessed mounted adjustable LED spotlight
Light distribution type: direct
Optical system: faceted aluminium reflector, clear PMMA diffuser
Housing: aluminium
Colour: white, RAL9016; black, RAL9017
Mains voltage: 220-240V, 50-60Hz (220-240V, 0/50-60Hz for model G670)
LED lifetime, h: 60000/L80B10
SDCM: 3
Protection class IEC: II
Ingress protection code: IP20
Mechanical impact resistance: IK02
Operating temperature range, ºC: 0…+35
Push-in terminal, 2x1x1.5 mm²

Installation:

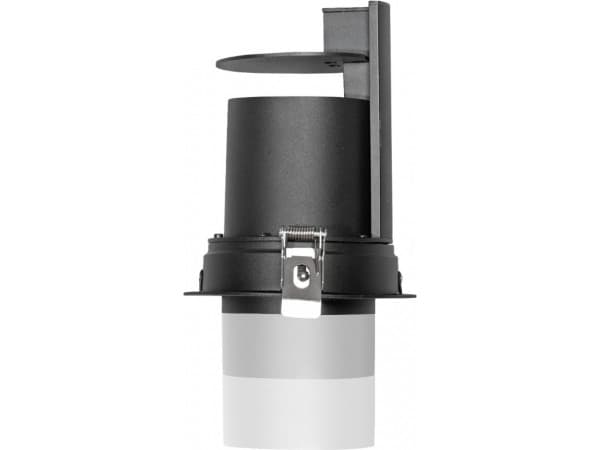

In ceilings with cut-out openings (mounting brackets included)

Application:

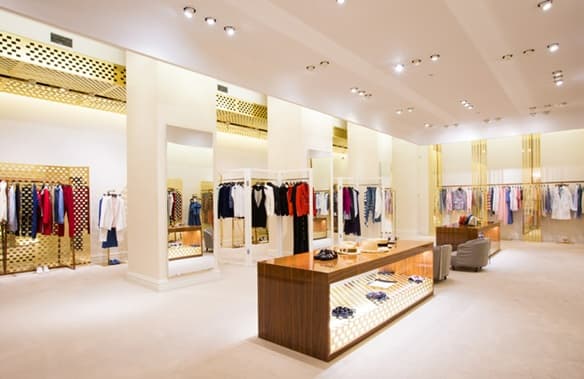

Indoor. Retail, showroom, museum, exhibition, public place

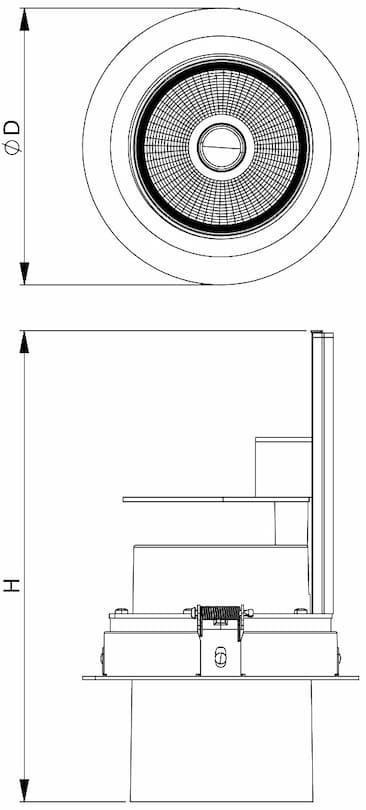

Name	Length, mm	Width, mm	Height, mm	LED lifetime, h	Output, lm	Power, W	Efficacy, lm/W	CRI (Ra)	CCT, K	Weight, kg
Sharqi A LED1x1900 G668 T840 R40 RAL9016	125	125	170	60000/L80B10	1924	13.5	143	80+	4000	0.85
Sharqi A LED1x2550 G669 T840 R40 RAL9016	125	125	170	60000/L80B10	2613	19.8	132	80+	4000	0.85
Sharqi A LED1x3350 G670 T840 R40 RAL9016	125	125	170	60000/L80B10	3518	27.1	130	80+	4000	0.85
Sharqi A LED1x1900 G668 T940 R40 RAL9016	125	125	170	50000/L80B10	1625	13.3	122	90+	4000	0.85
Sharqi A LED1x2550 G669 T940 R40 RAL9016	125	125	170	50000/L80B10	2228	19.3	115	90+	4000	0.85
Sharqi A LED1x3350 G670 T940 R40 RAL9016	125	125	170	50000/L80B10	3028	26.4	115	90+	4000	0.85
Sharqi A LED1x1900 G668 T840 R40 RAL9017	125	125	170	60000/L80B10	1924	13.5	143	80+	4000	0.85
Sharqi A LED1x2550 G669 T840 R40 RAL9017	125	125	170	60000/L80B10	2613	19.8	132	80+	4000	0.85
Sharqi A LED1x3350 G670 T840 R40 RAL9017	125	125	170	60000/L80B10	3518	27.1	130	80+	4000	0.85
Sharqi A LED1x1900 G668 T940 R40 RAL9017	125	125	170	50000/L80B10	1625	13.3	122	90+	4000	0.85
Sharqi A LED1x2550 G669 T940 R40 RAL9017	125	125	170	50000/L80B10	2228	19.3	115	90+	4000	0.85
Sharqi A LED1x3350 G670 T940 R40 RAL9017	125	125	170	50000/L80B10	3028	26.4	115	90+	4000	0.85

Available options:
T830 – Colour temperature 3000K, CRI 80+
T840 – Colour temperature 4000K, CRI 80+
T930 – Colour temperature 3000K, CRI 90+
T940 – Colour temperature 4000K, CRI 90+
T825 BREAD – Special spectrum for bread 2500K, CRI 80+
T820 MEAT – Special spectrum for meat 2000K “pink”, CRI 80+
T831 MEAT&WHITE – Special spectrum for meat products with increased white colour contrast 3100K “pink”, CRI 80+
T930 VEGETABLES – Special spectrum for colourful products. Fruits, fashion 3000K, CRI 90+
T932 FASHION – Special spectrum for fashion 3200K, CRI 90+
T931 FASHION&WHITE – Special spectrum for fashion with dominant white colour 3100K, CRI 90+
T927 NATURAL – Colour temperature 2700K, CRI 95+ NATURAL
T930 NATURAL – Colour temperature 3000K, CRI 95+ NATURAL
T940 NATURAL – Colour temperature 4000K, CRI 95+ NATURAL
R24 – Reflector with 24º light beam angle
R40 – Reflector with 40º light beam angle (standard)
R60 – Reflector with 60º light beam angle
DALI – Driver with DALI interface
WIE3-0.5m – 3-pole “Wieland – gesis classic” type or compatible connector with 0.5 m cable
WIE5D-0.5m – 5-pole DALI “Wieland – gesis classic” type or compatible connector with 0.5 m cable
Europlug-1.5m – 2-pole “Europlug” type plug with 2×1.0 mm² 1.5 m cable
Europlug-3.0m – 2-pole “Europlug” type plug with 2×1.0 mm² 3.0 m cable
